The Science of Digital Resistance: How Smart Home Gyms Compare to Free Weights

The home gym has undergone a quiet revolution. Gone are the days when building serious muscle required a garage full of cast iron plates and a bulky squat rack. Today, a sleek wall-mounted screen or a compact floor platform claims to replace thousands of pounds of free weights, promising a full-body workout in a fraction of the space.

These devices—led by brands like Tonal, Vitruvian, and Speediance—rely on "digital resistance." Instead of fighting gravity, users pull against electromagnetic motors. But for fitness purists and sports scientists alike, a lingering question remains: can algorithms and magnets actually build muscle as effectively as cold, hard iron?[3]

To answer that, we have to look at the physics of lifting. When you perform a bicep curl with a traditional dumbbell, the resistance is dictated by gravity. Because of biomechanics and momentum, the weight feels heavier at certain points in the arc and lighter at others. If you heave the weight up, momentum carries it through the top of the movement, briefly giving your muscles a break.

Digital resistance operates on a completely different physics engine. A high-torque electric motor generates the tension, pulling back against the cable with mathematical precision. There is no momentum. If you pull the cable quickly, the motor instantly adjusts to maintain constant tension, ensuring the muscle is fully engaged throughout the entire range of motion.

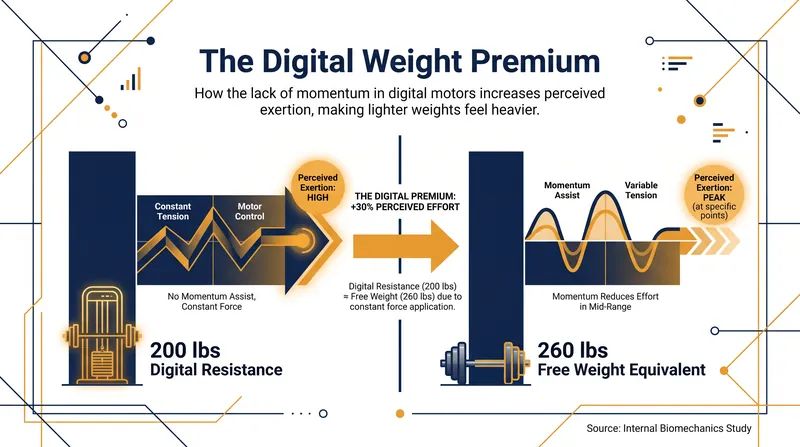

This lack of momentum explains a phenomenon widely reported by users: digital weight feels significantly heavier than free weights. A study conducted by researchers at High Point University and Coastal Carolina University quantified this effect. They found that 200 pounds of digital resistance on a Tonal machine feels equivalent to roughly 260 pounds of traditional free weights.[2]

The researchers used electromyography (EMG) to measure muscle activation during exercises like bicep curls, skull crushers, and overhead presses. The results showed that digital weight systems achieve the same level of primary muscle activation as free weights, but they do so at lower absolute loads because the muscle is never allowed to "rest" during the repetition.

But muscle activation is only part of the equation. Does this translate to actual muscle growth, or hypertrophy? According to a landmark 2017 meta-analysis published in the Journal of Sports Sciences, the specific equipment used matters far less than the total training volume and mechanical tension applied to the muscle.[1]

As long as a muscle is pushed near the point of failure, it will adapt and grow. The biological mechanism of hypertrophy does not know whether the tension is coming from a cast-iron plate or an electromagnetic motor. It only registers the mechanical stress and the subsequent need to repair and reinforce the tissue.[1][3]

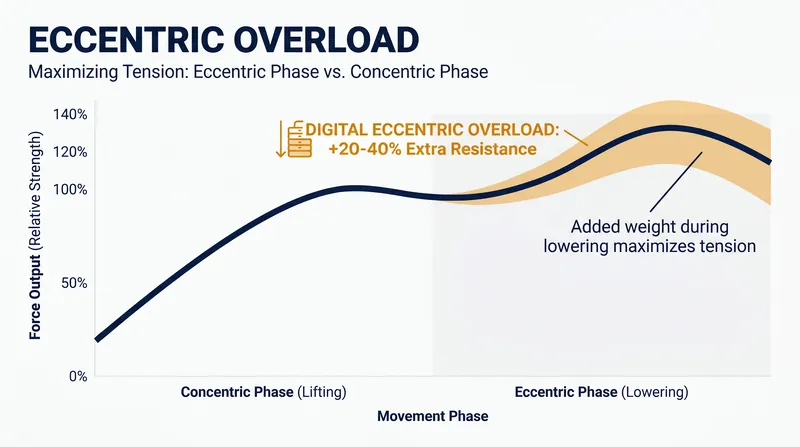

Where digital resistance actually pulls ahead of free weights is in its ability to manipulate that stress mid-repetition. This is most evident in a concept called "eccentric overload," a technique that is notoriously difficult to perform safely with traditional barbells.

Human muscles are naturally stronger during the eccentric phase of a lift (lowering the weight) than the concentric phase (lifting the weight). With a traditional barbell, you are limited by your concentric strength; you can only lower what you were strong enough to lift in the first place.

Digital machines bypass this biological bottleneck. Because the resistance is controlled by software, the machine can instantly add 20% to 40% more weight the moment you begin to lower the cable, and then strip that extra weight off when it is time to push back up. This taxes the muscle fibers more thoroughly than a static weight ever could, maximizing the time under high tension.

Furthermore, smart algorithms can detect a user's "sticking point"—the weakest part of their range of motion. If the machine senses the cable slowing down to a stall, it can micro-adjust the load in real-time, shaving off just enough resistance to let the user complete the rep with perfect form rather than failing entirely.

This dynamic adjustment fundamentally changes the safety profile of strength training. Every year, thousands of gym-goers suffer injuries from dropped weights or failed heavy squats. Training to failure with free weights typically requires a human spotter to ensure the lifter is not pinned under the bar.

Digital machines act as an automatic, algorithmic spotter. If a user struggles or drops the handle, the motor instantly cuts the resistance, preventing the cable from violently snapping back. This feature has made digital resistance particularly appealing for older adults and individuals undergoing physical rehabilitation, allowing them to train near their absolute limit without the risk of catastrophic injury.

However, traditional free weights still hold distinct advantages that digital systems cannot fully replicate. The primary difference lies in three-dimensional stabilization, which is crucial for functional movement and athletic performance.

When you perform a heavy barbell squat, you are not just pushing weight up and down; you are balancing a shifting center of gravity. This requires intense engagement from deep core muscles and smaller stabilizing muscles throughout the hips and back. Cable-based digital systems, while effective for targeted hypertrophy, guide the user's path to a degree, reducing the stabilization demand.

For competitive powerlifters, strongman athletes, and field-sport athletes who need to translate strength into unstable, real-world environments, free weights remain indispensable. The chaos of balancing a heavy load cannot be perfectly simulated by a guided cable.[3]

There is also the issue of absolute load capacity. While digital motors are incredibly powerful, they have ceilings. Tonal maxes out at 200 pounds of total resistance, while floor-based systems like Vitruvian reach up to 440 pounds. For elite lifters who routinely deadlift over 500 pounds, these machines simply cannot provide enough resistance.

Ultimately, the debate between digital weights and free weights is not about which is universally "better," but which tool fits the user's needs. For the top 1% of strength athletes, iron remains king.[3]

But for the vast majority of the population looking to build lean muscle, improve bone density, and train safely at home, the science is clear. Digital resistance is not a gimmick; it is a highly efficient, scientifically validated evolution of strength training that brings the precision of a biomechanics lab into the living room.[3]
