The Science of Cycling Power: How Strain Gauges Work and What Normalized Power, TSS, and IF Actually Measure

If you want to know exactly how hard you are working on a bicycle, heart rate tells you how your body is reacting, but a power meter tells you exactly what your body is producing. By using microscopic strain gauges to measure the minute bending of metal in your pedals or crankset, power meters provide an objective, instantaneous number in watts. Algorithms then take those raw watts and calculate Normalized Power (NP), Intensity Factor (IF), and Training Stress Score (TSS) to reveal the true physiological cost of a ride.[4][6]

The foundation of this exactness is a surprisingly simple physical principle: when you push on a solid metal object, it bends. In cycling, this bending happens in the crank arm, the pedal spindle, or the rear hub. To measure it, engineers bond a tiny foil pattern called a strain gauge directly to the metal surface.[1]

As you pedal, the metal deforms microscopically. The strain gauge stretches or compresses in tandem with the metal beneath it, which predictably changes its electrical resistance. By running a small, continuous voltage through the gauge, the power meter's internal circuitry can measure this change in resistance and calculate the exact torque being applied by the rider's legs.[1][2]

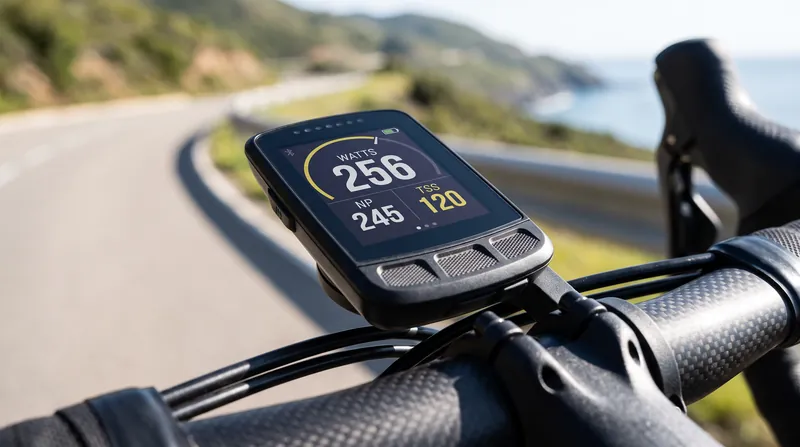

Torque alone, however, is not power. Power is the combination of how hard you are pushing (torque) and how fast you are turning the pedals (cadence). Modern power meters sample this rotational data dozens or even hundreds of times per second, transmitting a steady, highly accurate stream of wattage data to a head unit on the handlebars.[2]

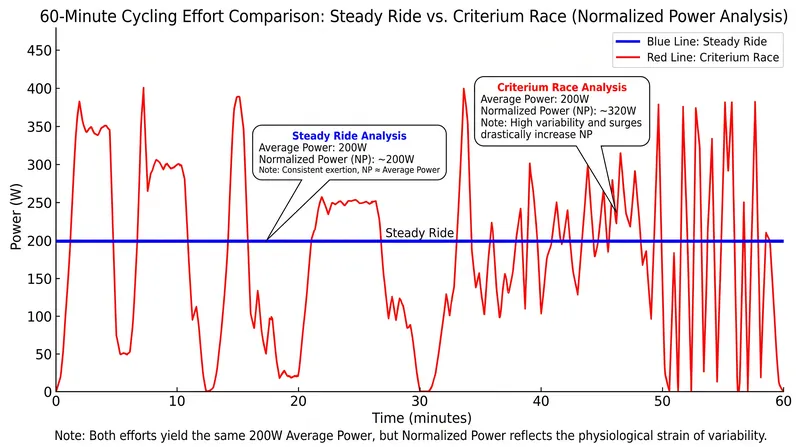

But raw wattage has a fundamental flaw when it comes to analyzing a complete ride: it treats all watts equally. If you ride at a perfectly steady 200 watts for an hour, your average power is 200 watts. If you ride for an hour alternating between 400-watt sprints and zero-watt coasting, your average power might also mathematically equal 200 watts.[5]

Physiologically, those two rides are entirely different experiences for the human body. The steady ride is a moderate aerobic effort fueled primarily by fat and oxygen. The sprint-and-coast ride is a grueling, glycogen-depleting anaerobic workout that floods the muscles with lactate. This is where the concept of Normalized Power (NP) becomes essential for translating mechanical output into biological reality.[4][6]

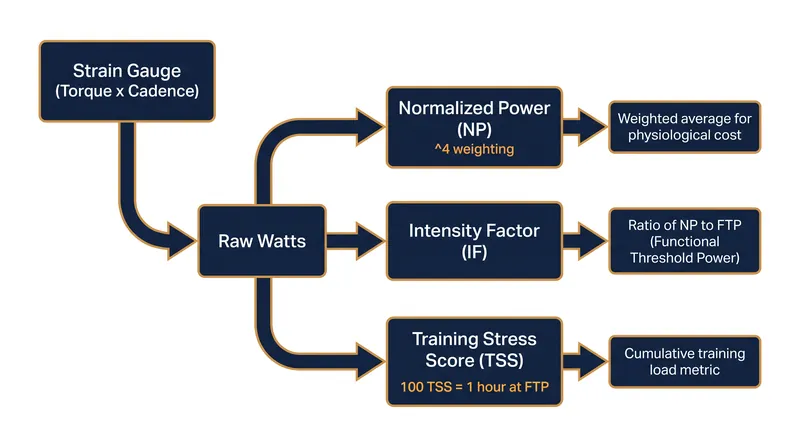

Normalized Power uses a specific algorithm to account for the disproportionate metabolic cost of high-intensity efforts. Instead of a simple mean, it takes a 30-second rolling average of your power output, raises those values to the fourth power, averages them, and then takes the fourth root of the result.[4][5]

Raising the power to the fourth power is the mathematical magic of the formula. It heavily penalizes surges and spikes. A 400-watt effort does not just count as twice as hard as a 200-watt effort; it is weighted exponentially higher in the calculation. This results in an NP that accurately reflects the true physiological toll of a variable ride, providing a number that represents what your average power would have been if you had ridden at a perfectly steady pace.[4][5]

Once you have an accurate Normalized Power, you can calculate your Intensity Factor (IF). IF is simply your Normalized Power divided by your Functional Threshold Power (FTP)—which is the maximum steady power you can sustain for one hour.[3]

If your FTP is 250 watts and your NP for a given ride is 200 watts, your IF is 0.80. This metric allows riders to quickly gauge the relative intensity of a workout, regardless of its duration. An IF of 0.75 indicates a solid endurance ride, while an IF of 1.05 means you were pushing well into the red zone, likely during a short, intense race or interval session.[3][6]

Finally, all of these metrics culminate in the Training Stress Score (TSS). While IF measures how intense a ride was, TSS measures the total workload by factoring in the duration of the effort. It is the ultimate metric for quantifying how much fatigue a specific ride generated.[3]

The baseline for TSS is that one hour of riding exactly at your FTP (an IF of 1.0) equals exactly 100 TSS. A two-hour ride at a much lower intensity might also yield 100 TSS. By tracking TSS over weeks and months, cyclists and coaches can manage their long-term training load, ensuring they are applying enough stress to adapt and grow stronger without tipping over the edge into overtraining.[3][6]

For the everyday rider, this influx of data should not be a source of anxiety or complication. It is simply a tool for clarity. It removes the guesswork from training. You no longer have to wonder if a headwind made your ride harder than it felt; the strain gauges provide the objective truth, allowing you to train smarter, recover more effectively, and ride stronger.[6]
