The Mechanics of the Rendering Pipeline: Forward vs. Deferred Shading

Every time you boot up a modern video game, you are demanding a mathematical miracle. Sixty times a second—or 120 if you are in VR—the game engine must take millions of floating-point coordinates, calculate how light bounces off them, and flatten that raw 3D data into a 2D grid of pixels on your display. If it misses the 16.6-millisecond deadline for a 60 FPS target, the illusion breaks. The frame drops, the input lags, and the player dies. The stakes for rendering are absolute.[6]

How an engine achieves this feat is dictated by its rendering pipeline—the sequence of stages that transforms abstract geometry into a final image. This is not a solved problem with a single correct answer. It is a brutal negotiation between visual fidelity and hardware limits. Developers must choose a pipeline architecture that dictates everything from how many streetlights can illuminate a city to whether a glass window renders correctly.[3][6]

The journey begins in the Input Assembler and the Vertex Shader. Before a single pixel is drawn, the GPU must understand the skeleton of the world. The Vertex Shader processes the vertices—the points in 3D space that make up the polygons of character models and environments. It translates these coordinates from local object space into the camera's view space, effectively positioning the world relative to the player's eyes.[2]

Once the vertices are positioned, the pipeline moves to rasterization. This is the crucial 3D-to-2D conversion step. The rasterizer takes the 3D triangles formed by the vertices and determines exactly which 2D pixels on your screen they cover. It is a highly optimized, fixed-function hardware process that turns vector math into a discrete grid. But knowing which pixels are covered is only half the battle; the engine still has to decide what color they should be.[5]

That decision happens in the Fragment Shader, or Pixel Shader. This is where the engine calculates the material properties, textures, and most importantly, the lighting. Lighting is the single most expensive operation in modern graphics. Calculating how a single point light diffuses across a textured surface requires complex math. Calculating how fifty different lights interact with a wet cobblestone street can bring a flagship GPU to its knees.[1][5]

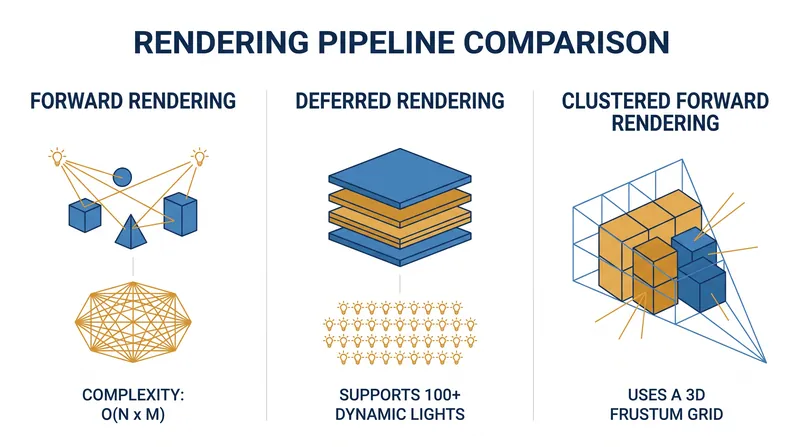

The traditional approach to this problem is Forward Rendering. In a Forward pipeline, the engine takes each object, figures out which lights are hitting it, and calculates the final pixel color right then and there. It is straightforward, intuitive, and handles transparent materials like glass and water perfectly. Because the object is rendered in one depth-sorted pass, the engine knows exactly what is behind it when calculating transparency.[3]

But Forward Rendering has a fatal mathematical flaw: its complexity scales multiplicatively. If you have 100 objects and 100 lights, the engine must perform 10,000 lighting calculations, even if most of those lights barely affect most of those objects. As game worlds grew larger and developers demanded dynamic, realistic lighting, the Forward pipeline became an insurmountable bottleneck. The geometry pass was being choked by the lighting math.[1][6]

To break this bottleneck, the industry pivoted to Deferred Shading. Deferred rendering splits the pipeline into two distinct phases. First, it renders all the geometry in the scene without calculating any lighting. Instead of outputting final colors, it outputs raw data—normals, depth, albedo, and specular values—into a massive series of textures called the G-buffer (Geometry Buffer).[1][3]

Once the G-buffer is populated, the Deferred pipeline runs a second pass strictly for lighting. It looks at the 2D G-buffer and calculates the light for each pixel exactly once, regardless of how many objects are stacked behind it. This decouples geometry from lighting. Suddenly, developers could place hundreds of dynamic lights in a scene without crashing the frame rate. The complexity became additive rather than multiplicative.[1]

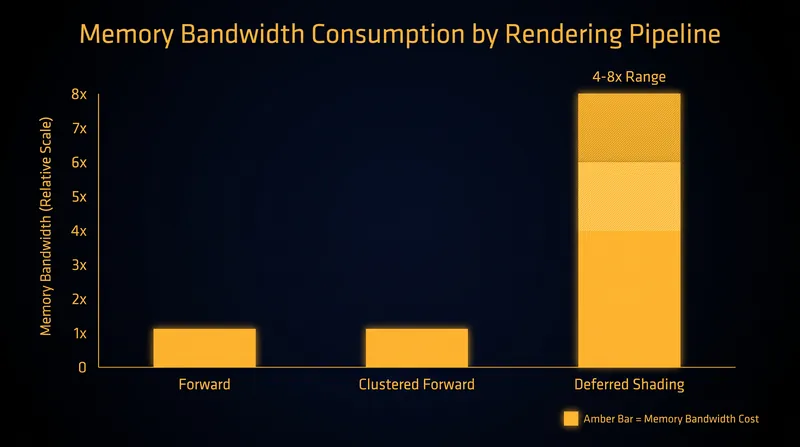

However, Deferred Shading introduced a new, punishing cost: memory bandwidth. Writing to and reading from the massive G-buffer requires moving enormous amounts of data across the GPU's memory bus. On high-end desktop graphics cards, this bandwidth cost is manageable. But on mobile chipsets or standalone VR headsets, moving that much data generates too much heat and drains the battery instantly.[1][4]

Furthermore, Deferred Shading fundamentally breaks transparency. Because the G-buffer only stores the data for the closest opaque surface, it cannot remember what is behind a glass window. Engines using Deferred Shading are forced to bolt on a secondary Forward rendering pass just to handle transparent objects, complicating the pipeline and eating into the performance gains.[3]

This hardware reality forced another evolution, particularly driven by the demands of Virtual Reality. VR requires rendering two high-resolution views at 90 to 120 frames per second on mobile hardware. Deferred Shading's bandwidth tax makes it mathematically non-viable for standalone headsets. The industry needed a pipeline that offered the light-count scaling of Deferred without the memory bandwidth penalty.[4][6]

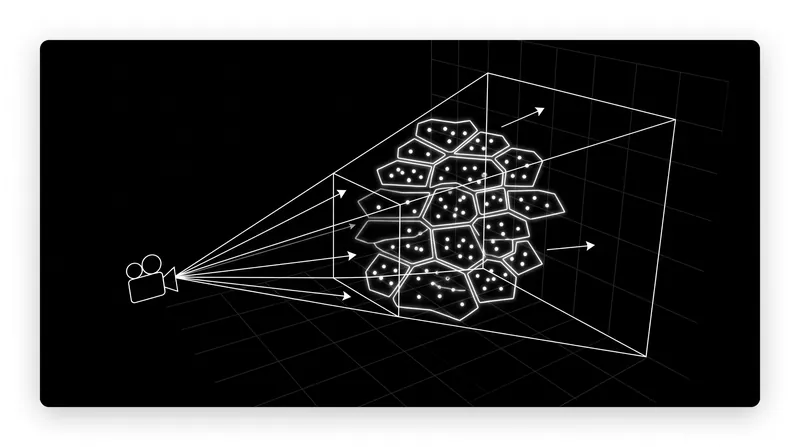

The solution is Clustered Forward Rendering, often referred to as Forward+. This modern hybrid architecture reclaims the efficiency of Forward rendering but solves the multiplicative lighting problem through spatial organization. Before rendering the objects, the engine divides the camera's view frustum into a 3D grid of clusters—like a honeycomb stretching out into the screen.[3][6]

The engine then sorts all the lights in the scene into these clusters. When it comes time to render an object, the Fragment Shader only calculates the lights that exist in the specific cluster the object occupies. Instead of checking 100 lights, it might only check the three lights immediately surrounding the pixel.[6]

By keeping the lighting math localized, Clustered Forward avoids the massive memory bandwidth tax of the G-buffer while still supporting high dynamic light counts. It also natively supports transparency and hardware anti-aliasing (MSAA), making it the gold standard for modern VR development and increasingly the default choice for scalable desktop engines.[3][4]

Ultimately, the rendering pipeline is the invisible foundation of every virtual world. Whether an engine uses the brute-force simplicity of Forward, the decoupled lighting of Deferred, or the spatial elegance of Clustered Forward, the goal remains the same: tricking the human eye into seeing a living, breathing world where there is only a flat grid of colored squares.[6]
