The Mechanics of the 50 Hz Heartbeat: How Europe's Synchronous Grid Prevents Blackouts

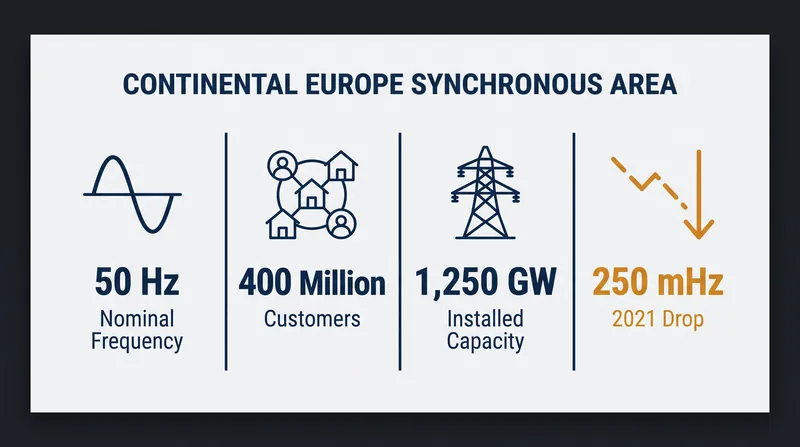

Every time a light switch is flipped anywhere between Portugal and Ukraine, the electrical current drawn from the grid pulses at exactly 50 cycles per second. The Continental Europe Synchronous Area (CESA) binds over 400 million customers across more than 30 countries into a single, phase-locked electrical machine.[2]

Despite the political borders it crosses and the diverse energy policies of its member states, the entire system operates on a unified physical heartbeat. This 50 Hertz (Hz) frequency means the alternating current switches direction 50 times per second.[2]

It is not merely a technical standard; it is the real-time indicator of the balance between electricity supply and demand across the entire continent. When supply exceeds demand, the generators spin slightly faster, and the grid frequency rises.

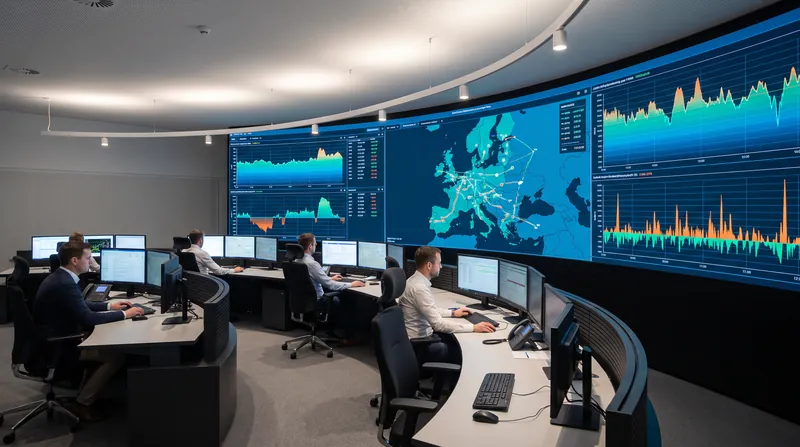

Conversely, when demand outstrips supply—such as when a major power plant suddenly trips offline or a transmission line fails—the frequency drops. Grid operators, coordinated by the European Network of Transmission System Operators for Electricity (ENTSO-E), are tasked with maintaining this frequency within a remarkably tight tolerance.

The standard operational limit is ±0.05 Hz, or 50 millihertz (mHz). If the frequency deviates beyond this 50 mHz boundary, the grid risks severe imbalance. Without immediate intervention, such deviations can trigger automated load shedding or cascading blackouts that could plunge multiple countries into darkness.

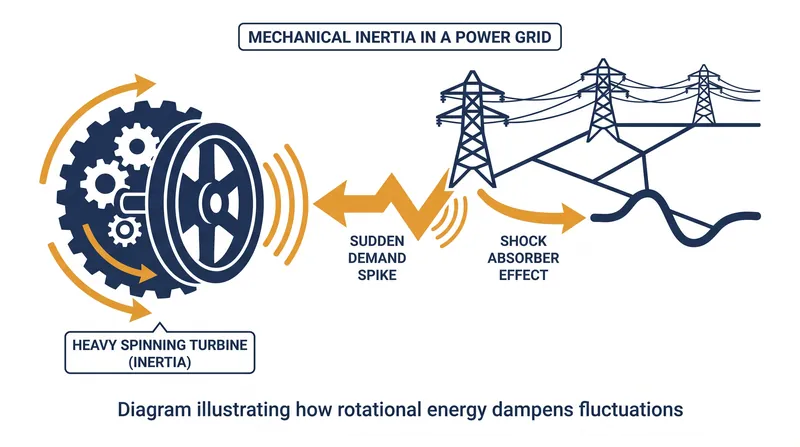

Historically, the grid's primary defense against sudden frequency changes has been mechanical inertia. Conventional power plants—such as coal, nuclear, and hydroelectric facilities—rely on massive, heavy turbines that spin synchronously with the grid.

These spinning turbines store immense amounts of kinetic energy. When a disturbance occurs, this rotating mass acts as a physical shock absorber, naturally resisting the change in frequency and buying grid operators crucial seconds to deploy backup reserves.

However, the ongoing energy transition is fundamentally altering this dynamic. As Europe rapidly deploys wind and solar power to meet decarbonization targets, the grid's overall inertia is decreasing.

Wind turbines and solar panels connect to the grid via power electronics and inverters. Unlike a heavy steam turbine, a solar panel has no moving parts and provides no inherent mechanical inertia, making the grid more sensitive to sudden shocks.

The resilience of this system was severely tested on January 8, 2021. At 14:05 Central European Time, a cascading failure of transmission elements originating in Croatia caused the entire Continental European grid to split into two separate electrical islands.[1]

The North-West area experienced a sudden deficit of power, causing its frequency to plummet to 49.74 Hz within 15 seconds—a drop of roughly 250 mHz.[1]

This deviation was five times larger than the standard 50 mHz operational tolerance. To arrest the fall, transmission system operators in France and Italy automatically disconnected approximately 1.7 gigawatts (GW) of contracted industrial load.[1][3]

The automated countermeasures worked exactly as designed. By 14:09 CET, the frequency deviation in the North-West area was limited to 0.1 Hz, and the two halves of the European grid were successfully resynchronized an hour later without any loss of supply to residential customers.[1]

Beyond internal stability, the grid's footprint continues to expand for geopolitical reasons. In March 2022, following the Russian invasion, ENTSO-E executed an emergency synchronization of the Ukrainian and Moldovan power systems, bringing them into the Continental European fold.[2]

This expansion required meticulous coordination to ensure that the phase sequence and voltage of the Ukrainian grid perfectly matched the European system before the interconnecting breakers were closed.[2]

The integration process continues in the Baltic region. In February 2025, Estonia, Latvia, and Lithuania officially disconnected from the Russian-led BRELL network to synchronize with the Continental European grid, a move heavily funded by the European Commission to secure regional energy independence.[2]

As the grid grows larger and its mechanical inertia shrinks, operators are deploying new technologies to maintain the 50 Hz heartbeat. Solutions include synchronous condensers—large, unpowered rotating machines that provide pure inertia—and grid-forming batteries capable of injecting "synthetic inertia" within milliseconds.

The next structural test for the European grid lies in the scaling of synthetic inertia. With total installed capacity projected to reach 1,250 gigawatts by the end of 2025, the ratio of inverter-based renewables to heavy rotating turbines will continue to climb.[2]

The system's ability to survive the next major transmission failure will depend entirely on whether grid-forming batteries and synchronous condensers can inject power fast enough to replace the physical momentum the grid is currently losing.[3]
