The Mechanics of Carbon Capture: Comparing Direct Air Capture and Point Source Systems

At 420 parts per million, carbon dioxide makes up just 0.04 percent of the Earth's atmosphere. Extracting it at that concentration is thermodynamically equivalent to finding and removing a single drop of ink dissolved in a swimming pool. Yet, facilities designed to do exactly this—Direct Air Capture (DAC) plants—are currently being constructed from Texas to Iceland. They represent one half of the mechanical carbon capture equation. The other half, point source capture, operates at the source of the emissions, intercepting the carbon before it ever reaches the atmosphere.[1]

The distinction between these two approaches is not merely semantic; it represents a fundamental divergence in engineering, energy requirements, and economic viability. Point source capture is a mitigation tool, designed to stop the bleeding from industrial facilities like cement kilns and steel mills. DAC is a remediation tool, designed to lower the atmospheric concentration of historical emissions. Both rely on similar chemical principles, but they operate at vastly different scales of efficiency.[4][6]

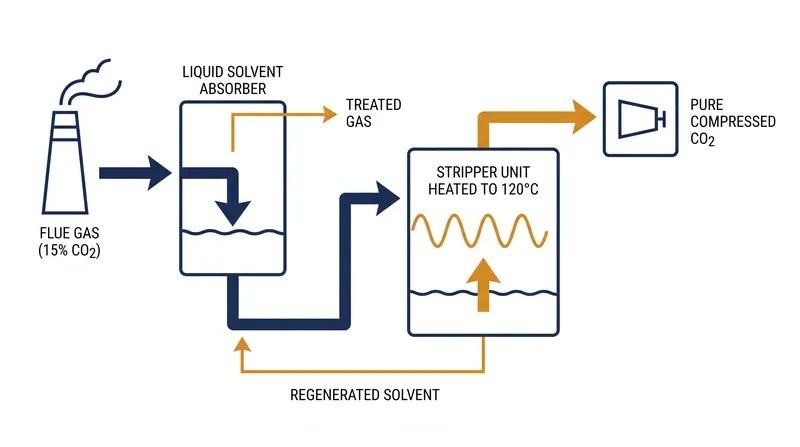

Point source capture systems are integrated directly into the exhaust infrastructure of power plants or heavy industry. When a facility burns fossil fuels or processes limestone, the resulting flue gas is heavily concentrated with CO2—often between 5 percent and 15 percent by volume. This high concentration is a thermodynamic advantage. The exhaust is cooled and passed through a liquid solvent, typically an amine solution, which chemically binds with the CO2 molecules while allowing nitrogen and water vapor to escape.[3]

Once the solvent is saturated, it is pumped into a regenerator unit, often called a stripper. Here, the system applies heat—usually between 120 and 140 degrees Celsius—to break the chemical bond, releasing a pure stream of CO2 gas. The regenerated solvent is then cycled back to the absorption chamber, while the captured CO2 is compressed into a supercritical fluid for transport via pipeline and eventual deep geologic storage. Because the initial concentration of CO2 is relatively high, the energy required to separate it is manageable, though it still imposes an energy penalty on the host facility.[3][5]

Direct Air Capture operates on a similar absorption-regeneration cycle, but it faces a much steeper thermodynamic climb. Because atmospheric CO2 is highly dilute, DAC facilities must process enormous volumes of air to capture a meaningful amount of carbon. Massive arrays of industrial fans draw ambient air across a filter coated with either a liquid solvent, such as potassium hydroxide, or a solid sorbent.[1][2]

The energy required to move millions of cubic meters of air is substantial, but the regeneration phase is where DAC's energy demands truly spike. Liquid solvent DAC systems require heating the captured solution to nearly 900 degrees Celsius to release the CO2, a temperature that typically necessitates burning natural gas, with the resulting emissions also captured. Solid sorbent systems operate at lower temperatures—around 80 to 120 degrees Celsius—which can be supplied by waste heat or renewable electricity, but they require a vacuum environment to release the gas, adding mechanical complexity.[1]

The thermodynamic difference between 15 percent concentration at a point source and 0.04 percent concentration in the atmosphere dictates the economics of carbon capture. According to the Congressional Budget Office, capturing carbon at a point source like a natural gas processing plant or a cement facility costs between $15 and $120 per metric ton. The energy penalty—the extra fuel required to run the capture equipment—ranges from 10 percent to 30 percent of the plant's total output.[3][6]

In contrast, the International Energy Agency estimates that DAC currently costs between $135 and $340 per metric ton, with some early-stage commercial facilities reporting costs closer to $600 per ton. The energy required to capture a ton of CO2 from the ambient air is roughly three to four times higher than capturing it from a concentrated flue gas stream. This energy must come from zero-carbon sources; otherwise, the emissions generated by powering the DAC plant would cancel out the carbon it removes from the atmosphere.[1][2][6]

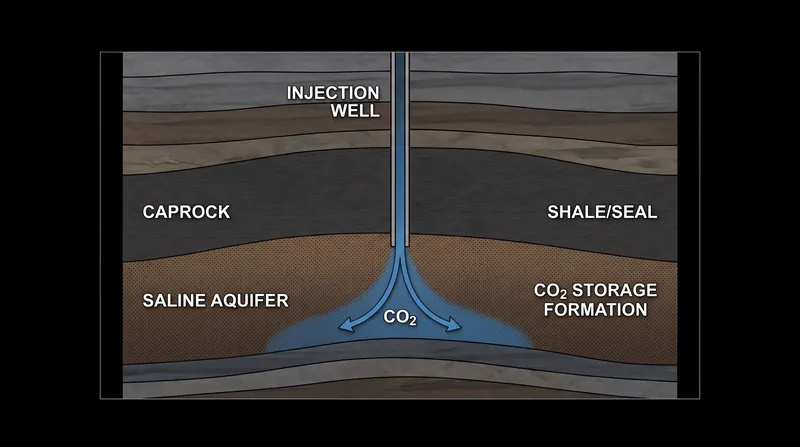

Regardless of how the CO2 is captured, the final step in the mechanical carbon capture process is identical: permanent sequestration. The compressed CO2 is injected deep underground into porous rock formations, such as saline aquifers or depleted oil and gas reservoirs. A caprock of impermeable shale prevents the gas from migrating upward. Over time, the CO2 dissolves into the surrounding brine and eventually reacts with the rock to form solid carbonate minerals, permanently locking it away.[5]

Intergovernmental Panel on Climate Change models indicate that both technologies are necessary to limit global warming to 1.5 degrees Celsius. Point source capture is critical for decarbonizing heavy industries where emissions are inherent to the chemical process, such as cement production, which accounts for roughly 8 percent of global CO2 emissions. It is a transitional technology that prevents new carbon from entering the system.[5]

DAC, meanwhile, serves a different strategic purpose. It is required to offset emissions from hard-to-abate sectors like aviation and agriculture, where point-source capture is physically impossible. More importantly, DAC is one of the few technological pathways capable of generating negative emissions—actively reducing the total volume of carbon already in the atmosphere to correct for historical overshoots.[4]

The primary uncertainty surrounding both technologies is the pace of scaling. While point source capture has been utilized in the oil and gas industry for decades, retrofitting existing power plants and industrial facilities has proven financially and logistically complex. For DAC, the challenge is driving down the levelized cost of capture through manufacturing economies of scale, while simultaneously securing the vast amounts of clean energy and water required to operate the facilities.[1][3]

Ultimately, the mechanics of carbon capture dictate a hierarchy of deployment. Because of the sheer energy required to separate dilute carbon from the atmosphere, DAC cannot serve as a substitute for point-source emissions reductions. The most efficient way to manage carbon is to prevent it from dispersing into the atmosphere in the first place; vacuuming it up afterward will always be an energy-intensive last resort.[6]
