The Bayer Filter: Why Digital Cameras Forced Hollywood to Swap Blue Screens for Green

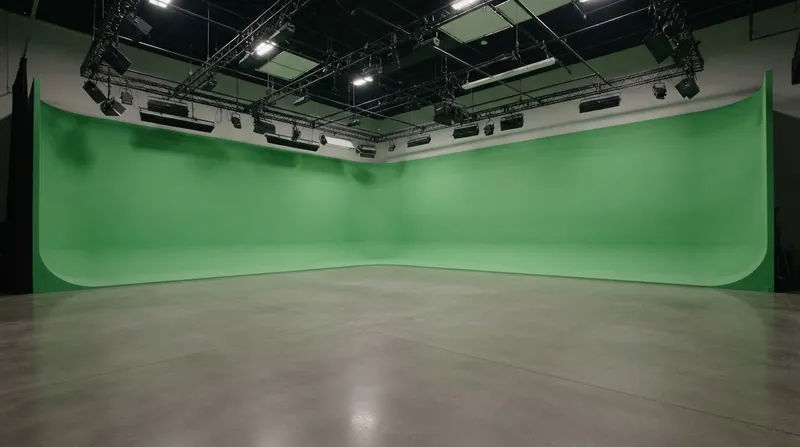

When visual effects artists composited the original Star Wars trilogy, they shot their models against massive, brightly lit blue screens. Today, a modern blockbuster uses the exact same technique to isolate actors from their backgrounds, but the fabric behind them is a blinding, fluorescent green.[2]

The difference between the two eras has nothing to do with costume colors or lighting budgets. Instead, the shift is entirely dictated by the physical architecture of the cameras capturing the image.

The transition from photochemical film to digital sensors fundamentally rewired how light is recorded, forcing the visual effects industry to adapt its most foundational tool. To understand why green became the default, you have to look at how a digital camera sees the world.[3]

In the analog era, blue was the undisputed king of the composite. Photochemical film stock is built in layers, with different chemical emulsions sensitive to different wavelengths of light.[2]

The Photochemical Era

The blue-sensitive layer of traditional color film possessed the finest silver halide crystals, resulting in the tightest, least noisy grain structure. "Because the blue record had the finest grain, it provided the sharpest edge for optical printing," notes the historical documentation on analog compositing.[2]

When technicians needed to create a high-contrast matte to cut an actor out of a scene, that sharp blue edge was essential. A green screen on analog film would have yielded a fuzzier, less precise outline, making the final composite look artificial.[2]

That chemical reality vanished when the industry abandoned celluloid for silicon. Digital cinema cameras do not have layered chemical emulsions; they have a flat grid of photosites that can only measure the intensity of light, not its color.

To capture a color image, engineers had to place a microscopic color filter over every single pixel. In 1976, an Eastman Kodak scientist named Bryce Bayer solved this problem by inventing the color filter array that still bears his name.[1]

The Kodak Engineer's Mosaic

The Bayer filter is a checkerboard pattern of red, green, and blue squares laid over the sensor. But Bayer did not distribute the colors evenly across the grid, knowing that the human retina is overwhelmingly more sensitive to green light than to red or blue.[1]

To mimic human vision and create the most natural-looking image, he allocated exactly 50 percent of the filter's pixels to green. The remaining 50 percent was split evenly, leaving 25 percent for red and 25 percent for blue.[1]

This biological quirk permanently altered Hollywood's visual effects pipeline. On a standard digital sensor, half of the physical data points are dedicated exclusively to capturing green light.

"The green channel contains twice as much spatial information as the blue or red channels," explains the technical reference for modern sensor design. For a visual effects artist trying to separate an actor from a background, spatial information is the most valuable currency in the world.

The Mathematics of the Matte

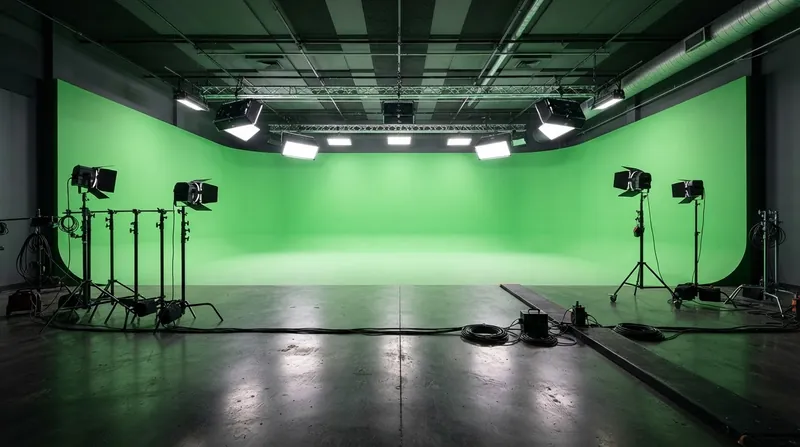

A chroma key works by selecting a specific color range and rendering it transparent, generating a black-and-white matte. The quality of that matte depends entirely on the resolution of the edge between the subject and the background.[2]

Because a digital camera dedicates twice as many pixels to green, a green screen provides twice the raw edge-detection data compared to a blue screen. On a standard DCI 4K sensor, which contains roughly 8.8 million total pixels, 4.42 million of them are measuring green light.[3]

Only 2.21 million pixels are measuring blue. When a compositor pulls a key from a green background, they are working with a significantly higher-resolution matte, capturing strands of hair, motion blur, and fine fabric details with double the fidelity.[3]

When a digital camera processes a RAW image, it must guess the missing colors for every pixel through an algorithm called demosaicing. Because the blue pixels are spaced further apart on the grid, the camera has to invent more data to fill the gaps.[1]

The Cost of Bouncing Light

This interpolation inherently softens the blue channel, making it a poor candidate for the razor-sharp boundaries required by modern visual effects. Beyond pure resolution, the green channel also boasts the highest luminance and the lowest noise floor.[1][3]

Digital sensors are inherently cleaner in the green spectrum, meaning the background requires less electrical amplification to expose properly. When a sensor's gain is pushed, the blue channel is typically the first to exhibit digital noise, which manifests as a dancing grain that destroys a matte.

The transition to green was not without its drawbacks. Because green is so luminous, it bounces aggressively off the screen and onto the actors, a phenomenon known in the industry as color spill.[2]

"Green spill is notoriously difficult to neutralize, often requiring colorists to manually inject magenta into the shadows to counteract the contamination," details the Factlen Editorial Team's analysis of modern post-production workflows.[3]

The Next Evolution of the Background

Blue spill, by contrast, is much easier to manage because it closely resembles natural ambient skylight, which the human eye readily accepts. Furthermore, green screens require significantly less physical lighting equipment to illuminate evenly.[2][3]

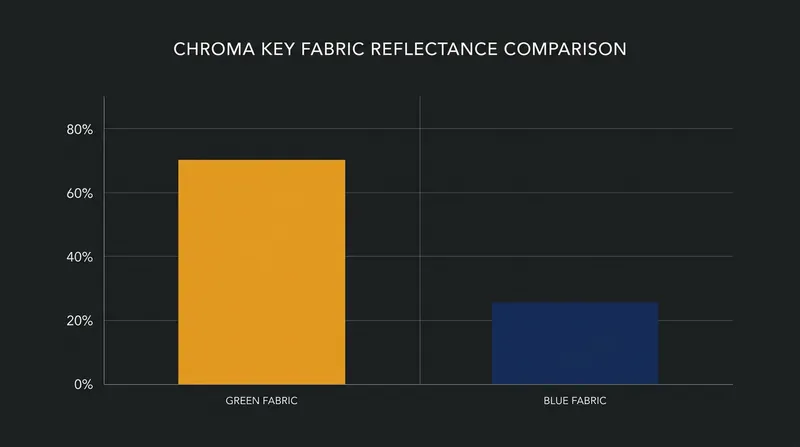

A green fabric reflects roughly 70 percent of the light hitting it, while a traditional blue fabric reflects only about 25 percent. For a massive soundstage, lighting a green screen requires a fraction of the electricity and heat generation.[3]

Despite its dominance, the blue screen is not entirely extinct in the digital age. Cinematographers still request blue backgrounds for specific edge cases, most notably when filming dark or nighttime scenes.[2]

If a scene is meant to be dark, the intense luminance of a green screen can ruin the contrast ratios on the actors' faces, making blue the safer choice. Blue is also deployed when the subject matter demands it, such as when a character is wearing a green costume.[2][3]
