The 33.7% Shockley-Queisser Limit: Why Silicon Solar Cells Cannot Convert More Sunlight to Electricity

In 1961, at Shockley Semiconductor, physicists William Shockley and Hans-Joachim Queisser calculated a hard mathematical ceiling that would dictate the future of global energy. They demonstrated that a standard solar cell, using a single p-n junction, could never convert more than a specific fraction of incoming sunlight into electricity.

As researchers Jean-François Guillemoles and colleagues note in Nature Photonics, "The Shockley–Queisser model is a landmark in photovoltaic device analysis by defining an ideal situation as reference for actual solar cells." This boundary established that even a perfectly engineered single-junction cell would max out at an efficiency of 33.7%. Since that publication, this figure has served as the ultimate benchmark for photovoltaic research, defining the physical constraints of renewable energy generation.[1][4][5]

The logic underlying this limit is rooted in the principle of detailed balance, which equates the flux of photons entering a device to the flux of particles leaving it. Sunlight is not a single uniform beam of energy; it is a broad spectrum of photons carrying different energy levels.

When these photons strike a semiconductor like silicon, they must possess enough energy to knock an electron loose from its atomic bond, a threshold known as the bandgap. If a photon lacks this minimum energy of roughly 1.1 electron volts, it simply passes through the material as if it were transparent, contributing nothing to the electrical current.[1][6]

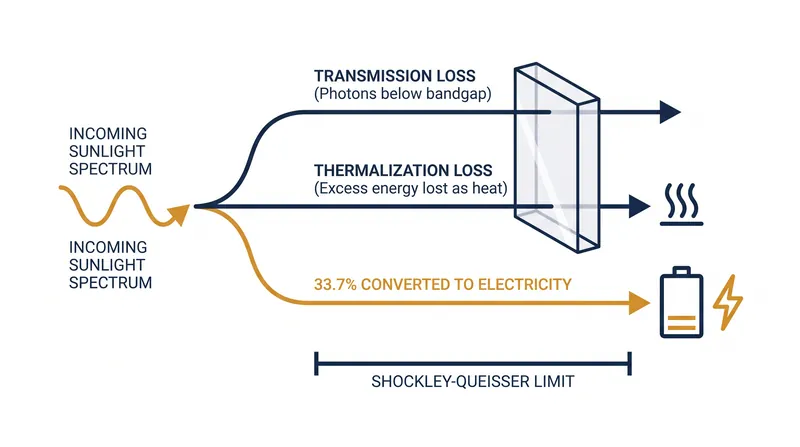

Conversely, when a photon carries more energy than the bandgap requires, the excess is not converted into extra electricity. Instead, it is rapidly lost as heat through a process called thermalization. Because the solar spectrum contains a vast amount of high-energy blue and ultraviolet light, this thermalization loss is massive. Shockley and Queisser calculated that these two factors alone—transmission of low-energy photons and thermalization of high-energy ones—destroy roughly 47% of the incoming solar energy before it can even be harnessed.[4][5]

The remaining energy is subject to a third unavoidable penalty: radiative recombination. In any semiconductor, electrons that have been excited into a conductive state will eventually fall back into their original positions, emitting a photon in the process.

The detailed balance model assumes that a solar cell must be in thermal equilibrium with its environment, meaning it must emit radiation just as it absorbs it. This mandatory recombination acts as a fundamental leak in the system, capping the maximum voltage the cell can produce and finalizing the 33.7% ceiling for an ideal material with a bandgap of 1.34 to 1.4 electron volts.[1][4]

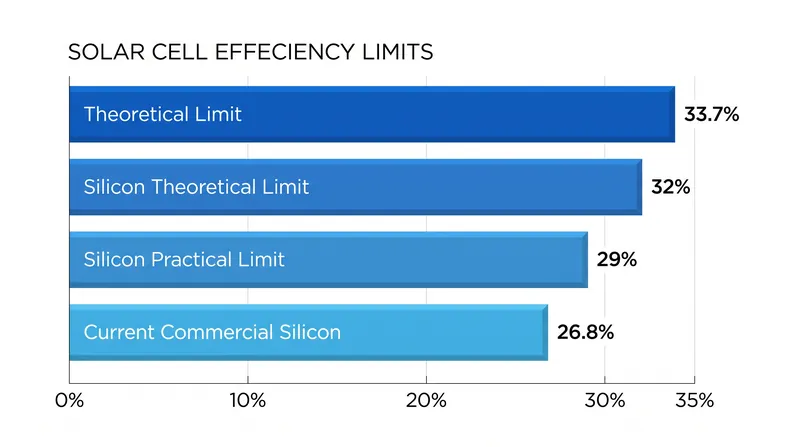

Silicon, the material that dominates the modern solar industry, operates at a slight mathematical disadvantage. Its bandgap is 1.1 electron volts, which is slightly too narrow to perfectly match the solar spectrum. As a result, the theoretical Shockley-Queisser limit specifically for a single-junction silicon cell is closer to 32%. Yet, even this lower ceiling remains entirely out of reach for commercial manufacturing. The most advanced silicon modules currently available top out at roughly 24% to 26.8% efficiency, leaving a significant gap between theoretical perfection and practical reality.[5]

This discrepancy exists because the original 1961 model describes a flawless universe. The Shockley-Queisser limit assumes that radiative recombination is the only loss mechanism present. It assumes zero electrical resistance within the cell's contacts, perfect absorption of all above-bandgap light, and an absence of impurities in the crystal lattice. In the real world, silicon cells suffer from non-radiative recombination, where electrons lose their energy to defects in the material rather than emitting light. They also face parasitic resistance from the metal wires required to carry the current away.[3][6]

Acknowledging these empirical realities shifts the conversation from a theoretical limit to a practical ceiling. When researchers factor in unavoidable Auger recombination—a specific type of non-radiative loss inherent to heavily doped silicon—and the optical shading caused by surface contacts, the absolute maximum efficiency for a silicon cell drops to roughly 29%. Because commercial production cannot perfectly replicate laboratory conditions, the industry is rapidly approaching a hard stop where pouring more capital into standard silicon refinement yields diminishing returns.[7]

The realization that single-junction silicon is nearing its physical exhaustion point has forced the photovoltaic industry to change its fundamental architecture. If the Shockley-Queisser limit strictly applies to a single p-n junction, the mathematical loophole is to stack multiple junctions on top of each other. This approach, known as a tandem solar cell, divides the solar spectrum into distinct segments, assigning a specific material to harvest each one at peak efficiency.[4][7]

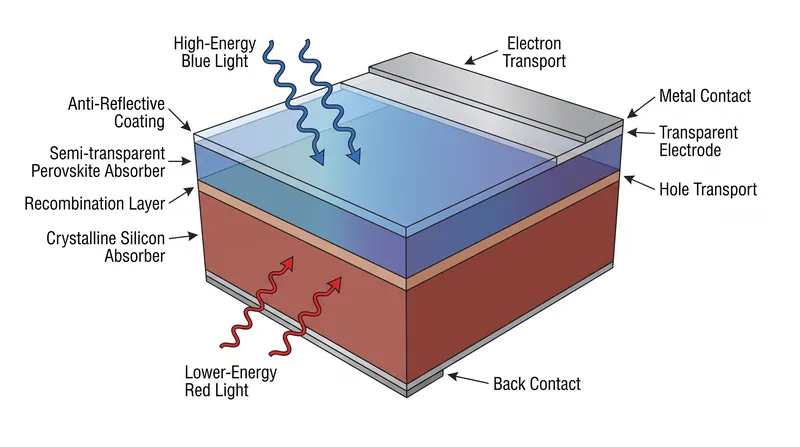

In a typical tandem configuration, a wide-bandgap material is placed on top of a standard silicon base. The top layer absorbs the high-energy blue and green photons, converting them to electricity at a high voltage and drastically reducing thermalization losses. The lower-energy red and infrared photons pass through this top layer and are absorbed by the silicon underneath. By dividing the labor, a two-junction tandem cell pushes the theoretical efficiency limit from 33.7% up to approximately 45%.[5][6]

Perovskite materials have emerged as the dominant candidate for the top layer in these tandem architectures. Unlike traditional semiconductors, perovskites can be synthesized from solution and their bandgaps can be easily tuned by altering their chemical composition. This allows engineers to perfectly calibrate the perovskite layer to complement the underlying silicon. Recent laboratory breakthroughs have already pushed perovskite-silicon tandem cells past the 34.8% mark, officially breaking the single-junction Shockley-Queisser limit and proving the viability of the multi-junction approach.[7]

Beyond tandem cells, researchers are also exploring nanostructured geometries to manipulate light at the sub-wavelength scale. By engineering the surface of the solar cell with nanowires or photonic crystals, it is possible to create built-in optical concentration factors of 1,000x or more.

This forces light to bounce internally, increasing the probability of absorption and allowing the cell to be made significantly thinner. While nanostructured cells still obey a generalized version of the detailed balance limit, they offer a pathway to maximize voltage and minimize material usage without the complexity of stacking multiple different semiconductors.[2][7]

The Shockley-Queisser limit operates not as a failure of engineering, but as a strict accounting of thermodynamic laws. It clarifies exactly where energy is lost and dictates the structural changes required to capture it. As the global energy transition accelerates, the shift from single-junction silicon to tandem and nanostructured architectures represents the industry's necessary graduation from optimizing a single material to engineering the entire solar spectrum. The next era of solar power depends entirely on how effectively manufacturers can stack these materials at scale.[4][7]
