The 3.5-Inch vs. 2-Inch Kingpin: How Load Rating and Coupling Geometry Dictate Semi-Trailer Use

Inside the engineering committee rooms of the Society of Automotive Engineers in December 2018, the physical limits of extreme freight were codified into a single document. When the SAE published the revised J848 standard for heavy-duty fifth wheel kingpins, it formalized a geometric reality: the immense kinetic energy of a 70-ton payload must be safely funneled through a forged steel cylinder exactly 3.5 inches wide.[5]

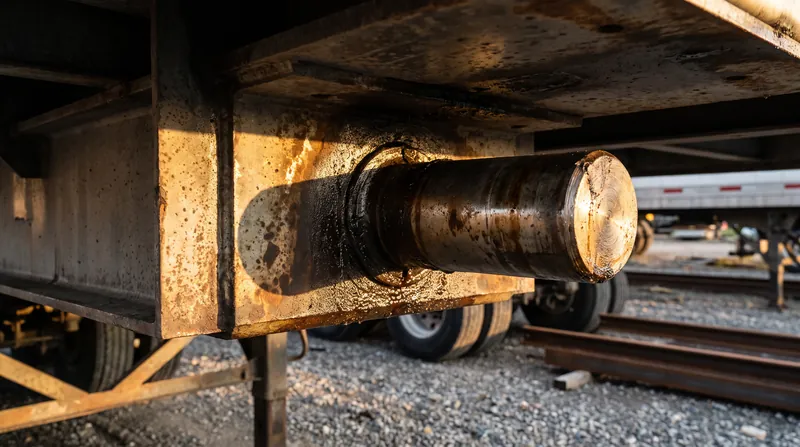

This component serves as the sole mechanical link between a heavy-duty tractor unit and its semi-trailer. As defined by the encyclopedia's technical summary of the mechanism, 'The coupling consists of a kingpin, a 2-or-3+1⁄2-inch-diameter (50.8 or 88.9 mm) vertical steel pin protruding from the bottom of the front of the semi-trailer, and a horseshoe-shaped coupling device called a fifth wheel on the rear of the towing vehicle.'[8]

For standard highway freight, the industry relies on a smaller counterpart. Governed by the SAE J700 standard, the 2-inch (50.8-millimeter) kingpin is the undisputed baseline for commercial transport, engineered to handle standard gross combination weights that typically cap around 40 to 44 tons.[1][4]

But the physics of transportation change dramatically when the payload scales up. When military logistics units or heavy-haul operators need to move 70-ton payloads—such as the M1 Abrams tanks transported by the Army's M1070 Heavy Equipment Transporters—the shear forces involved exceed the safe working limits of a standard 2-inch pin.[3]

To safely articulate these massive loads, the transport industry shifts to the 3.5-inch kingpin. Defined by the J848 standard, this 88.9-millimeter pin is the structural backbone of extreme freight, securing everything from mining excavators to oversized industrial transformers.[5][8]

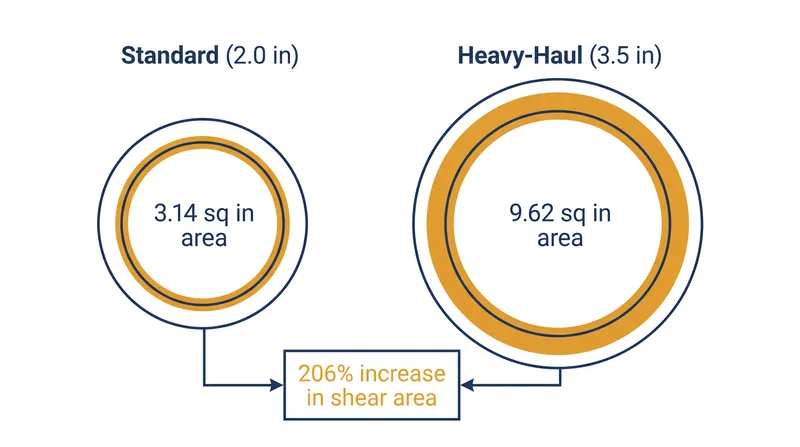

The difference between the two sizes is a fundamental shift in geometric capability. By increasing the diameter from 2.0 to 3.5 inches, engineers increase the cross-sectional area of the pin by more than 200 percent, expanding it from 3.14 to 9.62 square inches.[9]

That expanded surface area is the mathematical mechanism that prevents catastrophic failure. During emergency braking, a 70-ton trailer exerts immense forward shear force against the fifth wheel jaws; the 3.5-inch pin distributes that force across its wider profile, keeping the stress well below the steel's yield point.[5][9]

Manufacturing these critical components requires precise metallurgical control. According to SAF-Holland, a leading global manufacturer of fifth wheels and coupling systems, modern kingpins are forged from high-strength alloy steel and subjected to rigorous heat treatment.[2]

The hardening process must strike a delicate balance. The outer surface of the pin must be exceptionally hard to resist the constant abrasive friction of the fifth wheel jaws as the trailer articulates through turns.[2][6]

However, the core of the kingpin must remain relatively ductile. If the entire pin were hardened to the same degree as the surface, the metal would become brittle and prone to snapping under sudden impact loads.[6]

Because the kingpin is the single point of failure in a tractor-trailer combination, regular inspection is mandated by both manufacturers and transportation authorities. The SAE J2228 standard establishes strict wear limits for commercial trailers, dictating exactly when a pin must be retired.[7]

Over time, the constant pivoting against the fifth wheel locking mechanism wears down the diameter of the pin. SAF-Holland's technical guidance is explicit on the tolerance, noting that a kingpin must be replaced if it shows 1/8-inch of wear or more on the 2-inch diameter.[6]

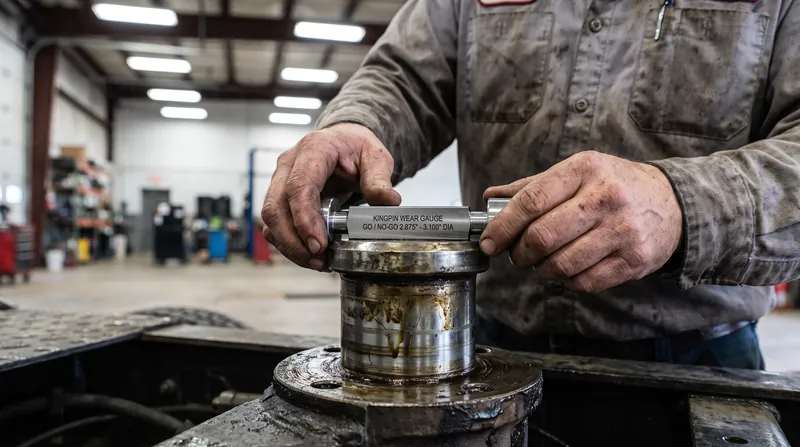

Measuring this wear requires specialized gauges that check both the upper and lower diameters of the pin, as well as its squareness relative to the trailer's bolster plate. A pin that is bent or worn out of round will not lock securely into the fifth wheel, creating a severe safety hazard.[6][7]

The choice between a 2-inch and a 3.5-inch system dictates the entire architecture of the towing vehicle. A heavy-haul tractor equipped with a 3.5-inch fifth wheel cannot couple to a standard 2-inch trailer without a specialized drop-in adapter, and a 2-inch tractor cannot pull a 3.5-inch heavy-haul trailer.[4][8]

For fleet operators, this creates a hard logistical boundary. Standard freight companies standardize entirely on the 2-inch SAE J700 platform to ensure absolute interoperability across thousands of trucks and trailers.[1]

Conversely, specialized heavy-haul outfits build their fleets around the SAE J848 3.5-inch standard, accepting the loss of interoperability in exchange for the capacity to move the world's heaviest infrastructure.[5]

The global supply chain rests on these two distinct geometries. The safe arrival of a payload depends entirely on the integrity of that hidden steel pivot, and the engineering certainty that the pin is scaled to the load.[3][8]
