Suspending Heating Elements Above the Frypot Base Isolates Sinking Debris in Cooler Stagnant Oil, Preventing the Carbonization That Breaks Down Frying Fat

In 1918, a Massachusetts kitchen equipment manufacturer named J.C. Pitman fundamentally changed the physics of commercial cooking when he patented the Pitco Frialator. Before his invention, deep frying meant placing a flat-bottomed pot over an open flame, a method that guaranteed the rapid destruction of the cooking fat.[1][4]

The sensory experience of a perfectly fried piece of chicken relies entirely on the purity of the oil it cooks in. When you drop breaded food into a vat heated to 350°F (177°C), loose particles of flour and batter inevitably break away and sink.[3]

In a traditional flat-bottomed pot, those sinking crumbs land directly on the hottest surface in the vessel. There, they continue to cook until they turn into black, coal-like carbon, imparting a bitter, scorched flavor to the oil and everything cooked in it.[1]

The Physics of Thermal Stratification

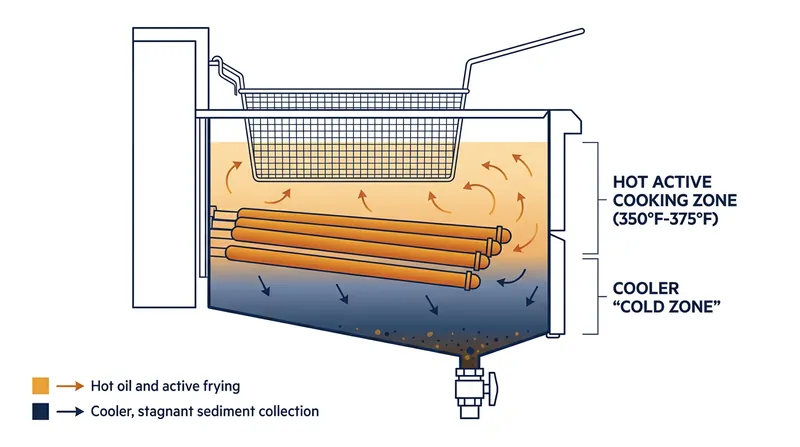

Pitman’s breakthrough was a masterclass in applied thermodynamics that solved the burnt-crumb problem. Instead of heating the vat from the bottom, he suspended gas-fired heating tubes directly through the center of the oil container, completely altering how heat moved through the liquid.[1][4]

Because heat naturally rises, the oil situated above the suspended tubes absorbs the thermal energy and circulates vigorously. This creates the active cooking zone, where rapid convection currents transfer heat into the food to crisp the exterior and seal in moisture.[2][6]

The heat flux density between the heating elements and the oil can reach a staggering 150 kilowatts per square meter. This intense energy transfer promotes large-scale cellular recirculation, driving convection currents that mix the upper layers of the vat in under three minutes.[2]

Meanwhile, the oil sitting below the heating tubes remains entirely isolated from these violent convection currents. This area, known in the restaurant industry as the cold zone, stays significantly cooler and entirely stagnant, creating a safe harbor for falling debris.[4]

When a crumb of breading breaks off a frying chicken wing, it sinks through the active cooking zone and drifts past the heating elements. Once it crosses into the cold zone, the temperature drops sharply, preventing the crumb from scorching.[6]

The Chemistry of Oil Degradation

Keeping those sunken particles from burning is not just about preventing a bad taste; it is about halting a cascade of chemical reactions. When organic matter decomposes at high temperatures in an oxygen-starved environment, it undergoes carbonization.[3]

"Food particles, breading, and proteins that fall into the cold zone or settle on the burner tubes eventually burn and turn into carbon," explains a technical guide from The Restaurant Warehouse. "This carbon acts as a literal insulator."

If sediment is allowed to carbonize on the bottom of a flat pan, the heat must penetrate that black crust before reaching the oil. This forces the heating elements to work harder, driving up utility bills and slowing down the fryer's thermal recovery time.

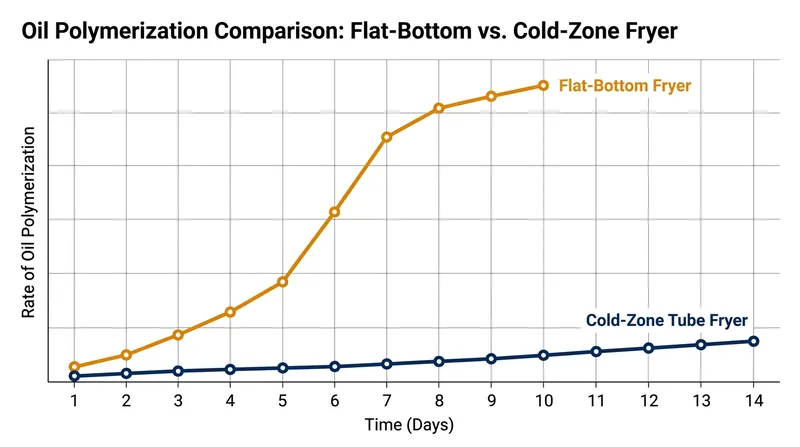

Worse, the presence of burnt carbon accelerates polymerization, a process where oil molecules link together to form a thick, plastic-like varnish. As the oil degrades, it releases free fatty acids that lower the smoke point and create a dark, sluggish liquid.[3]

When the oil temperature exceeds 390°F (200°C), these non-volatile compounds rapidly accelerate their bonding process. The resulting polymers cause the oil to foam, which traps air beneath the surface and further fuels the destructive cycle of oxidation.[3][6]

Matching BTUs to the Menu

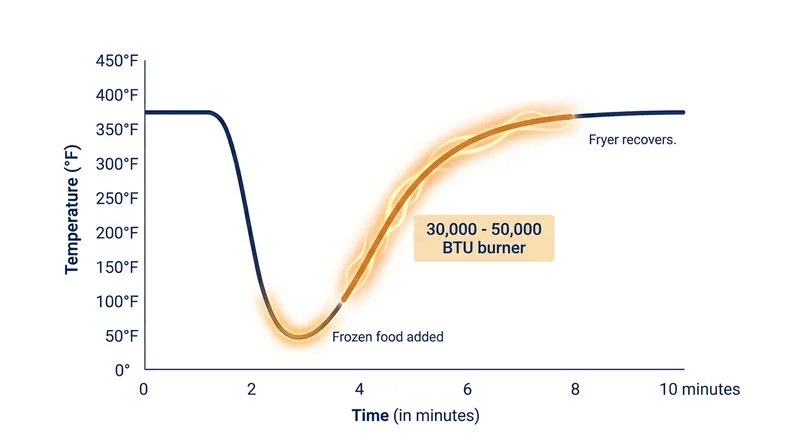

To maintain the delicate balance of the cold zone, a commercial fryer must possess enough raw power to recover its temperature instantly. When frozen food hits the vat, the oil temperature plummets as the ice absorbs the latent heat of fusion.[6]

A standard commercial fryer requires an output of 30,000 to 50,000 British Thermal Units (BTUs) to handle small-batch frying. If the burner lacks this thermal mass, the oil lingers in a lukewarm state, causing the food to absorb grease rather than sealing its surface.[4][6]

The type of food a kitchen serves dictates the specific fryer architecture they require. Tube fryers, which feature a massive cold zone beneath their suspended gas pipes, are the undisputed heavy-lifters for high-sediment foods like battered fish and onion rings.[6]

Open-pot fryers, which typically use electric heating elements that swing up and out of the vat, offer a shallower cold zone. These units are highly efficient and easy to clean, making them ideal for low-sediment items like frozen french fries.[4][6]

The Limits of the Cold Zone

While suspending the heating elements extends the life of the fat, it does not eliminate the need for rigorous kitchen maintenance. The cold zone is a temporary holding area, not a magical disappearing act for kitchen waste.[6]

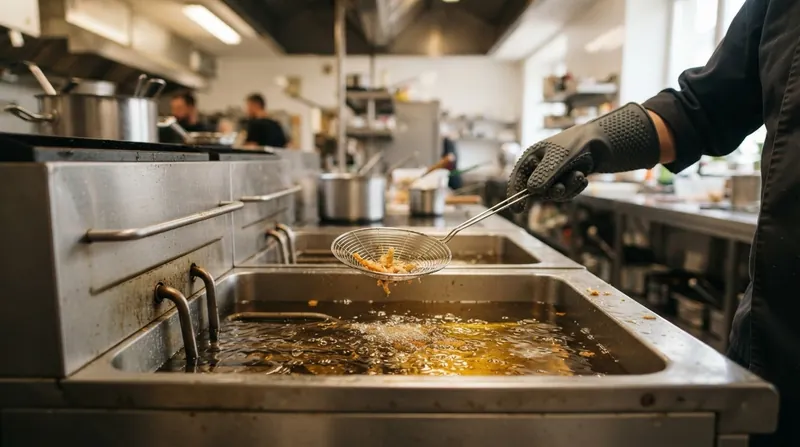

Throughout a busy dinner service, cooks must continually skim the surface of the oil with a long-handled crumb scoop. If floating debris is left in the active cooking zone, it will carbonize before it ever has a chance to sink.

At the end of the night, the accumulated sludge in the cold zone must be drained and the oil filtered. Modern kitchens often rely on built-in filtration systems that pump the warm oil through paper filters, removing microscopic particles that the cold zone cannot catch.[4]

Without this daily filtration, the sediment in the cold zone will eventually build up until it touches the heating elements. Once that physical bridge is formed, the cold zone ceases to function, and the oil will rapidly break down into a rancid, smoking mess.[6]

Even with perfect maintenance, frying oil has a finite lifespan. The constant exposure to atmospheric oxygen and the moisture released by the cooking food will eventually trigger hydrolysis, turning the fat acidic and giving the fried food a tainted, soapy flavor.[2][3]

The Future of Frying Physics

The true legacy of J.C. Pitman’s 1918 patent is not that it made frying oil immortal, but that it made commercial deep frying economically viable. By isolating the destructive debris, the cold zone allows a single vat of oil to survive hundreds of cooking cycles.[1][4]

Today, kitchen engineers continue to refine this century-old physics, experimenting with vacuum frying and automated sediment removal. The next leap in frying technology will likely focus on lowering the atmospheric pressure in the vat, reducing the boiling point of water to preserve the oil even longer.[6]

Until those pressurized systems become standard, the simple geometry of the suspended heating tube remains the industry's best defense against oil degradation. The cold zone stands as a testament to the fact that sometimes the most elegant engineering solutions require no moving parts at all.[1][6]
