Resilient Pebax Foams Double Energy Return Over Standard EVA Without Sacrificing Cushion Longevity

Runners lacing up modern performance shoes are now recovering up to 90 percent of the mechanical energy they drive into the pavement. The shift has rewritten the physiological limits of distance running, allowing athletes to sustain faster paces at lower heart rates. This leap in efficiency comes entirely from a fundamental shift in the polymer chemistry beneath the foot.[1][3]

For decades, the athletic footwear industry relied on ethylene vinyl acetate (EVA) to cushion the impact of running. Standard EVA foams absorb shock effectively, but they only return about 50 to 66 percent of the energy applied to them. The remaining kinetic energy is lost as heat, forcing the runner's muscles to work harder to propel the body forward.[3][5]

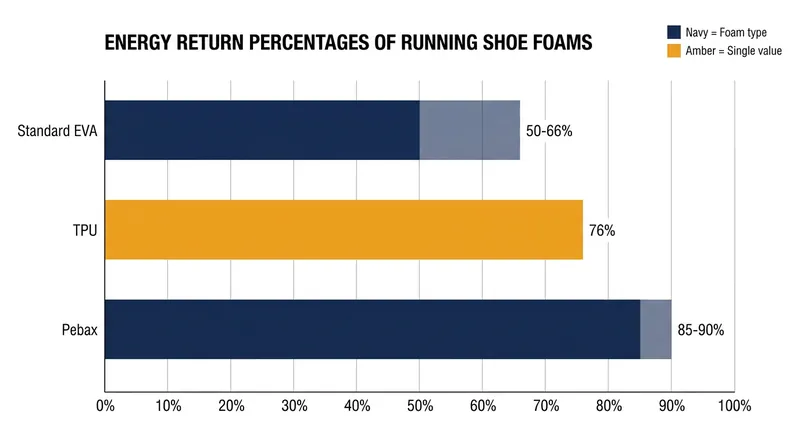

That energetic deficit changed with the introduction of polyether block amide, widely known by its proprietary name, Pebax. Originally developed for industrial applications, Pebax is a thermoplastic elastomer that behaves differently under load. When manufactured into a microcellular foam, it delivers an energy return rate of 85 to 90 percent.[1][3]

This 20 to 35 percentage point increase in mechanical rebound fundamentally alters the energetic cost of running. Biomechanical studies demonstrate that Pebax midsoles improve a runner's economy—the amount of oxygen required to maintain a given pace—by 4 to 6 percent. That margin translates to minutes saved over a marathon distance.[4][5]

"When manufactured into a foam, it has two advantages over traditional ethylene vinyl acetate (EVA) or thermoplastic polyurethane (TPU) midsoles: it’s lighter and more resilient," notes Dr. Geoffrey T. Burns, a biomechanics researcher writing in a 2019 editorial for the British Journal of Sports Medicine.[5]

The Chemistry of Block Copolymers

The secret to this exceptional energy return lies in the material's molecular architecture. Pebax is a cross-linked block copolymer, meaning it combines two distinct types of polymer chains into a single unified structure. Manufacturers can precisely tune the ratio of these two blocks to achieve the exact balance of softness and structural integrity.[1][3]

The first component is a polyamide block, which provides the material with its durability and strength. Polyamides are inherently tough because they form dense networks of hydrogen bonds that resist tearing and deformation. This rigid framework ensures the foam can withstand the repetitive, high-impact forces generated during a run without instantly collapsing.[3]

The second component is a polyether block, which lacks those rigid hydrogen bonds and remains highly flexible. This softer segment gives the foam its elasticity, allowing it to compress deeply when the foot strikes the ground. Because the polyether blocks are anchored to the rigid polyamide structure, the material snaps back instantly.[3]

This rapid expansion converts the stored potential energy back into kinetic energy, physically pushing the runner's foot off the ground. The cross-linked structure also means the foam is significantly less dense than traditional linear polymers. The resulting midsole is exceptionally lightweight, which further reduces the muscular effort required to swing the leg forward.[3]

Isolating the Foam from the Plate

When these high-rebound foams first entered the market, much of the public attention focused on the rigid carbon-fiber plates embedded inside them. Early narratives suggested the plates acted like literal springs, catapulting runners forward. However, subsequent biomechanical research has clarified that the foam itself does the vast majority of the heavy lifting.[4]

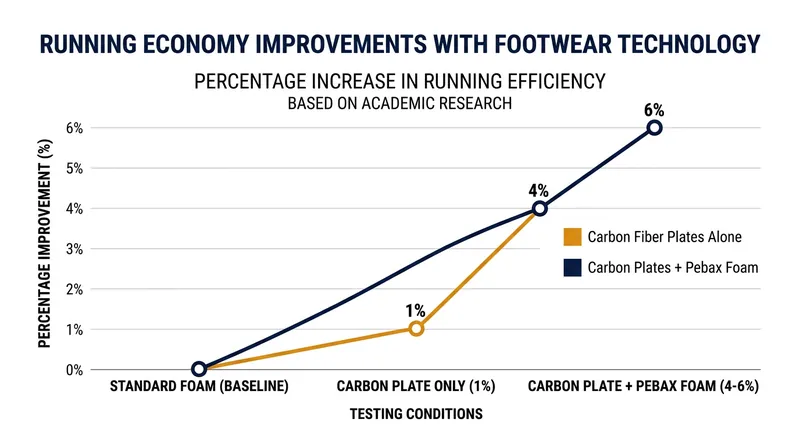

Studies isolating the components have shown that carbon-fiber plates improve running economy by roughly 1 percent. The plate primarily functions to stiffen the metatarsophalangeal joint and stabilize the highly compliant foam, preventing the foot from sinking too deeply or rolling laterally. The remaining improvement comes entirely from the Pebax elastomer.[4]

"The research has repeatedly demonstrated that the PEBA foams have the greatest influence on running economy and contribution to performance improvements over any of the other components," the clinical team at Doctors of Running concluded in a 2020 biomechanical review.[4]

The biomechanical changes induced by these foams are most pronounced at the ankle joint. When running in traditional EVA shoes, the calf muscles must generate massive force to achieve plantar flexion during the push-off phase. The high-rebound Pebax foam effectively shares this workload, reducing the total mechanical work required from the ankle extensors.[4]

This localized reduction in muscular demand cascades up the kinetic chain. Because the ankle is doing less work, the runner experiences a lower overall rate of perceived exertion. The preservation of calf and Achilles tendon function becomes particularly critical in the later stages of a long run, where muscular fatigue typically forces a slowdown.[4]

Compression Set and Temperature Resilience

Beyond peak energy return, the durability of a running shoe depends heavily on its resistance to "compression set." This metric defines how much a foam permanently flattens out after repeated cycles of loading and unloading. Standard EVA foams suffer from high compression set, gradually losing their cushioning and bottoming out.[2]

High-grade Pebax foams retain a higher percentage of their initial energy return and structural height after significant compression cycling compared to standard EVA. While elite racing shoes prioritize maximum rebound over extreme longevity—often rated for 300 to 500 miles—the underlying polymer resists the permanent flattening that plagues older materials.[2]

Temperature sensitivity represents another critical durability factor where the block copolymer excels. Traditional EVA foams are highly susceptible to thermal changes; they soften and turn mushy in extreme heat, and they stiffen into rigid blocks in freezing weather. This variability forces runners to contend with a fundamentally different shoe depending on the season.[2]

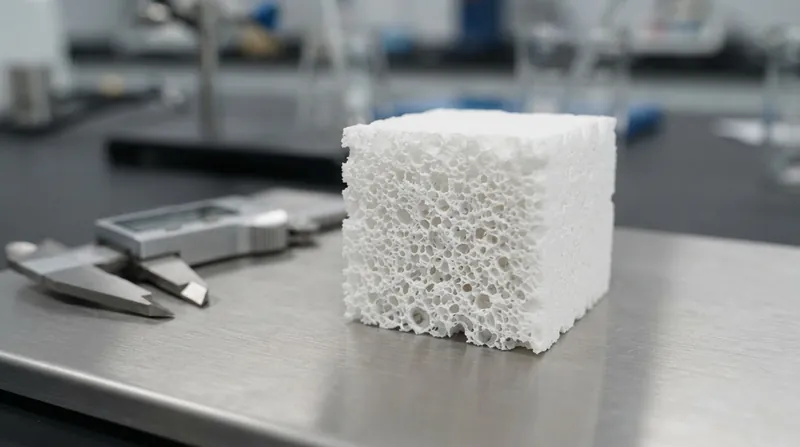

Pebax maintains its flexibility and dynamic performance across a much wider temperature spectrum. The material can endure extreme cold—down to -40 degrees Celsius in industrial testing—without losing its elasticity or becoming brittle. For runners training year-round, this thermal stability ensures the midsole delivers the same shock absorption in January as it does in July.[1][2]

Supercritical Foaming and Sustainability

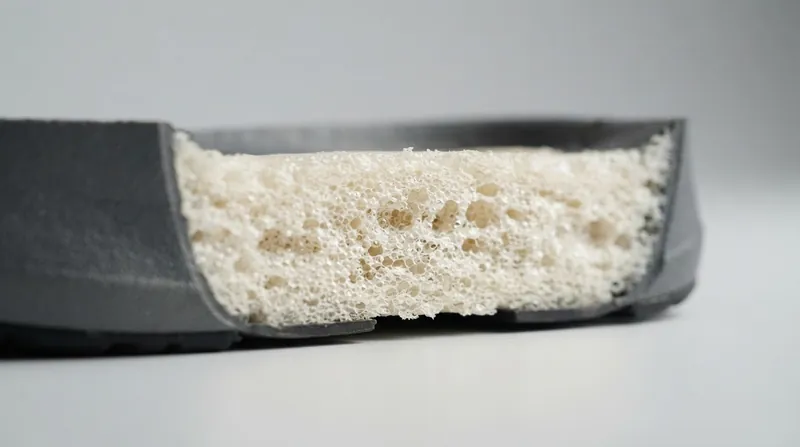

The manufacturing process used to create the foam also dictates its final properties. While Pebax is the raw polymer, it must be expanded into a foam structure to be used in a midsole. The most advanced iterations use a supercritical fluid process, injecting pressurized carbon dioxide or nitrogen into the heated polymer.[2]

This supercritical foaming process produces exceptionally small, uniform cells throughout the material. Because the cell walls are consistent in thickness and evenly distributed, the load forces from a runner's foot strike are spread uniformly across the midsole. This structural consistency prevents stress from concentrating in weaker zones, further enhancing the foam's resistance to breakdown.[2]

Beyond performance metrics, the chemical composition of Pebax allows for alternative, bio-based manufacturing pathways. Arkema produces a specific variant, known as Pebax Rnew, which is synthesized from renewable castor beans rather than petroleum derivatives. This bio-based elastomer delivers the exact same mechanical properties and energy return while significantly lowering the material's environmental footprint.[1]

The use of castor beans is particularly advantageous because they are a drought-resistant crop that does not compete with the global food supply. As the footwear industry faces increasing pressure to reduce its reliance on virgin plastics, these bio-based block copolymers offer a rare scenario where a sustainable alternative does not require a performance compromise.[1]

Translating Elite Tech to Daily Miles

While the headline benefits of Pebax focus on speed and racing economy, the material offers substantial advantages for everyday, non-competitive runners. The primary benefit for the general public is a drastic reduction in the cumulative muscular fatigue and joint impact associated with high-mileage training.[4]

Because the foam absorbs more shock and returns more energy, the leg muscles do not have to contract as forcefully to maintain a steady pace. Runners consistently report experiencing significantly less delayed-onset muscle soreness in the days following a long run or a hard workout. The material effectively absorbs the mechanical punishment.[4]

For runners looking to upgrade their footwear, the science suggests prioritizing the midsole material over the presence of a carbon plate. Selecting a shoe with a PEBA-based foam ensures maximum impact protection and energy return, allowing for longer, more comfortable miles regardless of whether the goal is a new personal best or a pain-free jog.[6]
