Replacing SF6 in High-Voltage Switchgear Forces Grids to Trade Compact Footprints for Tripled Pressures

When the global refrigeration industry phased out chlorofluorocarbons in the 1990s to protect the ozone layer, the engineering challenge was fundamentally thermodynamic. The replacement fluids simply had to absorb and release heat at the correct temperatures to keep food cold. The ongoing phase-out of sulfur hexafluoride in electrical grids shares the same environmental urgency, but it differs in one absolute respect. The replacement gas must physically prevent tens of thousands of volts of electricity from jumping across open space.[7]

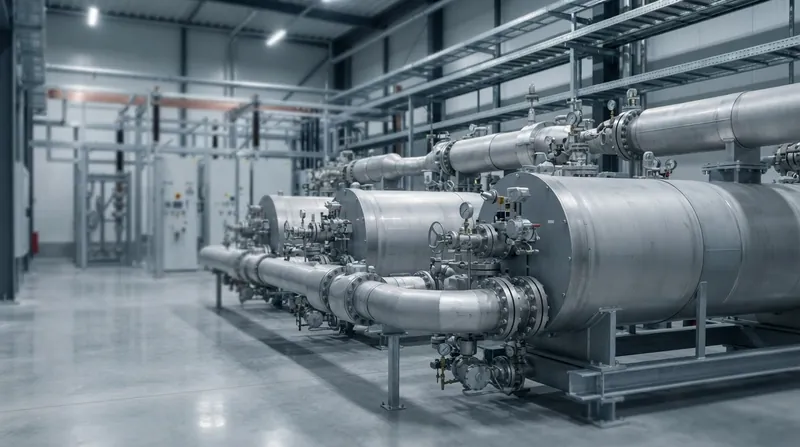

Sulfur hexafluoride, or SF6, is the invisible backbone of the modern electrical grid. It is pumped into the sealed metal cabinets of high-voltage switchgear, where it acts as an insulating wall between live conductors. Because the gas is so effective at stopping electrical arcs, engineers can pack high-voltage components tightly together, shrinking the footprint of substations so they fit inside urban basements and compact enclosures.[6]

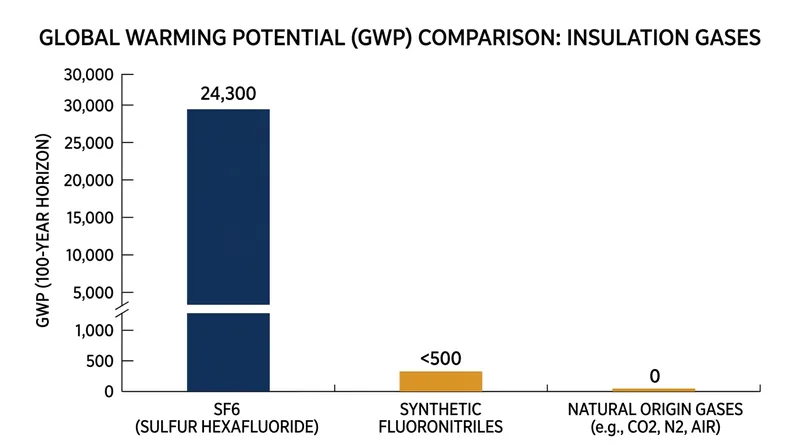

The environmental cost of that compactness is severe. Sulfur hexafluoride is the most potent greenhouse gas ever measured, possessing a global warming potential 24,300 times greater than carbon dioxide. Once released, it remains in the atmosphere for 3,200 years. As climate regulations force the power sector to abandon the chemical, grid operators are discovering that the laws of physics demand a strict trade-off.[2]

The Dielectric Miracle of Sulfur Hexafluoride

To understand why replacing SF6 is so difficult, one must look at how it behaves under electrical stress. The molecule is highly electronegative, meaning it aggressively captures free electrons. When a switch opens to interrupt a high-voltage current, the electricity attempts to jump the gap, creating a plasma arc hotter than the surface of the sun. SF6 molecules instantly absorb the electrons feeding the arc, extinguishing it in milliseconds.[6]

This property, known as dielectric strength, allows SF6 to operate at relatively low pressures. Inside a standard medium-voltage switchgear unit, the gas is typically pressurized to just 1.05 to 1.4 bar absolute—barely above standard atmospheric pressure. At that low pressure, SF6 provides three times the insulation capacity of regular air.[3]

"SF6 has a dielectric strength that is three times higher than air at 0.1MPa," notes a technical assessment of insulating technologies published by the European Commission. "This property means that electrical contacts within gas-insulated equipment can be much closer to each other when insulated by SF6, allowing manufacturers to reduce the size of the equipment while keeping the same electrical properties."[3]

That compact footprint is critical for modern infrastructure. A gas-insulated substation using SF6 requires roughly one-tenth the land area of an older air-insulated substation. In dense cities where real estate is scarce, or in offshore wind turbines where space is strictly limited, the spatial efficiency of SF6 has made it the undisputed standard for decades.

The Regulatory Wall

That standard is now colliding with aggressive climate legislation. In early 2024, the European Union adopted Regulation 2024/573, which mandates a strict phase-out of fluorinated greenhouse gases across the electrical sector. The timeline forces manufacturers to completely re-engineer their product lines before the end of the decade.[2]

Starting on January 1, 2026, the European Union bans the installation of new medium-voltage switchgear up to 24 kilovolts that relies on SF6. By January 1, 2030, that ban extends to equipment up to 52 kilovolts. The regulations represent a hard deadline for the power industry to adopt alternative insulation methods, regardless of the engineering hurdles involved.[2]

"The problem with SF6 is that it is the most potent greenhouse gas known per kilogram emitted," explains Nina Sasaki Støa-Aanensen, a senior research scientist at SINTEF.[2]

While other industries phased out the gas decades ago, emissions from switchgear still represent a significant share of the direct greenhouse gas footprint for electricity companies.[2]

Trading Chemistry for Mechanical Pressure

Stripped of their miracle molecule, engineers have two primary paths to insulate high-voltage equipment: use alternative synthetic chemical mixtures, or revert to natural-origin gases like dry air, nitrogen, and carbon dioxide. Each path exacts a distinct penalty in either chemical complexity or physical dimensions.[1]

Synthetic alternatives, such as fluoronitriles mixed with carbon dioxide and oxygen, offer dielectric performance close to SF6. Manufacturers like GE Vernova have developed mixtures that maintain the exact dimensional footprint of legacy equipment while cutting the global warming potential by 99 percent. However, these synthetic gases still carry some environmental impact and face uncertain long-term regulatory futures.[5]

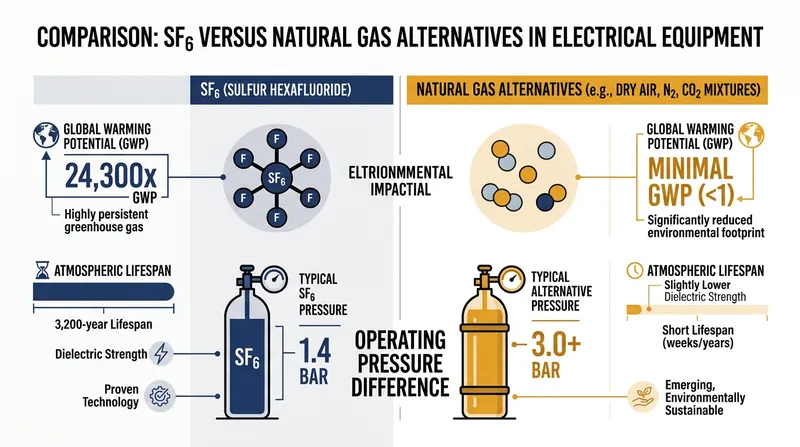

The alternative is to use purely natural gases, which have a global warming potential of zero. The physics of natural gases, however, are unforgiving. Because dry air and carbon dioxide lack the extreme electronegativity of SF6, they cannot stop an electrical arc as easily. To achieve the same dielectric strength, engineers must manipulate the only other variable available: pressure.[4]

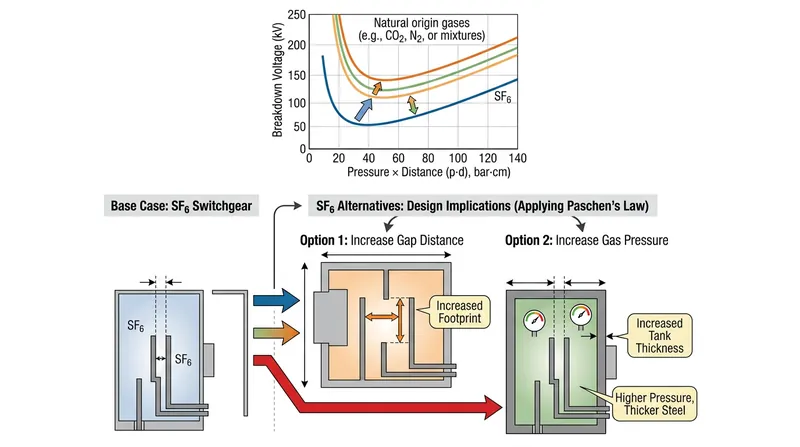

According to Paschen's Law, the breakdown voltage of a gas is a function of its pressure multiplied by the gap distance between the electrodes. If the gas is chemically weaker, the pressure must rise to compensate. Comparative measurements show that while SF6 operates effectively between 0.1 and 0.7 megapascals, dry air must be compressed to approximately three times that pressure to deliver similar insulation strength.[4]

"Dielectric strength of natural origin gases is significantly lower than that of SF6 at the same pressure," researchers noted in a 2023 study published in MDPI. "Therefore, to maintain size and footprint of actual medium voltage switchgear with SF6 gas without increasing gas filling pressure, new gas mixtures with higher dielectric strength than that of natural origin gases, must be considered."[1]

The Footprint Penalty in Urban Substations

If a manufacturer chooses to use natural gases but refuses to triple the internal pressure, they must increase the physical distance between the live conductors. This expands the overall size of the switchgear cabinet. For utility companies trying to replace aging equipment inside existing concrete substations, a larger cabinet simply will not fit through the door.

"Gas-insulated switchgear using natural gases only requires larger dimensions and, hence, more material resulting in a cost increase of 20 to 30 percent," the European Commission noted in its assessment of alternatives.[3]

The extra steel, copper, and concrete required to house larger equipment introduces its own indirect carbon footprint. To avoid the footprint penalty, companies are choosing the high-pressure route. By compressing dry air or carbon dioxide to levels exceeding 3.0 bar, manufacturers can squeeze the necessary dielectric strength into the exact same dimensions as legacy SF6 equipment.[4]

Eaton, a major electrical equipment manufacturer, explicitly notes this trade-off in its natural-gas product lines. "Consider that pressure checks are needed since the pressure is 1.9 bars, higher than with the SF6," the company advises operators deploying its high-pressure air-insulated switchgear for urban installations.

Engineering the High-Pressure Containment

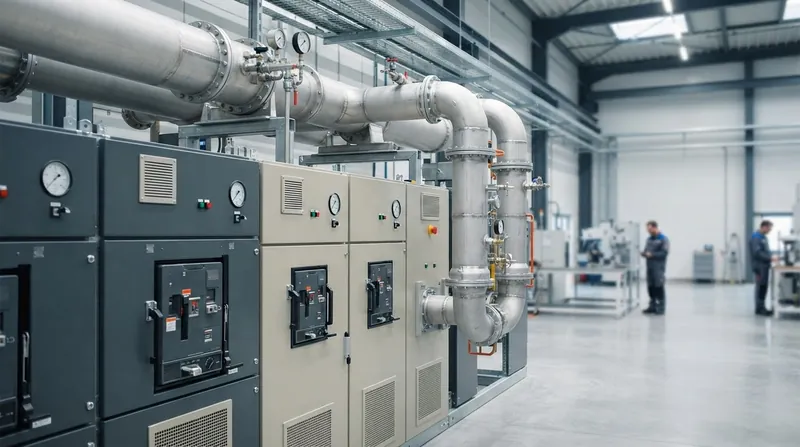

Tripling the operating pressure inside a sealed metal box fundamentally changes the mechanical engineering of the equipment. A cabinet designed to hold SF6 at 1.2 bar only needs to withstand mild internal forces. A cabinet holding dry air at 3.5 bar is effectively a pressure vessel, subject to strict industrial safety standards and continuous mechanical stress.[4]

To contain these higher pressures safely for a 40-year operational lifespan, manufacturers must utilize thicker stainless-steel tanks and precision robotic welding. The enclosures must pass rigorous hydrostatic testing and helium leak verification to ensure they will not rupture or slowly vent their insulating gas into the substation.[4]

Modern standards, such as the European EN 50187 for pressurized enclosures, mandate the installation of calibrated burst discs. If an internal electrical fault causes the gas to rapidly heat and expand, the burst disc safely vents the overpressure in a directed channel, protecting operators standing in front of the cabinet from a catastrophic mechanical failure.[4]

The transition also changes the maintenance profile for grid operators. While SF6 switchgear is famously sealed for life and rarely requires gas handling, high-pressure natural gas systems demand more robust continuous monitoring. A small leak in a 3.0-bar system degrades the dielectric strength much faster than a leak in a 1.2-bar system, increasing the risk of an internal arc.[7]

Ultimately, the elimination of sulfur hexafluoride represents a triumph of mechanical engineering over chemical convenience. By trading a miracle greenhouse gas for thicker steel, tighter welds, and tripled operating pressures, the power sector is proving that the electrical grid can be both compact and climate-neutral.[7]

The scale of the transition is massive. In India alone, the medium-voltage switchgear network currently holds an estimated 160 tons of SF6, which equates to roughly 3.9 million tons of carbon dioxide equivalent sitting in metal boxes across the country. Replacing that installed base will require decades of capital investment and thousands of high-pressure replacement units.[4]

As the 2026 European deadlines approach, the global supply chain is rapidly retooling. The era of low-pressure, high-performance chemical insulation is ending, replaced by a new paradigm where the safety of the grid relies on the brute mechanical strength of pressurized steel.[7]
