Red Generates Only 21 Percent of Video Luminance: Why 4:2:0 Chroma Subsampling Blurs Stream Overlays

The bright red health bar on your favorite Twitch stream just turned into a blocky, illegible mess on your 4K monitor. You might assume the streamer has a poor internet connection or a cheap capture card. But even with a pristine 8,000-kilobit-per-second upload rate, the red text on their overlay remains jagged and smeared.[4]

This visual degradation is not a hardware failure or a bandwidth glitch. It is the direct result of a mathematical compromise made decades ago to save data. Every major streaming platform, from YouTube to Twitch, relies on a compression technique that systematically destroys color resolution to preserve brightness.[2]

Because of how digital video calculates light, pure red graphics are uniquely vulnerable to this compression. To understand why a red logo blurs while a white one stays sharp, you have to look at the exact percentages that govern how computers translate color into luminance.[1]

The Biology of Video Compression

Human eyes are not built to see color and detail equally. Our retinas contain significantly more rod cells, which detect brightness and contrast, than cone cells, which detect color. Video engineers in the early days of digital broadcasting exploited this biological quirk to shrink massive video files.[3]

Instead of sending a full-resolution red, green, and blue signal for every pixel, video codecs split the image into two separate channels. The first is luminance, or luma, which contains the black-and-white brightness data and the sharp edges of the image. The second is chrominance, or chroma, which contains the color information.[3]

Because our eyes rely on luma for sharpness, compression algorithms leave the brightness channel completely intact. They then aggressively compress the chroma channel, discarding massive amounts of color data before the video ever reaches your screen. This process is known as chroma subsampling.[2]

The 4:2:0 Subsampling Compromise

The specific type of chroma subsampling used by YouTube, Twitch, and Blu-ray discs is called 4:2:0. The numbers represent a sampling ratio applied to a grid of pixels that is four pixels wide and two pixels high. In a full uncompressed 4:4:4 signal, every single pixel in that eight-pixel block gets its own unique color value.[3]

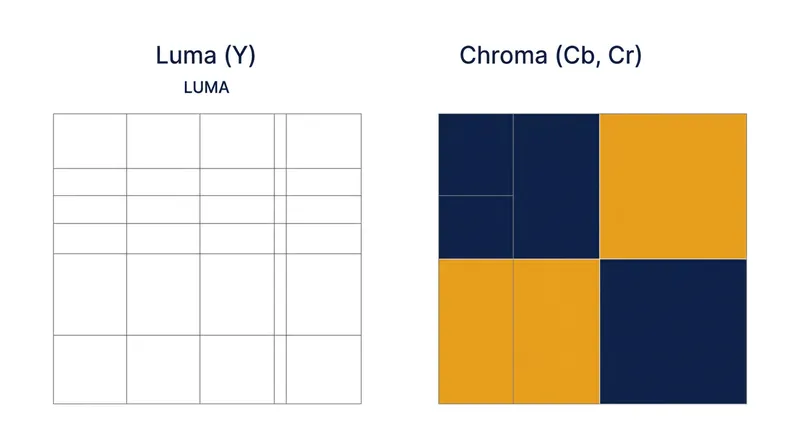

Under 4:2:0 compression, the color resolution is halved both horizontally and vertically. The entire two-by-two block of four pixels is forced to share a single color value.[2]

"What chroma subsampling does is reduce the amount of color information in the signal to allow more luminance data instead," explains RTINGS' technical breakdown of the format.[3]

The brightness data remains at full resolution, but 75 percent of the original color information is simply thrown away.[3]

For live-action video, this data loss is virtually invisible. If you are watching a person walk through a forest, the sharp luma channel preserves the edges of the leaves and the texture of their skin, while the lower-resolution color washes over the scene seamlessly. But digital graphics, like stream overlays and game interfaces, expose the flaw.[4]

The Rec. 709 Luminance Equation

When a video codec separates brightness from color, it has to calculate exactly how bright a specific pixel should be. It does this using a standard formula known as Rec. 709, which dictates how high-definition television and web video handle color spaces. The formula assigns a specific weight to red, green, and blue based on human perception.[1]

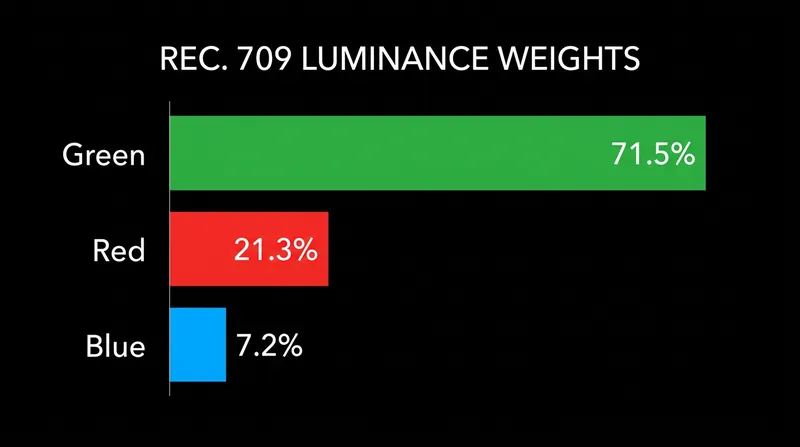

Green light appears the brightest to the human eye, so the Rec. 709 standard dictates that green generates 71.52 percent of the video's total luminance. Blue appears the darkest, contributing a mere 7.22 percent. Red sits in the middle, generating exactly 21.26 percent of the luma signal.[1]

This uneven distribution means that pure colors do not carry the same amount of structural detail. If a streamer puts pure green text on a black background, the text carries 71 percent of maximum brightness. The luma channel easily detects the high contrast and draws a sharp, full-resolution edge around the letters.[4]

The Capture Card Bottleneck

The degradation often begins before the video even reaches the internet. Many content creators use USB capture cards to pull gameplay from a console or a second PC into their broadcasting software. High-end capture cards maintain a full 4:4:4 or 4:2:2 signal, preserving the color data for the local recording.[4]

However, budget capture cards lack the bandwidth to send uncompressed video over older USB connections. To compensate, they aggressively compress the incoming signal into a 4:2:0 format before it ever hits the broadcasting software. By the time the streamer adds their webcam and hits the live button, the color data is already permanently lost.[4]

Even if a creator records locally at full color resolution, the final upload will still be compressed. But feeding a pre-compressed 4:2:0 signal into a broadcasting software that will compress it again compounds the artifacting. The red edges become progressively softer with each step through the digital pipeline.[4]

Why Red Graphics Fail the Edge Test

Pure red text on a black background behaves entirely differently than green or white. Because red only contributes 21.26 percent to the luminance signal, the brightness difference between the red text and the black background is incredibly small. The luma channel barely registers that an edge exists at all.[1]

With the high-resolution brightness channel failing to define the boundary, the video codec has to rely almost entirely on the color channel to draw the shape of the text. But under 4:2:0 subsampling, that color channel is operating at one-quarter of the screen's actual resolution.[2]

The result is catastrophic for sharp digital graphics. The edges of the red letters are drawn using large, blocky, two-by-two pixel squares. The text appears jagged, smeared, and blurry, bleeding into the surrounding black pixels.[3]

"Artifacts from chroma subsampling are at their most noticeable with text atop a flat color," notes RTINGS.[3]

The red channel is literally being rendered at a lower resolution than the rest of the game, creating a visual mismatch that no amount of bitrate can fix.[4]

Blue Text and Practical Fixes

Blue graphics suffer from an even more extreme version of this problem, as pure blue generates only 7 percent of the luminance signal. However, interface designers rarely use pure blue for critical text or thin UI elements. Red is the universal color for health bars, enemy outlines, and urgent alert text, making its degradation far more noticeable.[1][4]

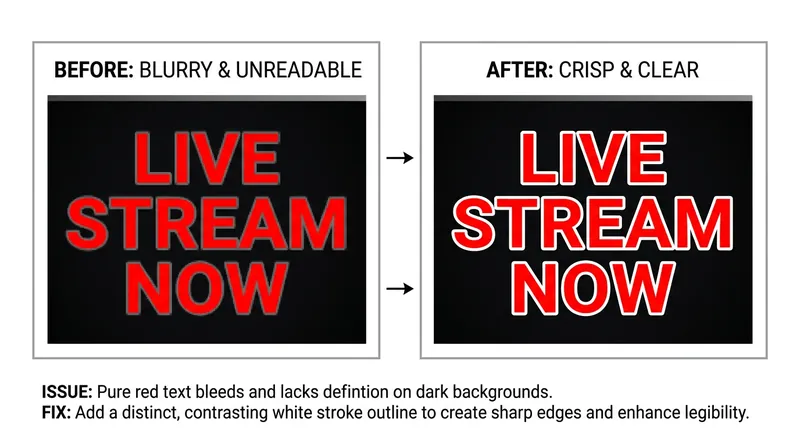

Streamers and video creators cannot force YouTube or Twitch to abandon 4:2:0 subsampling, as the bandwidth costs of full 4:4:4 video would be astronomical. Instead, the solution requires changing how the graphics are designed. Adding a thin white or bright green border around red text instantly fixes the blur.[4]

By introducing a high-luminance color to the edge of the graphic, the designer forces the luma channel to recognize the boundary. The video codec draws a sharp, full-resolution white line, and the low-resolution red color simply fills in the middle. The text remains perfectly legible, bypassing the limitations of the compression entirely.[4]

Another common workaround for creators is upscaling the video output. A creator streaming a 1080p game might upscale their output to 1440p or 4K before sending it to YouTube. While the video is still compressed at 4:2:0, the quarter-resolution color blocks at 4K are physically smaller than they would be at 1080p, making the jagged edges much harder to see.[4]
