Physics of Armor Penetration: Jet Formation, Liner Collapse, and Stand-Off Distance in Shaped Charges

On June 24, 2024, researchers at the Harbin Engineering University redefined the operational limits of shaped charges in fluid environments, publishing a comprehensive experimental study on underwater coupling dynamics.

By measuring the explosive energy transfer through water, the team demonstrated how the surrounding medium alters the collapse of the metal liner, shifting the focus of munitions engineering from pure explosive yield to precise geometric control. The study highlighted that the external environment acts as both a tamping layer and a dissipative sink, fundamentally changing the velocity gradient of the resulting jet.[5]

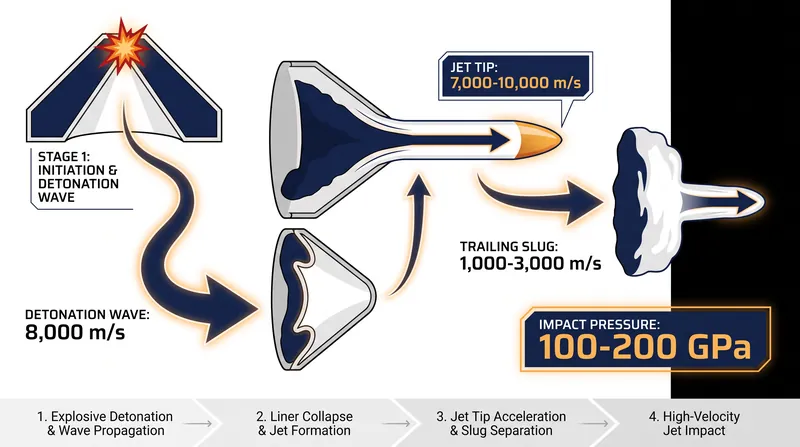

The core mechanism of a shaped charge, often misunderstood as a thermal weapon that "melts" armor, is entirely kinetic. When the explosive detonates, a high-pressure wave sweeps forward at roughly 8,000 meters per second. This wave strikes a hollow metal cavity—typically a cone made of copper—forcing the material to collapse inward along its axis of symmetry. The extreme pressure forces the solid metal to behave hydrodynamically, flowing like a fluid without actually reaching its melting point.[1][6][7]

During this collapse, the liner bifurcates into two distinct elements. The inner layer of the cone is extruded forward to form the "jet," which accelerates to hypervelocities between 7,000 and 10,000 meters per second. Meanwhile, the outer layer of the cone forms a much denser, slower-moving mass known as the "slug," which trails behind at 1,000 to 3,000 meters per second. The jet carries only about 20 percent of the liner's mass but possesses the overwhelming majority of its kinetic energy.[2][6][9]

At these extreme velocities, the physics of penetration shift away from standard solid mechanics. The impact pressure exerted on the target armor reaches between 100 and 200 gigapascals. According to the foundational hydrodynamic theory developed by researchers Birkhoff, MacDougall, Pugh, and Taylor in 1948, "the pressure is so high that the strength of the metals can be neglected, and they can be treated as inviscid fluids." The jet pushes the armor material aside radially, eroding itself in the process as it bores a deep, narrow hole.[1][8]

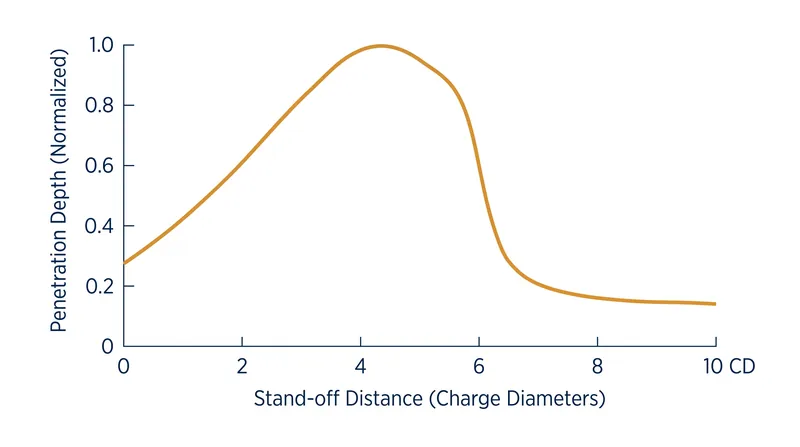

To achieve maximum penetration depth, the jet requires time and physical space to stretch and align before striking the target. This critical gap is known as the stand-off distance. If the charge detonates too close to the armor, the jet has not fully formed; if it detonates too far away, the velocity gradient along the jet causes it to stretch beyond its ductile limits and fragment into discrete particles. Once fragmented, the individual particles tumble and strike the armor out of alignment, drastically reducing penetration.[4][6]

Experimental testing confirms that the optimal stand-off distance for a standard conical copper liner is typically 3 to 6 times the charge diameter (CD). Within this window, penetration depth is governed primarily by the square root of the ratio of the jet's density to the target's density. Because velocity cancels out in the primary hydrodynamic equation, a denser jet material like tantalum will penetrate deeper than copper, provided the jet remains cohesive.[4][8][9]

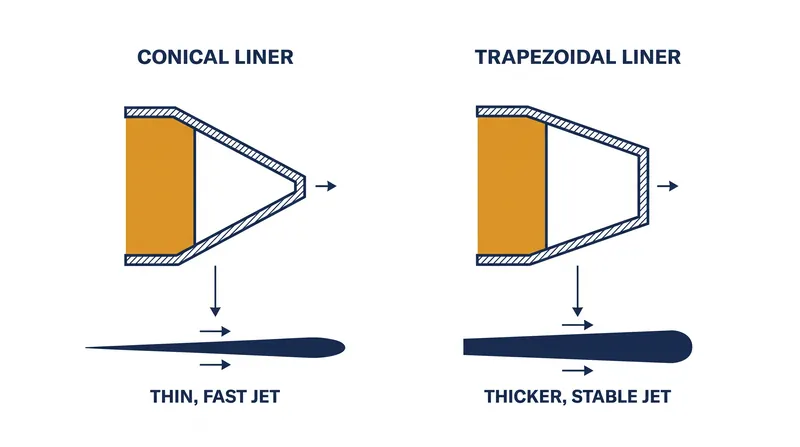

Recent computational models have begun testing alternative liner shapes to manipulate this fragmentation threshold. A 2022 study published in the PMC database analyzed a shaped charge with a trapezoidal cross-section. The researchers found that altering the cone angle modifies the velocity gradient along the jet, noting that "the velocity gradient of the jet is the main factor determining the stretching length of the jet." The trapezoidal geometry produced a jet with a thicker tip and a more uniform velocity distribution.[3]

This specific geometric trade-off sacrifices absolute peak velocity at the tip for greater overall stability. The trapezoidal jet resists fragmentation over longer stand-off distances, making it highly relevant for the underwater coupling dynamics observed in the 2024 Harbin tests. In dissipative environments like water, where the jet loses energy rapidly, maintaining a cohesive mass is more critical than achieving the 10,000 meters per second peak speeds seen in atmospheric tests.[3][5][9]

While the fluid model accurately predicts primary penetration, it fails to account for the secondary effects of target strength at the final stages of the jet's life. As the jet erodes and its velocity drops below 2,000 meters per second, the hydrodynamic assumption breaks down. The armor's material yield strength begins to resist the flow, eventually halting the penetration entirely. This threshold is where advanced composite armors and reactive tiles focus their defensive mechanisms.[1][7]

The integration of these findings indicates a structural shift in munitions design. Engineers are moving away from simply increasing explosive mass, instead optimizing liner geometries and materials for specific operational environments. The next verifiable checkpoint for this technology will be the integration of trapezoidal and variable-thickness liners into the next generation of amphibious effectors, testing whether the theoretical stability gains hold true against modern non-Newtonian composite armors.[5][9]
