Muscle Pennation Angle Increases During Contraction to Trade Force Velocity for Greater Packing Density

Consider the biceps brachii: its fibers run parallel to the bone, pulling in a straight line to curl the arm with maximum speed. But the quadriceps take a completely different approach. They arrange their fibers diagonally, like the barbs of a feather, sacrificing direct speed to pack in significantly more tissue.[1]

This diagonal arrangement is known as the pennation angle. It is the architectural secret that allows human beings to squat hundreds of pounds and absorb massive impact forces. Rather than pulling straight up and down, these fibers pull at an angle to the central tendon.[1]

"The architecture of a muscle, which includes its thickness, fascicle length, and pennation angle, is fundamental to understanding how muscles generate force and facilitate movement," notes a 2024 biomechanics review published by Complementary Training.

By angling the fibers, the body can fit a much higher volume of contractile tissue into a confined anatomical space. This concept, known as packing density, fundamentally alters the force-velocity curve of the muscle, prioritizing brute strength over rapid movement.

The Geometry of Muscle Fibers

To understand the tradeoff, you have to look at the physiological cross-sectional area. In a parallel muscle, the anatomical cross-section and the physiological cross-section are exactly the same. Every fiber pulls directly along the line of action, transmitting 100 percent of its tension to the tendon.[1]

Because they pull straight, parallel fibers are incredibly fast. The sartorius muscle in the thigh, for example, uses long, parallel fascicles to achieve high shortening velocities during a sprint. There is no geometric loss of speed between the fiber and the joint.

Pennate muscles, however, attach to a central aponeurosis at an angle, meaning they cannot transmit all their force in a straight line. If a fiber sits at a 30-degree angle, its linear force transmission drops to 86.6 percent, governed strictly by the cosine of the angle.

That 13.4 percent loss in direct force might seem like a biological design flaw. But the diagonal orientation allows the muscle belly to stack layers of short fibers on top of each other, drastically increasing the total number of fibers pulling at once.[1]

How Packing Density Multiplies Force

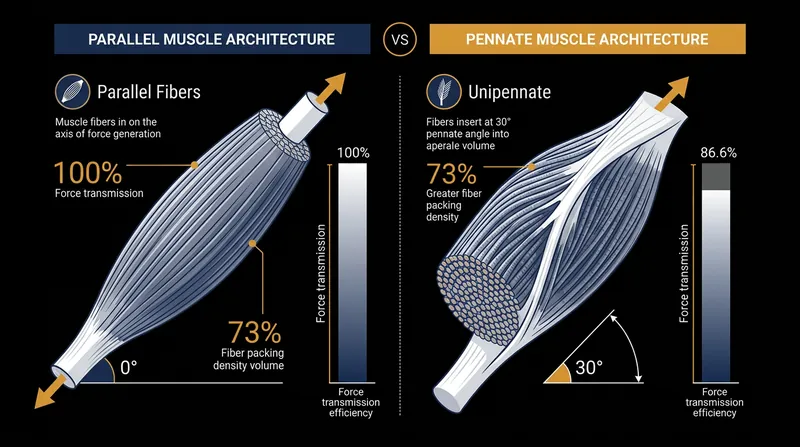

The math heavily favors the pennate design when it comes to absolute strength. A pennate muscle might have twice the physiological cross-sectional area of a parallel muscle occupying the exact same anatomical volume, simply because the fibers are stacked diagonally.[1]

According to mathematical models, a pennate muscle angled at 30 degrees can generate approximately 73 percent more total force than a parallel muscle of the exact same size. The sheer volume of tightly packed fibers easily overpowers the geometric loss of the angle.

This is why the muscles responsible for moving heavy loads—like the vastus lateralis in the leg or the gastrocnemius in the calf—are heavily pennated. They prioritize brute force over rapid shortening, acting as the body's primary load-bearing engines.

"Muscles optimized for force generation typically have a greater pennation angle, while muscles optimized for speed have longer fascicles and a smaller pennation angle," the 2024 review explains, highlighting how form dictates function in human movement.

The Dynamic Shift During Contraction

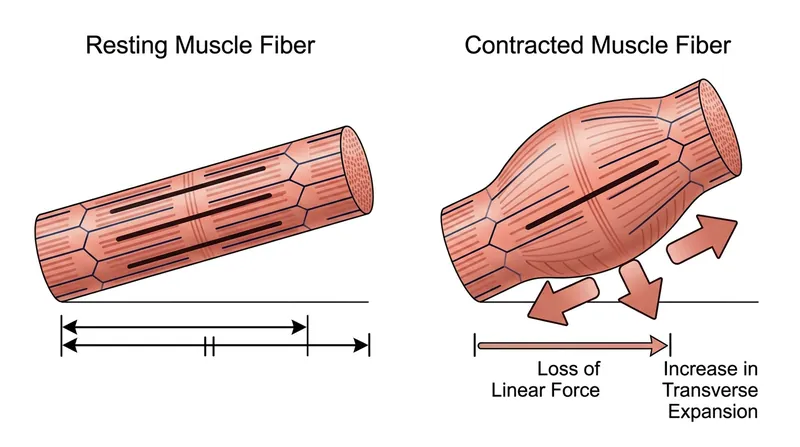

The pennation angle is not a static number; it changes dynamically while you lift. When a muscle contracts against a heavy load, the individual fibers shorten and bulge outward, pushing against their neighbors in the tightly packed anatomical space.[2]

Because the fibers are anchored to the tendon plate, this bulging forces them to rotate. As the muscle shortens, the pennation angle actually increases. A fiber that started at a 15-degree resting angle might pivot past 30 degrees by the time the contraction finishes.[2]

This rotation is a phenomenon known as architectural gearing. It allows the muscle belly to shorten more than the individual fibers do, but it comes with a severe mechanical cost. The steeper the angle gets, the less direct force the fiber transmits to the bone.[3]

"Any increase in pennation angle decreases muscle force output because it reduces the component of fiber force oriented along the muscle's line of action," researchers noted in a 2008 study published by the National Institutes of Health.[2]

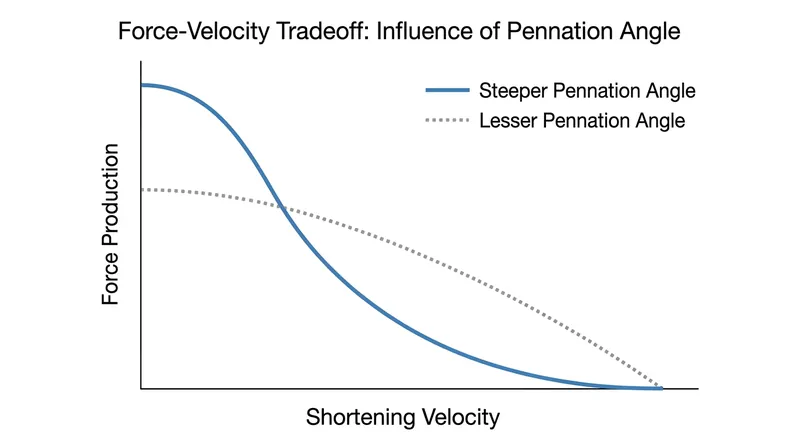

The Force and Velocity Tradeoff

This dynamic rotation creates a sliding scale of efficiency. At the beginning of a heavy squat, when the muscle is stretched and the pennation angle is shallow, force transmission to the tendon is at its absolute highest.[2]

As you push out of the hole and the muscle shortens, the angle steepens. The fibers are now pulling more horizontally against the tendon rather than vertically. This reduces the shortening velocity of the whole muscle, slowing the lift down as you approach the top.[3]

In 2022, researchers analyzing rapid force development found that participants reached their theoretical maximal force potential within just 62 milliseconds. This rapid onset is heavily influenced by how quickly the fascicles can rotate and establish their working angle under load.[3]

The body accepts this velocity loss because the alternative is worse. If the fibers did not rotate and increase their angle, the muscle would not be able to bulge. It would be physically constrained by its own connective tissue, limiting the total contraction.[2]

Practical Applications for Training

Understanding this architectural shift changes how we view strength training. When you lift heavy weights, you are not just training the nervous system or growing the fiber diameter; you are actually altering the muscle's internal geometry over time.[4]

Heavy resistance training has been shown to permanently increase the resting pennation angle of muscles like the quadriceps. The body adapts to the demand for high force by packing even more fibers into the existing space, steepening the angle to make room.

This adaptation makes you stronger, but it inherently limits your maximum contraction speed. A steeper resting angle means the fibers start at a mechanical disadvantage for velocity, which is why pure strength athletes often lose explosive speed if they do not train it specifically.[4]

Conversely, sprint training and high-velocity plyometrics can promote longer fascicle lengths and shallower pennation angles. The body adapts to the demand for speed by aligning the fibers more directly with the tendon, sacrificing some packing density for faster shortening.[3]

For the general lifter, this underscores the importance of training across different velocity zones. If you only lift heavy, your muscle architecture will optimize entirely for force, leaving your velocity capabilities underdeveloped and your joints less prepared for rapid movements.[4]
