Liquid Cooling, Air Cooling, and Heat Pumps: The Trade-Offs of EV Battery Thermal Management Systems

The operational ceiling of an electric vehicle is not determined when the battery cells are manufactured, but at the exact boundary layer where thermal energy transfers from the cell casing to the surrounding cooling medium. If a lithium-ion pack cannot shed the intense Joule heating generated during a 350-kilowatt fast-charging session, or if it cannot retain electrochemical warmth in freezing climates, the vehicle's software will aggressively throttle power to prevent thermal runaway. That boundary layer—managed by the battery thermal management system (BTMS)—dictates whether a vehicle can accept an 800-volt charge, how much range it loses in winter, and how many years the pack will survive before degrading.[3][4]

"Efficient thermal management of high-power lithium-ion batteries is critical for ensuring safety, longevity, and performance," notes a June 2025 review published by the National Institutes of Health. To achieve optimal performance and prevent accelerated degradation, lithium-ion cells must be maintained strictly within a 20 to 40 degrees Celsius operating window. Furthermore, the temperature difference between individual cells across a massive battery pack should not exceed 5 degrees Celsius. Hitting those precise thermal targets requires automakers to choose between three primary architectures: passive or active air cooling, liquid cooling, and heat pump integration.[3][4]

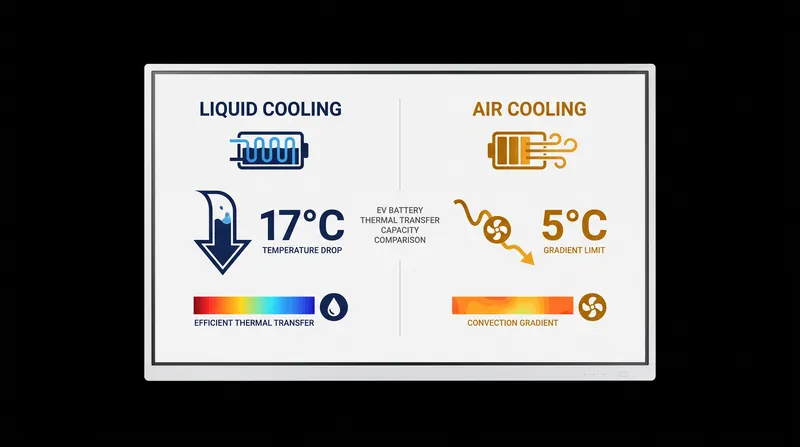

Liquid cooling has emerged as the dominant architecture for high-performance and long-range electric vehicles. By circulating a glycol-water mixture through indirect cold plates or via direct immersion, liquid systems leverage a significantly higher specific heat capacity than air. A July 2026 analysis published on ResearchGate demonstrated that advanced cooling systems can rapidly lower peak battery temperatures from a dangerous 58 degrees Celsius down to a stable 41 degrees Celsius during high C-rate discharging. This rapid heat extraction is what physically enables modern 800-volt architectures to accept ultra-fast DC charging without triggering thermal degradation.[3][4]

However, liquid cooling introduces substantial engineering complexity. The systems require pumps, reservoirs, and extensive plumbing, which add weight and introduce the risk of coolant leaks within a high-voltage environment. While dual-loop liquid cooling systems—which utilize both a refrigerant loop and a coolant loop—are highly effective in extreme climates, their complexity inherently increases the risk of mechanical failure. For these reasons, liquid cooling represents a trade-off: automakers accept higher manufacturing costs and weight penalties in exchange for the thermal stability required by premium, high-capacity vehicles.[3]

Conversely, air cooling remains a viable, albeit limited, thermal management strategy. Air-cooled systems rely on forced convection, using fans to push ambient air across the battery modules. The primary advantage is structural simplicity: air cooling eliminates the need for heavy liquid coolants, complex plumbing, and leak mitigation, significantly reducing the overall weight and manufacturing cost of the vehicle. This makes air cooling an optimal choice for low-demand, low-power hybrid electric vehicles where cost and weight are the primary constraints.[3]

The physical limitations of air cooling become apparent under high thermal loads. Because air has a fundamentally low thermal conductivity, it struggles to dissipate the up to 2.5 kilowatts of heat generated during fast charging. Traditional forced-air cooling systems often fail to maintain uniform temperature distribution across large battery arrays, resulting in thermal gradients that exceed the safe 5-degree Celsius threshold. Consequently, vehicles relying solely on air cooling are generally restricted to lower charging speeds and are more susceptible to capacity degradation in hot climates.[3][4]

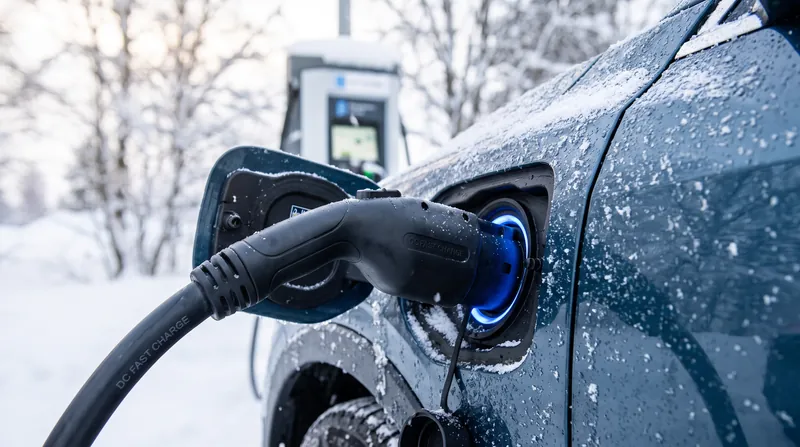

The integration of heat pumps represents the most significant recent advancement in EV thermal management, specifically addressing the severe range degradation electric vehicles experience in cold weather. Unlike internal combustion engines, which generate abundant waste heat to warm the cabin, electric vehicles must expend battery energy to generate heat. When relying on traditional electrical resistance heaters, this parasitic draw is massive. The Environmental Protection Agency and the International Energy Agency note that heat pumps transfer existing thermal energy from the ambient air rather than creating it, using about half the energy of other electric home-heating sources—a principle that applies directly to automotive HVAC systems.[1][2]

The efficiency gains from heat pump integration are highly quantifiable. A comprehensive 2025 winter performance study by EV analytics firm Recurrent, which analyzed real-world data from 34 electric vehicle models, found that EVs retain an average of 78 percent of their maximum range at 32 degrees Fahrenheit (0 degrees Celsius). However, vehicles equipped with heat pumps consistently retained roughly 10 percent more range in freezing conditions compared to those relying on resistance heaters. Canary Media reported in February 2025 that this 8 to 10 percent range extension is a critical factor for decarbonizing transportation in northern climates.[5]

The thermal management architecture an automaker selects directly dictates the vehicle's operational envelope. As the industry pushes toward 1,000-volt architectures and 15-minute charging targets, the thermal loads placed on battery packs will only intensify. The engineering challenge is no longer just about storing energy, but about managing the immense thermal byproducts of moving that energy quickly. Until solid-state batteries fundamentally alter the chemistry of heat generation, the physical plumbing of coolants, airflow, and heat pumps will remain the primary bottleneck defining how far and how fast an electric vehicle can travel.[3][6]
