Laminar Separation Bubbles Delay Airflow Detachment on the Polished Hemisphere: Why Cricket Balls Reverse Swing

The fast bowler stands at the top of their mark, holding a leather sphere that has survived 40 overs of punishment. They have one decision before accelerating: which side of the ball faces the batsman. At 90 mph, that single orientation dictates whether the delivery holds its line or violently alters the match.[2]

For decades, the late, unnatural movement of an old cricket ball was treated as a dark art, mastered by a select few and whispered about in locker rooms. Bowlers knew that if they obsessively polished one hemisphere while letting the other scuff, the ball would eventually betray conventional physics.[2]

Instead of swinging toward the rough side, it would suddenly veer toward the shine. This phenomenon, known as reverse swing, dismantles batting techniques and shatters stumps. It requires extreme pace, meticulous ball maintenance, and a perfect wrist position at the moment of release.[2]

The actual mechanism driving that late deviation has nothing to do with magic. It is a masterclass in fluid dynamics, first formally investigated by NASA scientist Rabindra Mehta and later mapped by researchers like James Scobie, governed by a microscopic aerodynamic feature called a laminar separation bubble.[2][3]

The technique first emerged on the dry, abrasive pitches of Pakistan in the 1980s. Fast bowlers discovered that by meticulously maintaining one side of an aging ball while letting the other side degrade, they could generate late, vicious movement. It took decades for fluid dynamicists to catch up.[2][4]

The Mechanics of Conventional Swing

To understand why the ball reverses, one must first understand why a new ball swings conventionally. When a bowler releases a pristine ball, they angle the pronounced stitched seam slightly away from the direction of flight. As the ball travels, it splits the oncoming airflow into two distinct boundary layers.[2]

On the smooth side facing the batsman, the air forms a laminar boundary layer—a highly ordered, smooth flow. Because this laminar flow lacks energy, it cannot cling to the curving surface of the ball for long. Wind tunnel data shows that this smooth airflow separates from the leather at roughly 80 degrees.[3]

On the opposite hemisphere, the airflow slams into the angled seam. That protruding line of stitches acts as a tripwire, instantly shattering the laminar flow and converting it into a chaotic, turbulent boundary layer. This turbulent air possesses significantly more kinetic energy, allowing it to grip the curving surface much further.[1]

Measurements confirm that this turbulent layer remains attached until approximately 120 degrees. Because the air clings longer to the seam side, it creates a region of lower pressure on that half of the ball. The resulting pressure differential physically pushes the 156-gram sphere toward the lower pressure.[3]

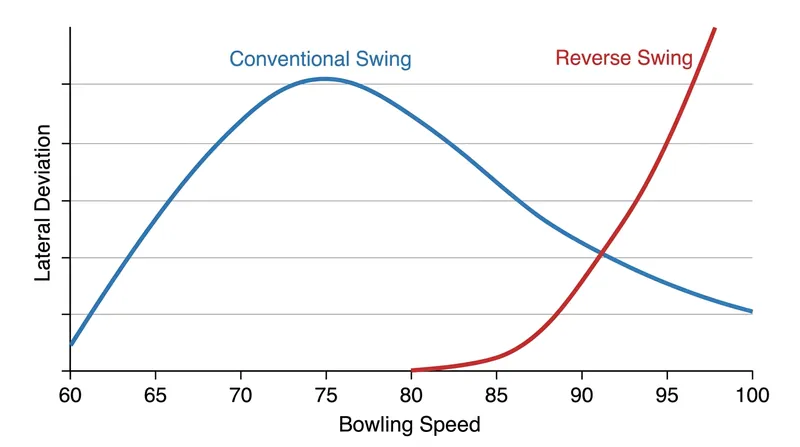

The magnitude of this conventional swing is highly dependent on the bowler's release speed, peaking at around 70 to 75 mph. If a bowler pushes a new ball much faster than 80 mph, the laminar layer on the smooth side begins to transition to turbulence prematurely, killing the swing.[3]

When the Boundary Layer Thickens

Conventional swing relies entirely on that pristine, smooth hemisphere to ensure early airflow separation. But as a Test match grinds on, the ball degrades. The leather strikes the pitch, the bat, and the outfield, accumulating microscopic craters and scars. Maintaining a perfectly smooth laminar flow becomes aerodynamically impossible.[2]

This is where the fielding team’s ball management becomes critical. Players will obsessively polish one side on their trousers, using sweat to keep it as smooth as possible, while leaving the other side to naturally deteriorate. They are deliberately engineering an aerodynamic imbalance for their fast bowlers.[2][4]

Once the ball is sufficiently worn, the bowler changes their approach. They run in and bowl as fast as humanly possible—typically exceeding 85 mph. At these extreme velocities, the airflow over the ball enters what fluid dynamicists call the critical Reynolds number regime.[1]

The Reynolds number—a dimensionless quantity used in fluid mechanics to predict flow patterns—dictates this transition. For a cricket ball, the critical Reynolds number is reached when the velocity exceeds that 85 mph threshold. At this exact speed, the aerodynamic properties of the polished leather undergo a radical transformation.[1]

On the heavily scuffed side of the ball, the extreme roughness interacts with the high-speed air to create a massive, thickened turbulent layer. Unlike the thin turbulent layer created by a new seam, this thick layer is sluggish and prone to early detachment. It separates from the ball much sooner.

The Laminar Separation Bubble

Meanwhile, something extraordinary happens on the polished hemisphere. Because it is smooth but not perfectly new, and because the ball is traveling at extreme speed, the laminar boundary layer separates early, just as it does in conventional swing. But it does not stay detached.[1]

Thermal imaging and particle image velocimetry have revealed that the separated air on the polished side rapidly transitions into turbulence while hovering just above the leather. Because this new turbulent layer is highly energetic, it actually reattaches itself to the surface of the ball.[1]

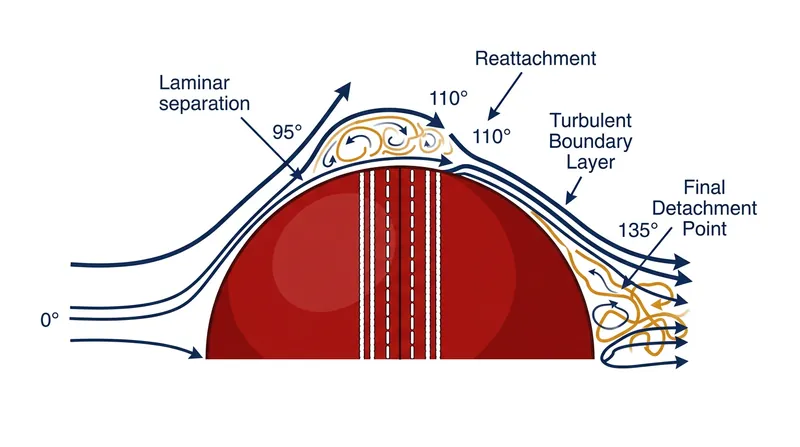

This microscopic pocket of trapped, circulating air is the laminar separation bubble. According to 2020 wind tunnel data published by James Scobie and colleagues at the University of Bath, the initial laminar separation occurs at roughly 95 degrees. The turbulent reattachment happens near 110 degrees.[1]

The visual data definitively proves the mechanism. As the University of Bath researchers noted in their findings, "The results show that a laminar separation bubble forms on the non-seam side, causing the separation angle for the boundary layer to be increased relative to that on the seam side."[1]

From there, the newly energized turbulent layer clings to the ball all the way around to 135 degrees before finally detaching. The aerodynamic script has completely flipped. The polished side, which previously shed its airflow at 80 degrees, is now holding onto the air for a massive 55-degree extension.[1]

Flipping the Pressure Differential

Simultaneously, the scuffed side is shedding its thickened boundary layer prematurely. The pressure differential is instantly inverted. With the airflow clinging longer to the polished side, the lowest pressure zone shifts to that hemisphere. The ball is violently pulled toward the shine.[1][4]

The timing of this deviation is what makes it so lethal. Because the ball is traveling at extreme speed, and because the separation bubble often forms late in the trajectory as the ball decelerates slightly, the swing happens incredibly late. The batsman commits to a line, only to watch the ball jag violently.[2]

Understanding the physics is only half the battle; executing it requires elite mechanical precision. The bowler must impart a perfectly stable backspin upon release, ensuring the seam remains rigidly upright as it travels down the pitch. If the seam wobbles, the delicate laminar separation bubble collapses.[1][2]

Furthermore, the bowler must ensure their fingers do not impart any accidental lateral spin. The Magnus effect—the force that causes a spinning object to curve—can easily overpower the delicate pressure differential created by the separation bubble. The release must be a pure, back-spinning snap of the wrist.[1][3]

Speed is the ultimate gatekeeper. The critical Reynolds number required to form the separation bubble demands a release velocity of at least 85 mph. A medium-pace bowler can polish the ball perfectly and hit the seam flawlessly, but without that raw kinetic energy, the bubble will never form.[2]

Execution at the Crease

The environment also plays a crucial role. Dry, abrasive pitches scuff the ball faster, allowing bowlers to access reverse swing earlier in the innings. In contrast, lush green outfields protect the leather, delaying the onset of the critical roughness differential required to flip the boundary layer.[4]

When all these variables align—extreme pace, a stable seam, and a perfectly asymmetrical ball—the result is one of the most devastating weapons in modern sports. The bowler dictates the terms of engagement, turning a deteriorating piece of equipment into a guided missile that defies batting intuition.[2][4]

The margin for error is microscopic. A few degrees of seam wobble or a drop in velocity of just three miles per hour can neutralize the effect entirely. But when a fast bowler hits the crease and gets it right, they aren't just bowling a cricket ball. They are weaponizing the boundary layer.[1][2]
