How the North American Grid Uses Cycle-Speed Load Shedding to Prevent Total Collapse

When a major power plant trips offline, thousands of homes lose power instantly—not because the plant supplied them, but because the grid deliberately severed their connection. This automated sacrifice is the North American electric grid's ultimate survival mechanism.[7]

The protocol governing this drastic action is mandated by the North American Electric Reliability Corporation (NERC). Under a standard known as PRC-006, utilities must maintain Underfrequency Load Shedding (UFLS) programs to protect the wider interconnection.[1]

These programs act as a mathematical guillotine. They are engineered to detect a catastrophic drop in grid frequency and cut off up to 25 percent of regional electricity demand before the entire system collapses into a blackout.[1][2]

"UFLS programs are the last line of defense for the reliability of the power system," writes Jim Whitaker, an analyst at TRC Companies. "They are designed to disconnect predetermined amounts of end-use load automatically if system frequency falls below pre-specified thresholds."[2]

The 60 Hertz Heartbeat

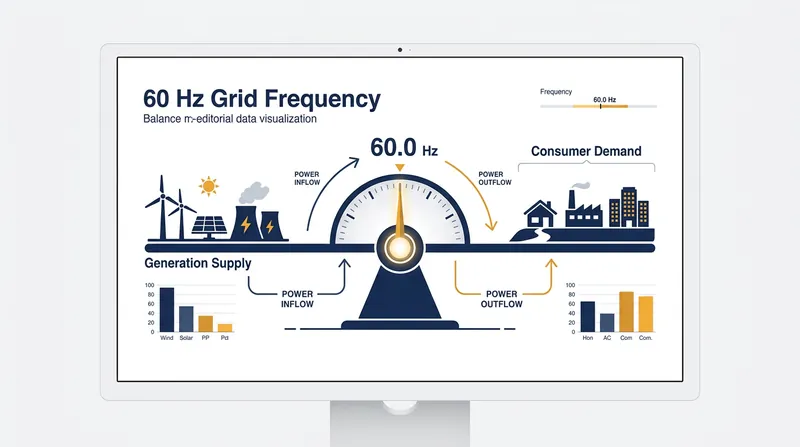

To understand why load must be shed, one must understand the heartbeat of the North American power grid. The entire system operates at a nominal frequency of exactly 60.0 Hertz, representing the real-time balance between generation and demand.[4][7]

Every synchronous generator on the continent spins in lockstep at this exact frequency. When consumer demand perfectly matches the power plants' supply, the frequency holds steady, and the grid operates in a state of stable equilibrium.[4]

If millions of people turn on their air conditioners simultaneously, demand exceeds supply, and the physical resistance on the generators increases. This resistance causes the massive turbines to physically slow down, manifesting as a drop in electrical frequency.[4][7]

Conversely, if a large factory shuts down, excess generation causes the turbines to speed up, raising the frequency. Grid operators constantly adjust power plant output to maintain this delicate 60 Hz balance, correcting small deviations within minutes.[4]

The Anatomy of a Frequency Drop

A severe crisis occurs when a massive generator—or a major transmission line carrying imported power—suddenly trips offline. Instantly, the grid is left with a massive power deficit, and the frequency plummets faster than human operators can react.[1][7]

The physics of this drop are unforgiving. If the frequency falls below 59.5 Hz, the grid enters a critical danger zone. The massive steel turbines inside power plants are engineered to operate strictly at 60 Hz.[1][3]

Operating at lower frequencies causes severe mechanical resonance. If a turbine spins at 58.0 Hz for more than 30 seconds, the resulting vibrations can literally tear the multi-ton machine apart, destroying millions of dollars of infrastructure.[2][7]

To prevent catastrophic physical damage, power plants are equipped with their own protective relays. If the grid frequency drops too low for too long, these relays will automatically disconnect the generator from the grid to save the hardware.[1][7]

This self-preservation mechanism creates a deadly paradox. If one plant trips offline to save itself, the power deficit worsens, causing the frequency to drop even faster. This triggers other plants to trip in a rapid cascading failure.[2]

The PRC-006 Mandate

To prevent this exact scenario, NERC formalized the PRC-006 standard. It ensures that the grid sacrifices consumer load before generators begin to abandon the system, establishing a universal safety margin across the entire North American interconnection.[2][7]

The standard requires Planning Coordinators to design UFLS programs capable of arresting a declining frequency even if a region suddenly loses up to 25 percent of its generation capacity. The execution relies on solid-state underfrequency relays at distribution substations.[1][7]

These devices constantly monitor the sine wave of the alternating current, calculating the frequency every few milliseconds. When a severe generation loss occurs, these relays do not wait for human intervention or centralized control commands.[1]

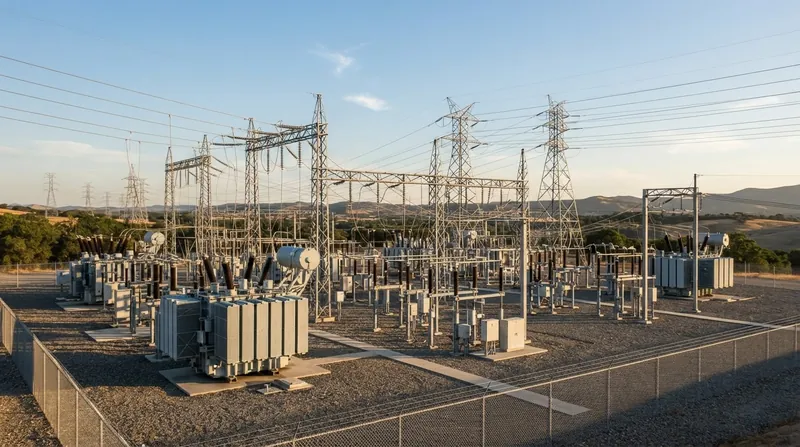

Modern microprocessor-based relays can detect a frequency drop and trigger a circuit breaker in just 16 to 50 milliseconds. That response time equates to roughly one to three electrical cycles of the 60 Hz wave.[4][6]

By the time a human operator in a control room sees the underfrequency alarm flash on their monitoring screen, the relays have already severed the load, rebalanced the grid, and prevented a wider systemic collapse.[4]

Staged Sacrifices

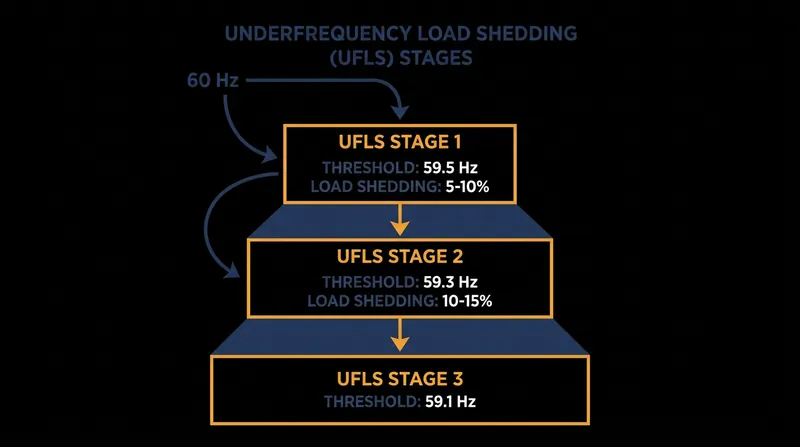

NERC does not allow utilities to plunge the entire grid into darkness at once. Instead, PRC-006 mandates a staged approach, shedding load in specific blocks to match the exact severity of the generation deficit.[4][7]

"Typically, the first stage of UFLS operation occurs in the frequency range of 59.5 Hz to 59.3 Hz," according to TRC Companies' 2022 reliability guideline. This initial stage usually disconnects 5 to 10 percent of the region's total load.[1][2]

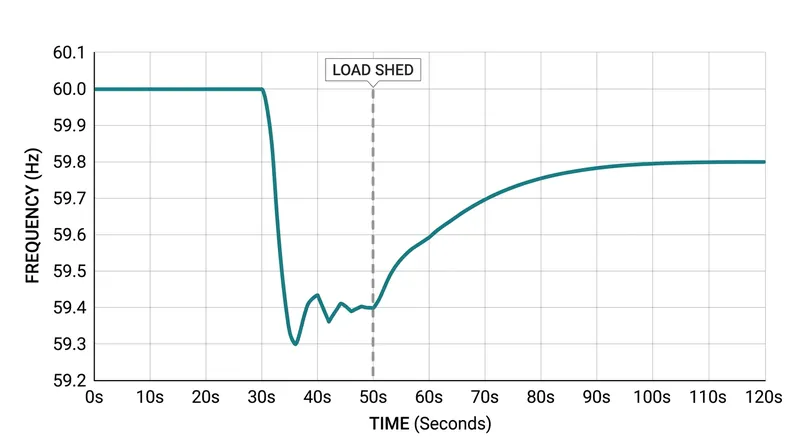

If shedding that first block of customers arrests the frequency decline, the system stabilizes. If the frequency continues to fall, subsequent stages are triggered at lower thresholds, such as 59.1 Hz or 58.9 Hz, shedding additional blocks of demand.[2][4]

Each subsequent stage sheds an additional 10 to 25 percent of the load. The goal is to shed just enough demand to rebalance the equation, acting like a struggling airplane dropping cargo to maintain its altitude.[1][2]

Different regions customize these stages based on their specific grid topology. The Western Electricity Coordinating Council (WECC), for example, maintains a coordinated plan requiring at least 31.1 percent of its total load to be armed for underfrequency tripping.[4][7]

Real-World Enforcement

The necessity of these automated systems is not theoretical. In 2019, the United Kingdom experienced a massive underfrequency event when a gas plant and an offshore wind farm tripped offline almost simultaneously, instantly removing 1,481 megawatts of generation.[5]

The UK grid frequency plummeted to 48.8 Hz—their system operates at a nominal 50 Hz—triggering their equivalent of a UFLS program. The relays automatically dropped 5 percent of the national load in the first block, shedding 931 megawatts of demand.[3]

"Frequency touched 48.8 Hertz for just long enough to trip the under frequency load shedding," explained Rich Hydzik during a Western Power Pool training session. "As soon as they did, it recovered above the level of where they would be shedding further load."[3]

In North America, a 2025 WECC corrective action plan revealed the strict enforcement of these thresholds. An assessment of the Northern Island region during heavy summer loading found that only 25.6 percent of the load was armed to trip, falling short of the required 31.1 percent.[3]

WECC immediately mandated that the region's Planning Coordinators perform armed load checks and recalibrate their relays. The PRC-006 standard leaves no room for regional leniency; a failure to arm enough load jeopardizes the entire Western Interconnection.[5]

The Complication of Renewables

While the PRC-006 standard has successfully protected the grid for years, the rapid adoption of renewable energy is complicating the mathematics of underfrequency load shedding. Traditional coal, gas, and nuclear plants use massive spinning rotors that provide physical inertia.[5]

This kinetic energy physically resists sudden changes in grid frequency, slowing down the rate of decline during an event. Solar panels and wind turbines are connected via inverters and do not inherently provide this heavy physical inertia.[2][7]

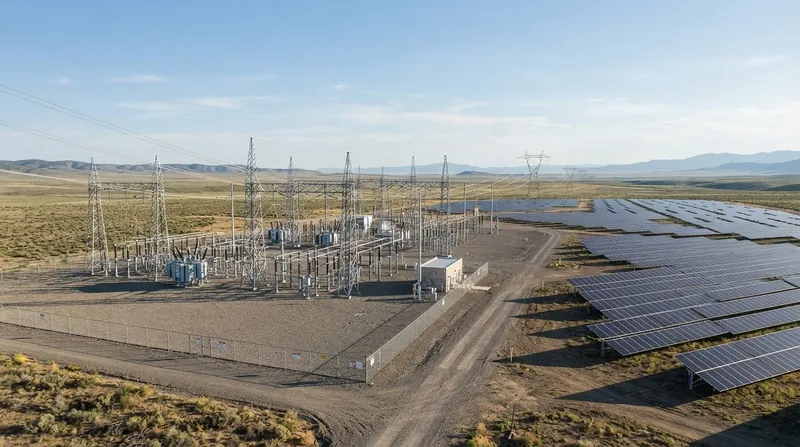

As renewable sources replace traditional plants, the grid's overall inertia decreases, meaning frequency drops much faster when a fault occurs. Furthermore, rooftop solar panels are often located on the exact distribution circuits that UFLS relays are programmed to disconnect.[2][7]

If a relay trips a feeder to shed load, it also inadvertently disconnects the solar generation on that feeder. This accidental loss of generation partially defeats the purpose of the load shed, forcing the grid to cut even deeper.[2][7]

In 2021, NERC's System Planning Impacts from Distributed Energy Resources Working Group explicitly warned that this dynamic could impair the grid's ability to arrest frequency declines, prompting ongoing revisions to the PRC-006 standard.[2][3]

The Ultimate Safety Net

To adapt, utilities are deploying more granular, intelligent relays that can distinguish between net-load and net-generation circuits. These modern devices ensure that the grid only sheds actual demand, rather than accidentally severing crucial local power supplies.[1][2]

Despite these modern engineering challenges, the fundamental mechanism remains the most critical safety net in electrical engineering. It is a brutal but mathematically necessary calculus: cut off the few to save the power supply for the many.[1][6]

Without the automated, cycle-speed sacrifices mandated by PRC-006, a single tripped power plant could theoretically plunge half the continent into a blackout lasting days. The relays ensure the damage remains localized and brief.[6][7]

The next time the lights flicker and die on a clear, calm day, it may not be a local equipment failure. It is often the sound of the grid successfully defending itself from a much larger catastrophe.[7]
