How Psychoacoustic Masking Hides the Audio Watermarks That Drive Television Ratings

In January 2007, the television and radio measurement industry underwent a fundamental shift when Arbitron officially rolled out the Portable People Meter (PPM) as its ratings currency in Philadelphia. The transition replaced decades of paper diaries and manual set-top boxes with a passive, wearable device. Instead of asking audiences to actively record their media consumption, the new system simply listened to the room, fundamentally altering how billions of advertising dollars were allocated.[1][5]

Prior to the electronic rollout, the industry relied on panelists writing down their listening habits from memory, a system prone to human error and station loyalty bias. The new technology removed the respondent burden entirely. By relying on an acoustic watermark—a proprietary, inaudible code embedded directly into the broadcast audio—the pager-sized meter detects these hidden tones and logs exactly which station is playing as panelists go about their day.[1]

The system automatically credits the exposure, capturing out-of-home viewing in sports bars, waiting rooms, and offices that traditional diary methods routinely missed. To transmit data through the air without ruining the broadcast, the system exploits a biological loophole in human hearing known as psychoacoustic masking. The human auditory system naturally prioritizes certain sounds over others, especially when they share overlapping frequency content.[2][3]

The Mechanics of Simultaneous Masking

When a loud sound and a quiet sound play simultaneously, the inner ear only registers the louder one, leaving the quieter tone entirely imperceptible. This phenomenon, technically called simultaneous frequency masking, occurs when the masker and the target signal fall within the same auditory filter in the cochlea. The brain cannot distinguish between the two frequencies, allowing the quieter sound to slip past human perception.[2]

Audio compression algorithms like MP3s use this exact principle to delete masked data and save file space without degrading the perceived audio quality. Broadcast encoders use this same perceptual blind spot to hide their watermarks in plain sight. The encoder analyzes the television or radio audio stream in real time, searching for loud, dense acoustic energy that can serve as a reliable masker.[2][3]

Once the software identifies a suitable masking sound, it shapes the identification code and tucks it just beneath the masking threshold. This precise calibration ensures the tones remain strictly inaudible to the audience while remaining clear enough for the meter's microphone to capture. The codes themselves are transmitted using multi-level frequency-shift keying, typically sitting in the 1 to 3 kilohertz band.[3]

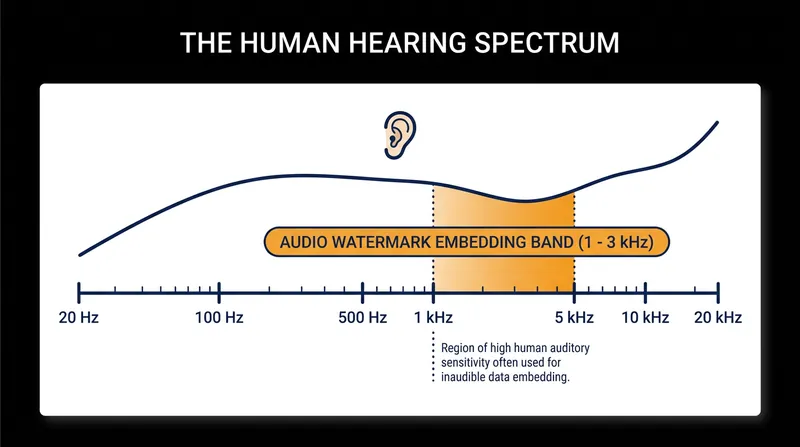

This specific frequency range falls squarely in the middle of the human hearing spectrum, which spans from 20 to 20,000 hertz. Rather than placing the signal at an ultrasonic pitch that standard television speakers or cheap car radios might fail to reproduce, the system hides the data where the human ear is actually most sensitive, relying entirely on the masking effect for concealment.[3]

The watermark payload carries a precise timestamp, accurate down to the one-hundredth of a second, alongside a unique Source Identification Code (SID). This allows the ratings agency to determine exactly which local affiliate or national network broadcast the program. The wearable meter stores these codes throughout the day, and when the panelist docks the device at night, it transmits the data back to a central server.[1]

The Structural Bias of Silence

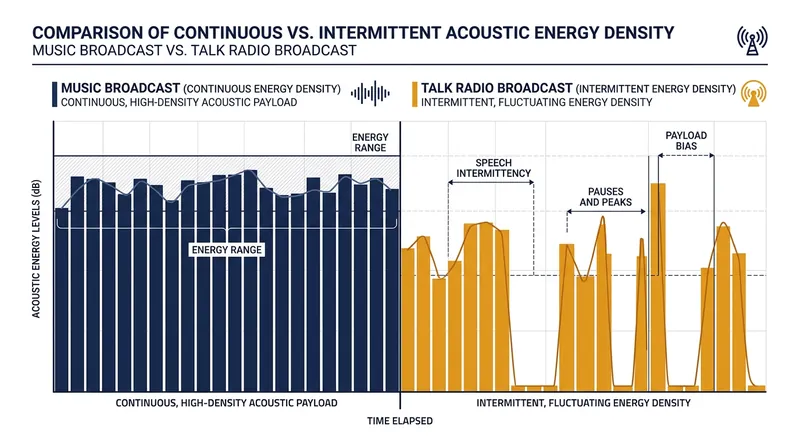

Because the watermark requires a louder sound to hide behind, the system's accuracy is heavily dependent on the acoustic density of the broadcast. A music station or an action-heavy television sequence provides continuous, broadband energy, offering the encoder ample opportunity to embed the signal. The meter receives a steady stream of valid payloads, ensuring the station receives full credit for its audience.[2]

Spoken-word content faces a vastly different physical reality. Talk radio, news broadcasts, and dialogue-heavy television dramas are defined by pauses, breaths, and quiet stretches. Without a loud masker to hide behind, the encoder must dynamically lower the volume of the watermark or stop transmitting it entirely to prevent the tones from becoming an audible hiss or clicking sound to the listener.[2]

This reliance on continuous audio creates a structural measurement bias. Because the encoder cannot transmit during silence, talk-heavy formats inherently broadcast fewer valid watermark payloads per minute than their musical counterparts. If the wearable meter fails to capture enough consecutive codes during a specific quarter-hour segment, the station loses the ratings credit for that listener entirely, artificially depressing the audience size.[5]

Hardware Amplification and the Voltair Era

The physical limitations of psychoacoustic masking sparked an industry controversy in 2015 with the introduction of a hardware device called Voltair. Developed by the Telos Alliance, the processor allowed broadcasters to monitor their watermark output in real time. More importantly, it allowed audio engineers to aggressively boost the gain of the encoded signal before it hit the transmitter, pushing it closer to the edge of human audibility.[5]

Stations that installed the amplification hardware saw their measured audiences spike, with some reporting ratings increases of 30 percent or more in a single month without changing their programming. The sudden jump confirmed what many broadcasters had long suspected: the passive meters had been systematically undercounting formats that lacked the acoustic density to support robust watermarking under the default encoder settings.[5]

Radio One CEO Alfred Liggins publicly acknowledged the hardware's impact during a 2016 earnings call, noting that the industry had missed the curve on watermark processing. "Most of our competitors had a unit installed, in many of the big markets, which may have contributed to this across-the-board radio ratings decline," Liggins stated, confirming that the company had subsequently deployed the units to recover their lost audience share.

Enhanced Encoding and Subminute Tracking

In response to the hardware arms race, Nielsen—which acquired Arbitron for $1.26 billion in 2013—rolled out Enhanced Critical Band Encoding Technology (CBET). The software update improved the error correction and signal detection capabilities of the proprietary encoders. By allowing the meters to piece together partial codes validated against nearby complete codes, the update leveled the playing field for spoken-word broadcasters.[4][5]

The passive measurement ecosystem continues to evolve to capture increasingly fragmented audiences. The newest generation of wearable meters, introduced in 2021, utilizes Bluetooth Low Energy to transmit collected data to a household hub or smartphone. To conserve battery life, the devices feature a motion sensor that drops the meter into a low-power sleep mode after 30 minutes of physical inactivity.[1]

The granularity of the data has also increased dramatically. Upgraded watermarking and fingerprinting capabilities now allow the system to credit individual commercials lasting 15 seconds or less. By tracking exposure at the subminute level, the technology ensures that advertisers know exactly who was in the room when their specific spot aired, completing the transition from household estimates to precise individual measurement.[4]
