How Over-the-Horizon Radar Uses Ionospheric Refraction to Spot Ships Thousands of Kilometers Away

Conventional microwave radar systems are bound by a strict geometric constraint: radio waves travel in straight lines through a uniform medium. Because the Earth is a sphere, the planet's surface curves away from the linear path of the radar beam. This creates a hard visual horizon at roughly 50 kilometers for a standard ground-based transmitter.[1][2]

Any maritime target located beyond that line of sight is physically shielded by the curvature of the planet itself. To detect a surface vessel thousands of kilometers away, a surveillance architecture must either elevate the sensor into orbit or find a physical mechanism to bend the radar beam around the Earth.[1][2]

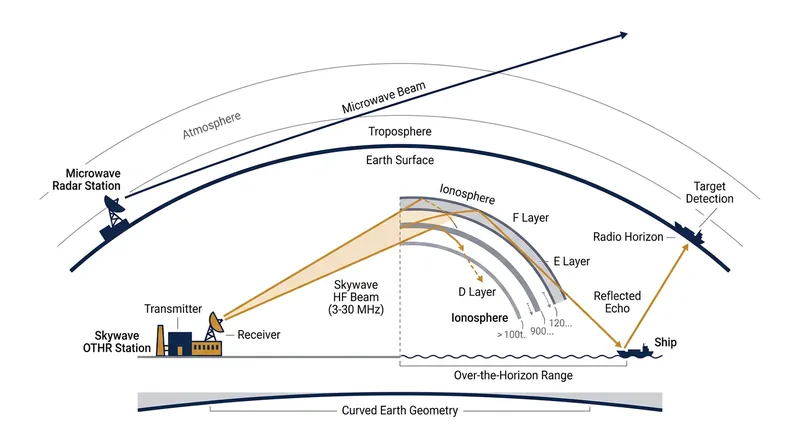

Over-the-horizon radar relies entirely on the latter approach. By shifting away from the microwave spectrum and operating in the High Frequency band, these systems abandon straight-line line-of-sight propagation. Instead of aiming directly at a target, an OTHR transmitter fires its megawatt-class energy upward into the atmosphere at a shallow angle.[1][3]

The system relies on the ionosphere—a dynamic layer of charged particles located 50 to 600 kilometers above the Earth's surface—to refract the beam back down to the ocean. This skywave propagation allows the radar energy to vault over the horizon, illuminating maritime targets up to 3,000 kilometers away from the transmitter.[1][2]

The Mechanics of Ionospheric Refraction

The ionosphere does not act as a solid, static mirror. It is a complex, stratified medium composed of ionized gas layers, primarily designated as the D, E, and F regions. When a high-frequency radio wave enters these ionized layers, the free electrons interact with the electromagnetic field, altering the wave's phase velocity.[2]

This interaction causes the path of the radar beam to bend, a process governed by the refractive index of the plasma. If the transmission frequency and the angle of incidence are precisely calibrated to the ionosphere's current electron density, the beam refracts sufficiently to return to the Earth's surface.[2]

This skywave refraction only occurs reliably within a specific slice of the electromagnetic spectrum, specifically between 3 and 30 megahertz. Frequencies above this threshold, such as the signals used by standard military radars, punch straight through the ionosphere and escape into space. Frequencies below the HF band are heavily attenuated and absorbed by the lower atmosphere.[2][3]

Operating within this narrow window requires relentless environmental calibration. The ionosphere's electron density is directly driven by solar radiation, meaning its refractive properties change dramatically between the day and the night. During the night, the lower D-layer dissipates entirely, and the upper E and F regions lose substantial ionization.[2]

This diurnal cycle forces radar operators to dynamically shift their transmission frequencies to maintain target lock. Sunspot activity, seasonal shifts, and localized weather events like thunderstorms further alter the ionosphere's geometry. A skywave radar must continuously sound the atmosphere, measuring the maximum usable frequency for a given range to prevent the beam from escaping.[2]

Extracting Ships from Sea Clutter

Illuminating a patch of ocean 2,000 kilometers away is only the first step in the detection chain. The radar system must then isolate the distinct signature of a surface vessel from the overwhelming backscatter of the surrounding water. When the refracted HF beam strikes the ocean surface, the vast majority of the electromagnetic energy scatters.[2]

A tiny fraction of that signal reflects back up toward the sky, refracts off the ionosphere a second time, and retraces its path to the receiving antenna. Because OTHR operates at such long wavelengths, the spatial resolution of this return signal is inherently coarse. A single radar resolution cell might cover tens of square kilometers.[2]

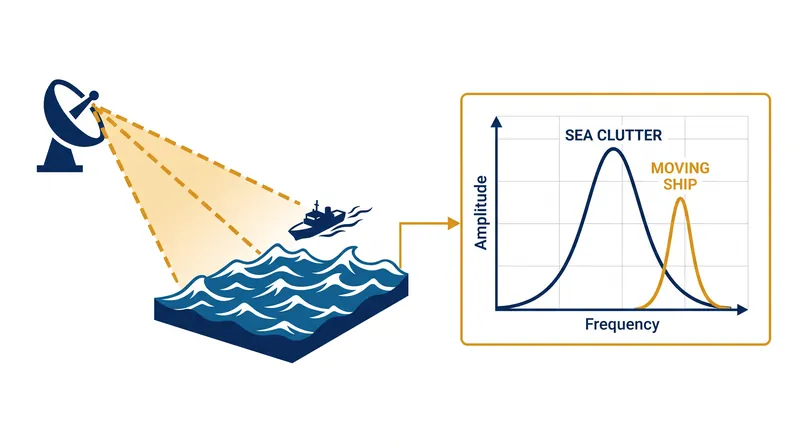

Within that massive footprint, the radar return from the sea surface is typically 50 decibels larger than the echo generated by a ship. This massive disparity effectively drowns the target in background environmental noise. To separate the vessel from the water, OTHR systems cannot rely on spatial resolution; they must rely entirely on the Doppler effect.[5]

As the ship moves across the water, it shifts the frequency of the returning radar echo slightly relative to the stationary or slowly moving ocean waves. By applying coherent integration times of 10 to 15 seconds, the radar's signal processors can resolve these minute frequency differences. This extended dwell time builds a detailed Doppler spectrum.[3]

However, this Doppler processing requires a highly stable ionosphere to function. If the ionized layers ripple or shift during the 15-second integration period, they introduce artificial frequency shifts into the returning signal, blurring the Doppler spectrum. When the sea-clutter spectrum widens due to atmospheric instability, it obscures the low-velocity signature of a maritime target.[5]

The Massive Scale of HF Arrays

The physics of the 3-to-30 MHz band impose a severe structural and geographic penalty on OTHR installations. The spatial resolution of any radar system is a direct function of its beamwidth, which is determined by the ratio of the operating wavelength to the physical size of the antenna.[2]

Because HF wavelengths range from 10 to 100 meters long, generating a focused beam requires an enormous physical aperture. To achieve a relatively wide 1-degree azimuthal beamwidth, an OTHR receiving array must span approximately 1.5 kilometers in length. This dictates that skywave systems cannot be built as rotating dishes mounted on towers.[2]

Instead, they are sprawling real-estate megaprojects, consisting of hundreds of vertical monopole antennas arranged in massive linear fields. Even with these kilometer-scale arrays, the precision of a skywave radar is fundamentally limited by the physics of the refraction process. The range resolution typically spans 20 to 40 kilometers, while the bearing accuracy drifts by 2 to 4 kilometers.

This level of fidelity is sufficient for wide-area early warning, maritime tracking, and vectoring patrol assets, but it cannot provide the precise targeting coordinates required to guide a weapon system. To prevent the powerful outgoing signal from blinding the sensitive receivers, OTHR systems are usually deployed in a bistatic configuration.[2]

The transmitter and receiver arrays are physically separated by 100 to 200 kilometers to provide radio-frequency isolation. This geographic separation allows the radar to broadcast a continuous, frequency-modulated waveform at average power levels reaching one megawatt. This continuous transmission maximizes the total energy delivered to the distant target zone.[2]

Strategic Maritime Surveillance

Despite their massive geographic footprint and inherent environmental vulnerabilities, skywave radars offer a surveillance capability that no other terrestrial system can match. A single OTHR installation can monitor millions of square kilometers of ocean, tracking surface fleets long before they approach a sovereign coastline.

This makes the technology a cornerstone of strategic defense for nations with vast maritime borders. Australia's Jindalee Operational Radar Network exemplifies the scale of this capability. Operating from three remote transmission and receiving sites, JORN projects a continuous surveillance umbrella over 37,000 square kilometers of the country's northern approaches.[4]

The network routinely tracks maritime vessels at ranges from 1,000 to 3,000 kilometers away. The system provides the Australian Defence Force with persistent, wide-area situational awareness without requiring a massive fleet of maritime patrol aircraft. Because the radar energy descends from the ionosphere, it illuminates targets from above.[4]

This vertical illumination negates the advantage of the Earth's curvature, making it impossible for a surface ship to hide behind the horizon. It also allows the radar to detect the wakes and wave disturbances generated by vessels, providing secondary indicators of maritime activity even if the ship's hull presents a low radar cross-section.[1]

As global naval operations expand, the strategic value of OTHR is driving a resurgence in the technology. In April 2025, the United States Air Force announced plans to build its first new skywave systems in decades.

"The proposal is for two transmitters to be in Christmas Valley, Ore., and two receivers in Whitehorse Ranch, Ore.," a spokesperson for the 366th Fighter Wing told Air & Space Forces Magazine. The two sites are approximately 200 miles apart to minimize signal interference.

Surface Wave Alternatives

While skywave propagation provides the greatest range extension, the HF band also supports a secondary mechanism known as surface wave propagation. Rather than bouncing signals off the ionosphere, High Frequency Surface Wave Radar exploits the conductive properties of saltwater.[2][3]

When vertically polarized HF signals are transmitted across the ocean, the electromagnetic waves couple with the conductive surface of the sea. This coupling allows the radar energy to diffract, physically bending around the curvature of the Earth rather than traveling in a straight line. This diffraction keeps the radar beam attached to the ocean surface.[3]

Surface wave systems operate at the lower end of the HF spectrum, typically between 1.6 and 10 MHz. Because they do not rely on the volatile ionosphere, these installations are immune to the diurnal cycles and solar storms that plague skywave systems. They provide highly reliable, continuous coverage regardless of atmospheric conditions.[2]

However, the range of a surface wave radar is significantly shorter than its skywave counterpart. The conductive coupling process attenuates the signal rapidly, limiting maximum detection ranges to roughly 300 to 500 kilometers. This makes surface wave radar ideal for monitoring coastal approaches, but insufficient for deep-ocean strategic surveillance.[2]

By combining both skywave and surface wave architectures, defense networks can create a layered over-the-horizon capability. The skywave systems provide the deep-look early warning at ranges up to 3,000 kilometers, while the surface wave installations provide high-fidelity, weather-independent tracking as vessels cross the 400-kilometer threshold. Together, they eliminate the blind spots created by the Earth's geometry.[5]
