How Non-Negative Spline Constraints Prevent Quantile Crossing in Additive Models

The integrity of a probabilistic forecast is determined the moment an algorithm assigns weights to its underlying basis functions. If a model optimizes the 10th and 90th percentiles of a dataset independently, it treats those boundaries as isolated mathematical problems rather than a coherent distribution.[1][2]

That independence is what allows a prediction engine to output a 10th percentile that is mathematically higher than its own median. This structural failure is known as quantile crossing, and it occurs frequently in additive models.[3][5]

Additive models use flexible mathematical curves called splines to map non-linear relationships in complex data. Because each quantile is estimated through its own loss function, the curves can intersect where data is sparse or highly variable.[3]

"The phenomenon of crossing quantile curves is an embarrassing feature of the standard quantile regression estimator," researchers noted in a foundational 1997 paper in The American Statistician. The crossing violates the fundamental law of monotonicity, which dictates that a higher percentile must always yield a greater value.[5]

To fix this, modern statistical software intervenes directly at the basis function level. By enforcing non-negative constraints on the spline derivatives during the optimization step, the model guarantees that the resulting curves will never cross.[3][7]

This constraint mechanism shifts the burden of logical consistency from post-processing checks directly into the model's architecture. Instead of generating flawed predictions and sorting them later, the algorithm is mathematically prohibited from exploring solutions where quantiles intersect.[6][9]

The mathematical certainty provided by these constraints is critical for automated decision systems. When a pricing algorithm or a risk assessment tool relies on probabilistic boundaries, a single crossed quantile can trigger cascading logic errors downstream.[10]

The Mechanics of Quantile Regression

Traditional regression models focus entirely on the mean, drawing a single line through the center of a dataset. Quantile regression, introduced in the late 1970s, expanded this capability by allowing analysts to model any percentile of the distribution.[2]

This approach is essential when the extremes matter more than the average. In ecology, researchers use the 95th percentile to estimate the maximum carrying capacity of a habitat, while economists track the 10th percentile to measure baseline wage growth.[8]

However, estimating these boundaries requires solving a distinct linear programming problem for each specific probability level. When a system models the 25th, 50th, and 75th percentiles simultaneously, it generates three separate equations that are entirely unaware of one another.[1][5]

In simple linear models, crossing only happens at the extreme edges of the data where confidence intervals widen. But in additive models, which bend and flex to capture local patterns, the curves can weave across each other in the very center of the distribution.[3]

When a 90th percentile curve dips below an 80th percentile curve, the model implies a negative probability for the space between them. That mathematical impossibility renders the forecast unusable for downstream risk assessment or policy planning.[2][9]

Splines and Additive Flexibility

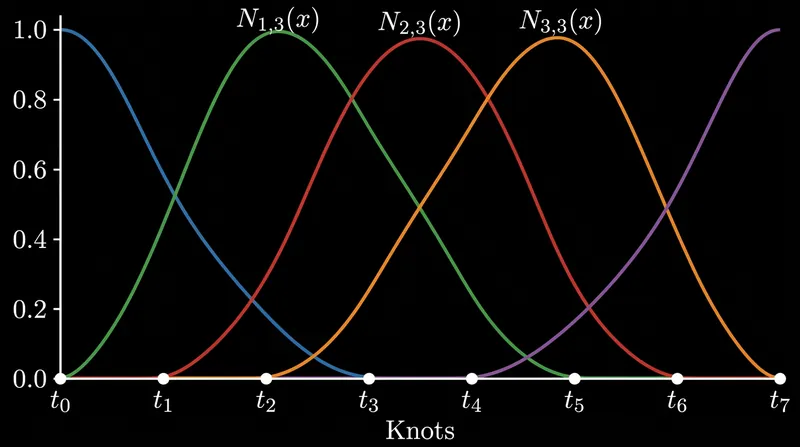

Additive models achieve their flexibility by breaking a continuous variable into smaller segments, separated by anchor points called knots. Between each knot, the model fits a localized polynomial curve, typically a B-spline, to capture the exact shape of the data.[3][4]

A B-spline acts as a flexible mathematical building block. By combining multiple B-splines and assigning different weights to each, the model can approximate almost any non-linear shape, from the rapid growth phase of a biological organism to the cyclical peaks of energy demand.[7][8]

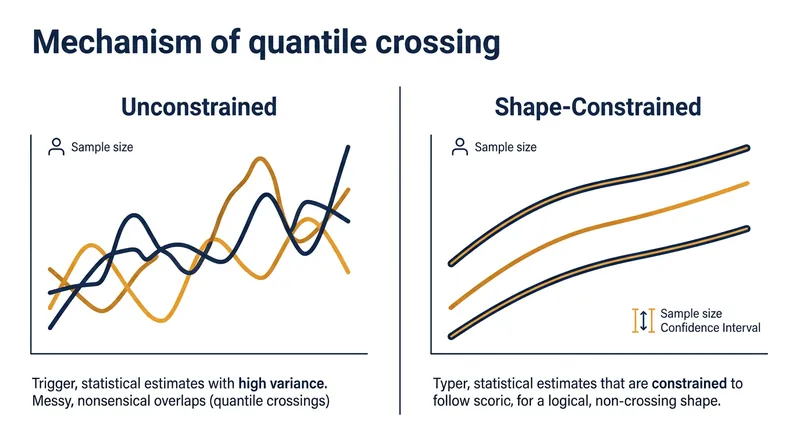

But that localized flexibility is precisely what exacerbates the crossing problem. Because the B-splines adapt tightly to the data points within their specific segment, a localized outlier can pull the 50th percentile curve sharply upward while leaving the 75th percentile curve relatively flat.[1][3]

"Unconstrained estimation of additive models often yields wobbly curves that are difficult to interpret," researchers detailed in a 2013 Statistics and Computing analysis. Without structural guardrails, the model prioritizes mathematical fit over logical coherence, allowing the splines to intersect freely.[3]

Early attempts to solve this involved simply sorting the output values after the model finished running. If the 10th percentile prediction was 45 and the median was 42, the system would swap them, forcing the output to obey monotonicity.[5][6]

Enforcing Monotonicity Through Constraints

Post-hoc sorting masks the symptom but corrupts the underlying statistical properties of the model. To solve the root cause, statisticians developed shape-constrained additive models, which embed strict logical rules directly into the optimization algorithm before the curves are drawn.[3][6]

The breakthrough relies on the mathematical properties of B-splines. The derivative of a B-spline, which measures its exact rate of change, can be expressed mathematically as a combination of lower-degree splines. If the coefficients of those derivatives are strictly non-negative, the resulting curve is guaranteed to be monotonically increasing.[3][4]

By applying this non-negative constraint to the difference between adjacent quantile curves, the model ensures that the gap between the 50th and 60th percentiles can never drop below zero. The curves are allowed to touch, but they can never cross.[1][7]

This transforms the estimation process from an unconstrained linear programming task into a constrained optimization problem. The algorithm must find the best-fitting weights for the B-splines while strictly navigating within the boundaries of the non-negative parameter space.[2][9]

In 2010, Biometrika published a comprehensive framework for noncrossing quantile regression curve estimation. The researchers demonstrated that these constrained models perform just as well as unconstrained versions while guaranteeing valid probability distributions across the entire dataset.[1]

Applications in Growth Charts and Ecology

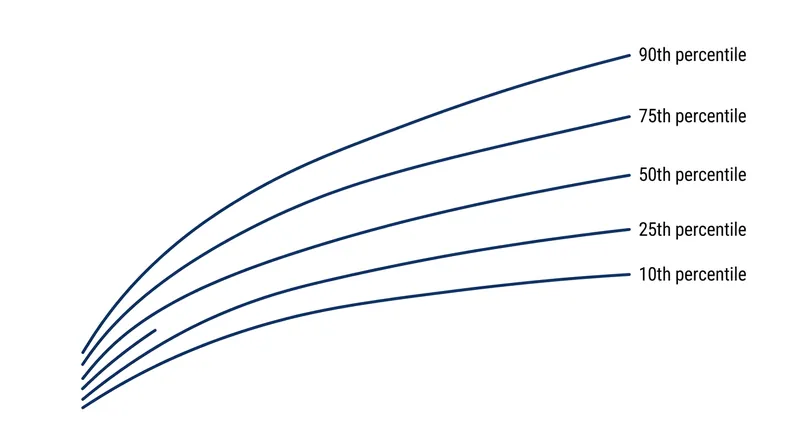

The most visible application of non-crossing quantile regression is the construction of pediatric growth charts. When a pediatrician plots a child's height on the 15th percentile, that smooth reference curve is generated by a shape-constrained additive model.[7][8]

If those curves were allowed to cross, a child tracking perfectly along the 10th percentile could suddenly appear to jump to the 25th percentile. This would happen simply because the underlying mathematical models intersected at a specific age knot.[8]

The quantregGrowth package in the R programming language was built specifically to handle this exact challenge. It uses non-crossing additive regression quantiles to generate smooth, logically consistent growth charts for both medical diagnostics and ecological monitoring.[7]

In environmental statistics, these constrained models track the growth rates of fish populations and tree canopies. A 2012 study in Environmental and Ecological Statistics utilized this framework to estimate biological carrying capacities without generating impossible negative growth intervals.[8]

"The proposed approach provides a practical framework for estimating growth charts via nonparametric quantile regression," the authors noted. They emphasized that the shape constraints were essential for producing biologically plausible reference curves from highly variable field data.[8]

The Computational Trade-Off

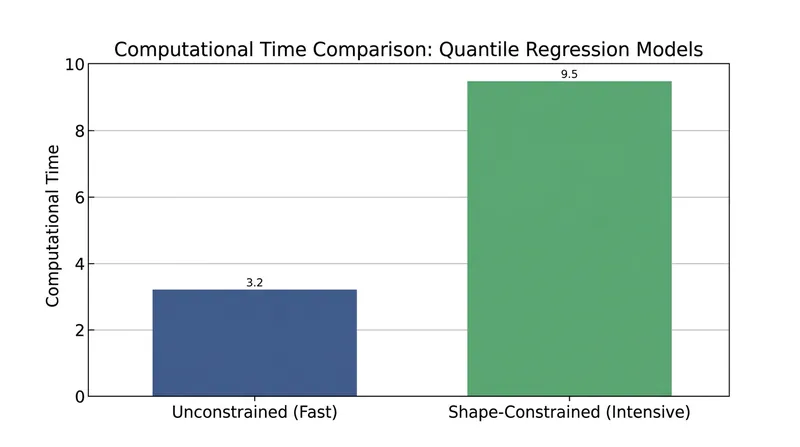

Enforcing monotonicity across multiple quantiles simultaneously carries a heavy computational cost. As the number of data knots and the number of target percentiles increase, the size of the constrained optimization matrix grows exponentially, requiring significant processing power.[6][9]

A model estimating 99 distinct percentiles across 20 spline knots must evaluate thousands of non-negative constraints at every step of the algorithm. Historically, this massive matrix made shape-constrained models too slow for large-scale industrial datasets.[2][9]

Recent advancements, such as the fast calibrated additive quantile regression method published in the Journal of the American Statistical Association in 2020, use algorithmic shortcuts to approximate the constraints. These modern solvers deliver non-crossing curves in a fraction of the time.[9]

These calibrated methods operate by first fitting a single, highly accurate reference curve, often the median. The algorithm then models the remaining quantiles as strictly positive deviations from that central anchor, drastically reducing the number of parameters that need to be constrained.[9]

By anchoring the distribution and constraining only the step-sizes between percentiles, data scientists can now deploy non-crossing additive models on massive datasets. This ensures that even the most complex machine learning forecasts obey the basic laws of probability.[6][9]

The transition from post-hoc sorting to embedded shape constraints represents a maturation of probabilistic forecasting. By forcing the algorithm to respect the fundamental laws of monotonicity during the optimization phase, statisticians have eliminated a major source of structural error.[10]
