How Knee Extension Angle Dictates Ligament Rupture During Heel Hook Submissions

The heel hook only destroys the knee if the hip is immobilized. If a grappler's hip can rotate freely, the rotational torque applied to the ankle simply spins the entire leg harmlessly. The angle of the knee dictates exactly which ligaments will rupture, but the trapped hip is the binding constraint that ensures the joint breaks in the first place.[6]

When that constraint holds, the heel hook becomes the most devastating submission in modern grappling. By securing the heel and twisting the foot, the attacker turns the lower leg into a lever. This forces the tibia to rotate against the femur, generating extreme rotational torque at the knee joint.[6]

Because the knee is primarily a hinge designed for flexion and extension, it possesses very little capacity to absorb rotational stress. Clinical data and biomechanical testing reveal that the knee's extension angle acts as a mechanical switch, shifting the destructive force between the cruciate and collateral ligaments.[6]

Full Extension: The ACL as the Primary Restraint

When the knee is near full extension, between zero and 15 degrees of bend, the anterior cruciate ligament is pulled taut. In this straightened position, the ACL serves as the primary restraint against internal tibial rotation. If an inside heel hook is applied while the leg is extended, the rotational torque is channeled directly into the core of the joint.[2][6]

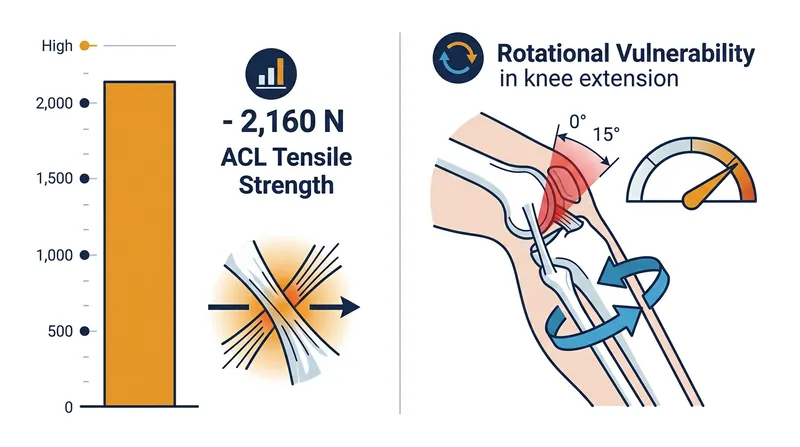

A healthy native ACL possesses an ultimate tensile strength of approximately 2,160 N, making it highly resistant to straight pulling forces. However, its torsional limit is significantly lower. As the tibia is forced into internal rotation, the ACL twists around the posterior cruciate ligament.[6]

Once the rotation exceeds the ligament's mechanical tolerance, the fibers shear and the ACL ruptures completely. This mechanism is frequently observed in grappling competitions. The combination of a flexed hip, a valgus knee angle, and internal tibial rotation produces a rotational torque that easily overwhelms the ACL.[2][3]

In many cases, this primary rupture is accompanied by secondary damage to the medial meniscus and the medial collateral ligament, creating a devastating multi-ligament injury. The clinical implications of an ACL tear are severe, as the mechanoreceptors within the ligament feed knee position and tension data back to the central nervous system.[3]

Deep Flexion: Transferring Load to the Collateral Ligaments

The injury pattern changes entirely when the knee is bent. As the knee moves into deep flexion, approaching 90 degrees, the ACL naturally slackens. In this flexed position, the joint relies on the collateral ligaments on the inside and outside of the knee to maintain structural integrity against rotational forces.[5][6]

If a heel hook is applied to a deeply bent knee, the torque bypasses the relaxed ACL and strikes the collateral ligaments directly. An inside heel hook, which forces internal rotation, will stretch the MCL until it tears. Conversely, an outside heel hook places immense stress on the lateral collateral ligament.[5]

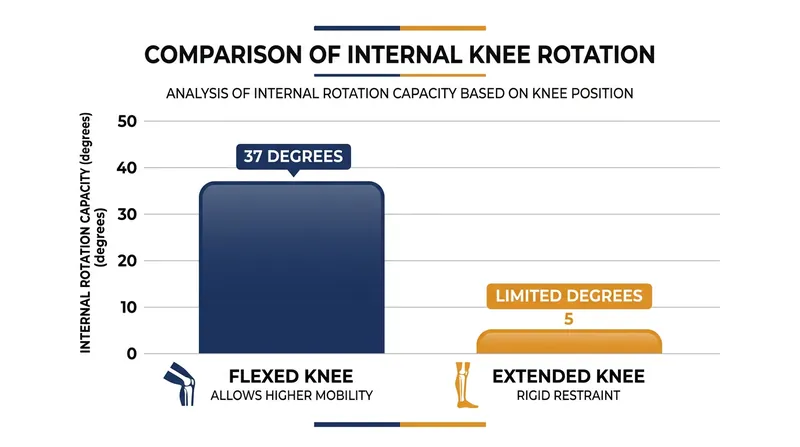

Biomechanical studies confirm that the average internal rotation occurring during flexion is roughly 37 degrees, with half of that movement taking place in the first 15 degrees of bend. Once that natural rotational slack is exhausted, the collateral ligaments bear the full brunt of the submission.[1]

Because these ligaments are located on the periphery of the joint, they are highly vulnerable to the leverage generated by the attacker's control of the foot. The tensile strength of these peripheral structures is lower than the cruciates. While the ACL can withstand massive linear force, the collateral ligaments often fail at lower thresholds under rotational shear.[4][6]

Inside Versus Outside Heel Hooks

The direction of the rotation further refines the injury profile. The inside heel hook, applied when the attacker is positioned inside the opponent's leg, twists the foot medially. This internal rotation directly targets the ACL, MCL, and medial meniscus.[2][6]

Sports medicine professionals widely consider the inside heel hook to be the most efficient mechanism for destroying the ACL in submission grappling. The outside heel hook operates on the opposite vector. By twisting the foot laterally, it forces the tibia into external rotation.[5]

This outward torque primarily threatens the LCL, the popliteus tendon, and the popliteofibular ligament. While the ACL is often spared during the initial phase of an outside heel hook, the resulting damage to the posterolateral corner is notoriously difficult to reconstruct surgically.[6]

Both variations require the attacker to maintain strict control over the knee line. If the defender's knee slips past the entanglement, the leverage is lost. But when the knee line is secured, the hip-to-heel leverage ratio heavily favors the attacker.[5]

The Danger of Delayed Pain Signals

Small movements of the attacker's hips translate into massive rotational forces at the defender's knee, making escape highly improbable once the grip is locked. What makes the heel hook uniquely dangerous is the neurological reality of the knee joint.[6]

Unlike the elbow, which signals hyperextension with a clear stretch and sharp pain, the knee's cruciate and collateral ligaments have a relatively low density of pain receptors. This creates a terrifying disconnect between mechanical damage and sensory feedback.[6]

By the time a grappler feels significant pain from a heel hook, the ligaments are often already tearing. The defensive window between feeling uncomfortable and suffering a complete rupture is measured in milliseconds. This absence of early warning signals is why heel hooks are responsible for such a high volume of severe injuries.[6]

Rehabilitation from these injuries is grueling. A complete ACL rupture typically requires nine months of phased recovery, beginning with restoring range of motion and progressing to neuromuscular control drills. Returning to the mat requires a hamstring-to-quadriceps strength ratio of at least 0.6 to protect the reconstructed joint.[3][4]

Ultimately, the survival of the knee depends on recognizing the mechanical trap before the torque is fully applied. Whether the leg is extended and threatening the ACL, or flexed and threatening the collateral ligaments, the joint cannot withstand the leverage of a properly secured heel hook.[6]
