How Kernel Memory Mapping Lets Android's Binder Transfer App Data With a Single Copy

Smartphone manufacturers and security architects routinely claim that mobile applications operate in strict, impenetrable silos, entirely isolated from one another's memory spaces. Google markets this sandboxing as the ultimate defense against rogue software, promising that a malicious game cannot read the banking application running next to it.[3]

But the engineering evidence contradicts the idea of total isolation. Beneath the surface of every Android device, applications are constantly sharing data through a highly optimized kernel loophole. If applications were truly cut off from one another, the operating system would grind to a halt under the weight of its own communication overhead.[2]

Instead, Android relies on a specialized inter-process communication mechanism known as Binder. Originally developed at Be Inc. in 1995 and later acquired by Palm, Binder was integrated into Android to solve a fundamental mathematical problem. A modern smartphone executes thousands of cross-process calls every second, and traditional data transfer methods simply consume too many CPU cycles.[4]

To maintain fluid performance, Binder breaks the traditional rules of operating system memory management. It allows the kernel to map the memory of a receiving application directly into the system's core address space. This architectural shortcut enables data to move between isolated apps with only a single copy, bypassing the performance penalties of standard Linux environments.[1]

The Double-Copy Bottleneck

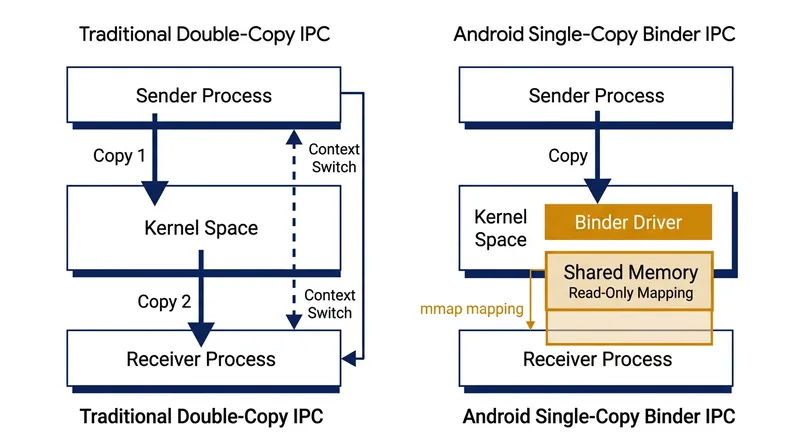

To understand what Binder accomplishes, one must first look at how traditional desktop operating systems handle communication. In a standard Linux environment, the system is strictly divided into user space, where applications run, and kernel space, where the core operating system resides. Applications cannot directly access kernel memory, nor can they touch the memory of other applications.[5]

When a traditional Linux process needs to send a message, it uses a system call to ask the kernel for help. The sending application copies its data from its own user space into a buffer located within the kernel space. This first memory copy requires the CPU to read and write every byte of the payload.[5]

Once the data sits securely in the kernel, the operating system alerts the receiving application that a message is waiting. The receiving application must then execute another system call to pull that data out. The kernel copies the data from its internal buffer into the receiver's user space, completing the second memory copy.[5]

"Traditional IPC mechanisms like System V message queues or pipes require data to be copied twice," notes the Linux Kernel Archives documentation. "First from the sender to the kernel, and then from the kernel to the receiver." This double-copy architecture prioritizes strict security and stability, but it imposes a heavy tax on memory bandwidth.

For a desktop computer plugged into a wall outlet, this overhead is largely invisible. But on a battery-powered mobile device, copying a one-megabyte payload twice requires allocating two megabytes of RAM and spending twice the energy. When an operating system relies on constant background communication, that double-copy tax quickly drains the battery and drops the frame rate.[2]

Mapping Memory Across Boundaries

Android bypasses this bottleneck by implementing a technique called kernel memory mapping, leveraging a standard system function known as mmap. When an Android application starts, the Binder driver allocates a dedicated block of virtual memory for it. It then maps this user-space buffer directly into the kernel's own memory space.[1]

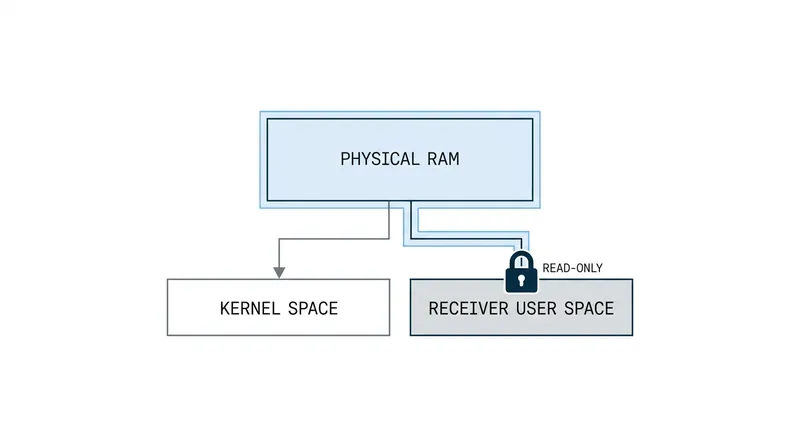

This mapping creates a shared window between the application and the operating system. The physical RAM is exactly the same, but it can be accessed simultaneously by both the kernel and the receiving application. The receiving app sees the memory as read-only, preventing it from tampering with the data or crashing the kernel.[1]

When the sending application transmits a message, the process begins exactly as it does in standard Linux. The sender copies its data into the kernel space. However, because the kernel space is already mapped to the receiver's user space, the data instantly appears in the receiver's memory.

By eliminating the secondary kernel-to-user copy, Binder reduces the memory bandwidth required for inter-app communication by exactly 50 percent. A one-megabyte transfer consumes exactly one megabyte of allocation overhead, saving millions of CPU cycles per second during standard smartphone UI rendering.[2]

This single-copy transfer is the defining characteristic of the Binder architecture. It allows Android to pass complex data structures, high-resolution images, and audio streams between applications almost instantaneously. The sender does the work of writing the data, and the receiver simply reads it from the shared window.[1]

The Architecture of Android Services

This extreme optimization is not just a performance trick; it is an absolute necessity for how Android is designed. Unlike traditional desktop applications, which run as monolithic executable files, Android apps are built from modular components. Activities, services, and broadcast receivers constantly exchange data to function.[3]

When a user taps the screen, the hardware touch sensor registers the input and sends it to the system server. The system server must then figure out which application is currently visible and forward the touch coordinates to that specific process. This requires an immediate cross-process call.[3]

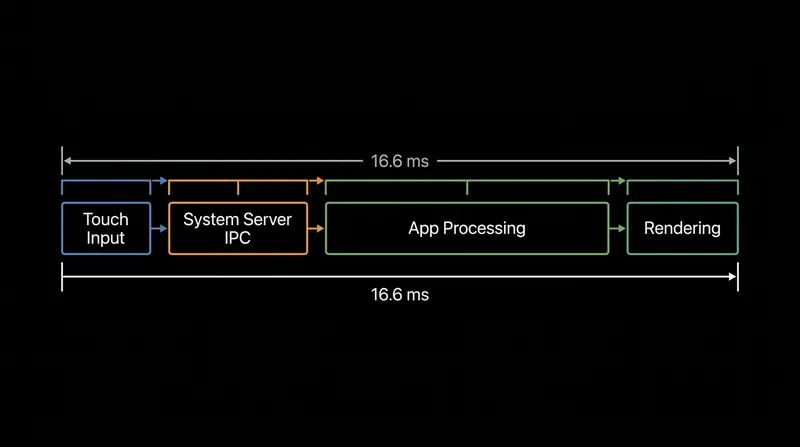

To maintain a smooth 60 frames per second, the entire cycle of input, processing, and rendering must complete within 16.6 milliseconds. If the system server had to perform a double-copy operation for every touch event, sensor update, and screen draw, the device would suffer from severe input lag.[2]

Binder handles tens of thousands of these transactions every second on a typical modern smartphone. It manages the communication between the camera hardware and the camera app, the GPS receiver and the mapping software, and the keyboard and the messaging client. Every interaction crosses a process boundary.[4]

"Binder provides a high-level RPC mechanism over a low-level IPC mechanism," the Android Open Source Project documentation explains. This remote procedure call framework allows an application to trigger functions in another application as if the code were running locally, hiding the complex memory mapping from the software developer.[1]

Security Within the Shared Space

Sharing memory between the kernel and user applications sounds like a catastrophic security vulnerability. If an application can see into the kernel's memory space, a malicious developer might attempt to read sensitive system data or inject malicious code. Binder prevents this through strict hardware-level access controls.

The memory mapped into the receiving application's user space is strictly configured as read-only by the device's memory management unit. If the receiving application attempts to alter the data or write new instructions into the buffer, the hardware immediately triggers a segmentation fault and kills the process.

Furthermore, the Binder driver acts as an absolute authority over identity verification. Every time a message is sent, the kernel automatically attaches the sender's user ID and process ID to the transaction. The sending application cannot spoof its identity, because the kernel generates the metadata internally.[1]

When the receiving application gets the message, it can check these unforgeable credentials against the system's permission registry. If a flashlight application tries to request the user's location from the GPS service, the service checks the attached user ID, sees that the app lacks location permissions, and drops the request.[3]

This architecture allows Android to maintain the illusion of impenetrable silos while secretly operating a highly efficient shared-memory network. The applications remain isolated from one another, but the kernel acts as a hyper-efficient courier, dropping read-only packages directly into their mailboxes.[2]

The Battery and Bandwidth Dividend

The impact of this single-copy architecture scales dramatically as smartphone hardware advances. Early Android devices shipped in 2008 with as little as 192 megabytes of RAM, making memory conservation a matter of basic survival. By 2026, flagship devices routinely feature eight to twelve gigabytes of memory, but the bandwidth constraints remain.[4]

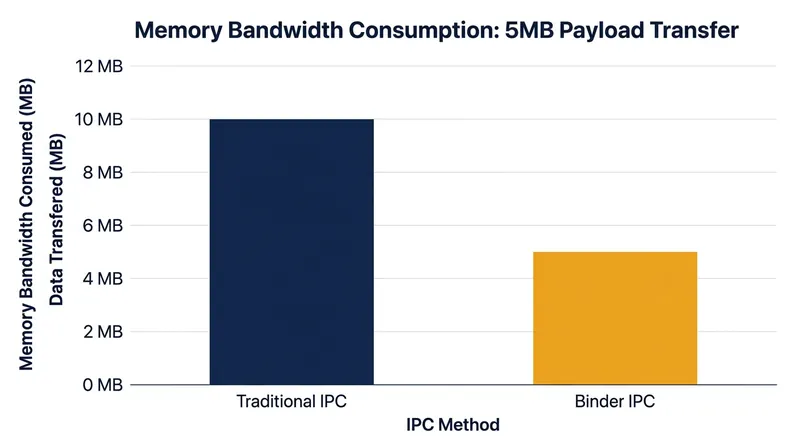

Modern applications transfer significantly larger payloads than their predecessors. A high-resolution photograph passed from the camera service to a messaging app can easily exceed five megabytes. Using a traditional double-copy mechanism, that single transfer would temporarily consume ten megabytes of memory bandwidth and stall the processor.[2]

By normalizing the byte-transfer rates across a standard payload, the mathematical advantage of Binder becomes clear. The single-copy mechanism effectively doubles the theoretical throughput of the device's internal communication bus. It allows the CPU to return to a low-power sleep state faster, preserving battery life.[2]

While Apple's iOS uses a different underlying kernel based on Mach, it employs similar memory-sharing optimizations for its own inter-process communication. Both operating systems recognized early on that strict, traditional isolation models were incompatible with the power constraints of mobile hardware.[4]

The Binder architecture demonstrates that pure isolation is often a marketing simplification. True system security does not require building impenetrable walls between applications; it requires building highly regulated, read-only windows. By mapping memory directly across boundaries, Android achieves the performance of a unified system while maintaining the security of a divided one.[2]
