How Hybrid Logical Clocks Bound Distributed Drift Without Hardware Sync

Hybrid Logical Clocks (HLCs) bound distributed network drift by pairing a standard wall-clock timestamp with a monotonic counter that only ticks upward when the physical clock falls behind. This software mechanism allows distributed databases to order transactions perfectly without relying on expensive atomic clocks or GPS receivers.[1][5]

The challenge of distributed time is fundamentally a physics problem. Quartz oscillators on computer motherboards vibrate at slightly different frequencies depending on ambient temperature and manufacturing variances. Over a single day, a standard server clock can drift by several milliseconds from its peers.[5]

Network Time Protocol (NTP) daemons constantly attempt to correct this drift by polling centralized time servers. However, network routing delays mean NTP can only guarantee synchronization within a margin of error, typically tens or hundreds of milliseconds. In a high-throughput database processing thousands of financial transactions per second, that window is an eternity.[2]

If two servers process withdrawals from the same bank account within a millisecond of each other, the database must know exactly which one happened first. Relying purely on physical clocks risks a scenario where a delayed server stamps a later transaction with an earlier time. This creates a causality violation, corrupting the database state.[5]

The Hardware Versus Software Divide

In 2012, Google bypassed the software problem entirely by introducing TrueTime for its Spanner database. TrueTime relies on GPS receivers and atomic clocks installed in every data center to keep maximum clock drift strictly bounded between one and seven milliseconds. The database simply waits out this uncertainty window before committing any transaction.[3]

While TrueTime guarantees perfect external consistency, it requires bespoke hardware infrastructure that most organizations cannot deploy. Cloud providers and open-source developers needed a software-only solution that could run on commodity servers. They needed a way to order events logically without losing the connection to human-readable wall-clock time.[2][3]

The theoretical foundation for software ordering began in 1978, when computer scientist Leslie Lamport introduced the Lamport clock. A Lamport clock is simply a counter that increments with every local event and updates to the maximum value seen in any incoming message. It perfectly captures causality—if event A causes event B, A will always have a lower number.[5]

However, pure logical clocks are entirely divorced from physical reality. A Lamport clock can tell a database that a deposit happened before a withdrawal, but it cannot answer a query asking for all transactions that occurred at 2:00 PM on a Tuesday. Administrators need point-in-time recovery, which requires actual timestamps.[1][5]

The Mechanics of the Hybrid Clock

The breakthrough arrived in 2014, when researchers Sandeep Kulkarni and colleagues published the foundational paper on Hybrid Logical Clocks. Their algorithm fused the causality-tracking power of Lamport clocks with the human-readable utility of Network Time Protocol timestamps. The resulting HLC is typically represented as a single 64-bit integer.[1]

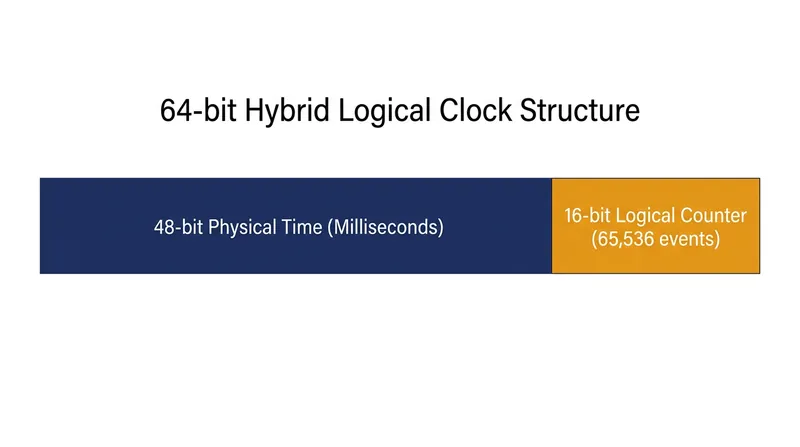

In a standard 64-bit HLC implementation, the top 48 bits store the physical wall-clock time in milliseconds, while the bottom 16 bits hold a logical monotonic counter. When a server processes an event, it first checks its local physical clock. If the physical time has moved forward since the last event, the server updates the 48-bit timestamp and resets the 16-bit counter to zero.[1][2]

The ingenuity of the HLC emerges when events happen too fast for the physical clock to tick, or when the physical clock stalls. If a new event occurs but the physical clock still shows the same millisecond as the previous event, the server leaves the timestamp alone and increments the 16-bit logical counter by one.[1]

This 16-bit counter provides a massive buffer against concurrent operations. It allows a single node to uniquely order up to 65,536 distinct events within a single physical millisecond. For modern distributed databases like CockroachDB and MongoDB, this logical space is more than sufficient to absorb massive transaction spikes.[2]

Bounding the Drift Across Networks

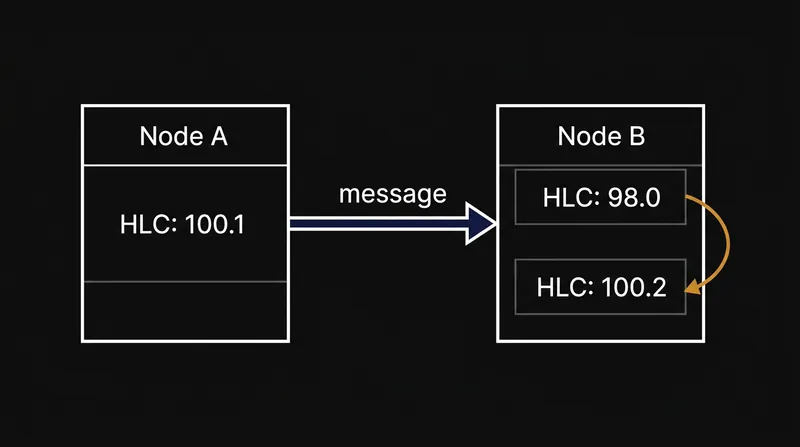

The system's resilience is tested when nodes communicate across a network. When Node A sends a message to Node B, it attaches its current HLC value. Upon receiving the message, Node B compares the attached HLC to its own local HLC and its own physical clock, taking the maximum of all three values.[1]

If Node A's clock is running slightly fast, Node B will adopt Node A's physical timestamp and increment the logical counter. This ensures that any subsequent action Node B takes is mathematically guaranteed to occur after Node A's message. Causality is preserved, even if Node B's physical clock thinks the message arrived from the future.[1][5]

"HLC captures the causality relationship like logical clocks, and enables identification of consistent snapshots in distributed databases," the original 2014 research team noted. Because the timestamp is always pushed forward by the fastest clock in the cluster, the logical time never runs backward, ensuring strict serializability.[1]

However, this forward-pushing mechanism introduces a new risk. If a single server's physical clock malfunctions and jumps ten years into the future, it will infect the entire cluster, dragging every node's HLC forward. To prevent this, HLC implementations enforce a strict upper bound on allowable clock drift.[2][5]

The Failsafe Crash Mechanism

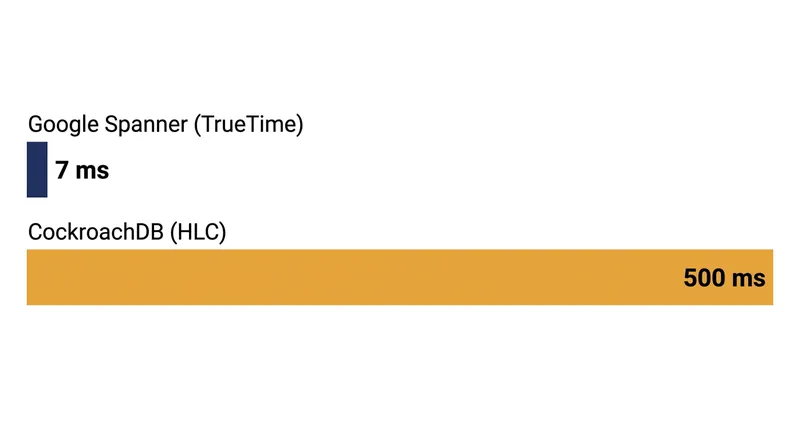

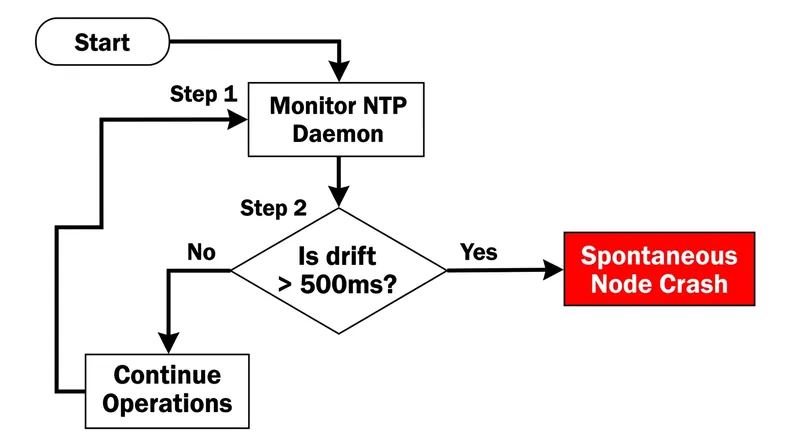

Database vendors heavily market their software-defined consistency, but it relies on a brutal failsafe mechanism. In CockroachDB, administrators configure a maximum allowable clock offset, which defaults to 500 milliseconds. The database constantly monitors the NTP daemon to ensure the physical clock remains within this boundary.[2]

If a node detects that its physical clock has drifted beyond the 500-millisecond limit compared to its peers, it does not attempt to correct the error. Instead, the node spontaneously crashes itself. This intentional suicide prevents the node from serving stale reads or corrupting the cluster's causal history.[2]

This crash mechanism highlights the core trade-off of software-based clocks. While they avoid the infrastructure costs of Google's TrueTime, they push the operational burden onto the network administrators. Maintaining a distributed database using HLCs requires meticulous attention to NTP server health and network latency jitter.[2][3]

MongoDB adopted a similar approach when it introduced logical session clocks in version 3.6. By utilizing a cluster-wide logical clock backed by physical timestamps, MongoDB enabled causal consistency for distributed replica sets. The system ensures that clients reading from secondary nodes never see data out of order.

Performance and Read Complexities

While HLCs handle write operations elegantly, they introduce significant complexity during read operations. Because clocks can drift up to the maximum offset, a node receiving a read request cannot immediately know if another node has committed a more recent transaction within that 500-millisecond uncertainty window.[2]

To guarantee linearizability without waiting out the clock error, CockroachDB employs a technique called read restarts. If a transaction encounters a value that was modified within its uncertainty window, the database forces the transaction to restart with a higher timestamp. This ensures the read reflects the absolute latest state.[2]

Under normal conditions, these read restarts are rare and resolve in microseconds. However, during periods of high network contention or severe clock drift, the restart rate can spike, degrading database throughput. The software is mathematically sound, but it cannot entirely escape the physical realities of the network.[2][5]

Recent advancements have attempted to narrow this gap. Cloud providers like Amazon Web Services now offer specialized time synchronization services that utilize hardware clocks in the hypervisor to keep virtual machine drift below one millisecond. This infrastructure upgrade dramatically reduces the uncertainty window for HLC-based databases.[4]

By combining microsecond-level cloud time synchronization with the causal guarantees of Hybrid Logical Clocks, modern systems are approaching the performance of bespoke hardware solutions. The software algorithm Kulkarni's team formalized in 2014 remains the critical bridge between physical reality and logical ordering.[1][4]

The Abstraction of Network Physics

The elegance of the HLC lies in its dual nature. To the application developer querying the database, the 64-bit integer looks and behaves exactly like a standard UNIX timestamp. They can extract the top 48 bits to generate human-readable reports, completely ignoring the logical counter operating beneath the surface.[1][5]

Meanwhile, the database engine relies entirely on that hidden 16-bit counter to resolve race conditions. When two transactions arrive at the exact same physical millisecond, the counter acts as an infallible tiebreaker. It is a seamless abstraction that hides the chaotic reality of distributed network physics from the end user.[1][5]

The widespread adoption of Hybrid Logical Clocks proves that algorithmic ingenuity can overcome hardware limitations. By acknowledging that physical clocks will always be flawed, and building a mathematical safety net to catch those flaws, software engineers created a resilient foundation for the modern distributed web.[5]
