How Elevating Your Heels During Squats Shifts Knee Pressure to Protect Cartilage

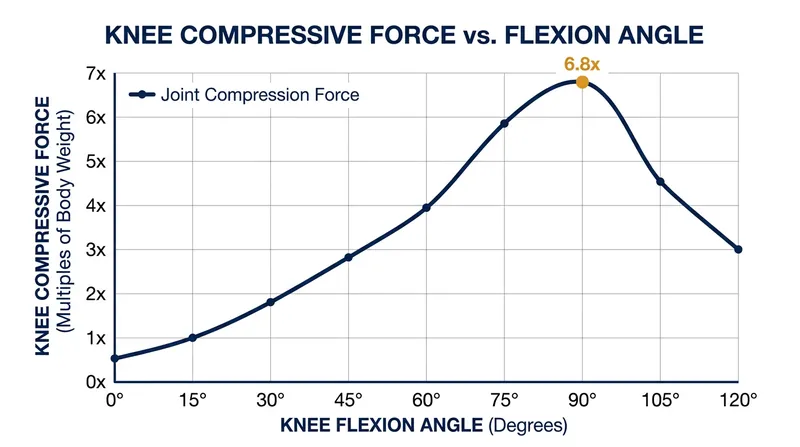

At exactly 90 degrees of knee flexion, the compressive force pressing the kneecap into the femur reaches up to seven times a lifter's body weight. A 2002 analysis in the Journal of Orthopaedic & Sports Physical Therapy mapped how this immense pressure distributes across the retropatellar cartilage.[2][8]

When a lifter descends, the patella acts as a mechanical pulley for the quadriceps muscle group. It glides down the femoral groove, increasing the contact area to distribute the rising forces. However, the lower portion of this cartilage often bears the brunt of the load during the initial descent.[1][8]

This localized stress is the primary mechanical driver of patellofemoral pain, a condition that sidelines millions of active adults. A 2019 clinical practice guideline emphasizes that managing this specific joint load is critical for rehabilitation, yet simply avoiding the squat removes a vital compound movement.[7]

Researchers have identified a structural workaround that does not require abandoning the exercise. By elevating the heels by just two to three centimeters—either through specialized weightlifting shoes or a firm wedge—lifters fundamentally alter the geometry of the lower limb.[4]

Altering the ankle to protect the knee

The mechanical chain reaction begins at the ankle joint. A flat-footed squat demands significant ankle dorsiflexion—the ability to pull the toes toward the shin—to allow the knees to track forward while keeping the torso upright.[1][5]

When ankle mobility is restricted, the lifter instinctively leans the torso forward to maintain their center of mass over the midfoot. This forward lean increases shear forces on the lumbar spine and alters how the quadriceps engage the patellar tendon.[5][6]

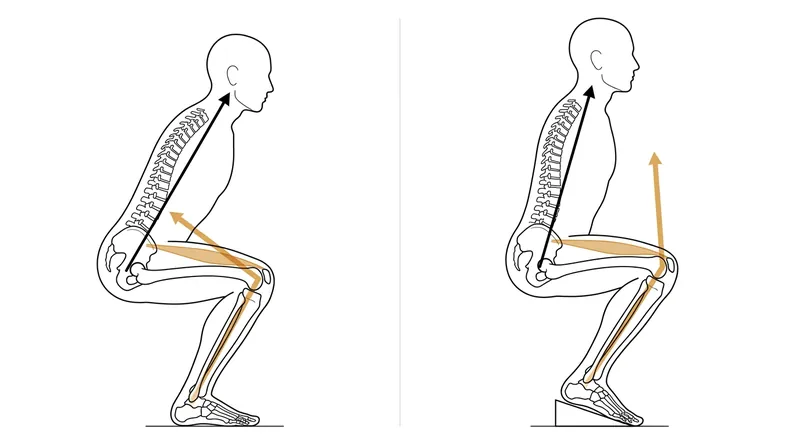

A 2020 study in the Journal of Sports Sciences demonstrated that elevating the heel artificially places the ankle into slight plantarflexion before the descent even begins. This reduces the total dorsiflexion required to reach parallel, allowing the knees to translate further forward.[4][5]

This upright posture shifts the mechanical demand. While it might appear that pushing the knees further forward would increase knee stress, the altered torso angle actually changes the vector of the quadriceps pull. The muscle pulls the kneecap at a slightly different angle relative to the femur.[1][4]

The superior pressure shift

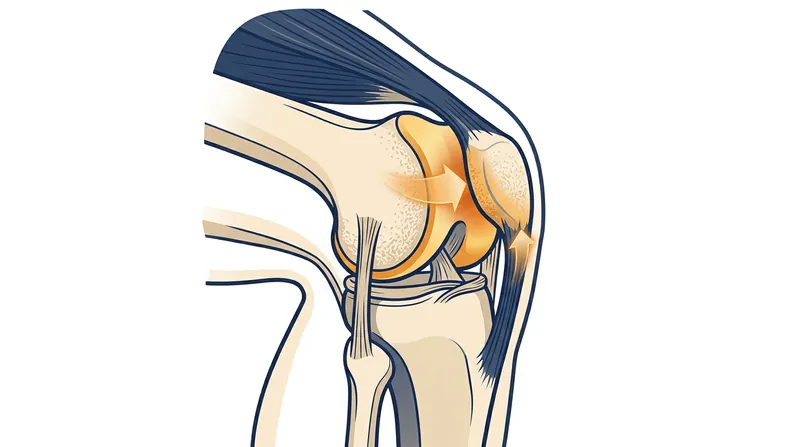

The protective mechanism lies in exactly where the kneecap contacts the femur. During a standard flat-footed squat, the highest contact pressures often concentrate on the inferior pole—the bottom edge of the retropatellar cartilage—as the knee passes 45 to 90 degrees of flexion.[2][8]

When the heel is elevated and the torso remains upright, the altered quadriceps vector pulls the patella slightly higher within the trochlear groove. This superior shift moves the peak compressive forces away from the vulnerable inferior pole and onto the thicker, broader central and superior regions of the cartilage.[3][8]

Distributing the load across a larger, more robust surface area reduces the localized pressure per square millimeter. A 2007 biomechanical analysis of the single-leg decline squat demonstrated that this shift allows the joint to tolerate high quadriceps forces without triggering anterior knee pain.[3]

This is why physical therapists frequently prescribe heel-elevated squats for patients recovering from patellar tendinopathy or retropatellar cartilage wear. The elevation allows the lifter to fully load the quadriceps muscle fibers while mechanically bypassing the damaged tissue zones.[3][7]

Managing the trade-offs in joint shear

Manipulating joint angles always involves a mechanical trade-off. While heel elevation protects the retropatellar cartilage from compressive overload, the increased forward knee translation does alter the shear forces acting on the ligaments inside the knee capsule.[6][8]

As the knee travels further past the toes, the anterior shear force—the forward sliding of the tibia relative to the femur—increases slightly. This force is primarily restrained by the anterior cruciate ligament, which must absorb the additional tension.[6]

However, sports scientists note that these shear forces remain well within the ultimate tensile strength of a healthy ACL. The peak anterior shear during a deep squat generally occurs within the first 60 degrees of flexion and maxes out at roughly 25 percent of the ligament's failure threshold.[8]

For lifters with healthy ligaments, this slight increase in shear is a negligible risk compared to the substantial reduction in patellofemoral compression. But for athletes actively rehabilitating an acute ACL reconstruction, the flat-footed squat may remain the safer initial choice to minimize graft tension.[6][7]

Maintaining quadriceps activation

Beyond joint protection, researchers track how this postural shift affects muscle recruitment. A 2022 analysis in MDPI measured lower extremity muscle activation during barbell squats with and without heel lift insoles, mapping the electrical output of the thighs.[4]

The data revealed that elevating the heels does not diminish the electrical activity within the vastus medialis or vastus lateralis. The quadriceps continue to fire at near-maximal capacity to extend the knee out of the bottom position.[4][8]

What does change is the contribution of the posterior chain. Because the torso remains more vertical, the hip joint undergoes less total flexion, which slightly reduces the mechanical demand placed on the gluteus maximus and hamstrings.[1][5]

For hikers and mountain athletes using the squat to build downhill braking strength, this quadriceps isolation is highly beneficial. It overloads the specific muscle fibers required to decelerate the body on steep descents without overtaxing the lower back.[4][7]

Practical implementation for lifters

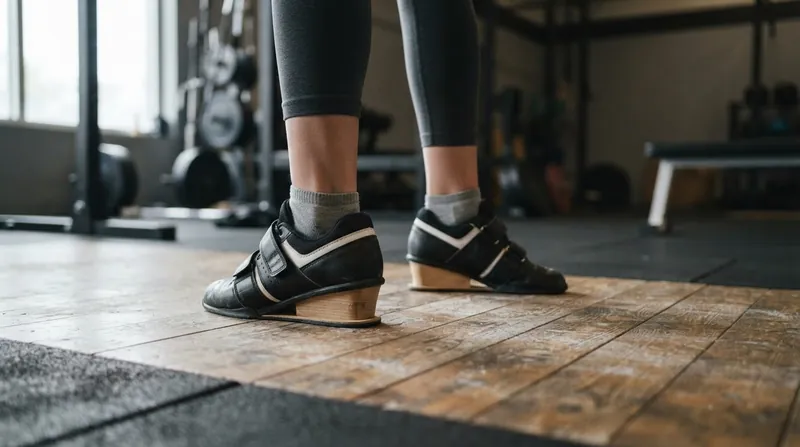

Implementing this mechanical shift requires precision in the equipment used. A standard weightlifting shoe provides a solid, non-compressible thermoplastic heel wedge, typically measuring between 15 and 22 millimeters in height, which ensures a stable base of support.[4][5]

Novice lifters often attempt to replicate this effect by standing with their heels on small weight plates. While this achieves the necessary elevation, the narrow surface area of a plate can introduce mediolateral instability, forcing the ankle stabilizers to work harder to prevent the foot from rolling outward.[4]

Furthermore, the degree of elevation should be matched to the lifter's specific anatomical proportions. Individuals with exceptionally long femurs relative to their torso length require more heel elevation to achieve an upright posture than those with shorter femurs.[1][5]

The published biomechanical literature on this mechanism relies entirely on quantitative kinematic data rather than quoted clinical commentary. However, the numeric consensus shows that the decision to elevate the heels should be driven by the lifter's specific anatomical proportions and injury history.[1][7][9]

By understanding how a two-centimeter lift at the floor translates to a millimeter shift at the kneecap, athletes can train through deeper ranges of motion. The intervention preserves the retropatellar cartilage, ensuring the joint outlasts the demands of heavy resistance training.[2][4]
