How Doppler Shift and the MEOSAR Satellite Network Actually Pinpoint a 406 MHz Distress Beacon

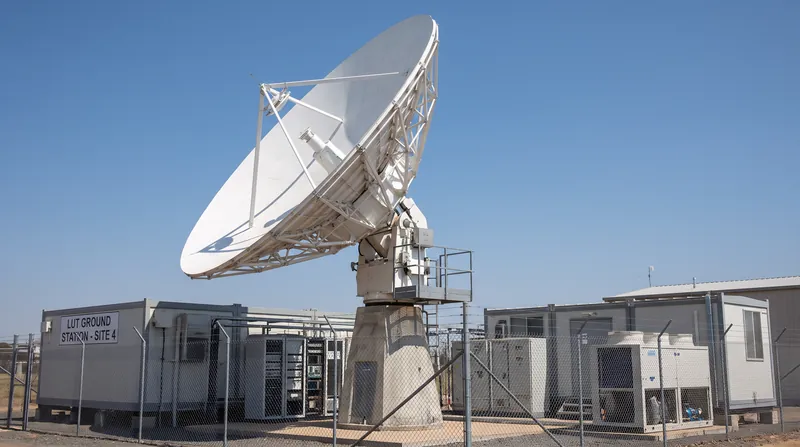

The outcome of a backcountry rescue is not determined when a hiker presses the button on a Personal Locator Beacon (PLB). It is determined at a Local User Terminal (LUT) on the ground, where computers calculate the Doppler shift or time difference of arrival of a 406 MHz radio wave. Without this mathematical calculation, the satellite relay is just a blind alarm. The International Cospas-Sarsat Programme, established in 1979 and formalized by an international treaty in 1988, is the invisible infrastructure behind every PLB, maritime Emergency Position-Indicating Radio Beacon (EPIRB), and aviation Emergency Locator Transmitter (ELT).[1]

The system operates on a dedicated, internationally protected frequency band: 406.0 to 406.1 MHz. When a beacon is activated, it transmits a 144-bit digital message every 50 seconds. The first 24 bits identify the signal to the receiving equipment, while the remaining 120 bits contain the beacon's unique hexadecimal identification code. This code is the digital license plate that tells rescuers exactly who is in trouble, what type of vessel or aircraft they are operating, and who their emergency contacts are.[1]

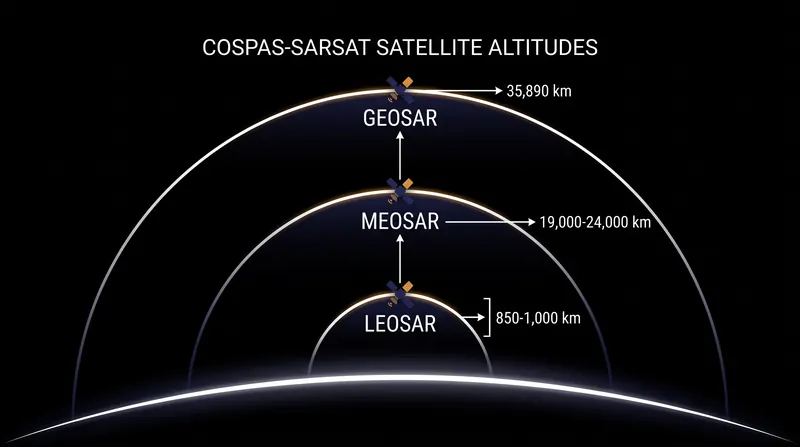

The legacy backbone of this system is the Low Earth Orbit Search and Rescue (LEOSAR) constellation. These satellites orbit the Earth at an altitude of roughly 850 to 1,000 kilometers, completing a full polar orbit every 102 to 105 minutes. Because they are in low orbit, LEOSAR satellites have a relatively small footprint on the Earth's surface. A beacon activated in a remote area must wait for a satellite to physically pass overhead. When a LEOSAR satellite finally does cross the horizon, it uses Doppler shift to calculate the beacon's location.[1][2]

As the satellite approaches the beacon, the frequency appears to increase; as it moves away, the frequency decreases. This Doppler curve allows the ground station to calculate two possible locations—an "A" and "B" position, one of which is the true location and the other a mathematical mirror image. A second satellite pass or the Earth's rotation resolves the ambiguity, yielding a final accuracy of two to five kilometers. However, this sequential process can take over an hour, leaving victims waiting in critical conditions while the orbital mechanics play out.[1]

To eliminate the 100-minute wait time, the system introduced Geostationary Search and Rescue (GEOSAR) satellites. Parked at an altitude of 35,890 kilometers, GEOSAR satellites provide near-instantaneous detection of a 406 MHz signal across vast footprints that cover entire hemispheres. However, because GEOSAR satellites remain fixed relative to the Earth, there is no relative motion, and therefore no Doppler shift. Unless the beacon transmits encoded GPS coordinates, GEOSAR cannot independently calculate a location, acting only as an immediate alarm bell.[1]

The modern revolution in the network is the Medium Earth Orbit Search and Rescue (MEOSAR) system, which began initial operations in 2016. MEOSAR payloads are hosted on global navigation satellites, including the United States' GPS, Russia's GLONASS, and Europe's Galileo constellations, orbiting between 19,000 and 24,000 kilometers above the Earth. Because there are dozens of these satellites, a beacon is typically visible to at least four MEOSAR satellites simultaneously, completely eliminating the wait time for an overhead pass.[2]

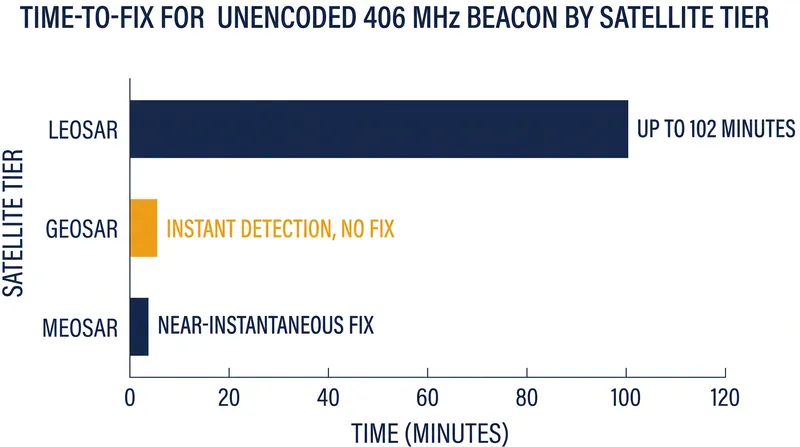

Instead of relying on Doppler shift from a single satellite, MEOSAR ground stations use Time Difference of Arrival (TDOA) and Frequency Difference of Arrival (FDOA) from multiple satellites to instantly triangulate the signal. By measuring the microscopic differences in when the signal reaches each satellite, the ground computers can pinpoint the beacon with extreme precision. This blended architecture means the system is highly redundant. As the European Union Agency for the Space Programme notes, Galileo's inclusion "ensures near real-time detection and location of distress signals worldwide." The MEOSAR upgrade effectively reduced the time-to-fix from hours to seconds.[2]

Furthermore, the Galileo constellation introduced a Return Link Service (RLS) in 2020. The RLS sends an automatic acknowledgment message back to the beacon, illuminating a blue LED to inform the user that their distress signal has been received and their position computed. Once the Local User Terminal calculates the position, the data is forwarded to a Mission Control Center (MCC). The MCC cross-references the beacon's hexadecimal code with national registration databases to determine who the beacon belongs to and what emergency contacts to call.

The alert is then routed to the appropriate Rescue Coordination Center (RCC), such as those operated by the U.S. Coast Guard or the Australian Maritime Safety Authority, which dispatches local search and rescue teams. "The Cospas-Sarsat system is the only satellite distress alerting system that is capable of this dual, redundant means of locating an activated distress beacon," according to the system's technical documentation. Since its inception, the network has assisted in the rescue of more than 52,000 people in over 16,000 distress situations worldwide.[1]

The physics of radio propagation still dictate the system's limits. A beacon at the bottom of a narrow slot canyon or under a dense jungle canopy may not have line-of-sight to the MEOSAR or GEOSAR constellations, forcing the system to rely on a LEOSAR satellite passing directly overhead to catch the signal. As space agencies continue to launch new MEOSAR payloads, the coverage overlap will only densify, pushing the time-to-fix closer to absolute zero and shifting the bottleneck entirely to the physical speed of the responding helicopter.[2][3]
