How Contrastive Learning Pulls Multimodal Representations Across the Modality Gap

For an artificial intelligence to successfully connect a photograph of a dog to the written word dog, both the visual pixels and the linguistic letters must be translated into the exact same mathematical coordinate system. If the visual and linguistic data do not land in a shared geometric space, the model remains fundamentally blind to how they relate to one another.[1]

That shared space represents the binding constraint of modern multimodal artificial intelligence. In 2021, researchers introduced Contrastive Language-Image Pretraining, commonly known as CLIP, a framework specifically designed to force these two distinct data types into a unified alignment that machines can process.[2][3]

The architecture relies on a complex mathematical operation called symmetric cross-entropy loss to pull matching images and text together while simultaneously pushing mismatched pairs apart. This mechanism trains the model to recognize concepts across modalities without requiring any human-labeled categories or explicit instructions.[1][2]

Yet, as researchers analyzed the resulting geometric spaces over the following years, they discovered a persistent and fascinating structural anomaly. Even when the model correctly pairs an image with its description, the visual and textual representations remain separated by a measurable void known as the modality gap.[4][6]

The Architecture of a Shared Space

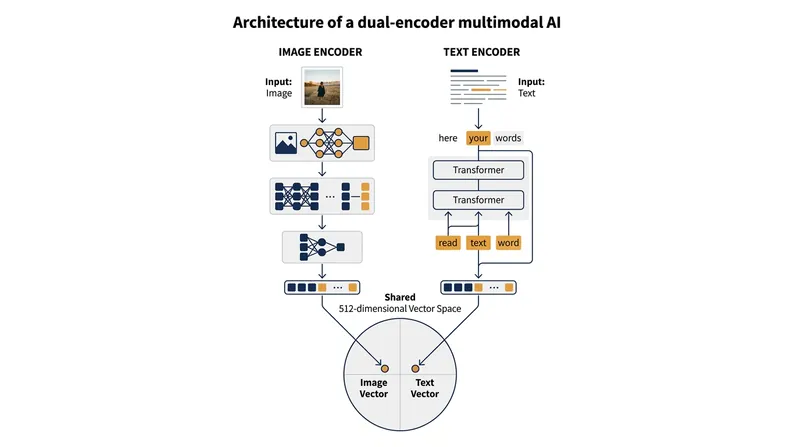

The framework operates by deploying two separate neural networks simultaneously during the training phase. An image encoder processes the visual data, while a text encoder processes the corresponding caption, with both networks operating entirely independently during the initial feature extraction phase.[2]

Each encoder compresses its input into a dense mathematical vector, typically consisting of 512 or 1,024 dimensions depending on the specific model size. These vectors act as coordinates, plotting the core semantic meaning of the image or the text into a vast, high-dimensional landscape.[1][3]

The text encoder and image encoder are trained jointly to maximize the cosine similarity of the image and text embeddings of the real pairs in the batch, the original 2021 research team noted in their foundational paper detailing the architecture.[3]

Because the two encoders possess entirely different architectures, often utilizing a Vision Transformer for the images and a masked self-attention model for the text, they naturally initialize in completely different regions of the mathematical space before training begins.[4]

Without a mechanism to bridge that initial distance, the coordinates produced by the image encoder would bear absolutely no geometric relationship to the coordinates produced by the text encoder. The system requires a powerful gravitational force to pull related concepts together.[6][7]

Symmetric Cross-Entropy Loss

That gravitational force is contrastive learning, executed through a symmetric cross-entropy loss function. Rather than teaching the model what an image actually is, the loss function simply teaches the model which text vector belongs closest to which image vector in the shared space.[1][2]

During training, the system processes massive batches of data simultaneously to maximize efficiency. A standard training batch contains 32,768 distinct image-text pairs, creating a massive matrix of potential combinations that the model must evaluate and score all at once.[3]

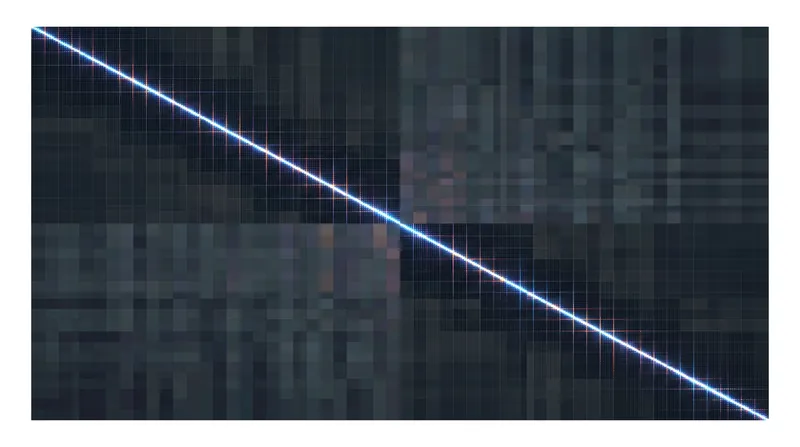

The loss function calculates the cosine similarity for all possible pairings within that massive batch. It explicitly rewards the network for maximizing the similarity score of the 32,768 correct pairs that sit along the diagonal of the evaluation matrix.[1]

Simultaneously, the symmetric function heavily penalizes the network for any similarity found among the more than one billion incorrect combinations in the rest of the batch. This dual pressure forces both encoders to constantly refine their coordinate mapping.[3]

The symmetry of the function is critical because it optimizes the space from both directions at once. The loss function ensures that a specific image vector is closest to its correct text vector, and that the text vector is closest to that specific image vector.[2][7]

By applying this mathematical pressure across 400 million image-text pairs gathered from the internet, the model learns a highly robust shared representation. The resulting space allows the system to identify visual concepts it has never explicitly been trained to recognize, enabling zero-shot transfer.[1][3]

Discovering the Modality Gap

Despite the immense pressure applied by the contrastive loss function, the resulting geometric space is not perfectly uniform. In 2022, researchers analyzing the embedding landscape discovered that the text and image vectors do not actually overlap in the final trained model.[4][6]

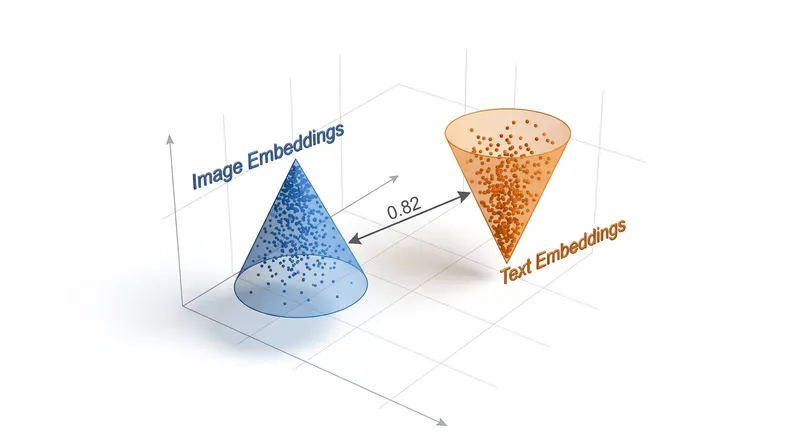

Instead of mixing together seamlessly, the two modalities form distinct, parallel structures within the shared space. We find that the embeddings of the two modalities are located in two completely separate regions, the 2022 diagnostic study reported after mapping the coordinates.[4]

This separation is quantified mathematically as the modality gap, typically measuring around 0.82 in cosine distance between the center of the image cluster and the center of the text cluster. The gap persists across different model sizes and various training datasets.[6][7]

Researchers traced the origin of this gap directly to the random initialization of the neural networks. Because the image and text encoders start with different initial weights, their baseline outputs naturally occupy different regions of the high-dimensional space from the very first epoch.[4][7]

The contrastive loss function shifts these clusters toward each other, but the optimization process stops once the relative distances are sufficient to identify the correct pairs in a batch. The loss function never explicitly demands absolute overlap between the two modalities.[6]

Furthermore, the distinct statistical properties of pixels and text tokens create fundamentally different geometric shapes. Images contain continuous, dense information, while text is discrete and sparse, causing their respective embeddings to form differently shaped cones in the shared vector space.[5][7]

Why the Gap Does Not Break the Model

Intuitively, a massive geometric gap between the visual and textual coordinates should prevent the model from successfully pairing them. However, the foundational 2021 model still achieved an impressive 76.2 percent zero-shot accuracy rate on the standard ImageNet benchmark.[3]

The system succeeds because contrastive learning relies entirely on relative distances rather than absolute coordinates. As long as the vector for the word dog is closer to the vector for a dog image than to a cat image, the absolute distance across the gap simply does not matter.[4][6]

The symmetric cross-entropy loss perfectly aligns the internal geometry of the two separate clusters. The distance between a dog image and a cat image precisely mirrors the distance between the word dog and the word cat in the parallel text cluster.[1][7]

When the model attempts to classify a completely new image, it simply projects the visual vector across the gap and finds the nearest corresponding text vector. The parallel structure ensures that the nearest text vector is almost always the correct label.[2][4]

The modality gap does not strictly harm downstream zero-shot performance, as the relative similarities are preserved, researchers noted in a 2025 analysis of contrastive multimodal learning dynamics, confirming that parallel alignment is entirely sufficient for standard retrieval tasks.[7]

Closing the Distance in Future Models

While the gap does not break basic zero-shot classification, it does limit the model's ability to perform more complex multimodal reasoning. Generating an image directly from a text embedding requires a much more tightly integrated geometric space to function properly.[5][7]

Recent engineering efforts have focused heavily on explicitly bridging this divide. Researchers have introduced temperature tuning mechanisms and non-linear projection heads designed to force the two clusters into a tighter absolute alignment during the final stages of the training process.[4][5]

Other approaches attempt to bypass the initialization problem entirely by using unified transformer architectures that process both pixels and tokens through the exact same neural pathways. This shared processing prevents the gap from forming in the first place by enforcing structural identicality.[7]

However, forcing the modalities to overlap completely can sometimes degrade the model's overall performance. The distinct geometric structures of the image and text clusters actually help preserve the unique semantic nuances inherent to each specific data type, making the gap somewhat beneficial.[6][7]

The symmetric cross-entropy loss remains the standard mechanism for multimodal alignment across the industry. Understanding how it shapes the geometry of artificial intelligence provides a crucial foundation for building future systems that can seamlessly interpret the physical world alongside human language.[1][2][5]
