How Chicanes and Curb Extensions Cut Midblock Speeds Through Lateral Deflection

Approaching the midblock stretch of a residential street, a driver encounters a curb that bows outward, forcing the steering wheel slightly left. Fifty feet later, a second extension on the opposite side demands a correction back to the right. The straight asphalt channel is gone, replaced by a gentle, S-shaped slalom.

This physical intervention is known as a chicane, and it relies on a principle called lateral deflection. By breaking the linear sightline and requiring active steering, the design forces motorists to slow down to maintain control and passenger comfort.[2]

The core philosophy behind these interventions extends beyond mere speed limits. As the Federal Highway Administration and Institute of Transportation Engineers jointly state in their foundational guidance, "traffic calming reduces automobile speeds or volumes, mainly through the use of physical measures, to improve the quality of life in both residential and commercial areas and increase the safety and comfort of walking and bicycling."

Unlike vertical deflection measures such as speed humps, which jolt the vehicle, lateral deflection alters the geometry of the road itself. The Federal Highway Administration (FHWA) notes that these horizontal shifts can reduce average midblock speeds by 10 to 25 percent.[2]

The mechanics of curb extensions

The fundamental building block of a chicane is the curb extension, sometimes called a bulb-out or choker. These concrete or landscaped islands extend from the sidewalk into the parking lane, physically narrowing the roadway at specific pinch points.[1]

When placed at intersections, curb extensions shorten the crossing distance for pedestrians and force turning vehicles to take corners at tighter, slower angles. When deployed midblock, they break up long, uninterrupted stretches of asphalt that typically encourage speeding.[1]

The National Association of City Transportation Officials (NACTO) emphasizes in its 2013 Urban Street Design Guide that lane width directly influences driver behavior. A wide, 12-foot straight lane signals to the brain that high speeds are safe, while a narrowed 10-foot shifting path demands heightened cognitive and physical engagement.[1]

A single curb extension creates a momentary pinch point, but linking several together on alternating sides of the street creates a chicane. This continuous lateral deflection compounds the traffic-calming effect by eliminating the straightaway entirely.[1][2]

Compounding deflection into chicanes

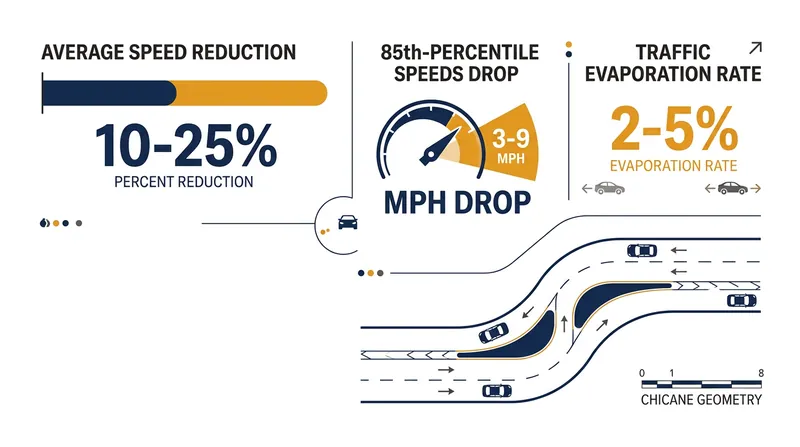

According to the FHWA's 2017 Traffic Calming ePrimer, field studies of chicanes demonstrate reductions of 3 to 9 mph in 85th-percentile speeds. The continuous S-curve prevents drivers from simply accelerating immediately after passing a single obstacle.[2]

Because the vehicle must navigate a sweeping path, the driver cannot maintain a high velocity without experiencing uncomfortable centrifugal forces. The physical layout enforces the speed limit through geometry rather than relying solely on signage or police enforcement.[2]

Beyond slowing vehicles down, lateral deflection actively reshapes neighborhood traffic patterns. Drivers seeking a fast, frictionless cut-through route quickly learn to avoid streets equipped with chicanes, preferring to remain on wider arterial roads designed for higher capacities.[1][2]

NACTO establishes a speed-to-volume elasticity coefficient of 0.2, meaning a 10 percent drop in speed typically yields a 2 percent drop in traffic volume. Applying this to the FHWA's measured speed reductions reveals that chicanes passively evaporate 2 to 5 percent of midblock traffic.[1][2][5]

This evaporation occurs because routing algorithms and human habit naturally favor paths of least resistance. By introducing deliberate friction, residential streets reclaim their local character, pushing through-traffic back onto roads built to handle it.[1][2]

Balancing emergency access and maintenance

While highly effective for speed management, horizontal deflection requires careful spatial planning. The Institute of Transportation Engineers (ITE), which updated its traffic calming guidelines in December 2022, stresses that chicanes must remain navigable by large emergency vehicles.[3]

Because fire trucks possess a wider wheelbase and different turning radii, the offset distance between alternating curb extensions must allow them to pass without mounting the curb. In many designs, emergency vehicles can take a straighter path by straddling the centerline, as oncoming traffic yields.[3]

Municipalities must also account for the installation and maintenance costs of these structures. Permanent concrete chicanes typically cost between $1,500 and $5,000 per installation, and landscaped bioswales require regular upkeep to ensure vegetation does not obscure driver sightlines.[4]

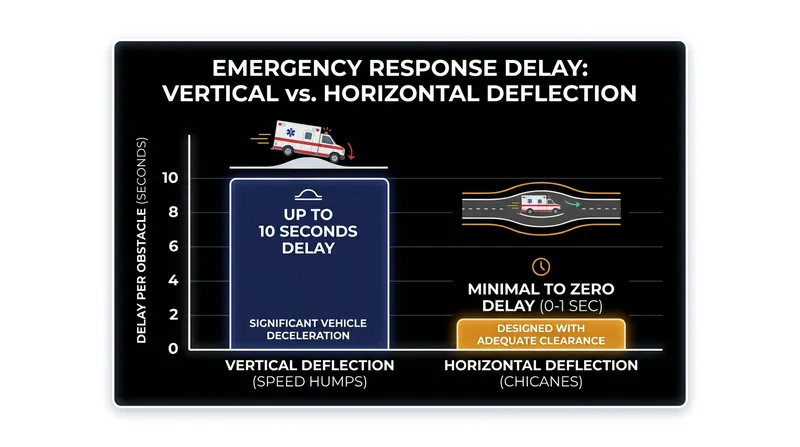

The growing preference for lateral deflection reflects a broader shift in urban planning away from purely punitive measures. Speed humps, while effective, generate noise, delay emergency responders by up to 10 seconds each, and can cause discomfort for transit riders.[4]

The psychological impact of narrowing

The effectiveness of lateral deflection relies heavily on human psychology and visual perception. When a driver looks down a wide, unobstructed street, their peripheral vision remains clear, creating a false sense of security that encourages them to press the accelerator.[1]

Curb extensions and chicanes disrupt this visual field by introducing vertical elements like trees or bollards directly into the driver's line of sight. This optical narrowing makes the vehicle feel as though it is traveling faster than it actually is, prompting an instinctive deceleration.[1]

This psychological friction is particularly crucial in residential zones where children or pets might unexpectedly enter the roadway. By forcing drivers to constantly scan their immediate surroundings rather than staring blankly at the horizon, lateral deflection drastically reduces reaction times.[1]

Chicanes and curb extensions, by contrast, offer a smoother deceleration profile. Drivers respond to the visual cue of the narrowed roadway and the physical requirement to steer, resulting in a more gradual reduction in speed without abrupt braking.[2]

By integrating these features with street trees, public seating, and bicycle parking, cities are transforming traffic calming from a mere safety necessity into an opportunity to expand the public realm and enhance neighborhood aesthetics.[1]

Rapid implementation with temporary materials

Historically, installing curb extensions and chicanes required pouring new concrete, modifying drainage systems, and undertaking expensive capital projects. Today, cities increasingly rely on rapid-implementation strategies using low-cost materials to test designs before committing permanent funds.[1]

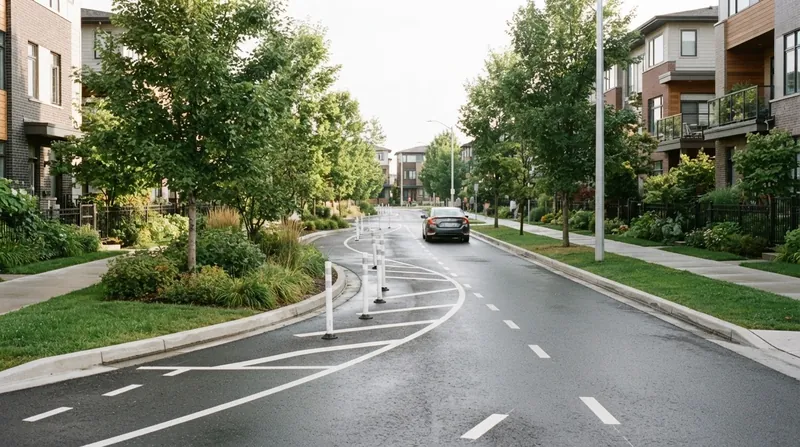

Paint, flexible bollards, and heavy planters can create the exact same lateral deflection as a permanent concrete curb for a fraction of the cost. This approach allows traffic engineers to test the exact placement and angle of a chicane in real-world conditions.[1]

If a temporary chicane proves too tight for local transit buses or fails to reduce speeds adequately, the geometry can be adjusted in an afternoon. This iterative process ensures that the final design achieves the target speed reduction while maintaining essential access.[1]
