Equal-Area Voronoi Algorithms Minimize Voter Travel Distance in Polling District Maps

One camp argues that electoral maps must prioritize communities of interest, insisting that a neighborhood sharing a school district or a cultural identity should vote together, even if that requires drawing sprawling, irregular boundaries. The opposing camp contends that geography should be strictly mathematical, arguing that the only fair map is one that minimizes the physical distance every voter must travel to cast their ballot.[5]

These two philosophies treat demographic cohesion and geometric compactness as mutually exclusive goals. Mapmakers are routinely forced to choose between preserving a local voting bloc and ensuring a short, convenient walk to the polls.[5]

A spatial partitioning method known as the equal-area Voronoi diagram offers a structural compromise. By dividing a map into geometric cells based on proximity to a set of seed points, the algorithm guarantees that every voter is assigned to their absolute closest polling station.[4]

When constrained to maintain equal populations across those cells, the mathematical model shifts from a purely theoretical exercise into a functional civic tool. It balances the load on election infrastructure while mathematically minimizing the transit burden on the electorate.[4][5]

The mechanics of proximity

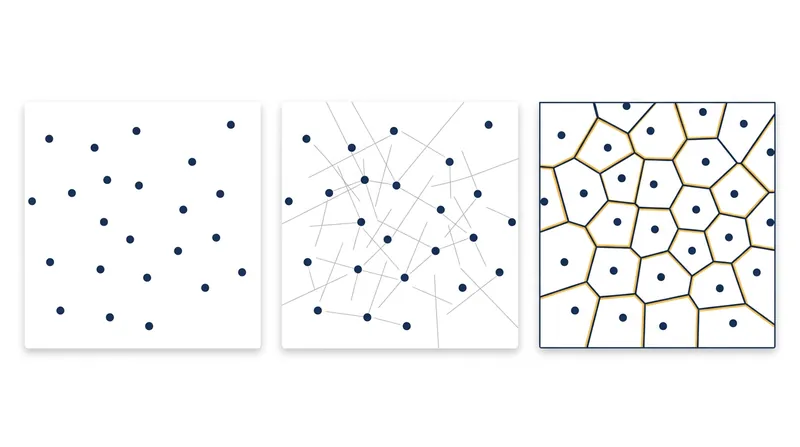

A standard Voronoi diagram is a fundamental concept in computational geometry used to map spatial influence. If a city scatters 50 polling stations across its neighborhoods, the algorithm draws boundary lines exactly halfway between adjacent stations.[4]

Every address inside a resulting geometric cell is strictly closer to the station inside that cell than to any other facility on the map. The boundaries form a honeycomb-like pattern that perfectly optimizes travel distance, eliminating the scenario where a voter drives past one polling place to reach their assigned location.[4]

"Voronoi regions are contiguous, compact, and simple to generate," notes a 2007 spatial analysis published by RangeVoting regarding New York state redistricting. "Regions drawn with Voronoiesque diagrams attain small population variance and relative geometric simplicity."

However, a pure Voronoi diagram ignores human density. A polling station in a dense downtown core might capture 25,000 voters within a one-mile radius, while a station in a rural county might capture only 400 voters across 50 square miles.[5]

That imbalance creates severe logistical bottlenecks on election day. A civic system that optimizes solely for travel distance will inevitably overwhelm urban polling locations with hours-long lines, while simultaneously leaving rural stations entirely empty.[5]

Enforcing the equal-area constraint

To solve the density problem, mathematicians apply an equal-area or equal-population constraint to the algorithm. This modified approach iteratively adjusts the boundaries and the seed points until every cell contains roughly the same number of voters.[3][4]

During each iteration, the algorithm calculates the population inside every Voronoi cell. If a cell holds too many voters, the system shrinks its borders, effectively pushing the excess population into neighboring districts that have spare capacity.[3]

"The goal is to place a number of points, called sites, in such a way that the resulting Voronoi cells have equal areas," explains Dr. Dmitrij Šešok in a 2025 Vilnius University dissertation on constrained multi-location problems.[3]

The algorithm repeats this shifting process thousands of times until the map settles into a stable configuration. The final output is a tessellation where the population variance between the largest and smallest districts is mathematically minimized.[3]

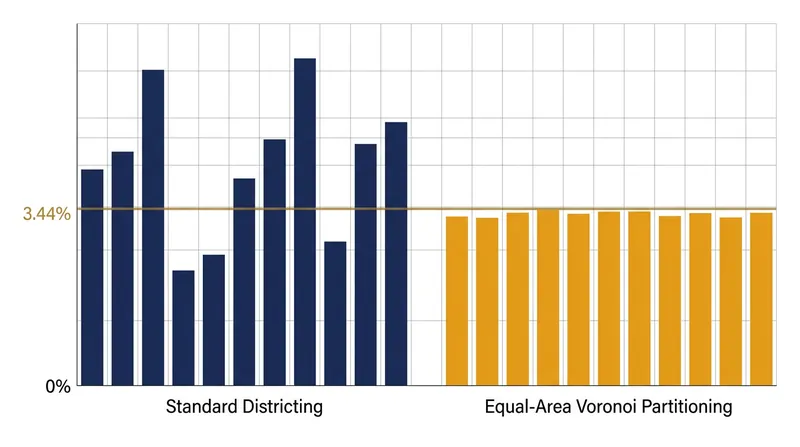

In a simulated application dividing New York State into 29 legislative districts, the algorithm successfully targeted a baseline of 3.44 percent of the state's population per district. The resulting Voronoiesque map achieved an average population distribution of 3.34 percent per district, with a variance of just 0.74 percent.

Real-world accessibility gains

Minimizing travel distance is not merely a theoretical convenience; it directly dictates voter turnout, particularly for individuals with limited mobility. Long transit times and complex routing consistently depress participation rates among elderly and disabled populations.[1]

A 2026 study published in Copernicus evaluated a Voronoi-based spatial partitioning system deployed during local elections in Israel. The system was designed specifically to help voters locate the nearest accessible polling station and reduce the physical barriers to voting.[1]

"Ensuring accessible elections for people with disabilities remains a significant challenge in democratic systems worldwide," the researchers write. Their algorithmic approach integrated spatial partitioning with real-time geolocation to optimize polling assignments and eliminate navigational guesswork.[1]

The deployment yielded immediate logistical improvements for the participating electorate. Across the 2,658 individuals who utilized the interface to find their correct facility, the average voter-to-station travel distance dropped to a highly manageable 794 meters.[1]

In the densely populated central region, the average distance fell to 539 meters. Furthermore, 71 percent of the mapped areas achieved an average travel distance of less than 500 meters, placing a polling station within a practical walking radius for the vast majority of the electorate.[1]

Algorithmic limits and geographic realities

Despite the mathematical elegance of equal-area partitioning, strict geometric models struggle to accommodate the physical realities of the built environment. An algorithm measuring straight-line Euclidean distance does not recognize a six-lane highway or a steep ravine.[2]

A Voronoi boundary might place a voter in a district where the polling station is only 400 meters away geographically, but reaching it requires a three-mile detour to cross a river. To correct this, advanced models incorporate weighted distances that account for road networks and transit infrastructure.[2]

Weighted Voronoi algorithms calculate the actual travel time along a street grid rather than the absolute spatial distance. This ensures that the resulting districts reflect how residents actually navigate their neighborhoods rather than how a bird flies over them.[2]

The rigid pursuit of geometric compactness also collides with statutory requirements designed to protect minority representation. A purely mathematical map will frequently fracture a contiguous demographic community simply to satisfy a strict, inflexible population quota.[5]

Consequently, civic technologists do not view Voronoi partitioning as a wholesale replacement for human mapmakers. Instead, it serves as a baseline efficiency metric—a mathematical floor that demonstrates exactly how much travel distance is being sacrificed to achieve other political or demographic objectives.[5]
