How Adaptive Bitrate Streaming Works: The Mechanics of Encoding Ladders and Chunked Delivery

In 2009, Apple published the draft specification for HTTP Live Streaming (HLS), fundamentally rewriting the mechanics of how video travels across the internet. Before that moment, watching a video online meant downloading a single, monolithic file—if your connection dipped below the file's bitrate, the video paused to buffer. HLS introduced a different paradigm: it shattered the video into thousands of tiny, independent chunks and delivered them over standard web protocols. Today, that chunked delivery system, known as adaptive bitrate streaming (ABR), is the invisible engine powering nearly every video platform on earth.[1][3]

The sheer scale of modern video consumption makes ABR a mathematical necessity. Video content is projected to constitute 92% of all internet traffic by 2025, placing immense strain on global network infrastructure. To prevent the internet from buckling under the weight of millions of concurrent 4K streams, platforms cannot simply broadcast a single high-quality feed. Instead, they must dynamically negotiate with every individual viewer's device in real time, adjusting the data flow to match the exact capacity of their local connection.[2]

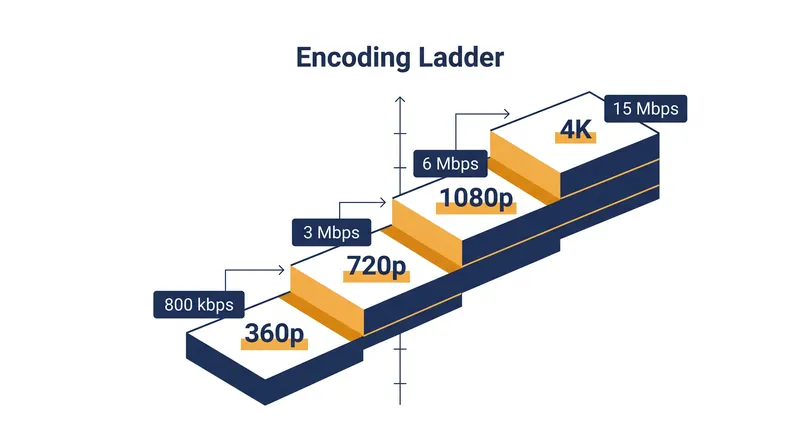

This negotiation relies on a structure called an "encoding ladder." When a platform ingests a new video, it does not create one playable file. It creates a menu of renditions—typically ranging from a 360p version at 800 kilobits per second (kbps) up to a 4K version at 15 megabits per second (Mbps). Each of these renditions is then sliced into segments, usually between two and ten seconds long.

As a viewer presses play, the video player acts as an active decision-maker. It typically requests the lowest-bitrate chunk first to ensure the video starts immediately. It then continuously monitors the download speed and the health of its internal buffer. If the connection is strong, the player climbs the encoding ladder, requesting the next chunk from the 1080p or 4K rendition. If the user's Wi-Fi hiccups or their cellular signal drops, the player instantly drops down the ladder, requesting a 540p chunk to keep the video playing without a buffering screen.

"Adaptive bitrate streaming adjusts video quality based on network conditions to improve video streaming over HTTP networks," notes Cloudflare, which operates a massive global content delivery network (CDN). "This process makes playback as smooth as possible for viewers regardless of their device, location, or Internet speed."[1]

While the basic mechanics of the encoding ladder are universal, the implementation separates amateur platforms from industry giants. For years, the streaming industry relied on "one-size-fits-all" ladders, applying the exact same bitrate targets to every piece of content. A fast-paced action movie and a static animated sitcom would both receive a 5,800 kbps allocation for their 1080p rendition.[2]

In 2015, Netflix engineers realized this fixed approach was wasting massive amounts of bandwidth. "We've spent years developing an approach, called per-title encoding, where we run analysis on an individual title to determine the optimal encoding recipe based on its complexity," the company's technology team explained. An animated show with flat colors requires far fewer bits to look perfect than a gritty, grain-heavy drama.[2]

By analyzing the specific visual complexity of each title, Netflix could build a custom encoding ladder for every show. For an average-complexity title, the optimized 1080p encode required only 4,640 kbps—a 20% reduction in bandwidth compared to the legacy 5,800 kbps fixed ladder, with zero loss in perceptible visual quality. For simpler animated content, the savings were even more dramatic.[2]

This per-title optimization is now the gold standard for premium streaming. It allows platforms to deliver higher resolutions to users on slow connections, while simultaneously reducing the total outbound bandwidth costs for the platform. Implementing these optimized ladders can reduce a platform's total bandwidth consumption by up to 50%, a critical margin when serving millions of concurrent viewers.

However, maintaining multiple renditions of every video creates a massive storage burden. Historically, platforms had to package these ladders differently for different devices—using the `.ts` container for Apple's HLS and the fragmented MP4 (`fMP4`) container for the rival DASH protocol. This meant encoding and storing two complete, multi-rung ladders for every single video.

To solve this storage bloat, the industry developed the Common Media Application Format (CMAF), released as a standard in 2018. CMAF standardizes the underlying media container, allowing a single set of fragmented MP4 files to be delivered to both HLS and DASH players seamlessly.[3]

By consolidating the packaging process, CMAF eliminates the need to store duplicate ladders. "Doing so removes the need for providing multiple copies of the same content and enables higher efficiency and theoretical saving of over 70% of the encoding, packaging, and storing demand," according to streaming infrastructure provider Bunny.net.

CMAF also introduced "chunked transfer encoding," which allows the server to send tiny fractions of a segment before the entire segment is finished encoding. This innovation drastically reduces the inherent latency of HTTP streaming, bringing the delay down from 30 seconds to roughly three seconds—making ABR viable for live sports and real-time broadcasts.

Ultimately, the seamless experience of modern streaming is a highly orchestrated illusion. The video is not a continuous stream, but a rapid-fire sequence of discrete files, constantly shifting in size and quality to mask the chaotic reality of the internet's fluctuating bandwidth.[4]
