Comparing the Richter, Moment Magnitude, and Mercalli Scales: What Each Measures and Why the Moment Magnitude Scale is the Standard

On May 22, 1960, the Nazca plate slipped violently beneath the South American plate, rupturing a fault line for nearly 1,000 kilometers. The resulting Valdivia earthquake released seismic energy equivalent to tens of thousands of nuclear weapons. Yet, if measured strictly by the original Richter scale, this cataclysmic event would have registered barely above an 8.0, mathematically indistinguishable from earthquakes that release a fraction of its energy.[1]

This discrepancy highlights a fundamental shift in how global monitoring networks quantify seismic events. For decades, the public and policymakers relied on a single metric to understand earthquake severity. Today, the infrastructure of disaster response depends on a bifurcated system: one scale to measure the absolute physical energy released deep underground, and another to measure the localized shaking experienced on the surface.[2]

The Richter scale, formally known as the local magnitude scale (ML), was developed in 1935 by Charles Richter and Beno Gutenberg. It was designed for a highly specific purpose: measuring earthquakes in Southern California using a specific instrument called a Wood-Anderson torsion seismograph. The scale provided a standardized way to compare the relative sizes of local tremors.[1]

Richter's system was logarithmic, meaning each whole number increase represented a tenfold increase in measured wave amplitude. However, it was inherently limited by the technology of its time. The scale measures the maximum amplitude of high-frequency seismic waves, which are the waves most easily recorded by early analog seismographs.

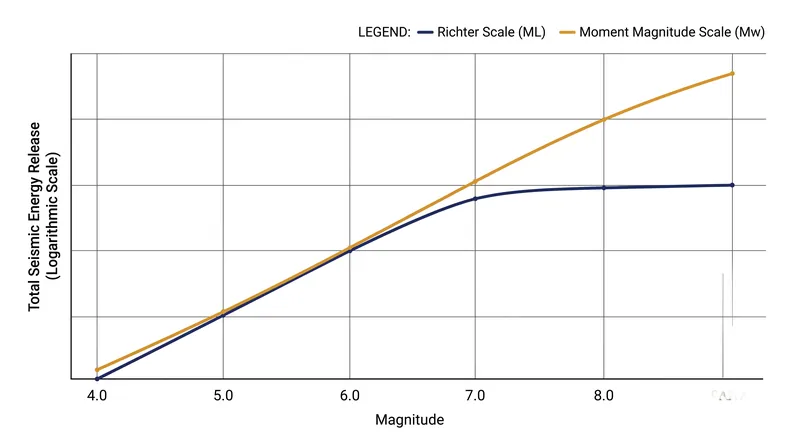

The critical flaw in the Richter scale is a phenomenon known as "saturation." As earthquakes grow larger, the physical fault rupture becomes longer, and the event takes more time to unfold. However, the high-frequency waves measured by the Richter scale do not continue to grow proportionally with the size of the rupture.[1]

Once an earthquake reaches roughly a magnitude of 7.0, the Richter scale effectively maxes out. A fault that slips for 50 kilometers and one that slips for 500 kilometers might produce similar high-frequency wave amplitudes, causing the Richter scale to assign them nearly identical magnitudes despite a massive difference in total energy release.[3]

To solve this systemic measurement failure, seismologists Thomas Hanks and Hiroo Kanamori introduced the Moment Magnitude scale (Mw) in 1979. Unlike Richter, which measures the squiggly line on a seismogram, Moment Magnitude calculates the fundamental physical properties of the earthquake itself.

The Moment Magnitude scale is derived from the "seismic moment," a mathematical quantity that multiplies three variables: the rigidity of the rock, the total area of the fault that slipped, and the distance the fault moved. This provides a direct, unsaturating measure of the total mechanical energy released by the tectonic shift.[3]

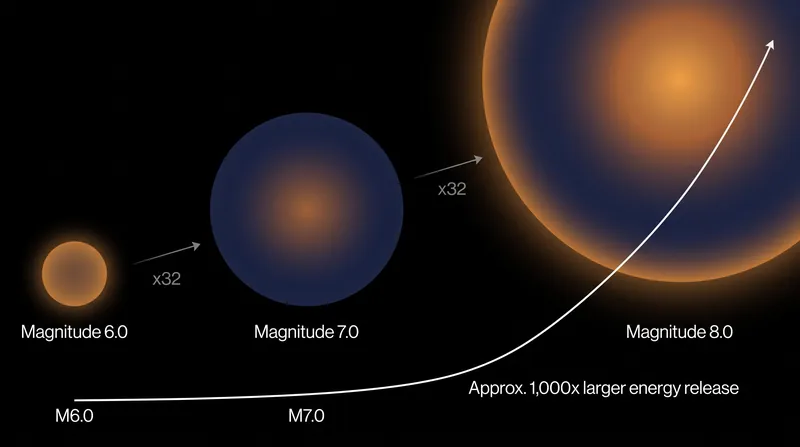

Because it is tied to physical energy rather than wave amplitude, the Moment Magnitude scale scales exponentially in terms of destructive force. A 1.0 increase in Mw corresponds to approximately 32 times more energy release. A 2.0 increase represents 1,000 times more energy. An 8.0 earthquake does not just feel slightly stronger than a 7.0; it releases 32 times the energy into the surrounding crust.

Today, when the United States Geological Survey (USGS) or other international bodies report a major earthquake, they are almost exclusively reporting the Moment Magnitude, even if media outlets colloquially refer to it as the Richter scale. The Mw scale provides the standardized, globally consistent baseline required for international tsunami warning systems and rapid resource deployment.[1][5]

However, knowing the absolute energy of an earthquake does not tell emergency managers what is happening on the ground. A magnitude 7.0 earthquake 300 kilometers deep in the ocean will have vastly different consequences than a 7.0 earthquake directly beneath a densely populated city built on soft sediment.[2]

This is where the Modified Mercalli Intensity (MMI) scale becomes the critical operational metric. While Moment Magnitude measures the earthquake at its source, the Mercalli scale measures the localized effects of the shaking at specific surface locations.[4]

The MMI scale uses Roman numerals ranging from I (not felt) to XII (total destruction). It is an observational scale, historically based on structural damage and human perception. Today, it is heavily augmented by instrumental ground acceleration data and crowd-sourced reporting systems like the USGS "Did You Feel It?" program.[2]

For civil engineers and urban planners, the Mercalli scale is arguably the more consequential metric. Building codes are not designed to withstand a specific Moment Magnitude; they are engineered to survive specific peak ground accelerations that correlate with Mercalli intensity levels.[4][5]

The relationship between Moment Magnitude and Mercalli intensity is highly variable. Soil composition plays a massive role in this divergence. Soft, water-saturated soils can amplify seismic waves, turning a moderate Mw event into a severe MMI event, a phenomenon known as liquefaction.[2]

The modern seismic monitoring infrastructure relies on the integration of both scales. Within minutes of a rupture, automated systems calculate the Moment Magnitude to determine the broad threat level. Shortly after, ShakeMaps are generated, plotting estimated Mercalli intensities across the affected region to guide search and rescue teams to the areas of highest probable damage.[5]

This dual-scale approach represents a maturation of geophysical science. By separating the absolute energy of the tectonic event from the localized vulnerability of human infrastructure, policymakers can more accurately assess risk, mandate appropriate building standards, and deploy targeted disaster relief.[5]
