Calculating Coordinates: The Relativity and Trilateration Mechanics Powering Global Positioning

On February 1, 2026, physicists at JILA and the National Institute of Standards and Technology (NIST) demonstrated that time dilation—the stretching of time predicted by Albert Einstein—can be measured across a distance of just one millimeter. Using a cloud of 100,000 ultracold strontium atoms loaded into an optical lattice, the researchers showed that the top of the millimeter-wide cloud aged faster than the bottom due to Earth's gravity. While measuring relativity at the scale of a pencil tip is a new frontier for quantum metrology, the underlying physics is not a theoretical abstraction. It is the exact mechanical foundation that allows a smartphone to locate itself on a map.[5]

The Global Positioning System (GPS) is often misunderstood as a network of satellites that track where a user is. In reality, the satellites have no idea where any receiver is located. They are simply flying clocks, broadcasting the exact time they transmitted a signal and their exact location in orbit. The phone or receiver does all the mathematical heavy lifting, calculating its position through a geometric process called trilateration.[7]

Trilateration relies entirely on the speed of light. Radio signals travel at approximately 299,792 kilometers per second. When a receiver picks up a signal from a satellite, it compares the transmission time stamped on the signal with its own internal clock's reception time. By multiplying that time difference by the speed of light, the receiver calculates its exact distance from that specific satellite, creating a virtual sphere of possible locations in space.[1]

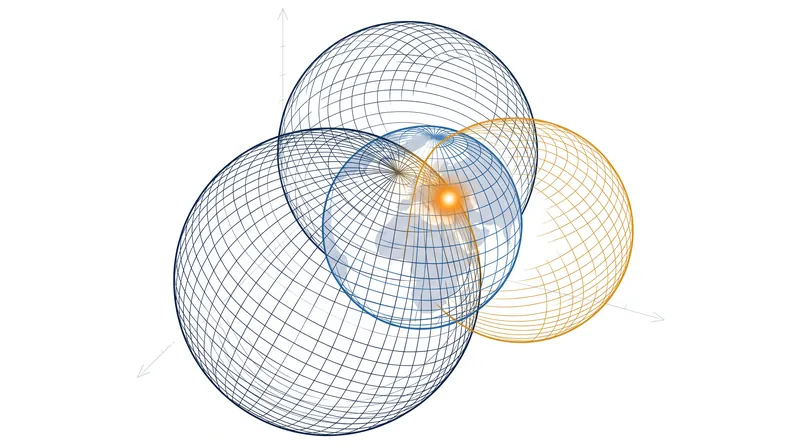

One satellite narrows the user's location to the surface of a massive sphere. Two satellites intersect to form a circle of possible points. Three satellites intersect at exactly two points—one in space, and one on the surface of the Earth. A fourth satellite is required to resolve the final ambiguity and correct the receiver's relatively cheap internal quartz clock against the multi-million-dollar atomic clocks in orbit.[1]

This is where the physics of the early twentieth century collides with modern engineering. The entire trilateration framework assumes that a second measured on the ground is exactly the same as a second measured in space. But as Neil Ashby, a professor of physics at the University of Colorado, noted in his seminal Physics Today analysis, "We need general relativity to understand extreme astrophysical realms. But the theory also turns out to be essential for the many mundane activities that nowadays rely on the precision of the GPS."[2]

The GPS constellation consists of at least 24 operational satellites orbiting at an altitude of roughly 20,000 kilometers. At this height, they are moving at an orbital velocity of approximately 14,000 kilometers per hour. According to Einstein's theory of special relativity, time moves slower for an object in motion relative to a stationary observer. Because the satellites are moving so fast, their onboard atomic clocks tick slightly slower than clocks on Earth, losing about 7 microseconds per day.[2]

However, special relativity is only half of the equation. Einstein's theory of general relativity dictates that gravity also warps time: the weaker the gravitational field, the faster time passes. At 20,000 kilometers above the Earth, the satellites experience significantly less gravitational pull than a receiver on the surface. This reduced gravity causes the satellite clocks to tick faster, gaining approximately 45 microseconds per day.[2]

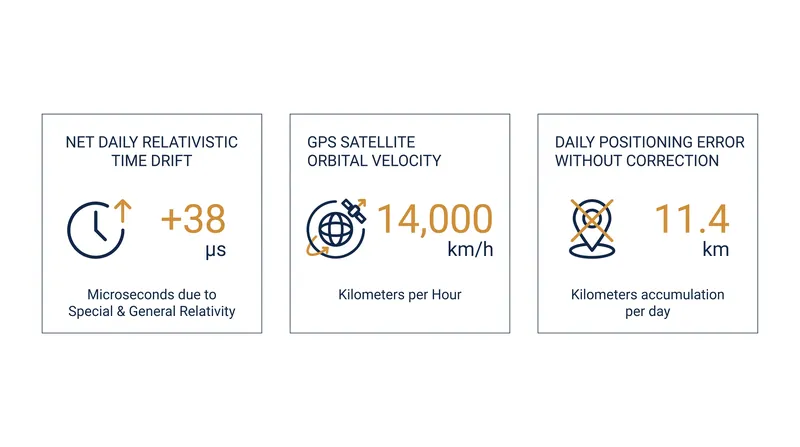

These two relativistic effects are in direct opposition, but they do not cancel each other out. The general relativistic effect (+45 microseconds) overwhelms the special relativistic effect (-7 microseconds), resulting in a net gain of 38 microseconds per day for every satellite in the GPS constellation.[2]

Thirty-eight microseconds—or 38,000 nanoseconds—might sound like a negligible rounding error. But in a system where distance is calculated using the speed of light, a single nanosecond of timing error translates to 30 centimeters of positioning error. If the 38-microsecond daily drift were left uncorrected, a GPS receiver would accumulate a positioning error of 11.4 kilometers every single day. Within minutes of initialization, the entire navigational grid would become utterly useless.[7]

To solve this, GNSS engineers do not rely on software to constantly fix the drift after the fact. Instead, they physically alter the clocks before they ever leave the launch pad. The atomic oscillators inside GPS satellites are deliberately tuned to tick at a frequency of 10.22999999543 MHz on the ground, rather than the standard 10.23 MHz. Once the satellite reaches its designated orbit, the reduced gravity and high velocity warp the clock's ticking rate, speeding it up just enough so that it perfectly matches a 10.23 MHz clock on Earth.[1]

Even with this hardware-level relativistic correction, the system must constantly manage other sources of timing noise. As signals travel from space to the ground, they pass through the ionosphere and troposphere, which refract the radio waves and slow them down. This atmospheric delay is not uniform; it changes based on weather, solar activity, and the angle of the satellite relative to the horizon.[6]

To compensate, modern receivers use a technique called code tracking. The satellites broadcast complex, pseudo-random noise (PRN) codes. The receiver generates the exact same code internally and shifts its version back and forth until it perfectly aligns with the incoming signal from space. The amount of time-shifting required to achieve this lock is the "pseudorange"—an initial distance estimate that still contains clock errors and atmospheric delays.[3][4]

Advanced receivers, such as those used in surveying or agriculture, track multiple frequencies simultaneously. Because the ionosphere slows down different frequencies of light by different amounts, comparing the arrival times of the L1 and L2 GPS bands allows the receiver to mathematically calculate and subtract the exact atmospheric delay in real-time, isolating the pure geometric distance.[6]

Consumer technology companies frequently market "millimeter-accurate GPS" in their latest devices, but this framing confuses the capability of the satellite with the reality of the receiver. While the orbital clocks are precise enough to support that resolution, a smartphone's tiny antenna and cheap quartz oscillator cannot overcome the multipath errors caused by signals bouncing off buildings. True millimeter accuracy remains restricted to dual-frequency surveying equipment that requires minutes of stationary observation to average out the noise, not a phone moving through a city.[7]

The precision of this system is ultimately bound by the quality of the clocks. The current generation of GPS satellites relies on rubidium and cesium atomic clocks, which measure time by counting the microwave transitions of electrons. But as the February 2026 NIST and JILA experiments demonstrate, the next generation of optical atomic clocks—which use visible light rather than microwaves—can slice time into vastly smaller increments, detecting the gravitational time dilation caused by a one-millimeter change in elevation.[5]

The trade-off between time dilation and trilateration is a permanent feature of orbital mechanics. As long as humanity relies on space-based beacons to navigate the Earth, we will be forced to continuously reconcile the rigid geometry of intersecting spheres with the fluid, warping nature of spacetime.[7]
