Why Resting Your Wrists on a Keyboard Pad Spikes Carpal Tunnel Pressure

Millions of office workers buy soft gel pads to cushion their hands, convinced that a plush surface is the ultimate defense against repetitive strain. Conversely, biomechanical researchers look at those same accessories and see a trap that actively crushes the median nerve. The debate pits intuitive comfort against the invisible physics of joint compression.[2]

The conflict centers on a fundamental misunderstanding of how the human hand is built to operate a keyboard. While the consumer market sells wrist rests as continuous supports, occupational health standards explicitly warn against using them while typing. Resolving the gap requires looking inside the wrist itself, where external pressure and internal anatomy collide.

The Anatomy of the Carpal Tunnel

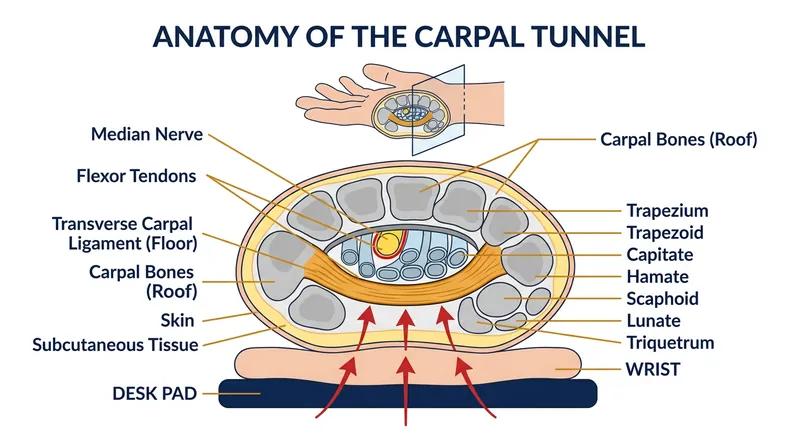

The carpal tunnel is a narrow, rigid passageway at the base of the hand, roughly the width of a pencil. Its roof is formed by solid carpal bones, but its floor is the transverse carpal ligament—a flexible band of fibrous tissue. When the wrist is straight, internal pressure hovers at a safe 3.5 to 5.3 mmHg.[1]

Planting the wrist on a desk or a gel pad changes that geometry instantly. Because the floor of the tunnel is flexible, any external weight resting on it transmits directly into the passageway. According to the Cornell University Ergonomics Web, resting the wrist on a support doubles the internal pressure, squeezing the enclosed tendons.

The vulnerability of this area is well documented in clinical diagnostics. One of the primary medical assessments for carpal tunnel syndrome, known as Tinel's sign, simply involves tapping lightly on the palmar surface of the wrist. In a compromised nerve, that minor external pressure sends a shock of tingling and numbness through the hand.

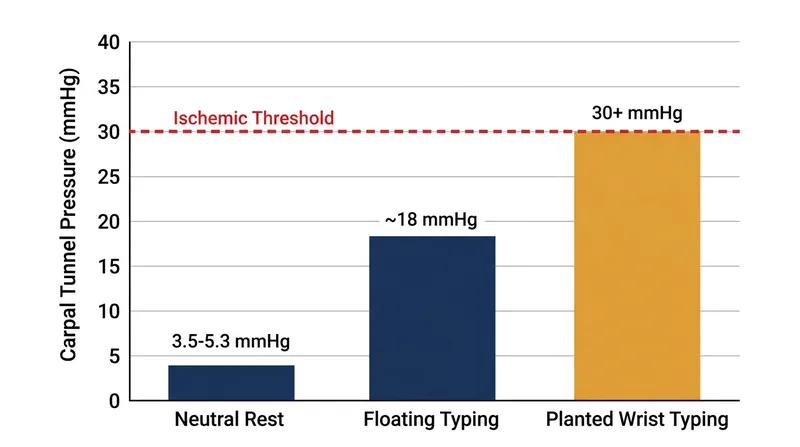

The pressure spikes further when the fingers begin to move. If the wrist is anchored to a pad, the hand must pivot upward to reach the keys, forcing the joint into 20 to 30 degrees of extension. Research published by the National Institutes of Health demonstrates that this combination drives carpal tunnel pressure past 30 mmHg.[1]

The Ischemic Threshold

That 30 mmHg mark is a critical biological threshold for the human nervous system. At this level of compression, blood flow to the median nerve is severely restricted, creating a localized state of ischemia. Prolonged ischemia starves the nerve of oxygen, triggering the tingling and numbness that characterize carpal tunnel syndrome.[1]

In a landmark 1993 study by Lundborg and colleagues, researchers experimentally increased carpal tunnel pressure in human volunteers to observe the neurological fallout. When pressure was held at 30 mmHg, subjects reported the onset of pins and needles. When pushed to 60 mmHg, sensory and motor responses were completely blocked within a single hour.[1]

The soft texture of a memory foam pad does not negate this physics. While a cushioned surface prevents the skin from bruising, it still acts as a mechanical fulcrum. "Resting the wrist on a soft pad while typing actually increases internal pressure on the median nerve," notes ergonomic guidance from Eureka Ergonomic.

The Floating Hand Mandate

To avoid this mechanical trap, the Occupational Safety and Health Administration mandates a completely different typing posture. "Your hands should move freely and be elevated above the wrist/palm rest while typing," the agency's official guidelines state. This floating technique shifts the workload away from the wrist and onto the robust muscles of the upper back.

Floating the hands keeps the wrist straight and the carpal tunnel wide open, but it requires muscular endurance that many desk workers lack. When the arms hover, the elbows should be bent at a 90-degree angle, allowing the forearms to remain parallel to the floor. If a desk is too high, the shoulders must shrug upward.[2]

This is where adjustable keyboard trays provide a structural solution. Ergonomists frequently recommend a tray with a negative tilt of minus 7 to minus 15 degrees, which slopes downward and away from the user. This geometry allows the wrists to remain perfectly straight while the fingers rest on the keys, drastically reducing internal pressure.

The design of the keyboard itself also influences how heavily a user relies on a rest. Standard staggered-key layouts force the hands into an outward angling toward the little fingers that narrows the carpal tunnel. Split keyboards correct this by allowing the hands to approach the keys straight on, reducing the mechanical strain.

Repurposing the Pad

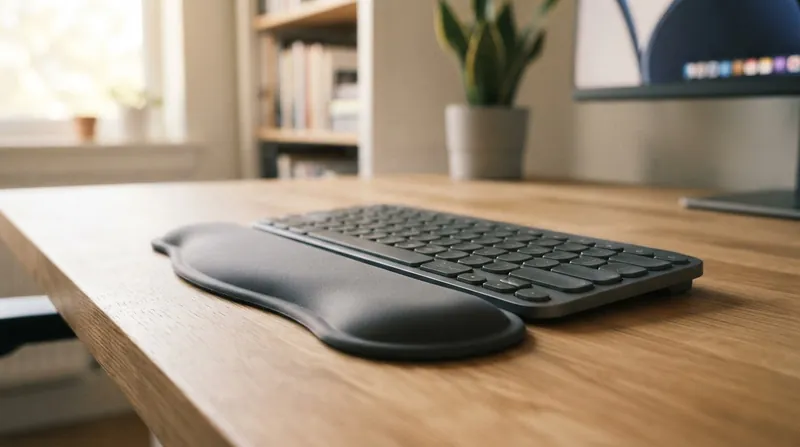

If floating is the goal, the padded accessory still has a rightful place in an ergonomic setup—but its timing must change. Dr. Alan Hedge, Professor Emeritus at Cornell University, notes that these supports should be used strictly to rest the palms during gaps in typing. They are designed for micro-pauses, not continuous operation.

Even during a pause, placement is crucial to avoiding nerve damage. When taking a break, the typist should lower the thick, fleshy heel of the palm onto the pad, rather than the sensitive crease of the wrist. Proper alignment ensures the transverse carpal ligament remains uncompressed, allowing blood to flow freely to the median nerve.

Transitioning to a floating posture often feels awkward for the first one to three weeks, as the upper back muscles adapt to carrying the weight of the arms. Ergonomists suggest a seven-day reset plan: removing the wrist rest entirely for short work blocks to force the hands to hover, then slowly reintroducing it solely as a pause support.

The goal of workplace ergonomics is to facilitate movement rather than lock the body into a static mold. The human wrist is a dynamic pulley system designed to glide, not a kickstand meant to bear weight. Once the floating habit sets in, the hands move freely, and the gel pad returns to its intended temporary role.[3]
