Reverse-Action Tweezers Protect Soldered Joints by Clamping Without Grip Fatigue

Reverse-action tweezers hold delicate components securely by defaulting to a clamped position, eliminating the continuous pinch grip that causes hand fatigue during intricate work. Because they rely on spring tension rather than active muscle contraction, these cross-locking tools prevent the micro-tremors that can easily ruin a cooling solder joint.[2]

When you release the handles of a standard 4.75-inch tweezer, the jaws spring open, dropping whatever you were holding. Cross-locking tweezers operate on the exact opposite principle: squeezing the handles opens the jaws, and releasing them clamps the metal firmly onto the workpiece.

This simple mechanical inversion transforms the tool from an active extension of your fingers into a passive, stable clamp. For hobbyists and jewelers who spend hours at the bench, removing the need to constantly squeeze the tool fundamentally changes the physical toll of soldering.

The Biomechanics of Pinch Fatigue

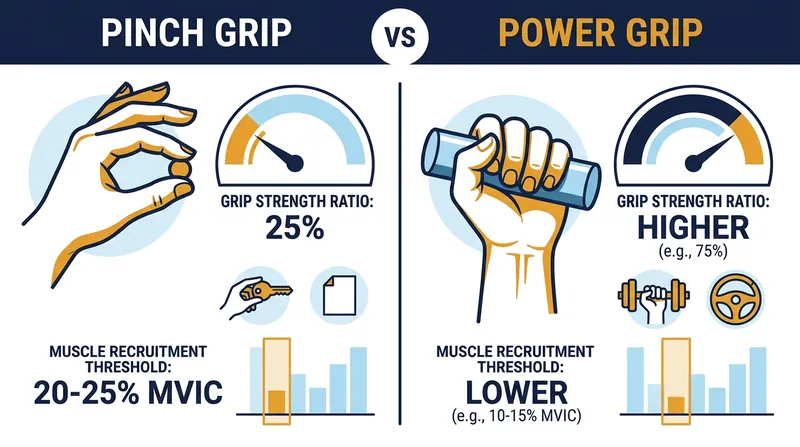

The human hand is built for power, but a pinch grip utilizes only a fraction of that capacity. According to ergonomic data from Cornell University, a precision pinch grip generates only about 25 percent of the maximum force possible with a full cylindrical power grip.

Sustaining that pinch requires continuous isometric contraction from the small muscles of the hand. A 2022 study by the National Institutes of Health found that maintaining a pinch grip recruits approximately 20 to 25 percent of the maximum voluntary isometric contraction of the abductor pollicis brevis muscle.[1]

"The obtained results demonstrate that muscle recruitment during pinch grip varies as a function of the spontaneous force," the NIH researchers noted, emphasizing that exerted force must be considered a primary risk factor for biomechanical overload. Holding a contraction at that intensity quickly depletes the muscle's energy reserves.[1]

This rapid fatigue curve explains why your hand begins to ache after just a few minutes of holding a 2-millimeter jump ring with standard tweezers. The constant tension required to keep the jaws closed fights against the tool's natural spring, doubling the muscular workload.

Preventing Joint-Ruining Tremors

In precision soldering, stability is just as critical as temperature control. When the hand muscles fatigue from a sustained pinch grip, they begin to exhibit micro-tremors, causing the tweezers to vibrate slightly against the workpiece.[2]

If your hand shakes and moves a delicate ear post or wire just as the molten solder begins to flow, the joint will separate before the metal can freeze. A disturbed cooling phase creates a "cold joint," which is structurally weak and visually dull, often requiring the entire piece to be cleaned and re-soldered.

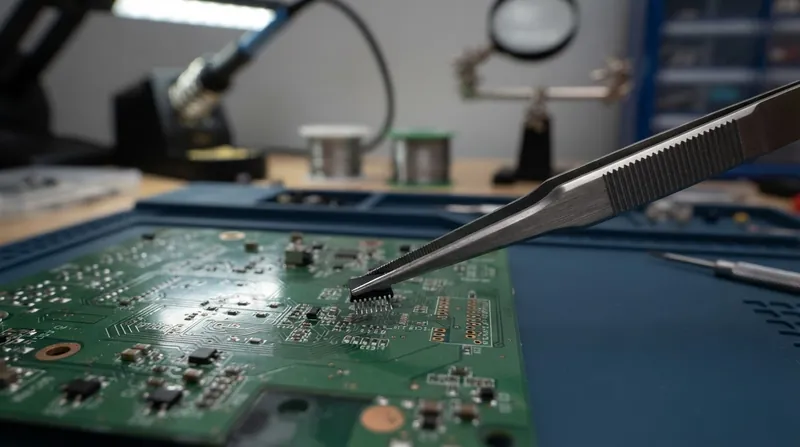

Reverse-action tweezers eliminate this risk entirely by taking the holding force out of your hands. Once the cross-locking jaws clamp onto the component, you can rest the tool on a heat-resistant block or a "third hand" stand, completely removing human tremor from the equation.

You can even hold the tweezers lightly, using your fingers merely to guide the position rather than to exert clamping pressure. This relaxed posture allows you to focus entirely on directing the 1,300-degree Celsius butane torch flame and feeding the solder, rather than fighting your own grip strength.[2]

Siphoning the Heat Hose

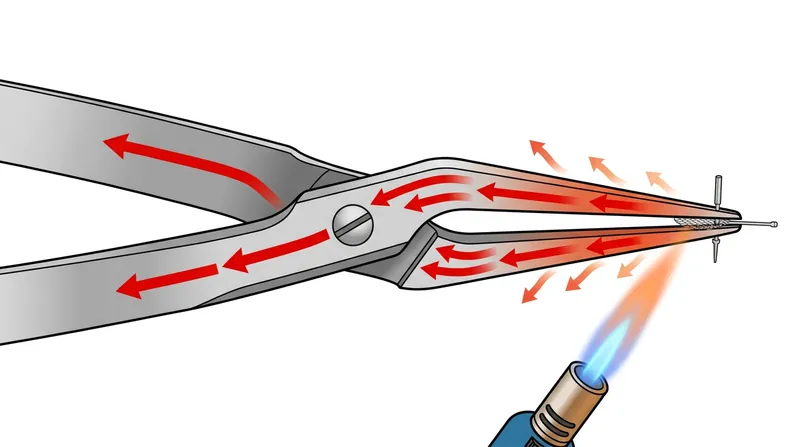

Beyond mechanical stability, stainless steel cross-locking tweezers serve a vital thermodynamic function at the bench. They act as a massive thermal reservoir, or heat sink, protecting fragile components from the intense heat required to melt silver or copper solder.

Metals like sterling silver and copper possess extremely high thermal conductivity, transferring heat rapidly across their entire surface like a "heat hose." You must raise the temperature of the entire piece to the solder's flow point—often between 700 and 800 degrees Celsius—before the joint will fuse.

"Here the metal of the cross-lock tweezers acts as a heat sink, protecting the wee part by sucking heat out of it as fast as the flame pushes it in," explains jewelry fabrication expert Shoebox Studio. If a tiny, vulnerable part sticks out unprotected, it will often melt before the solder flows.

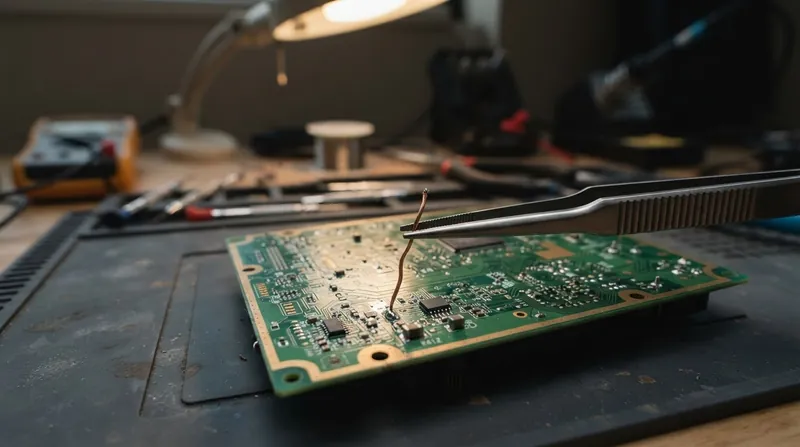

This thermal shielding ensures the tiny part remains intact while the larger metal body reaches the necessary temperature. In electronics repair, the tweezers similarly prevent heat from traveling up a 22-gauge copper wire and melting its plastic insulation.

Protecting Long-Term Hand Health

The repetitive strain of continuous pinch gripping carries long-term consequences for dedicated makers. The Georgia Tech OSHA Consultation Program warns that forceful or repetitive pinch gripping significantly increases the risk of developing musculoskeletal disorders, including carpal tunnel syndrome and tendinitis.

When you pinch tightly, the tendons running through the narrow carpal tunnel in your wrist swell and press against the median nerve. Over months and years of bench work, this friction causes chronic inflammation, leading to numbness, tingling, and a permanent loss of grip strength.

Swapping standard tweezers for a reverse-action pair acts as a direct ergonomic intervention. By offloading the clamping force to the tool's mechanical spring, you drastically reduce the repetitive tension on your flexor tendons, preserving your hand health for future projects.[2]

Many cross-locking models feature a 160-millimeter length and heat-resistant fiber or wooden grips bolted to the handles. These insulated pads not only protect your fingers from the heat traveling up the steel, but they also widen the grip profile, making the tool more comfortable to hold for extended periods.

Setting Up for Success

Integrating reverse-action tweezers into your workflow requires a slight adjustment in muscle memory. Because squeezing opens the tool, your initial instinct to grip harder when a part slips will actually release the component, sending it flying across the room.[2]

To use them effectively as a heat shield, grip the work just below the part to be soldered, leaving the joint exposed to the flame. The tweezers will draw heat away from the lower sections, preventing previously soldered joints from annealing or coming apart.

However, you must avoid clamping the tweezers directly onto the area you are trying to heat. If the steel jaws touch the joint itself, they will suck away the torch's energy so efficiently that the metal will never reach soldering temperature, leaving you with unmelted flux and frustration.

By letting the tool do the heavy lifting and thermal management, you can approach complex assemblies with patience. The cross-locking mechanism turns a stressful balancing act into a controlled, deliberate process, ensuring your joints are clean and your hands remain pain-free.[2]
