Plain Guitar G Strings Demand More Bridge Saddle Setback Than Wound D Strings Because Their Thicker Solid Core Increases Fretting Stiffness

A standard electric guitar bridge saddle travels across a span of about six millimeters to keep the instrument in tune, a distance you can easily measure with a ruler. That tiny mechanical runway dictates whether a chord played at the twelfth fret rings with crystalline clarity or clashes in a dissonant warble.[3]

Look closely at those saddles on a properly adjusted Stratocaster or Les Paul, and you will notice a distinct, jagged pattern. The saddles for the low E, A, and D strings step progressively backward away from the neck. But when you reach the G string, the pattern violently resets, with the saddle jumping further back than the thicker D string beside it.[3]

This visual anomaly confuses generations of new players who assume that thicker strings always require more length compensation. The reality lies hidden beneath the surface of the metal. The plain G string demands the most aggressive intonation adjustment because it possesses the thickest solid steel core of any string on the instrument.[1][4]

The Geometry of Fretting

To understand why the bridge must stagger, you have to look at what happens when you press a string against a fret. A guitar string at rest forms a straight line between the nut and the bridge saddle. Pressing it down to the fingerboard forces it into a shallow triangle.[2]

That downward deflection physically stretches the steel wire, increasing its tension. Higher tension means a higher pitch. If the bridge saddle sat exactly at the mathematical halfway point of the scale length, playing the twelfth fret would sound noticeably sharp.[2][3]

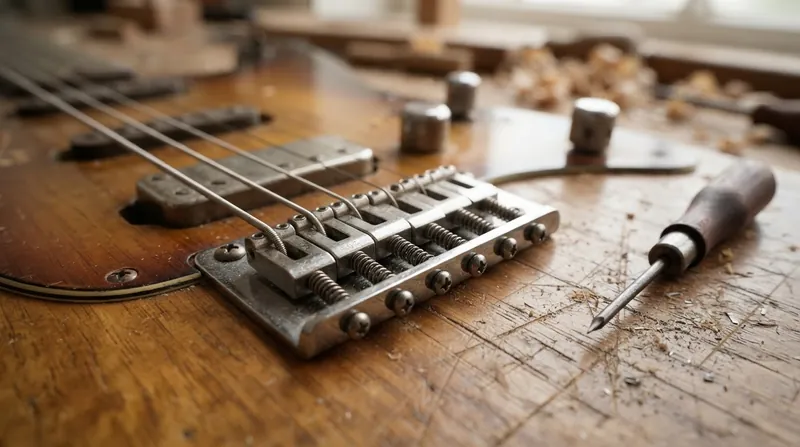

Luthiers correct this sharpening effect by moving the bridge saddle slightly backward, lengthening the string's total vibrating span. This process, known as intonation, ensures that the fretted note matches the mathematical ideal. The stiffer the string, the more it resists bending, and the sharper it goes when forced down to the fret.[3]

"Intonation is the art of managing string stiffness," explains the technical documentation provided by StewMac, a leading luthier supply company. Every string behaves slightly differently under tension, and the bridge is where technicians negotiate a compromise between the math of the fretboard and the physical reality of the wire.[3]

The Core Illusion

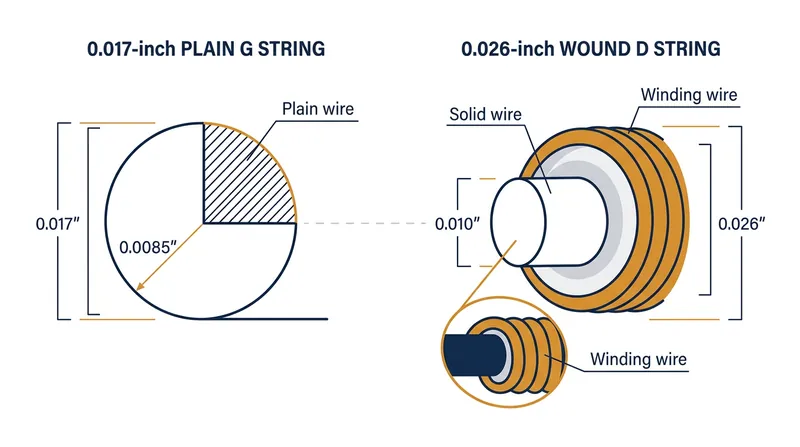

The confusion over the G string stems from a misunderstanding of how guitar strings are manufactured. In a standard set of "10s"—where the high E string measures 0.010 inches in diameter—the D string typically measures 0.026 inches. The plain G string sits between them at 0.017 inches.[1]

Because the D string is visually thicker than the G, intuition suggests it should be stiffer. But the D string is a composite structure. It consists of a very thin hexagonal steel core wire wrapped tightly in a secondary coil of nickel-plated steel.[1]

That outer wrap wire adds mass, which slows the string's vibration and lowers its pitch, but it adds almost zero longitudinal stiffness. The string bends and flexes based almost entirely on the diameter of its inner core. In a standard 10-46 set, the D string's solid core measures just 0.010 inches across.[1][4]

The plain G string, by contrast, has no wrap wire. It is a single, solid cylinder of high-carbon steel measuring a full 0.017 inches in diameter. That makes its solid core 70 percent thicker than the core of the wound D string sitting right next to it.[1][4]

The Physics of Bending

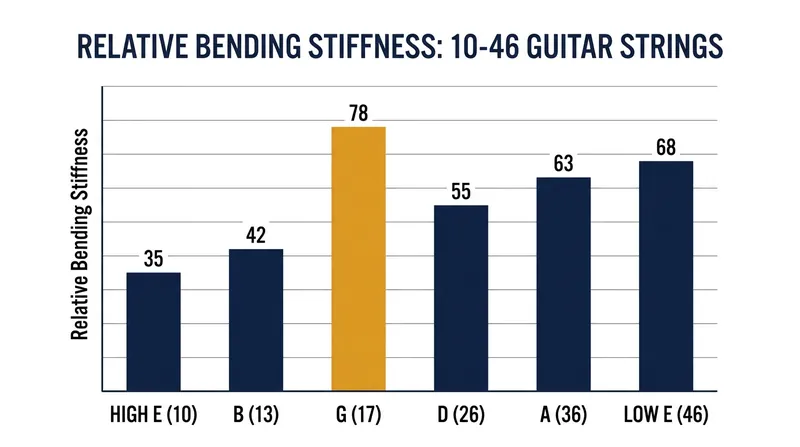

In mechanical engineering, a cylinder's resistance to bending is governed by its area moment of inertia. This property does not scale linearly with thickness; it scales with the fourth power of the radius. A small increase in solid diameter creates a massive increase in rigidity.[2]

Because the plain G string's core is significantly thicker than the D string's core, its bending stiffness is exponentially higher. When you press the plain G down to the twelfth fret, that rigid steel bar resists the deflection, causing a severe spike in tension.[2][4]

To compensate for that extreme sharpening effect, the G string's saddle must be pulled further back than any other saddle on the upper half of the bridge. It requires the longest vibrating length to offset its inherent rigidity and keep the notes in tune.[3]

This stiffness also manifests in the string's acoustic behavior, a phenomenon physicists call inharmonicity. The overtones of a stiff string vibrate slightly sharper than perfect mathematical multiples of the fundamental frequency, giving the plain G its characteristic twangy, sometimes metallic edge.[2]

The Wound G Alternative

This intonation quirk is a relatively modern invention. Before the 1960s, almost all electric guitars were strung with heavy gauge sets that featured a wound G string. A wound G uses a tiny steel core—often around 0.009 inches—wrapped in fine wire, making it highly flexible.[1][4]

With a wound G, the bridge saddles form a smooth, predictable staircase pattern from the high E down to the low E. The strings get progressively thicker, their cores scale logically, and the intonation setback increases in a straight line. Acoustic guitars, which still use wound G strings, maintain this traditional saddle geometry.[3][4]

The shift occurred when rock and blues guitarists began bending notes aggressively. A wound G string is incredibly difficult to bend a full step in pitch because its thin core reaches its elastic limit quickly, and the wrap wire creates friction against the frets.[4]

Players in the 1960s began substituting banjo strings for their high E, shifting the rest of the strings down one slot to create a "slinky" set with a plain, unwound G. The solid G string was easy to bend, but it destroyed the traditional bridge geometry, forcing the saddle far back to maintain intonation.[4]

Setting the Lightning Bolt

Today, the modern electric guitar bridge is designed entirely around this plain G string reality. A properly intonated Stratocaster or Telecaster bridge resembles a lightning bolt, split into two distinct angled groups of three saddles.[3]

The first group handles the plain strings—E, B, and G—angling sharply backward as the solid steel cores get thicker. The second group handles the wound strings—D, A, and E—resetting forward at the D string before angling backward again as the wound cores gradually increase in size.[3]

You can spot a badly set up guitar from across the room just by looking at the bridge. If the saddles are sitting in a straight line on a modern electric, the G string is guaranteed to sound horribly out of tune the moment the player moves past the fifth fret.[3]

Understanding this mechanical reality changes how you interact with the instrument. The plain G string is not a defective piece of wire; it is a deliberate compromise, trading perfect acoustic flexibility for the ability to push a note a minor third into the stratosphere.[4]
