Why Outlook Message Recalls Fail Externally and Trigger Plaintext Alerts

When an employee clicks "Recall This Message" in Microsoft Outlook, the Exchange server evaluates its jurisdiction over the recipient's mailbox before executing the command. If the recipient resides within the same corporate tenant, the server actively reaches into the database and purges the item.[2]

But if the message has already crossed the external network boundary to a provider like Gmail or Yahoo, the sending server possesses no mechanism to retrieve it. The architecture of internet email fundamentally prevents remote deletion once a message leaves the host environment.[1][4]

This limitation stems directly from the foundational protocols governing global email transmission. The Simple Mail Transfer Protocol, defined in RFC 5321, dictates how servers exchange messages across the internet. It operates strictly as a store-and-forward system, moving data sequentially from one node to the next.[1]

Because the protocol lacks a revocation primitive, the sending server cannot issue a command to undo a transmission. Instead, Outlook attempts a workaround by generating a secondary email containing a proprietary recall request.

When the external receiving server processes this secondary message, it fails to recognize the proprietary command. Consequently, it delivers the request as a standard plaintext email, actively alerting the recipient that the sender attempted to retract the original message.

Inside the Corporate Tenant

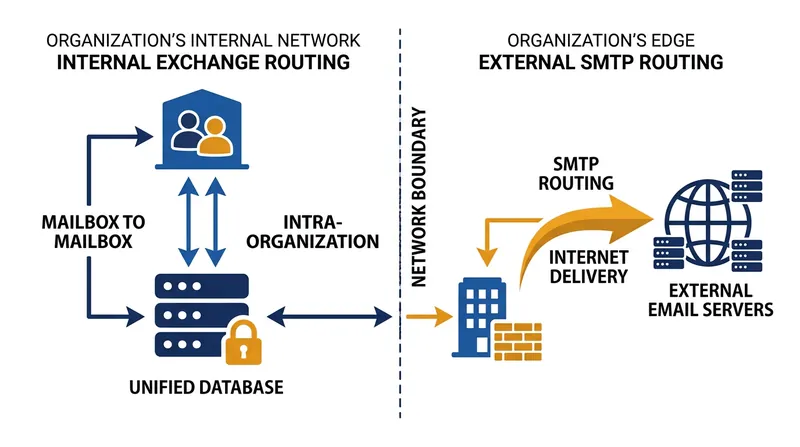

To understand why external recalls fail, users must first understand why internal recalls succeed. Within a single Microsoft 365 tenant, emails do not travel across the open internet using standard routing protocols. Instead, they remain within a unified Exchange database.[2]

When a user sends an internal message, the Exchange server simply places a pointer to the message data in the recipient's inbox. Because the server maintains absolute administrative control over this database, it can modify or delete those pointers at will.[2]

Microsoft significantly enhanced this internal capability in February 2023 by rolling out a new cloud-based message recall architecture for Exchange Online. This update shifted the recall processing from the individual Outlook client directly to the cloud infrastructure.[3]

The 2023 update dramatically improved internal success rates, allowing administrators to configure the system to recall messages even after the recipient has opened them. The cloud-based engine processes these requests across up to 300,000 internal mailboxes per tenant in seconds.[2][3]

However, Microsoft explicitly noted in its technical documentation that this powerful new engine remains strictly confined to the tenant boundary. The moment a message requires external routing, the unified database architecture no longer applies, and the system must rely on internet standards.[2]

The SMTP Handoff

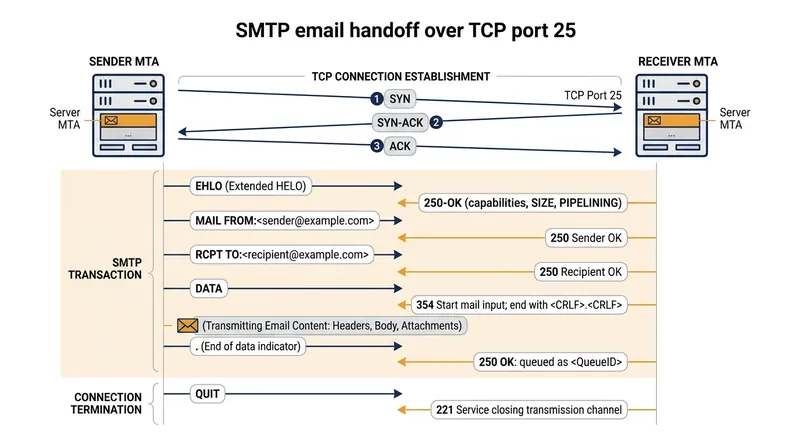

The architecture of internet mail, detailed in RFC 5598, divides the transmission process into distinct administrative domains. When an email departs the sender's corporate environment, it passes through a Mail Transfer Agent responsible for routing it across the public internet.[4]

This transfer occurs over TCP port 25, utilizing the SMTP framework established in August 1982 and updated through successive RFC documents. During this handoff, the sending server establishes a connection with the receiving server and transmits the message data sequentially.[1][4]

Once the receiving Mail Transfer Agent acknowledges receipt of the data, the transaction concludes. At this exact millisecond, the sending server permanently relinquishes all jurisdiction over the message payload.[1]

The receiving infrastructure, operating across thousands of miles of fiber-optic networks, now holds total authority over how the message is processed, filtered, and ultimately delivered to the end user's inbox. The sending organization cannot bypass this authority to access the recipient's local storage environment.[4]

This strict separation of administrative domains forms the bedrock of internet email security and reliability. If external servers could remotely delete messages from foreign databases, the system would be highly vulnerable to malicious data manipulation and unauthorized access.[1][4]

The Missing Revocation Primitive

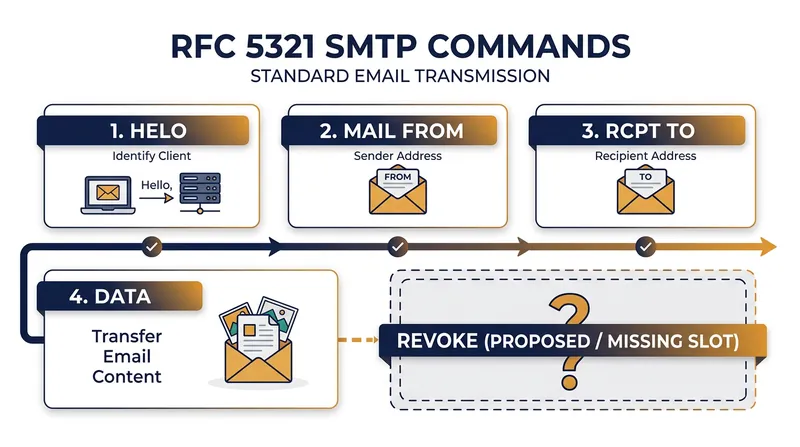

The inability to recall external emails is not a software bug, but a deliberate architectural constraint within RFC 5321. The protocol defines a highly specific set of commands that servers use to communicate, including HELO, MAIL FROM, RCPT TO, and DATA.[1]

Conspicuously absent from this standardized command list is any form of REVOKE, RECALL, or DELETE instruction. The protocol designers built SMTP exclusively for forward transmission, optimizing it to ensure messages reach their destination despite network interruptions.[1]

Because no revocation primitive exists in the standard, a sending server literally lacks the vocabulary to ask a receiving server to delete a previously transmitted message. The receiving server would simply reject any non-standard command as a syntax error.[1]

Various working groups have occasionally proposed adding a recall extension to the SMTP standard over the past three decades. However, these proposals consistently fail to gain traction due to the immense complexity of implementing cross-domain authentication for deletion requests.[1][4]

Without a cryptographic guarantee that a recall request originated from the verified sender of the original message, a revocation command could be weaponized to delete thousands of legitimate emails. Attackers could theoretically spoof recall commands to empty a target's inbox, making the feature too dangerous to standardize.[4]

Generating the Plaintext Alert

Faced with the impossibility of true external revocation, Microsoft Outlook employs a fallback mechanism that often exacerbates the sender's error. When a user triggers a recall for an external address, Outlook generates a completely new email message.

This secondary message contains specific MAPI properties instructing the recipient's email client to locate and delete the original message. If the recipient also uses Outlook and connects to an Exchange server, their local client might process the command successfully.

However, if the recipient uses one of the estimated 1.8 billion active Gmail accounts, or a Linux-based client, their software will not interpret the proprietary MAPI properties. The receiving system processes the incoming data strictly as a standard MIME-formatted email.[4]

Stripped of its executable commands, the recall request simply renders as a plain text email in the recipient's inbox. The subject line automatically prepends the word "Recall:" to the original subject, prominently highlighting the transmission.

This fallback mechanism practically guarantees that the recipient will notice the exact message the sender desperately wanted to hide. The alert draws immediate human attention to the original email, defeating the entire purpose of the recall function.

Client-Side Mitigation Strategies

Because post-transmission recall remains technologically impossible across external boundaries, the only effective mitigation strategy relies on pre-transmission delays. Users must intercept the message before it ever reaches the outbound Mail Transfer Agent.[4]

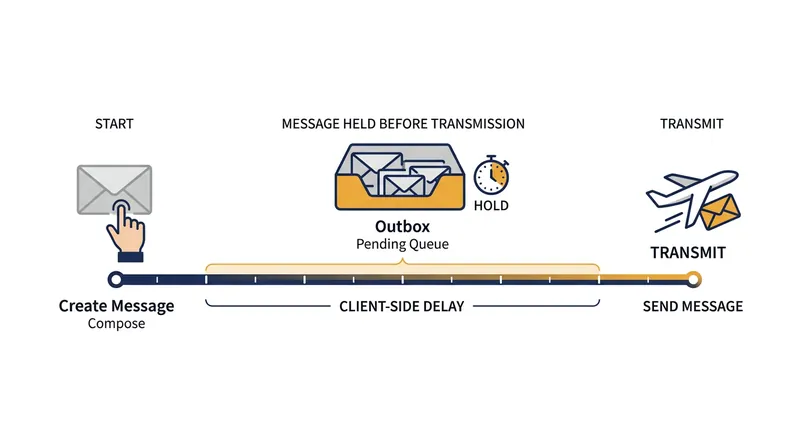

Most modern email clients, including Outlook, allow users to configure a deferred delivery rule. By setting a universal 60-second delay on all outgoing messages, the client holds the email in the local outbox rather than immediately transmitting it to the server.

During this 60-second window, the message has not yet entered the SMTP routing infrastructure. If the sender realizes they made an error, they can simply open the outbox and delete the pending item locally.

This client-side spooling mechanism provides a genuine safety net because it operates entirely within the user's local jurisdiction. Once the delay timer expires and the client pushes the message to the Exchange server for external routing, the window for intervention closes permanently.[4]

Corporate IT departments frequently implement these delay rules at the organizational level, enforcing a mandatory 30-second hold on all outbound external mail. This brief buffer significantly reduces the volume of accidental data disclosures and embarrassing miscommunications.[2]

Until the fundamental architecture of the internet changes, users must recognize the absolute finality of the external send button. Once a message crosses the corporate boundary, no cloud-based update or proprietary software feature can force another network to surrender its data.[1][2]
