Why Left-Censoring Distorts Kaplan-Meier Curves When Event Tracking Begins After Disease Onset

When event tracking begins after disease onset, standard Kaplan-Meier curves distort survival because they count patients as being at risk during a period when they were mathematically immune to failure. This structural error artificially inflates the denominator in early time intervals, pulling the entire survival curve upward and overstating median survival times.[3]

The distortion stems from a fundamental conflation of two distinct missing-data problems. Researchers frequently mislabel this delayed entry as left-censoring, but the phenomenon is actually left-truncation.[2]

Left-censoring means the event happened before observation began, leaving the exact timing unknown. Left-truncation means the patient only entered the study because they survived long enough to be observed.[2]

Conflating these two mechanisms is one of the most common errors in survival analysis. When analysts treat left-truncated data as if it were simply right-censored or fully observed from time zero, they introduce a severe survivorship bias.[2]

"Survival analysis isn't about death. It's about time — and what we do when time runs out before our data does," writes data scientist Dinesh Kumar in his review of censoring mechanisms.[2]

The Mathematics of Risk-Set Inflation

The Kaplan-Meier estimator calculates survival probability by multiplying the conditional probabilities of surviving each successive time interval. At any given moment, the denominator is the risk set, which represents the total number of patients currently under observation and at risk of the event.

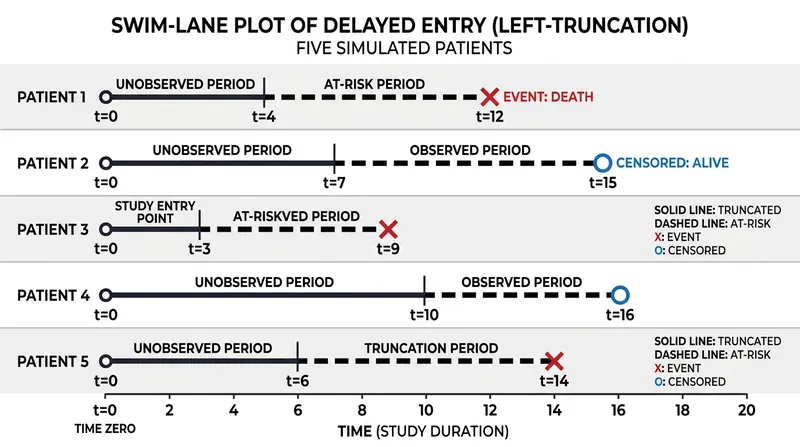

In a standard prospective trial, every patient enters the risk set at time zero. But in observational cohorts, registries, or clinico-genomic databases, patients often enter the study months or years after their initial diagnosis.[1]

If a patient is diagnosed in January but only undergoes genomic sequencing and enters the study in June, they survived for six months before observation began. A naive Kaplan-Meier model incorrectly places that patient in the risk set from January onward.[1][3]

This creates a mathematical illusion of invulnerability. The patient is counted in the denominator for those first six months, but they had zero probability of contributing to the numerator because they would not have entered the study if they had died.[3]

By artificially inflating the denominator without any corresponding possibility of adding to the numerator, the calculated hazard rate is suppressed. The survival probability for those early months is artificially pushed closer to 100 percent.[3]

Quantifying the Upward Bias

The magnitude of this distortion is not trivial. In a simulated cohort of 21 subjects experiencing 10 events over a 150-month period, ignoring delayed entry inflated the survival curve throughout the entire observation window.

The naive estimator produced a mean upward bias of 0.059 in survival probability, with the maximum bias reaching 0.093. This systematic overestimation shifted the median survival time from a corrected 133.1 months to a falsely optimistic higher value.[3]

Real-world clinical data reveals the same structural flaw. A 2021 analysis of stage IV non-small cell lung cancer and colorectal cancer patients examined the impact of delayed entry on overall survival estimates.[1]

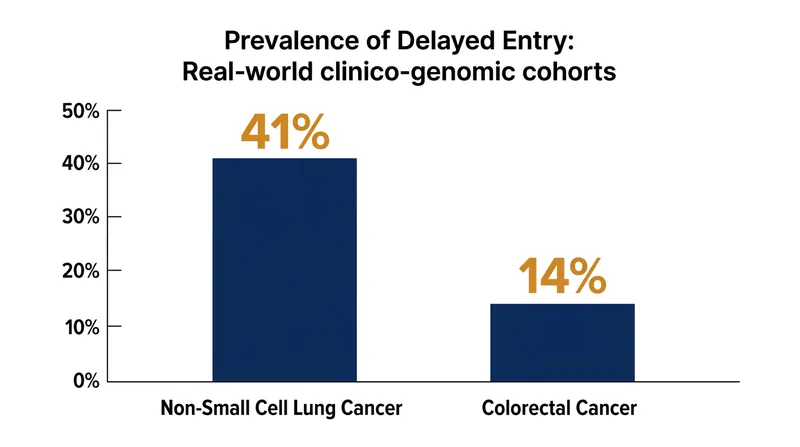

Among the lung cancer patients treated with carboplatin and pemetrexed, 41 percent had their genomic sequencing determined after starting their first-line regimen. For the colorectal cancer cohort on FOLFOX, 14 percent experienced this delayed entry.[1]

The researchers found that failing to account for this delayed entry led to a consistent overestimation of overall survival, regardless of the specific cohort or the chosen start date. The naive Kaplan-Meier curves were fundamentally compromised by length bias.[1]

Correcting the Estimator

Fixing this distortion requires redefining how the risk set is constructed at each event time. Instead of assuming everyone is at risk from time zero, the truncation-adjusted Kaplan-Meier estimator uses both entry and exit times.

Under this adjusted framework, a patient only enters the risk set at their specific truncation time. The denominator at any given moment strictly includes only those subjects who have formally entered the study and have not yet exited or experienced the event.[3]

Returning to the patient diagnosed in January and enrolled in June, the adjusted model keeps them entirely out of the risk set for the first six months. They only begin contributing to the denominator in June, perfectly aligning their period of risk with their period of observation.[3]

This simple correction strips the immortal time out of the calculation. By restricting each subject's contribution to the period after their entry, the adjusted estimator produces an unbiased conditional survival function.

The Independent Truncation Assumption

While the mathematical correction is straightforward, its validity rests on a critical assumption known as independent truncation. The timing of a patient's entry into the study must be unrelated to their underlying baseline risk of the event.[3]

If patients who enter the study late are systematically healthier or sicker than those who enter early, the truncation adjustment alone cannot fully resolve the bias. The entry mechanism itself becomes informative, requiring more complex joint modeling approaches.[2][3]

In many clinico-genomic databases, the decision to order sequencing is often triggered by disease progression or treatment failure. This creates a scenario where delayed entry is highly correlated with prognosis, challenging the independent truncation assumption.[1]

Despite this complication, adjusting for left-truncation remains a mandatory first step. It removes the mechanical risk-set inflation, isolating any remaining bias to the clinical selection process rather than a mathematical artifact.[1][3]

Software Implementation and Reporting

Modern statistical software handles left-truncation seamlessly, provided the analyst specifies the data correctly. Instead of a simple time-to-event variable, the data must be structured with explicit start and stop times for each subject.

In R, this is accomplished using a specific syntax within the survival package that defines both the entry and exit times. This explicit counting-process format forces the software to recognize the delayed entry and construct the risk sets accurately at every step.[1]

When reporting survival estimates from observational cohorts, researchers must explicitly state whether and how they accounted for delayed entry. A median survival time derived from a naive Kaplan-Meier curve in a registry dataset should be treated with extreme skepticism.[3]

Downstream Effects on Hazard Ratios

The distortion caused by left-truncation does not stop at the Kaplan-Meier curve; it cascades directly into semi-parametric models. When the risk set is artificially inflated, the baseline hazard function is systematically underestimated.[3]

In a Cox proportional hazards regression, treating left-truncated data as if it were fully observed from time zero pulls the estimated hazard ratios toward the null. The model struggles to detect true differences between groups because the early event rates are diluted by immortal patients.

Correcting the Cox model requires the exact same start-stop data structure used for the adjusted Kaplan-Meier estimator. By aligning the risk sets, the model can accurately estimate the adjusted effects and restore the statistical power lost to the truncation bias.[2]

Ultimately, survival analysis is designed to extract meaning from incomplete data. But treating patients who were absent as if they were present violates the core logic of the discipline, turning a powerful statistical tool into an engine for overconfidence.[2][3]
