Why Induction Cooktops Require Minimum Vessel Ferromagnetism and Base Diameter to Heat

When a 10-centimeter solid copper butter warmer is placed on a standard induction zone, the appliance remains entirely cold. The cooktop does not recognize the vessel as cookware, regardless of the heat setting selected on the control panel. The system is waiting for a specific threshold of magnetic absorption that the copper simply cannot provide.[3][5]

This silent rejection is not a malfunction, but a deliberate safety mechanism built into the appliance's control board. Induction cooktops do not generate heat directly; they generate a high-frequency magnetic field. That field must be absorbed by the cookware to create thermal energy, and the cooktop constantly measures whether a suitable target is present.[4]

To trigger the high-frequency inverter and begin a cooking cycle, the vessel must satisfy two strict physical requirements simultaneously. The pan must possess a high degree of ferromagnetism, and its flat base must cover a minimum surface area over the induction coil. If either metric falls below the manufacturer's programmed threshold, the zone refuses to activate.[3][6]

The first requirement, ferromagnetism, dictates how the metal interacts with the alternating magnetic field. When the cooktop pulses its copper coil, it induces electrical eddy currents within the metal sitting above the glass. The efficiency of this process depends entirely on the material's relative magnetic permeability.[1][2]

The Skin Depth Requirement

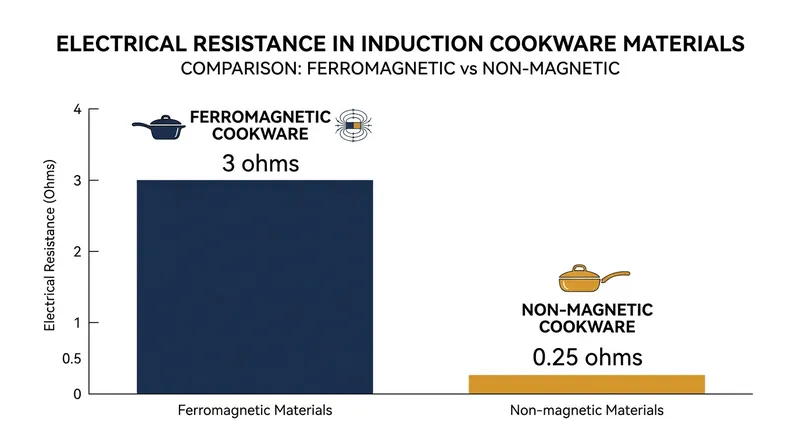

Materials like aluminum and copper have a relative magnetic permeability of exactly one. Because they do not concentrate magnetic field lines, the induced alternating current penetrates deeply into the metal. This deep skin depth results in a very low equivalent electrical resistance, typically around 0.25 ohms, which is insufficient to generate meaningful heat.[1][2]

Ferromagnetic materials, such as cast iron or specific nickel-iron alloys, behave entirely differently. Their relative magnetic permeability can reach as high as 20,000, which forces the magnetic field to remain concentrated at the very bottom surface of the pan. This shallow skin depth drastically increases the metal's electrical resistance to roughly 3 ohms.[1][2]

That higher resistance is what converts the magnetic energy into thermal energy. The eddy currents struggle to flow through the shallow layer of iron, generating rapid, intense heat directly within the base of the cookware. Without that high magnetic permeability, the cooktop's energy would simply pass through the vessel without heating it.[1]

However, perfect ferromagnetism alone is not enough to start the cooking process. The cooktop must also verify that the object sitting on the glass is actually a piece of cookware, rather than a stray fork, a dropped ring, or a misplaced kitchen knife. This is where the minimum base diameter requirement comes into play.[3]

Why Base Diameter Dictates Activation

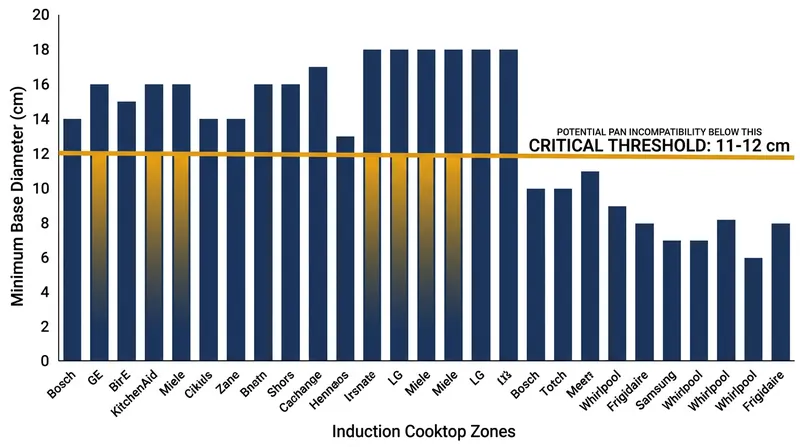

Major appliance manufacturers program their pan-detection sensors with a hard physical floor. According to specifications from brands like Bosch and Miele, a standard cooking zone requires a flat, magnetic base diameter of at least 11 to 12 centimeters to register. If the base is smaller than 4.3 inches, the zone remains inactive.[3][6]

This diameter threshold ensures that the pan covers enough of the induction coil to establish a strong magnetic coupling. The cooktop's internal electronics measure the inductance change caused by the metal above the glass. A base smaller than 11 centimeters simply does not absorb enough of the field to cross the safety threshold.[4]

When a user places an undersized cast iron skillet on a large burner, the cooktop reads the weak magnetic coupling as an empty zone. The system is designed to throttle down or shut off entirely to protect itself and the user. It will not blast 3,000 watts of power into a zone that is mostly uncovered.[5]

The measurement that matters is the flat magnetic base, not the advertised size of the pan. A frying pan marketed as a premium 26-centimeter skillet is measured across its flared upper rim for retail appeal. The actual flat surface that makes contact with the glass might only be 10 centimeters across, causing it to fail the detection test despite the marketing claims.[6]

Inside the Pan-Detection Loop

To monitor the cooking surface without wasting energy, the cooktop executes a continuous, silent pan-detection routine. The control board sends infrequent, low-power pulses through the induction coil. During these pulses, the system measures the damping of the resonant circuit or the reactive power returning to the inverter.[4]

If a large, highly ferromagnetic pan is present, it absorbs the pulse, damping the resonant ringdown significantly. The microcontroller detects this heavy load and authorizes the main power circuit to engage. The high-frequency inverter then switches on, delivering continuous alternating current to the coil to heat the food.[4]

If the load is too light—because the pan is non-magnetic, too small, or positioned eccentrically—the voltage on the resonant node remains high. The system recognizes that the magnetic field is not being absorbed safely. It immediately aborts the startup sequence, often flashing an error code or a missing-pan symbol on the display.[4]

Engineers build generous hysteresis into this detection loop to prevent the cooktop from stuttering. Once a valid pan is detected and heating begins, the threshold to keep the burner running is slightly lower than the threshold required to start it. This ensures that minor movements, like shaking a sauté pan, do not constantly interrupt the power.[4]

Visual Boundaries Versus Magnetic Reality

The strict reliance on magnetic coupling creates a disconnect between what the user sees and what the machine measures. The white circles painted on the ceramic glass indicate the center of the induction coil, but they do not define the detection zone. The cooktop only cares about the invisible magnetic interaction occurring beneath the surface.[3]

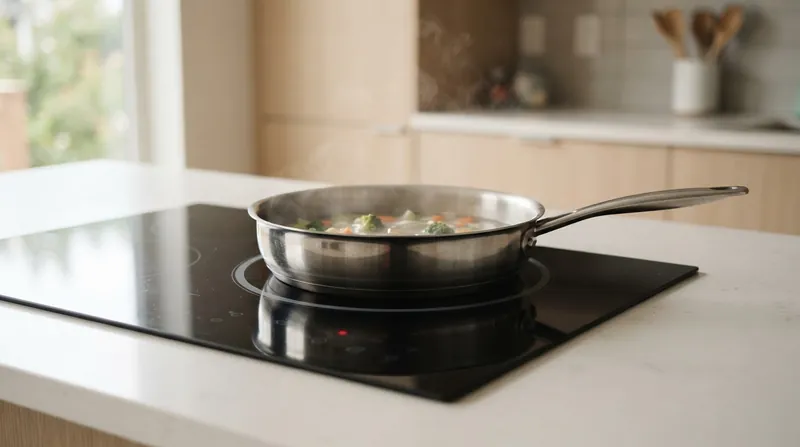

This reliance on physical contact means that pan flatness is just as critical as diameter. A pan that has warped from years of high heat will have a convex or concave base. If only a narrow outer ring of the metal actually touches the glass, the total magnetic coupling drops drastically.[5]

Because the strength of a magnetic field decays exponentially with distance, even a one-millimeter air gap between a warped pan and the glass can ruin the connection. The cooktop may fail to detect the pan entirely, or it may throttle the power output, resulting in a slow, frustratingly uneven cooking experience.[5]

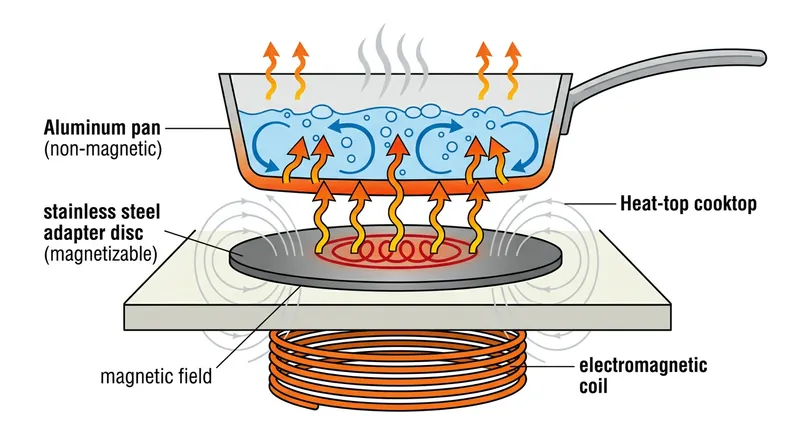

When a pan fails the detection test, users sometimes attempt to bypass the sensors using an induction adapter disc, often sold as a universal cookware converter. These heavy steel plates are designed to sit directly on the glass, where they satisfy both the ferromagnetism and diameter requirements. The cooktop detects the disc and heats it to high temperatures.[5]

Adapter Discs and the Efficiency Cost

The user then places their non-magnetic copper or aluminum pan on top of the hot steel disc. While this workaround successfully tricks the cooktop's safety sensors, it fundamentally breaks the architecture of induction cooking. The system is no longer inducing heat directly inside the cookware, despite what the accessory's packaging implies.[5]

Instead, the setup reverts to traditional radiant heating. The induction coil heats the steel plate, and the steel plate slowly transfers its thermal energy to the pan through physical conduction. This destroys the rapid responsiveness that defines induction technology, as the heavy steel disc takes minutes to heat up and cool down.[5]

The adapter disc also traps excess heat against the ceramic glass, which can trigger the cooktop's internal temperature sensors. If the glass becomes dangerously hot, the appliance will automatically shut down the zone to prevent the surface from cracking or damaging the electronics housed directly below.[4]

Ultimately, the strict thresholds for ferromagnetism and base diameter are not arbitrary inconveniences. They are the foundational physics that allow induction technology to operate safely in a domestic kitchen. By demanding a minimum magnetic coupling, the appliance ensures that its massive electrical output is only deployed when a proper vessel is ready to absorb it.[1][3][7]

The precision of these sensors also prevents stray magnetic fields from escaping the cooking zone. When a properly sized ferromagnetic pan covers the coil, it acts as a magnetic shield, absorbing the energy and preventing it from radiating into the surrounding room. This containment is a core requirement for regulatory safety approval.[2]

If the cooktop allowed a small pan to activate a large coil, the uncovered portions of the magnetic field would project upward into the kitchen. This stray electromagnetic energy could theoretically interfere with nearby electronic devices or expose the user to unnecessary field leakage. The minimum diameter rule keeps the field safely capped.[2]

Understanding these operational limits transforms how a kitchen is equipped. Rather than relying solely on a refrigerator magnet to test cookware, buyers must measure the actual flat base of their smallest pots. Matching the physical dimensions of the cookware to the programmed thresholds of the appliance is the only way to guarantee a functional cooking surface.[6]
