W-Phase Inversions Measure Total Fault Rupture When Short-Period Waves Saturate

When the 2004 Sumatra earthquake ruptured for nearly ten minutes, early automated systems pegged the event at magnitude 8.0—a massive underestimation of the 9.1 reality that generated a devastating basin-wide tsunami. The discrepancy exposed a fundamental mechanical limit in how seismometers read the Earth. The short-period body waves used for rapid alerts simply max out, or saturate, when a fault keeps unzipping.[2][5]

Standard body-wave magnitude calculations rely on waves oscillating at periods of about one to ten seconds. These waves arrive quickly, allowing algorithms to issue alerts within minutes of the initial rupture. However, a magnitude 9.0 earthquake involves a fault displacement that can stretch for 1,000 kilometers and last hundreds of seconds.[7]

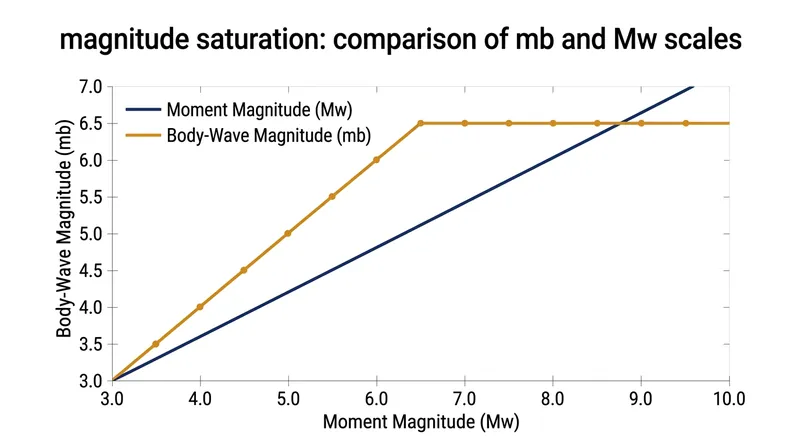

Because the short-period waves cannot encapsulate an event that outlasts their own frequency, the measurement saturates around magnitude 6.5. The instruments record the initial jolt but remain blind to the continued release of strain energy. This effectively truncates the earthquake's true scale just as the most dangerous displacements occur.[1]

The historical reliance on the Richter scale and early body-wave metrics created a dangerous blind spot for coastal populations. Thomas Hanks and Hiroo Kanamori addressed the theoretical gap in 1979 by defining the moment magnitude scale, which calculates total energy based on fault area and slip. Yet, measuring that moment in real time remained a physical impossibility for decades.[9]

The W-Phase Solution

To capture the total energy of a mega-quake before a tsunami strikes, seismologists turned to the W-phase. First identified by Kanamori following the 1992 Nicaragua earthquake, the W-phase is an ultra-long-period wave that oscillates between 100 and 1,000 seconds.[2]

The 1992 Nicaragua event was a classic tsunami earthquake, characterized by a slow, quiet rupture that produced a massive tsunami despite a moderate surface-wave magnitude. Kanamori noticed a distinct, long-period signal on the displacement records that arrived before the shear waves. This signal, dubbed the W-phase, carried the true magnitude of the event.[2]

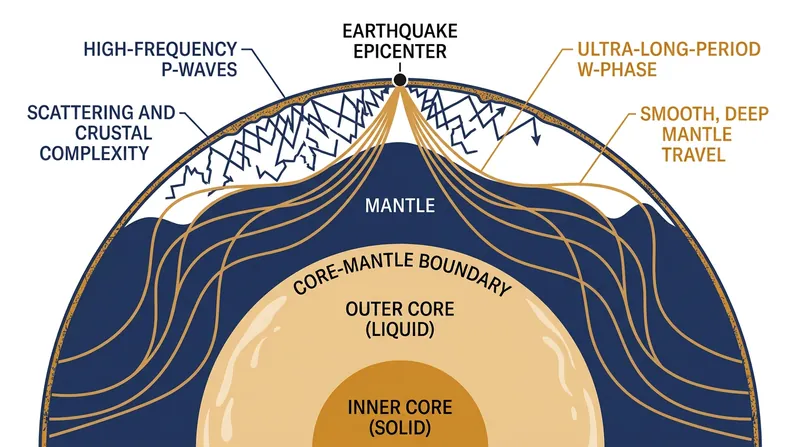

Unlike high-frequency waves that scatter and attenuate, the W-phase represents the superposition of the Earth's fundamental overtones. It propagates in a manner similar to an acoustic whispering gallery mode, traveling smoothly through the planet's mantle. This allows it to arrive concurrently with the initial P-waves while carrying the low-frequency signature of the entire fault displacement.[2]

"Because of its long period nature and because it precedes the large amplitude surface-wave arrivals, the W phase can provide rapid and reliable estimates of the overall source parameters of large events," states the Institut de Physique du Globe de Strasbourg in its operational documentation.

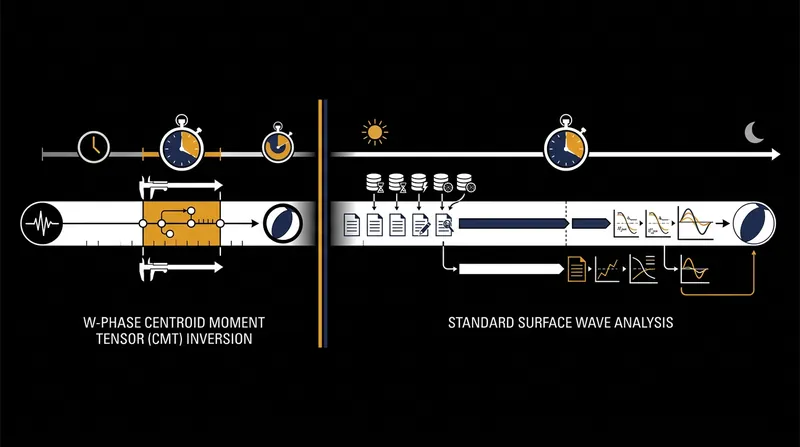

By filtering broadband seismogram data to isolate this 100 to 1,000 second band, researchers can perform a centroid moment tensor inversion. This mathematical process calculates the moment magnitude and the fault's focal mechanism within 20 to 30 minutes of the origin time.[2]

The inversion relies on pre-computed Green's functions, which model how the Earth's structure affects wave propagation from any given depth and distance. By convolving these functions with the incoming W-phase data, seismologists can mathematically reconstruct the fault's geometry and the total slip without waiting for the rupture to finish.[10]

Tsunami Warning Integration

The speed of the W-phase inversion fundamentally changed tsunami forecasting. Because the wave's amplitude scales directly with the total seismic moment rather than the initial shock, it provides a highly accurate proxy for the volume of displaced ocean water.[10]

Agencies like the Pacific Tsunami Warning Center and the U.S. Geological Survey now run W-phase algorithms continuously. When an earthquake exceeds magnitude 6.8, the system automatically triggers an inversion. This delivers a robust magnitude estimate long before the destructive surface waves or the tsunami itself reach distant shores.[2][3]

During the 2011 Tohoku earthquake, the W-phase algorithm proved its operational value. While initial short-period estimates placed the event at magnitude 7.9, the automated W-phase inversion computed a magnitude of 9.0 within 20 minutes. This rapid correction allowed Japanese authorities to upgrade their tsunami warnings before the largest waves struck the coastline.[4][6]

The W-phase also resolves the ambiguity surrounding slow-rupture events. Because these earthquakes release their energy over a longer duration, they generate massive tsunamis while producing deceptively small short-period magnitudes. The 100 to 1,000 second W-phase captures this slow energy release perfectly, preventing catastrophic underestimations.[2]

Overcoming Instrument Clipping

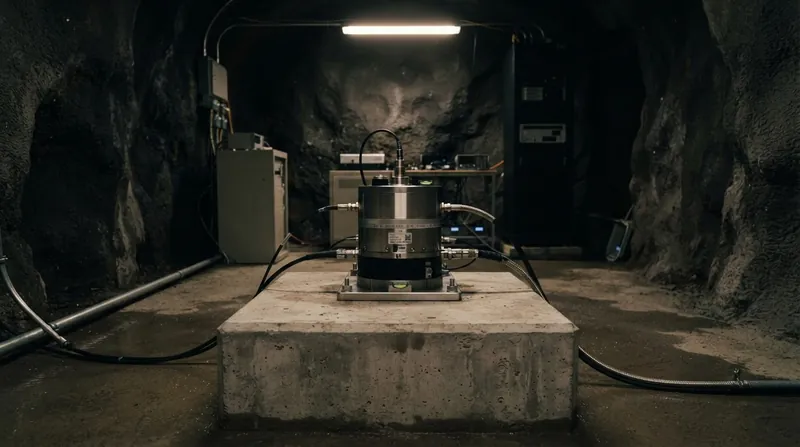

A secondary advantage of the W-phase is its resilience against instrument clipping. During a massive seismic event, the sheer violence of the incoming surface waves often drives sensitive broadband seismometers off their scales, rendering the data useless for traditional frequency-domain deconvolution.[2]

Because the W-phase arrives ahead of these large-amplitude surface waves, the crucial long-period data is safely recorded before the instrument saturates. Time-domain deconvolution extracts this pristine signal, ensuring that the magnitude calculation survives the physical limits of the monitoring hardware.[2]

This early arrival window is dictated by the wave's group velocity, which ranges from 4.5 to 9.0 kilometers per second. At a distance of 50 degrees from the epicenter, the entire W-phase energy packet is recorded within 23 minutes of the origin time. This physical constraint guarantees that the inversion can be completed before the data stream is corrupted.[2]

Extension to Regional Networks

While originally developed to measure great earthquakes above magnitude 7.5 on a global scale, the W-phase technique has recently been adapted for smaller events. Researchers have successfully extended the inversion algorithm to analyze earthquakes down to magnitude 5.5 using regional seismic networks.[3]

By applying the same 100 to 1,000 second bandpass filters to regional broadband stations, seismologists can compute robust moment tensors for moderate earthquakes. This regional application cuts the required computation time down to just 15 minutes, providing a faster alternative to traditional surface wave analysis for local hazard assessment.[3]

The integration of W-phase data into early warning systems represents a rare triumph of theoretical geophysics over physical hardware limits. By looking past the chaotic, high-frequency noise of the initial rupture, seismologists found a slow, quiet wave that tells the truth about the Earth's most violent moments.[11]

As global seismic networks continue to densify, the resolution of W-phase inversions will only improve. The ability to mathematically bound the size of a mega-quake before the earth stops shaking ensures that coastal populations receive the accurate, actionable warnings required to survive a basin-wide tsunami.[11]
