Why Dirt Roads Washboard Above Eight Kilometers Per Hour Regardless of Vehicle Suspension

Anyone who has navigated a rural dirt road toward a secluded trailhead or a backcountry campsite knows the bone-rattling vibration of washboard ripples. At speeds as low as eight kilometers per hour, a perfectly flat gravel surface spontaneously degrades into a series of rigid, transverse waves that shake your steering wheel and rattle your teeth.[5]

For decades, frustrated drivers have blamed this severe corrugation on heavy logging trucks, aggressive braking, or the bouncing of cheap vehicle suspensions. However, laboratory experiments reveal that the ripples are a fundamental inevitability of physics, occurring even when a rigid wheel with no suspension rolls over dry sand.[1]

The phenomenon, known as spontaneous granular surface instability, dictates that any rolling object will eventually carve these ridges into an unpaved route. Once initiated, the pattern grows deeper and wider, forcing road maintenance crews into a never-ending cycle of grading and smoothing.[3]

Understanding exactly how these ripples form requires looking past your vehicle's shock absorbers and examining the behavior of the dirt beneath your tires. The answer lies in the exact same physics that allow a flat stone to skip across a calm pond.

A century of engineering frustration

Highway engineers have documented this frustrating phenomenon since the 1920s, when the proliferation of the automobile first turned rural wagon trails into heavily trafficked thoroughfares. Early studies blamed the drive wheels of early cars for tossing loose material backward into piles.[5]

By the 1960s, researchers like Dr. Keith Mather began conducting scaled experiments using metronomes and towed wheels to isolate the variables. Mather discovered that the ripples formed even when the wheel was unpowered, disproving the theory that engine torque was the primary culprit.[5]

Despite these early revelations, the myth that heavy trucks and stiff suspensions cause washboarding persists today. It took modern physicists using two-dimensional molecular dynamics simulations to finally map the exact particle behavior that drives the instability and ruins your suspension.[1]

The skipping-stone effect

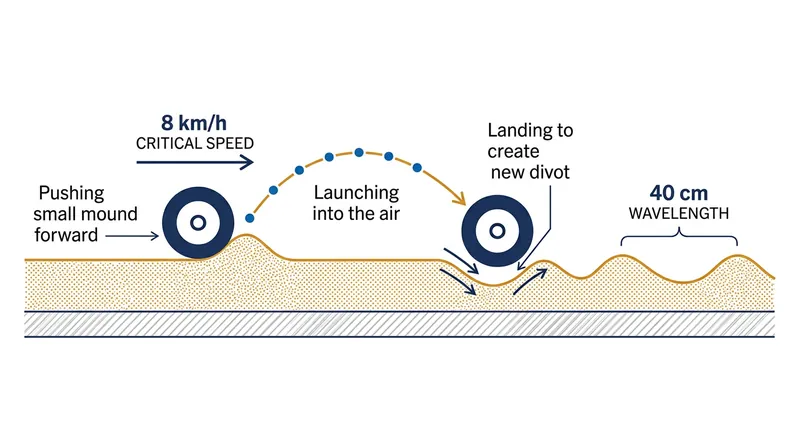

When your tire rolls over a granular surface, it pushes a tiny mound of dirt forward, creating a microscopic ramp. If you are driving fast enough, the wheel launches off this ramp, becomes momentarily airborne, and crashes back down further along the road.[1][2]

This impact displaces more dirt, creating a new divot and a new ramp, perpetuating the cycle. In a 2007 study published in Physical Review Letters, physicists demonstrated this effect using a rotating table of sand and a hard rubber wheel.[1]

The researchers found that the wheel's bouncing is mathematically identical to a skipping stone. "The hopping of the wheel over the ripples turns out to be mathematically similar to skipping a stone over water," noted University of Toronto physicist Stephen Morris, who co-authored the study.

Crucially, the team proved that your vehicle's springs and dampers are entirely irrelevant to the formation of the ripples. They replaced the wheel with a rigid, inclined plow blade dragged over the sand, and the exact same washboard pattern emerged, confirming that the instability is inherent to the granular bed.

The surface simply remembers its shape. Each subsequent pass of a camper van or an SUV amplifies the existing divots, causing the ripples to grow deeper and migrate slowly in the direction of travel.[1]

The critical speed threshold

The single most important factor in washboard formation is your velocity. Below a specific threshold, the wheel simply compacts the dirt and rolls smoothly; above it, the skipping effect takes over and the road begins to destroy itself.[2]

Physics models and real-world observations place this critical speed at approximately eight kilometers per hour, or five miles per hour. At this walking pace, the kinetic energy of the rolling wheel overcomes the gravitational settling force of the loose gravel.[5]

Because almost no one drives slower than eight kilometers per hour on a long stretch of rural road, corrugation is virtually guaranteed. Once the ripples form, they typically settle into a uniform wavelength of about 40 centimeters from crest to crest.[3]

This spacing creates a brutal feedback loop for passenger vehicles. As drivers accelerate to 20 kilometers per hour to float over the bumps, their tires strike the ripples at a frequency of roughly 13.8 hertz.[4]

That impact rate perfectly matches the natural unsprung mass resonance—the wheel hop frequency—of most cars. Instead of absorbing the blows, your vehicle's suspension actively amplifies the bouncing, turning the tire into a pneumatic hammer that compacts the troughs even deeper.[4]

Why grading is only temporary

Because the corrugation is driven by fundamental kinematics, mechanical grading only resets the clock. A freshly smoothed dirt road will inevitably return to a washboard state after a few hundred vehicle passes, regardless of how heavily the soil is compacted by the grader.[5]

Civil engineers attempt to mitigate the damage by altering the composition of the road surface. High-quality gravel mixed with the correct ratio of clay and fine sand binds together more tightly, resisting the displacement forces of your tires.[5]

Moisture also plays a critical role in binding the surface. During protracted dry spells, the crust of the road loosens, making the granular material highly susceptible to the skipping-stone effect and accelerating the formation of deep ridges.[5]

Conversely, if a road lacks a proper crown to shed rainwater, moisture pools in the existing troughs. Passing tires then splash the muddy water out of the divots, deepening the holes through hydraulic erosion and making the drive even rougher.[5]

The illusion of a smooth ride

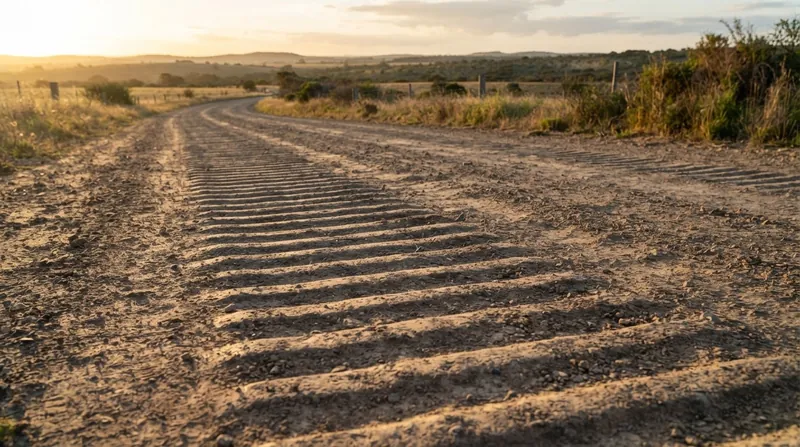

Drivers often discover that accelerating to 60 or 80 kilometers per hour makes a washboard road feel significantly smoother. At these high speeds, your vehicle's suspension cannot react fast enough to drop the tires into the troughs.[4]

The tires effectively skim across the crests of the ripples, isolating the cabin from the violent vibrations. However, this high-speed skimming drastically reduces the tire's contact patch with the road, severely compromising your braking and steering traction.[5]

Furthermore, while the ride feels smoother to the occupants, the high-speed impacts are highly destructive to the road surface. The immense kinetic energy transferred to the crests of the ripples ensures the washboard pattern remains deeply entrenched for the next driver.[2]
