The 7% Braking Threshold: How UNECE Regulation 117 Separates 3PMSF Winter Tires From M+S Geometric Claims

On a groomed, compacted snow circuit, a test vehicle accelerates to 50 km/h before the driver applies maximum braking force. The anti-lock braking system engages, and GPS telemetry records the exact distance required to bring the car to a complete standstill. This precise measurement determines whether a tire is legally recognized as safe for winter driving.[2]

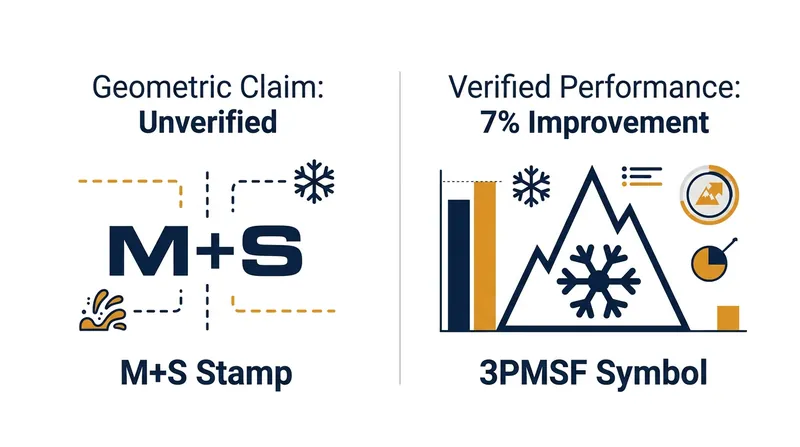

For decades, drivers navigating winter road trips relied on a simple visual cue: the letters "M+S" molded into their tire sidewalls. Standing for Mud and Snow, this stamp became the default indicator of cold-weather capability across the global automotive industry. However, the marking represents a geometric assumption rather than a proven physical capability.[5]

The M+S designation is entirely self-certified by tire manufacturers based on the physical layout of the tread blocks. If a tire features a specific void ratio and angled groove geometry, it qualifies for the stamp. The rubber compound is never subjected to a physical traction test on actual snow.[3][5]

"It is a self-certified geometric marking based on the tread pattern's void ratio and groove geometry," notes the technical team at Performance Plus Tire. "No traction test is required to earn it. It is a statement about tread shape, not about measured grip."[3]

The 7% Performance Threshold

To address the safety gap left by unverified geometric claims, regulatory bodies introduced the Three-Peak Mountain Snowflake (3PMSF) certification. Governed internationally by UNECE Regulation 117, this standard replaces visual tread assessments with mandatory, standardized physical testing. A tire cannot wear the mountain symbol simply by looking the part.[1][6]

Under Annex 7 of UNECE Regulation 117, a candidate tire is tested directly against a Standard Reference Test Tire (SRTT), typically a standardized 14-inch or 16-inch model. The test evaluates the tire's longitudinal dynamics on medium-packed snow, measuring either its acceleration traction or its braking distance.[1][2]

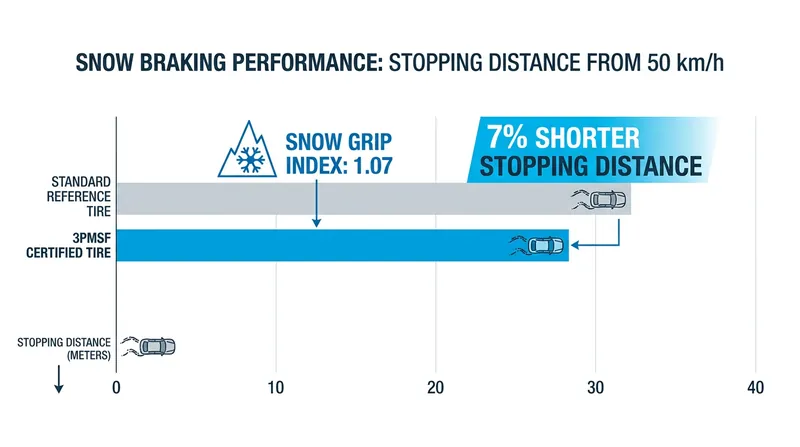

To earn the 3PMSF certification, a passenger car tire must achieve a minimum snow grip index of 1.07. This metric dictates that the candidate tire must demonstrate at least a 7% improvement in braking performance or acceleration grip compared to the standard reference tire.[1]

"Ultimately, a tyre meeting the minimum snow grip index values is classified as a tyre for use in severe snow conditions," explains Blackcircles in their regulatory breakdown. "A manufacturer cannot simply state that their tyres meet requirements. It is a regulatory classification with a defined test behind it."[1]

Compound Flexibility and Temperature

The 7% performance threshold forces manufacturers to engineer specialized rubber compounds that remain pliable in freezing conditions. Standard all-season tires, which often carry the M+S stamp, utilize rubber mixtures that begin to harden and lose traction as ambient temperatures drop below 7°C (45°F).[5][6]

True 3PMSF-certified tires incorporate high-silica compounds and advanced polymer technologies that maintain their elasticity well below the freezing point. This chemical flexibility allows the tread blocks to conform to the micro-texture of the road surface, generating mechanical grip even when the asphalt is covered in packed snow.[4][5]

The testing environment itself is strictly controlled to ensure consistent results across different tire models and testing facilities. The snow surface must be meticulously groomed and compacted, and the ambient temperature during the test must fall within a specific, narrow window to prevent the snow from melting.[2]

During a standard braking evaluation, the test vehicle enters the measurement zone at 50 km/h. The driver applies full braking effort, and the system measures the deceleration profile between 45 km/h and 5 km/h. The vehicle is repositioned for every run so that no tire ever brakes on the same patch of snow twice.[2]

What the Certification Excludes

While the 7% braking threshold provides a verified baseline for winter safety, the 3PMSF certification has specific limitations. The UNECE Regulation 117 test measures only longitudinal forces—acceleration and braking in a straight line.[1][6]

The standard does not evaluate a tire's lateral grip or cornering stability on snow. A vehicle equipped with certified tires will stop in a significantly shorter distance, but the certification provides no mathematical guarantee regarding how the vehicle will handle a sharp, snowy curve at speed.[1][4]

Furthermore, the snow grip index is highly specific to the surface texture of medium-packed snow. The mechanical interlocking that occurs between the tire sipes and the snow crystals does not necessarily translate to environments where the snow has melted and refrozen into a sheer glaze.[1][6]

Despite these limitations, the 3PMSF symbol remains the most reliable indicator of winter capability for road-trippers and daily commuters. It guarantees a baseline level of chemical and mechanical engineering that the purely geometric M+S stamp cannot legally promise.[4][6]

The End-of-Life Performance Shift

The regulatory landscape continues to evolve, pushing tire manufacturers toward even greater accountability. Recent amendments to UNECE Regulation 117, specifically the R117-04 series, introduce stringent end-of-life performance requirements for passenger car tires.[6]

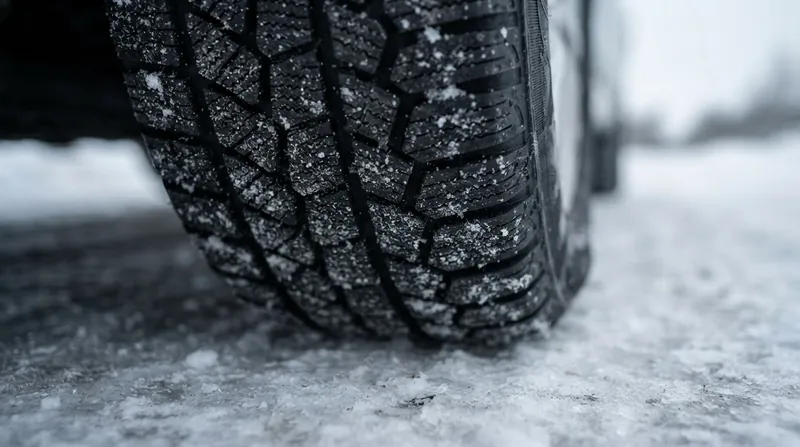

These new rules ensure that safety is maintained as the tread wears down over thousands of miles of road trips. Under the updated framework, tires are artificially buffed down to the legal minimum tread depth of 1.6 millimeters and subjected to rigorous wet grip testing.[6]

The worn candidate tire must retain a specified percentage of its original traction compared to a similarly worn reference tire. This prevents manufacturers from designing tread patterns that only clear the performance thresholds when brand new, ensuring the rubber compound delivers consistent grip throughout its lifespan.[6]

This shift from visual geometry to verified, lifecycle performance represents a fundamental change in automotive safety standards. Regulators are no longer satisfied with a tire that merely looks capable of handling winter weather on the showroom floor.[6]

By demanding a mathematically proven 7% advantage on packed snow, the 3PMSF certification ensures that winter road trips are safeguarded by empirical data rather than manufacturer assumptions. The burden of proof has shifted entirely from the consumer's visual inspection to the manufacturer's telemetry data.[1][6]

North American Standards and All-Weather Tires

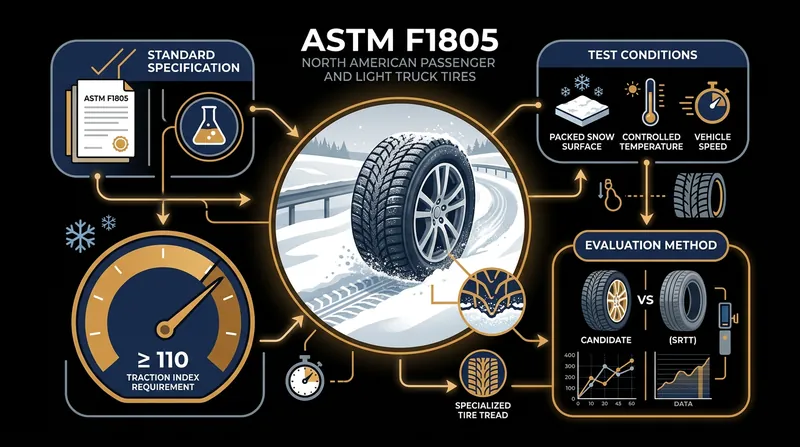

In North America, the equivalent testing standard is defined by the U.S. Tire Manufacturers Association (USTMA) and the Rubber Association of Canada, utilizing the ASTM F1805 protocol. Like the UNECE regulation, this standard requires a candidate tire to achieve a strict traction index over a specific reference tire during spin traction testing.[4]

The rigorous nature of these tests has given rise to a highly capable class of tires engineered for year-round use. Distinct from traditional all-season tires, these models carry the 3PMSF symbol, indicating they have passed the required snow traction tests while maintaining tread compounds suitable for summer heat.[4][5]

"The 3PMSF designation isn't just another marketing label—it's a proven certification that separates true winter performers from pretenders," explains Dan the Tire Man, an industry distributor. "By choosing tires with the 3PMSF symbol, you're investing in better traction and shorter stopping distances."[4]

For drivers planning winter road trips through mountainous terrain or snow-belt regions, the distinction is critical. Relying on a tire simply because its tread blocks look aggressive under the M+S definition leaves the vehicle's actual stopping power to chance.[3][4]

The 7% braking threshold transforms winter driving from a gamble into a calculated, engineered certainty. When the temperature drops and the snow packs down, the presence of the three-peak mountain snowflake guarantees that the rubber meeting the road has been empirically proven to stop the vehicle safely.[1][6]
