Why Cross-Linked Phosphated Starches Maintain Freeze-Thaw Stability in Ultra-Processed Foods

A food formulator standing in a commercial test kitchen decides whether a frozen lasagna will emerge from the microwave as a cohesive meal or a weeping puddle of water. Their primary tool to prevent that structural collapse is the chemical modification of starch. They must lock the recipe's architecture before the product ever hits the blast freezer.[1][10]

Native starches from corn, wheat, or potatoes fail spectacularly under freezing conditions. When heated in water, their microscopic granules swell and burst, releasing long carbohydrate chains that tangle together to thicken a sauce. This process, called gelatinization, creates the glossy, mouth-coating texture consumers expect from a gravy or a fruit filling.[2][4]

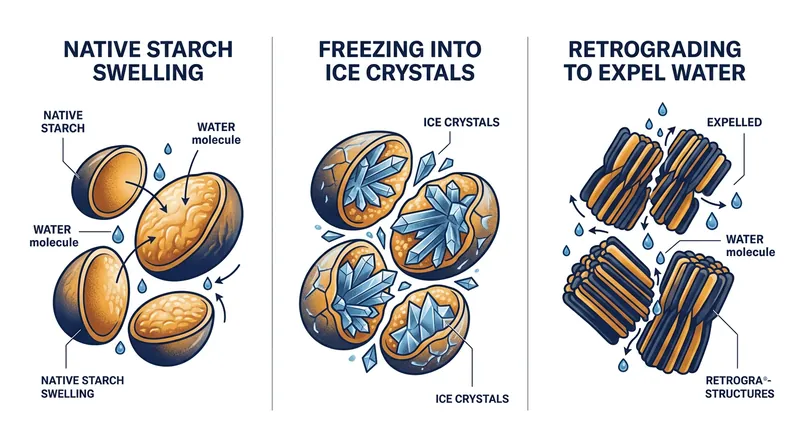

But dropping that same sauce to −18°C shatters the illusion. As the water freezes into ice crystals, it forces the dissolved starch molecules—amylose and amylopectin—closer together. When the meal is eventually thawed, those chains refuse to separate, instead bonding tightly to one another in a process called retrogradation.[4][9]

As the starch chains crystallize, they act like a wrung-out sponge, violently expelling the water they previously held. This phenomenon, known as syneresis, is what leaves a thawed microwave meal swimming in a watery, unappetizing broth. To stop it, the food industry relies on cross-linked phosphated starches.[1][4]

Engineering the Starch Granule

To prevent retrogradation, chemists modify the starch before it ever reaches a food manufacturing plant. By treating native starch with phosphorus oxychloride or sodium trimetaphosphate, they create strong covalent bonds between adjacent starch molecules. These phosphate bridges act like microscopic spot welds across the carbohydrate chains.[2][5]

These chemical bridges physically block the starch chains from realigning into tight, water-expelling crystals when the temperature drops. According to a 2024 review in the International Journal of Food Properties, this cross-linking reinforces the granule structure, allowing it to survive both the mechanical shear of factory mixing and the expansion of ice crystals.[1]

"Cross-linking modification is one of the most important methods to improve the freeze-thaw stability of starch," researchers noted in a recent PubMed-indexed analysis. They found that these modifications fundamentally alter the thermodynamic properties of the gel, preventing the water molecules from migrating out of the matrix during temperature fluctuations.[4]

The resulting ingredient appears on European food labels under E-numbers like E1412 for distarch phosphate or E1442 for hydroxypropyl distarch phosphate. In the United States, the Food and Drug Administration broadly categorizes them under the umbrella term "food starch-modified," a ubiquitous presence in the ingredient lists of ultra-processed foods.[3][5][7]

Regulatory Limits and Formulation

Because these starches are chemically altered, their production and application are strictly governed by international food safety authorities. The US Code of Federal Regulations dictates exactly how much modifying agent can be used. For starches cross-linked with sodium trimetaphosphate, the residual phosphorus cannot exceed 0.4 percent.[5]

The European Food Safety Authority maintains similarly rigorous oversight. In a comprehensive 2017 re-evaluation of modified starches, the EFSA panel concluded that there is no safety concern for the use of phosphated starches at reported consumption levels. They noted that these additives pass through the human digestive tract largely like native starches.[3]

Formulators rarely push against that 0.4 percent regulatory ceiling, because over-cross-linking ruins the ingredient. If a starch has too many phosphate bridges, the granule becomes so rigid that it cannot swell and gelatinize at all. The food would remain thin and watery, defeating the purpose of adding a thickener.[2][10]

Instead, food scientists carefully calibrate the degree of cross-linking to match the specific thermal abuse the product will face. A frozen fruit pie filling requires a highly cross-linked starch to survive baking temperatures after thawing, while a delicate dairy dessert might need only a light modification to maintain its creamy mouthfeel.[1][8]

Real-World Applications in Ultra-Processed Foods

The impact of these modified starches is most visible in the frozen aisle of the supermarket. Consider the crystal dumpling wrapper, a staple of frozen dim sum. A study in the journal Foods demonstrated that functional additives, including modified starches, significantly enhanced the freeze-thaw stability of wheat-potato starch gels used in these wrappers.[9]

Without modification, a frozen dumpling wrapper would emerge from the steamer cracked, gummy, and opaque. The cross-linked starch ensures the wrapper remains translucent, elastic, and capable of holding hot broth without disintegrating. It preserves the sensory experience of a freshly made dumpling, even months after it was manufactured.[9]

This stability extends to complex liquid systems like condiments and sauces. A 2024 study published in Frontiers in Nutrition examined the effects of acetylated distarch phosphate on oyster sauce. The researchers found that the modified starch maintained the sauce's physicochemical characteristics and stability, preventing it from separating into a sludgy layer of solids and a watery top.[6]

"The addition of acetylated distarch phosphate significantly improved the apparent viscosity and viscoelasticity of the oyster sauce system," the Frontiers in Nutrition authors reported. This ensures the sauce clings perfectly to a piece of broccoli or a noodle, delivering a consistent flavor profile regardless of how long the bottle sat in a cold warehouse.[6]

The Future of Texture Management

While chemical modification remains the industry standard for ultra-processed foods, the mechanics of freeze-thaw stability are constantly being refined. Food scientists are exploring physical modifications, such as heat-moisture treatment, to achieve similar retrogradation resistance without chemical reagents. However, these clean-label alternatives often struggle to match the sheer durability of phosphated starches.[1][4]

The challenge is particularly acute in products that undergo multiple freeze-thaw cycles during transit. A pallet of frozen meals might slightly thaw on a loading dock before being refrozen in a grocery store display case. Each temperature fluctuation encourages ice crystal growth and starch retrogradation, testing the limits of the formulation.[4][8]

Research published in the International Journal of Food Science in 2022 highlighted how blending different starches alongside sucrose and coconut milk can further stabilize chilled and frozen gels. By combining cross-linked starches with specific sugars, formulators can depress the freezing point of the water, reducing the volume of ice crystals that form in the first place.[8]

The invisible architecture of a frozen meal relies entirely on these microscopic phosphate bridges. They are the reason a consumer can pull a tray from the freezer, blast it with microwave radiation for five minutes, and sit down to a meal that feels, looks, and tastes remarkably close to something cooked from scratch.[10]
