The pH 3.2 Threshold and 60% Sugar Concentration That Allow Pectin to Form a Gel

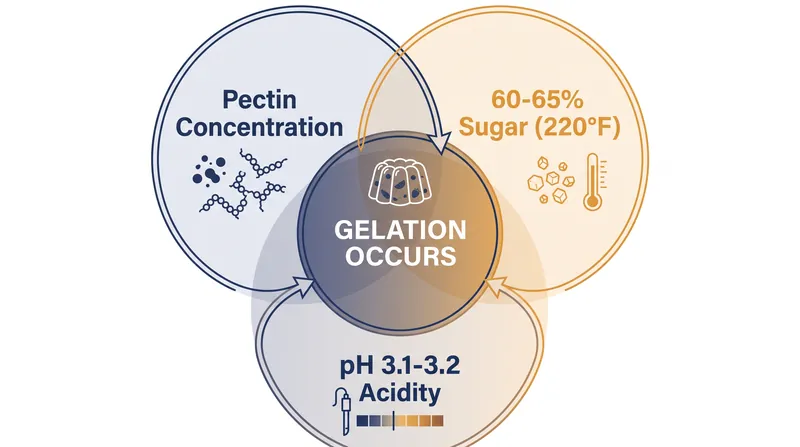

Fruit turns into a spreadable gel only when its internal environment hits a precise chemical threshold: a pH of exactly 3.2 and a sugar concentration of 60 to 65 percent. At that specific intersection, the water that normally keeps pectin molecules apart is drawn away by the sugar, while the high acidity neutralizes their negative electrical charges, forcing the molecules to crash together into a rigid three-dimensional mesh.[4]

When you stand over a bubbling copper pot of summer strawberries, you are not just cooking fruit; you are managing a delicate polymer extraction. Pectin, a complex carbohydrate found in the cell walls of plants, acts as the structural cement that holds fruit together. Once heated and released into a liquid, those long molecular chains naturally repel each other. Coaxing them to bond requires manipulating their environment with absolute precision.[1][4]

Sugar does far more than sweeten the preserve; it acts as a highly effective dehydrating agent. In a standard fruit mixture, water molecules surround the pectin chains, creating a buffer that prevents them from linking. By raising the sugar concentration to between 60 and 65 percent, the sucrose aggressively binds with the free water. This effectively strips the protective hydration layer away from the pectin, leaving the polymer chains exposed and vulnerable to bonding.[2]

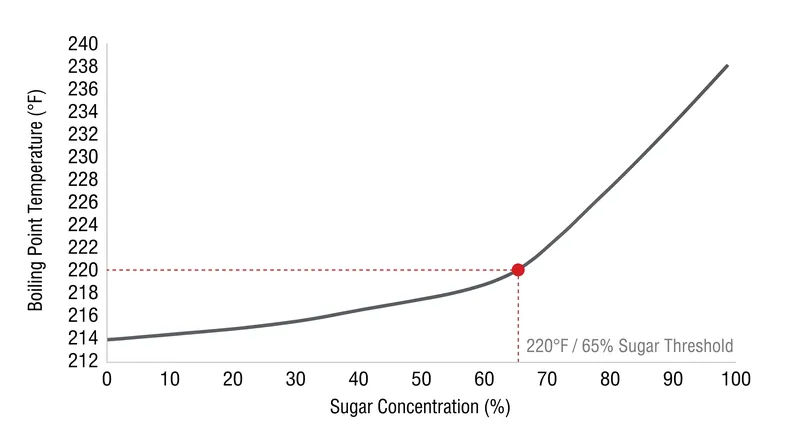

Because measuring a 60 percent sugar concentration by weight is difficult in a boiling pot, cooks and commercial manufacturers rely on thermodynamics. Water boils at 212 degrees Fahrenheit (100 degrees Celsius) at sea level, but dissolving sugar into water raises its boiling point. A fruit mixture will only reach 220 degrees Fahrenheit (104.5 degrees Celsius) when the sugar concentration hits exactly 65 percent. Hitting that temperature is the physical proof that the water has been sufficiently cooked off.

Yet sugar alone cannot force the set. Even stripped of water, pectin molecules carry a negative electrical charge, meaning they will stubbornly repel one another like identical magnetic poles. This is where acidity becomes the critical catalyst. Dropping the pH of the mixture neutralizes those negative charges, allowing the pectin chains to finally approach each other and form a stable, interlocking network.[1][3]

The window for this chemical reaction is remarkably narrow. According to the 2014 analysis published by Compound Interest, the optimal gelation range for high-methoxyl pectin—the type naturally abundant in citrus and apples—sits strictly between a pH of 2.8 and 3.5. If the mixture is too alkaline, sitting above 3.5, the pectin will never set, regardless of how long it boils. If it drops below 2.8, the gel network forms too rapidly and violently, resulting in a weeping, brittle texture.

Industrial food science tightens this window even further. While academic literature identifies the broad functional range, practical manufacturing demands absolute consistency. Technical guidelines from California Ingredients specify a "commercial target pH 3.1" for high-methoxyl pectin applications. This exact decimal point ensures the gel sets firmly during the cooling phase without pre-gelling in the vats or pipes.

Different acids interact with pectin in slightly different ways. Research published in the journal Food Chemistry examined the specific influence of tartaric acid content on the structure formation of sugar-containing pectin gels. The study demonstrated that the type of acid used to lower the pH alters the cooling rate required for optimal gelation, meaning that substituting lemon juice (citric acid) for grape-derived tartaric acid can subtly shift the final texture of the preserve.[2]

Before these thresholds can be met, the pectin must first be freed from the plant tissue. This requires sustained heat. As the Royal Society of Chemistry outlines in its text on pectin gelation parameters, the thermal degradation of the plant cell walls releases the polymers into the surrounding liquid. Harder, low-pectin fruits like strawberries or cherries often require the addition of commercial pectin or high-pectin fruits like apples to achieve the necessary concentration for a firm set.[3][4]

The actual gelation does not occur while the pot is boiling. The kinetic energy of the rolling boil keeps the pectin molecules moving too rapidly to form stable bonds. It is only as the temperature drops below 190 degrees Fahrenheit (88 degrees Celsius) that the hydrogen bonds and hydrophobic interactions between the neutralized, dehydrated pectin chains begin to lock into place, trapping the remaining water and fruit solids within their mesh.[1][2]

Not all preserves rely on this high-sugar, high-acid mechanism. A separate category of pectin, known as low-methoxyl pectin, operates on an entirely different chemical pathway. Instead of requiring 60 percent sugar and a pH of 3.2, low-methoxyl pectin forms a gel in the presence of calcium ions. The calcium acts as a bridge, linking the pectin chains together regardless of the sugar content, which is how modern low-sugar and savory jams are manufactured.[4]

Understanding these precise metrics transforms preserving from an intuitive art into a reliable science. When a batch of fruit fails to set, it is never a mystery; it is simply a failure to hit the required data points. By ensuring the temperature reaches 220 degrees Fahrenheit and the pH drops to 3.2, anyone can command the chemistry of the kitchen, locking the fleeting flavors of the season into a perfect, enduring gel.
