Translating Raw Scores Into Words: How the Softmax Layer Drives Large Language Models

The final layer of a large language model holds the ultimate decision-making power over what word appears next on the screen. Before a system like ChatGPT or Claude outputs a single character, its neural network generates a vast array of raw, unbounded scores—one for every possible word in its vocabulary. These raw numbers, known as logits, are mathematically chaotic, ranging from deep negative values to high positive integers. The model cannot use them directly to roll the dice and pick a word. Instead, it relies on a specific mathematical operation to translate that chaos into a clean, actionable menu of choices.[7]

That operation is the softmax function. It acts as the bridge between the internal computations of the artificial intelligence and the statistical probabilities required to generate human-readable text. By passing the logits through this function, the model converts an arbitrary list of scores into a strict probability distribution where every value is positive and the entire set sums to exactly 1.0, or 100 percent.[1][7]

"Softmax is a mathematical function that converts a vector of numbers into a vector of probabilities," explains the technical documentation from Dremio. The process ensures that the probabilities of each value are proportional to the relative scale of each value in the vector. This means the highest raw score becomes the most likely next word, but the exact percentage depends on the distance between that score and all the others.[6]

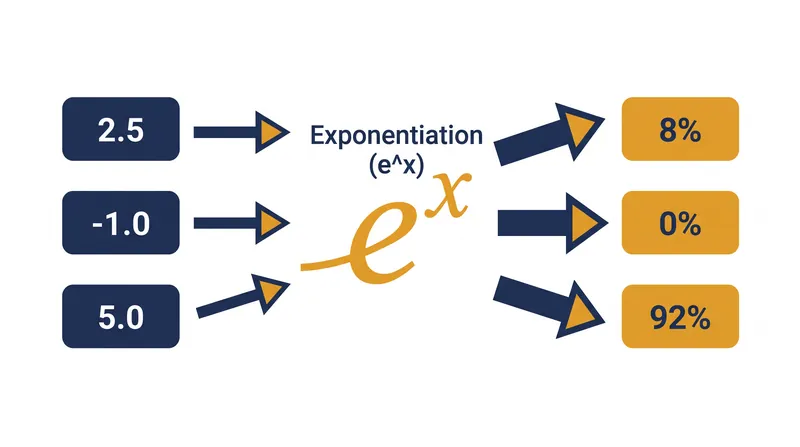

The mechanism operates in two distinct steps, beginning with exponentiation. The function takes the mathematical constant e—approximately 2.718—and raises it to the power of each logit. This step serves a dual purpose. First, it transforms any negative raw scores into positive numbers, which is a strict requirement for calculating valid probabilities. Second, it acts as an aggressive amplifier for the model's top choices.[3][7]

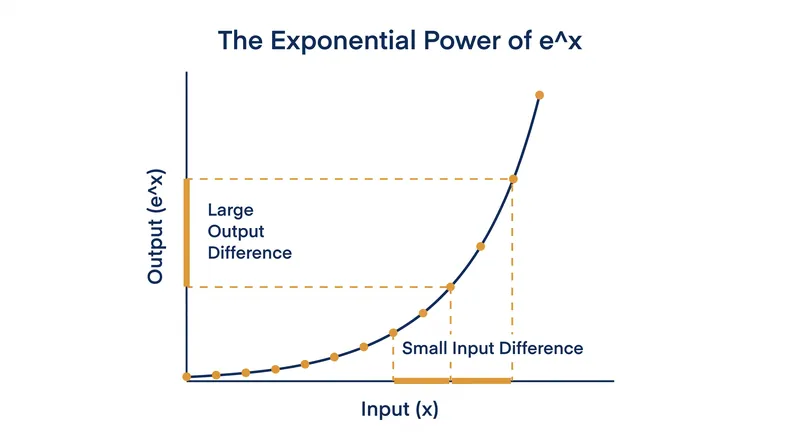

Because the curve of e raised to the power of x grows exponentially, small differences in the raw logits become massive differences in the exponentiated values. If one word has a logit of 4 and another has a logit of 5, the raw difference is just 1. But after exponentiation, the first becomes roughly 54.6, and the second becomes 148.4. The function aggressively rewards the model's top choices, separating the likely words from the background noise of the vocabulary.[7]

The second step is normalization. The system calculates the sum of all the newly exponentiated values across the entire vocabulary. It then divides each individual exponentiated value by that total sum. This division guarantees that the final outputs will always add up to exactly 100 percent, creating a valid probability distribution that a sampling algorithm can use to pick the next token.[1][5]

"The softmax function is often used as the last activation function of a neural network to normalize the output of a network to a probability distribution over predicted output classes," notes the Wikipedia entry on the subject. In the context of large language models, those output classes are the individual tokens—words, sub-words, or characters—that the model knows how to generate.[1]

For modern language models, this calculation is computationally demanding. A standard model might have a vocabulary of 50,257 tokens, meaning the softmax function must calculate 50,257 exponents and divide each by the total sum, every single time it generates a single word. As models scale up to vocabularies of 128,000 or more, the hardware burden of this final layer increases significantly.[7]

Researchers are actively working to optimize this bottleneck. A January 2025 paper published on arXiv introduced "Scalable-Softmax," a modified approach designed to improve performance in attention mechanisms. The authors argue that their method "is superior for attention" because it reduces the memory and computational overhead required by the standard exponential calculations, allowing models to process information faster without losing accuracy.[2]

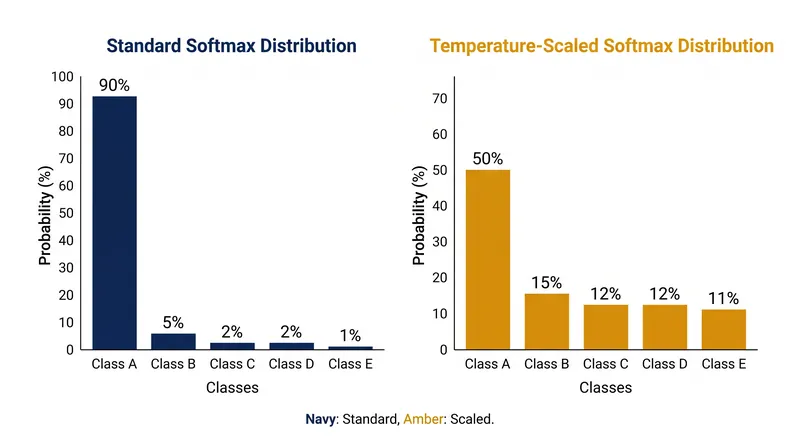

The behavior of the softmax function can also be manually adjusted by users through a parameter known as temperature. Temperature scaling intervenes just before the softmax calculation takes place. By dividing all the raw logits by a temperature value, users can change the shape of the final probability distribution and alter the creativity of the text.[4]

"Temperature is a hyperparameter that controls the randomness of the model's output," according to Machine Learning Mastery. "A high temperature makes the model more creative, while a low temperature makes it more focused and deterministic."[4]

When the temperature is set below 1.0—for instance, 0.5—the logits are effectively doubled before exponentiation. Because of the exponential curve, this stretches the distance between the top scores and the lower scores even further. The softmax function then converts this stretched gap into a probability distribution where the top choice dominates, often exceeding 90 percent probability, resulting in highly predictable text.[7]

Conversely, setting the temperature above 1.0 compresses the logits closer together. When these compressed values pass through the exponentiation function, the resulting probabilities are more evenly distributed. A word that might have had a 2 percent chance at a normal temperature might jump to a 10 percent chance, prompting the model to select less common words and generate more varied, unpredictable responses.[4][7]

The intuitive appeal of softmax lies in its ability to handle any input. As MetricGate explains in its beginner's guide, the function "takes an un-normalized vector, and normalizes it into a probability distribution." It does not matter if the neural network outputs logits in the hundreds or in the negative thousands; the math reliably forces them into a clean 0-to-1 range.[3]

However, this forced normalization also introduces a critical limitation in artificial intelligence interpretability. Because softmax always scales the outputs to sum to 100 percent, it masks the model's absolute confidence. If a model is completely unsure of the next word and outputs very low logits for every token, softmax will still elevate the highest of those low scores to look like a confident prediction.[7]

"Softmax function is a mathematical function that converts a vector of numbers into a vector of probabilities, where the probabilities of each value are proportional to the relative scale of each value in the vector," JumpCloud's technical overview states. The keyword is relative. The function only measures how much better one word is than the others, not whether any of the words are actually good choices.[5]

Despite these limitations, softmax remains the undisputed standard for the final layer of classification and generation models. From the original Transformer architecture published in 2017 to the frontier models deployed today, the exponentiation and normalization sequence is the universal translator that turns deep learning mathematics into human language.[7]

As the industry pushes toward larger vocabularies and faster generation speeds, the underlying math of the softmax layer will continue to be a target for hardware optimization. But the core mechanism—amplifying the likely and compressing the whole into a clean percentage—will remain the fundamental step that allows an AI to choose its words.[2][7]
