Cocoa Butter Polymorphism: Why Chocolate Tempering Requires One Stable Crystal Form

If you have ever tried to melt down a high-quality chocolate bar to coat strawberries or make truffles, you likely discovered a frustrating truth when it cooled: it didn't look or feel the same. Everyone assumes that tempering chocolate is simply a matter of melting it gently so it doesn't burn.

But heat control is not about protecting the chocolate from scorching. It is about forcing a stubborn, shape-shifting fat into exactly one of its six possible molecular structures. When you melt chocolate, you are erasing its physical memory; when you temper it, you are painstakingly teaching it how to be solid again.[1]

To understand why this is necessary, you have to look at the sensory experience of eating a truly exceptional piece of chocolate. When you pick it up, it shouldn't melt instantly against your fingers. When you break it, it should fracture with a clean, audible snap rather than bending or crumbling.

And when you place it on your tongue, it should melt rapidly and completely, flooding your palate with flavor without leaving a waxy residue behind. That specific sequence of physical events is entirely dependent on the crystal structure of cocoa butter.[1]

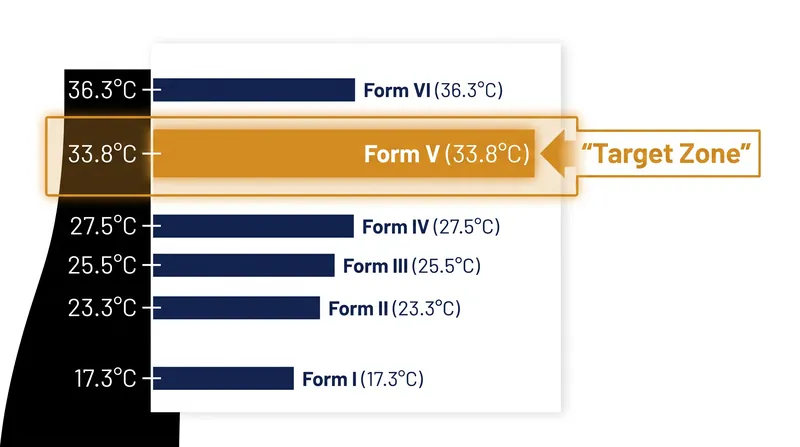

Cocoa butter is a polymorphic fat, which is a scientific way of saying it can solidify into multiple different shapes. Depending on how it is cooled, the triglyceride molecules in cocoa butter can stack themselves into six distinct crystal arrangements, known to food scientists as Forms I through VI. Each of these polymorphs has a different packing density, a different level of stability, and, most importantly, a different melting point.[2][4]

The first four polymorphs (Forms I through IV) are loose, unstable structures. They form when chocolate is cooled too quickly or without agitation. Because their molecules are not packed tightly together, they melt at very low temperatures—anywhere from 17.3°C (63°F) for Form I up to 27.5°C (81.5°F) for Form IV. If your chocolate sets into one of these forms, it will be soft, crumbly, and dull. Worse, it will melt sitting on the kitchen counter on a warm day, making it useless for molding or enrobing.[2]

At the other end of the spectrum is Form VI. This is the most tightly packed and stable crystal structure cocoa butter can achieve. However, it is actually too stable for culinary use. Form VI crystals have a melting point of 36.3°C (97.3°F). Because average human body temperature is around 37°C, Form VI chocolate requires too much thermal energy to melt in the mouth. Instead of a luxurious, cooling melt, it feels hard, grainy, and distinctly waxy against the palate.[2]

That leaves the culinary holy grail: Form V, also known as the Beta crystal. Form V is the only polymorph that delivers the exact physical properties we associate with premium chocolate. It melts at 33.8°C (92.8°F). This specific temperature is the thermodynamic sweet spot: it is high enough that the chocolate remains rock-solid and snappy at room temperature, but low enough that it yields instantly to the heat of the human mouth.[2][4]

The problem for home cooks and pastry chefs is that Form V crystals do not simply appear on their own when melted chocolate is left to cool. Left to its own devices, cocoa butter will crystallize chaotically into a mixture of the unstable lower forms. To force the cocoa butter exclusively into the Form V structure, you have to run the chocolate through a highly specific thermal obstacle course known as tempering.[1]

The tempering process begins with a complete reset. The chocolate is heated to around 45°C (113°F), which is well above the melting point of all six polymorphs. This melts every existing crystal, turning the cocoa butter into a completely liquid, unstructured state. From this blank slate, the temperature is rapidly dropped to around 27°C to 28°C (81°F to 82°F).[1]

At this cooler temperature, the cocoa butter begins to solidify again. However, because the temperature is hovering right around the melting point of Form IV (27.5°C), the chocolate begins to develop a mixture of both the unwanted Form IV crystals and the desired Form V crystals. If you were to let the chocolate set at this stage, it would be unstable and prone to blooming.[2]

The crucial final step is the reheat. The chocolate is carefully warmed back up to exactly 31°C to 32°C (88°F to 90°F). This is where the magic happens. At 31°C, the temperature is warm enough to completely melt away the unstable Form IV crystals, but it is not quite warm enough to melt the Form V crystals. The Form IV crystals dissolve back into liquid, leaving only the stable Form V crystals suspended in the bowl.[2]

These remaining Form V crystals act as microscopic seeds. As you use the chocolate to dip truffles or fill molds, and it finally cools down to room temperature, those seeds dictate the structure of the rest of the fat. They force the remaining liquid cocoa butter to align itself into the tightly packed Form V configuration, resulting in a perfectly glossy, snappy finish.[4]

The margin for error is incredibly thin. If you accidentally heat the chocolate to 34°C (93°F) during that final stage, you will melt your Form V seed crystals, ruining the temper. You have to start the entire process over from the beginning. If you fail to temper the chocolate correctly, the unstable crystals will eventually try to reorganize themselves into more stable forms over time.[2]

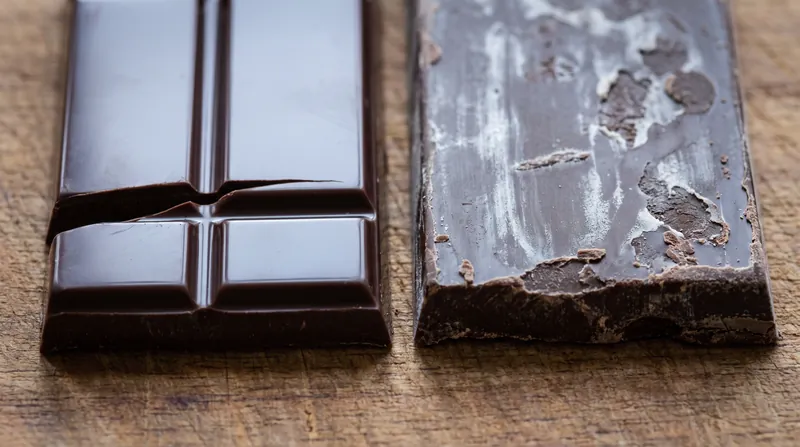

This reorganization is what causes 'fat bloom'—the dusty, white streaks that sometimes appear on old or poorly stored chocolate. As the unstable Form IV crystals slowly transition into the ultra-stable Form VI crystals, the cocoa butter physically migrates to the surface of the chocolate and recrystallizes. While bloomed chocolate is perfectly safe to eat, its texture is ruined, having lost the crisp snap and smooth melt that makes the confection so appealing.[2]

Modern commercial chocolate production relies on massive, continuous tempering machines that precisely control these temperature curves using scraped-surface heat exchangers. But whether you are using a million-dollar industrial enrober or a glass bowl set over a saucepan of simmering water in your home kitchen, the physics remain identical. You are not just cooking; you are practicing applied materials science, manipulating the molecular geometry of fat to create a perfect sensory experience.[1]
