The No-Bleed Architecture: How the Boeing 787 Replaced Pneumatic Systems with Megawatt Electrical Grids

A standard Boeing 737NG relies on a 90 kVA engine-driven generator to keep its flight controls, avionics, and cabin systems alive. The Boeing 787 Dreamliner, by contrast, generates 1.45 megawatts in flight—distributing enough electricity through its 60 miles of wiring to power roughly 1,000 homes. That massive leap in electrical capacity is not a luxury upgrade for passenger entertainment. It is the foundation of a fundamentally different way to build an airliner.[1]

For decades, commercial aviation has relied on a pneumatic architecture known as a bleed air system. As a gas turbine engine compresses incoming air before combustion, valves tap into the compressor stage and siphon off a portion of that high-pressure, high-temperature airflow. This extracted air, which typically exits the engine pylon at 200 to 250 degrees Celsius and 40 psi, is routed through a complex network of ducts and heat exchangers.[2]

The Aircraft Owners and Pilots Association (AOPA) notes that while modern avionics and swanky cabins draw the public's attention, "it's a turbine airplane's bleed air system that does the grunt work." That pneumatic energy is used to pressurize the passenger cabin, run the air conditioning, inflate pneumatic de-icing boots or heat the wing leading edges, and even cross-start the second engine.[2][4]

But bleed air comes with a severe thermodynamic penalty. Every cubic foot of compressed air siphoned away from the combustion chamber is energy that is not being converted into forward thrust. The engine must work harder, burning more fuel, to compensate for the parasitic loss of the pneumatic off-take.

When Boeing launched the 787 program in April 2004, the manufacturer committed to a 20 percent reduction in fuel burn compared to the similarly sized Boeing 767. Achieving that required replacing the traditional aluminum airframe with carbon-fiber composites, but it also required rethinking the aircraft's internal metabolism. The 787 became the first large commercial jet to adopt a "no-bleed" or "more-electric" architecture.[5]

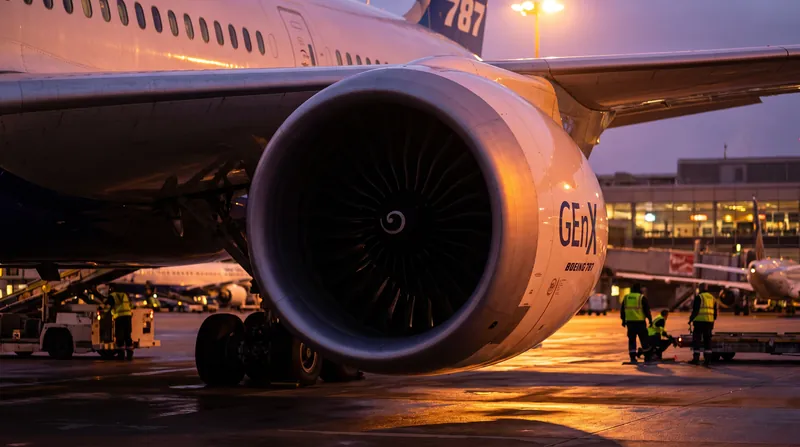

Instead of robbing the Rolls-Royce Trent 1000 or General Electric GEnx engines of their compressed air, the 787 leaves the engine airflow intact to generate thrust. The only remaining pneumatic bleed on the aircraft is a small system dedicated solely to anti-icing the engine cowls. Everything else has been electrified.

To pressurize the cabin, the 787 draws fresh outside air through dedicated intakes and compresses it using heavy-duty electric compressors. To prevent ice accumulation on the wings, the aircraft uses electro-thermal heating blankets embedded in the leading edges rather than piping 500-degree Fahrenheit air through the wings.[4][5]

Shifting those massive mechanical loads to the electrical grid requires an unprecedented generation capacity. According to a 2016 report by the National Academies of Sciences, Engineering, and Medicine, "The Boeing 787 provides the most relevant baseline for a total power system rating of 1 MW with understood size and weight metrics." The aircraft utilizes four 250 kW generators on the main engines, supplemented by auxiliary power, to meet the demand.[3]

Pushing 1.45 megawatts of power through an airframe presents a distinct engineering challenge: the weight of the copper wiring. Traditional transport-category aircraft operate on a 115-volt AC network running at 400 hertz. If Boeing had attempted to distribute megawatt-class power at 115 volts, the required conductor gauge would have added thousands of pounds to the aircraft's empty weight.[1]

To solve the weight problem, engineers doubled the voltage. The 787 utilizes a ±270-volt DC distribution network for its heaviest loads. Because doubling the voltage cuts the required current in half for the same power output, the aircraft can use significantly thinner, lighter wiring. This high-voltage DC architecture is shared by advanced military airframes like the F-35 Lightning II, which utilizes two 80 kW generators.[1][3]

The transition to a no-bleed architecture fundamentally alters the passenger experience. In a traditional airliner, the cabin altitude is typically maintained at around 8,000 feet, limited by the pressure differential the aluminum fuselage can handle and the capacity of the bleed air system. The 787's composite barrel and electric compressors allow the cabin to be pressurized to a much lower 6,000 feet.[5]

Furthermore, because the electric environmental control system does not rely on superheated engine air that must be aggressively cooled and dehumidified, the 787 can maintain higher humidity levels in the cabin. The result is a noticeable reduction in passenger fatigue, dry eyes, and dehydration on ultra-long-haul routes.

The shift is not without its operational trade-offs. The high-voltage DC network requires solid-state power controllers rather than traditional mechanical relays, as 270-volt DC arc faults are notoriously difficult to extinguish. Maintenance technicians who spent decades tracing pneumatic leaks and replacing mechanical valves must now diagnose complex software logic and power conversion units.[1]

Despite the complexity, the efficiency gains have reshaped airline economics. By allowing the engines to operate at their peak thermodynamic efficiency, the no-bleed architecture contributes heavily to the aircraft's extended range. As of 2026, the 787 fleet has enabled dozens of direct, long-haul routes between secondary cities that would have been financially unviable with older, pneumatically dependent aircraft.[5]
