The Mechanics of the TCP/IP Stack: How the Four Layers Actually Transmit Data Across the Internet

People often imagine the internet as a continuous pipe where a photo or a text message slides from one device to another in a single, unbroken stream. The reality is far more industrial. The internet does not send files; it sends microscopic, rigidly formatted envelopes of data. This illusion of a seamless stream is maintained by the TCP/IP stack, a four-layer architecture that chops, wraps, routes, and reassembles every piece of digital information you consume.[5]

When marketing materials talk about 'the cloud' or 'blazing fast fiber,' they obscure the bureaucratic heavy lifting happening at the protocol level. The Transmission Control Protocol/Internet Protocol (TCP/IP) suite is less of a physical network and more of a universal language. Developed in the 1970s by the Department of Defense, it was designed to survive network failures by ensuring no single node was essential. Today, it survives the sheer chaos of billions of devices talking at once.[5][6]

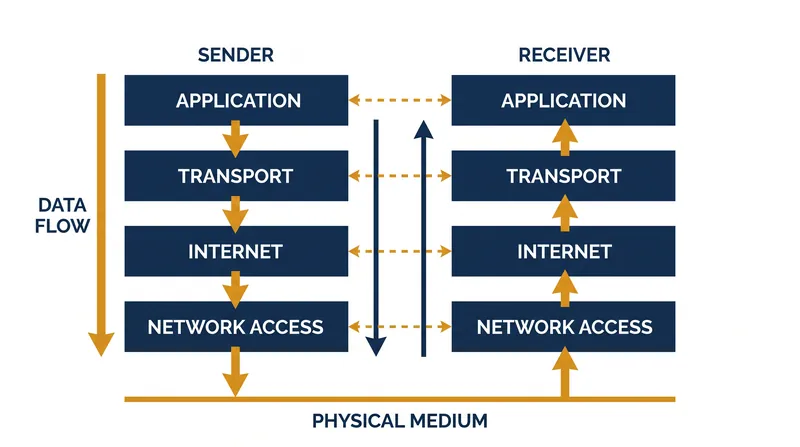

The stack is divided into four distinct layers: Application, Transport, Internet, and Network Access. Think of it as a postal system where a letter is put into an envelope, which is put into a mailbag, which is loaded into a truck. Each layer only communicates with its direct counterpart on the receiving end, completely ignorant of the layers above or below it.[3][6]

The Application layer is where users actually interact with the network. When you open a web browser, protocols like HTTP or HTTPS take your request and format it. This layer does not care how the data gets to the server; it only cares about the syntax of the request. It hands a pristine, unfragmented message down to the next layer, assuming the network will somehow figure it out.[4]

The Transport layer, primarily governed by TCP, is where the heavy lifting begins. TCP takes the Application layer's massive file and aggressively chops it into manageable chunks called segments. It is a 'connection-oriented' protocol, meaning it demands a formal handshake before sending anything, and it requires a receipt for every segment delivered.[1][6]

This reliability comes at a cost. Every TCP segment is slapped with a header of at least 20 bytes. This header contains critical metadata: the source port, the destination port, and a sequence number so the receiving computer knows how to stitch the chopped-up file back together. If a segment goes missing, TCP stubbornly halts the assembly line and demands a retransmission.[1]

Once the Transport layer has chopped and labeled the segments, it hands them down to the Internet layer. Here, the Internet Protocol (IP) takes over. IP does not care about sequence numbers or guaranteed delivery. Its only job is routing. It wraps the TCP segment into a new envelope called an IP packet, adding another 20 bytes of overhead for standard IPv4.[2][5]

The IP header stamps the packet with the source and destination IP addresses. This is the GPS coordinate of the internet. As the packet leaves your device, it bounces from router to router across the globe. Each router looks only at the destination IP address, consults its routing table, and shoves the packet closer to its final home.[2][3]

Finally, the packet reaches the Network Access layer, sometimes called the Link layer. This is where the digital meets the physical. Whether it is Ethernet cables, Wi-Fi radio waves, or fiber optics, this layer translates the IP packet into electrical impulses or light pulses. It wraps the packet one last time into a 'frame,' adding MAC addresses to navigate the local physical network.[3][6]

As the frame travels across the physical medium, it may pass through dozens of intermediate routers. At each hop, the router strips away the Network Access frame, inspects the IP packet to find the destination, and then wraps it in a brand new frame for the next leg of the journey. The inner TCP segment and Application data remain untouched, safely encapsulated inside.[2][5]

When the frame finally arrives at the destination server, the process reverses. The server's Network Access layer strips the frame and hands the packet up. The Internet layer verifies the IP address and strips the IP header. The Transport layer looks at the TCP sequence numbers, waits for all the pieces to arrive, puts them in order, and acknowledges receipt.[1][3]

Only after the entire file is perfectly reassembled does the Transport layer hand it up to the Application layer. The web server receives the HTTP request exactly as you sent it, completely unaware that it was just blasted across the ocean in a thousand microscopic, heavily-taxed pieces.[4][6]

It is worth noting that TCP is not the only player in the Transport layer. For applications where speed is more important than perfect accuracy—like live video streaming or online gaming—the stack uses UDP (User Datagram Protocol). UDP skips the handshake and the receipts. It just blasts packets at the destination and hopes for the best, sacrificing reliability for raw speed.[1][6]

The true genius of the TCP/IP stack is this strict separation of concerns through encapsulation. Because the Application layer does not need to know about Wi-Fi frequencies, and the IP layer does not need to know if it is carrying an email or a video, the internet can constantly evolve. We replaced copper wire with fiber optics without having to rewrite the HTTP protocol.[3][5]

While the four-layer model has survived for decades, it is under constant pressure. The transition from IPv4 to IPv6 was necessary because we ran out of addresses, and new protocols like QUIC are attempting to merge the Transport and Application layers to reduce the latency of TCP's obsessive handshakes. Yet, the foundational mechanics of chopping, wrapping, and routing remain the bedrock of human connectivity.[2][5]
