Panama Canal's 18 Lateral Basins Use Gravity to Recycle 60% of Lock Water

The Panama Canal is a gravity-powered water elevator, and for over a century, its fundamental flaw was that it only went one way. Every time a vessel passed through the original 1914 locks, approximately 52 million gallons of freshwater from Gatun Lake were flushed out into the ocean. As global shipping volumes swelled, that one-way trip became a hydrological crisis for a country that relies on the same lake for its drinking water.[1][4]

When the Panama Canal Authority (ACP) designed the $5.2 billion expansion project, which opened in 2016, they faced a mathematical paradox. The new Neopanamax locks needed to accommodate vessels with 2.4 times the cargo capacity of the older ships, requiring lock chambers that were 18.3 meters deep. Yet, the canal simply did not have the freshwater reserves to scale up its water consumption proportionally.[1][4]

The engineering solution was the implementation of Water-Saving Basins (WSBs). Instead of discharging all the water into the sea as a ship is lowered, the Neopanamax locks recycle it. The result is a massive efficiency gain: the new locks use 7% less water per transit than the original Panamax locks, despite moving vastly larger ships.[1][4]

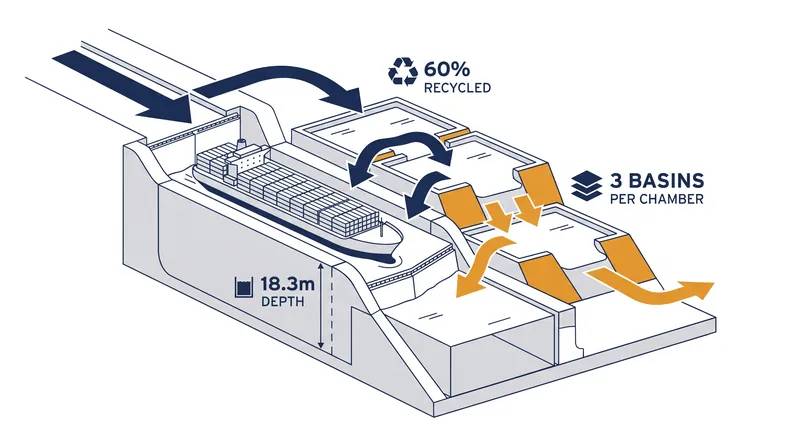

The mechanics rely entirely on gravity and valves, with no mechanical pumps involved. Each of the new lock chambers—located at Agua Clara on the Atlantic side and Cocoli on the Pacific—is flanked by three lateral basins arranged in a tiered formation. Across the entire expanded canal, there are 18 of these basins in total, each with a surface area equivalent to 25 Olympic-size swimming pools.[1][3]

When a Neopanamax vessel needs to be lowered to sea level, the lock chamber does not simply open its lower valves. Instead, the top 20% of the chamber's water is drained into the highest lateral basin. The next 20% flows into the middle basin, and the subsequent 20% fills the lowest basin. Only the remaining 40% of the water is flushed out to sea.[1][4]

When the next ship arrives and needs to be lifted 26 meters up to the level of Gatun Lake, the process reverses. The lowest basin empties its stored water into the lock chamber first, followed by the middle basin, and finally the highest basin. This gravity-fed sequence recovers exactly 60% of the water used in the previous lockage.[1][3][4]

“The water used during each lockage comes directly from Gatun Lake, Panama's main supply of drinking water, so it is absolutely critical we manage this resource responsibly,” noted former Panama Canal Administrator Jorge L. Quijano when the first basins were tested in early 2016.[3]

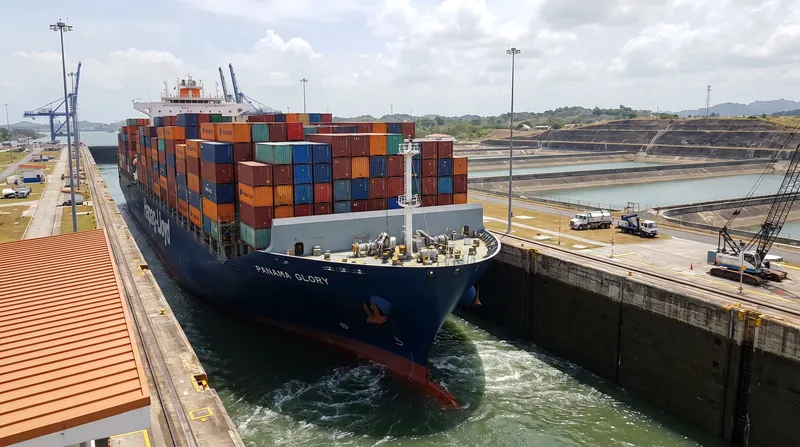

However, the closed-loop system introduced an unintended consequence: saltwater intrusion. Because saltwater is denser than freshwater, it settles at the bottom of the lock chambers. When the water-saving basins draw water to recycle, they inadvertently capture this denser, saline water and hold it for the next transit.[4]

As this recycled water is pumped back into the chambers and the ships move upward, the trapped salt is carried step-by-step up the lock system. Eventually, it breaches Gatun Lake. Because the ACP is constitutionally mandated to prioritize the potability of the national water supply over maritime operations, the use of the basins must be carefully throttled.[4]

Current ACP head administrator Dr. Ricaurte Vásquez Morales and the canal's water management team meet multiple times a week to track salinity levels in the lake. During periods of severe drought, when freshwater runoff is insufficient to flush the salt back out to sea, the ACP is sometimes forced to suspend the use of the basins entirely, reverting to the water-heavy, single-use lockage method to protect the drinking supply.[4]

To compensate for these limitations, the ACP has retrofitted older infrastructure with new conservation tactics. In the original two-lane Panamax locks, engineers now utilize cross-filling. By opening subterranean culverts between the parallel lanes, water from a descending ship in one lane is transferred directly to lift an ascending ship in the adjacent lane.[4]

This cross-filling technique saves the equivalent of six daily transits' worth of water without requiring new basins. Combined with the Neopanamax recycling system, these measures represent a structural shift in how the world's most critical maritime chokepoint operates, transforming it from a passive conduit into an actively managed hydrological machine.[4][5]
