The Mechanics of the P-Trap: How Water Seals Actually Prevent Sewer Gas From Entering the Home

In 1775, a Scottish watchmaker named Alexander Cummings patented a simple bend in a pipe that fundamentally changed human habitation. Before his invention, indoor plumbing was essentially a direct conduit for noxious, sometimes lethal, sewer gases to enter living spaces. Cummings's design, originally called the S-trap, introduced a deliberate curve that retained a small amount of water after each use.[5]

For today's homeowner or renter, that same basic geometry—now refined into the modern P-trap—is the only thing standing between a pristine bathroom and the municipal sewer system. It is a masterpiece of passive engineering. It requires no electricity, has no moving parts, and relies entirely on the physical properties of fluid equilibrium to protect the indoor environment.[6]

The mechanism is brilliantly simple. When water flows down a sink or shower drain, gravity pulls it through the plumbing system. As the flow stops, the final few ounces of water pool in the lowest part of the U-shaped curve. This pooled water creates an airtight seal across the entire internal diameter of the pipe.[1][2]

This barrier is not optional. Municipal sewers and residential septic tanks are essentially massive bioreactors, constantly producing a mixture of hydrogen sulfide, ammonia, and methane as organic waste breaks down. Without the water seal, these gases drift upward through the drainage pipes, seeking the path of least resistance directly into the home.[7]

The consequences of a breached seal range from a mild nuisance to a severe health hazard. Hydrogen sulfide, responsible for the characteristic rotten egg smell, can cause headaches, nausea, and respiratory irritation even at low concentrations. In extreme cases, concentrated sewer gas can displace oxygen or create a localized explosion risk.[7]

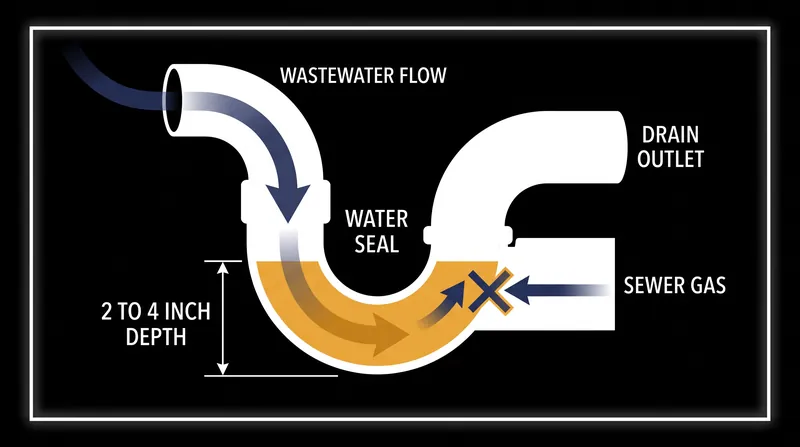

To ensure this barrier remains intact, the International Plumbing Code (IPC) and the International Residential Code (IRC) strictly regulate trap geometry. The codes mandate that the liquid seal must be between two and four inches deep, a measurement taken from the trap's lowest internal curve to the point where water begins to spill down the drain.[1][2]

This specific depth is a carefully calculated compromise. If the seal is shallower than two inches, the water evaporates too quickly, leaving the home vulnerable. If the seal is deeper than four inches, the velocity of the draining water slows down too much as it pushes through the trap, allowing hair, soap scum, and debris to settle and cause chronic clogs.[1][6]

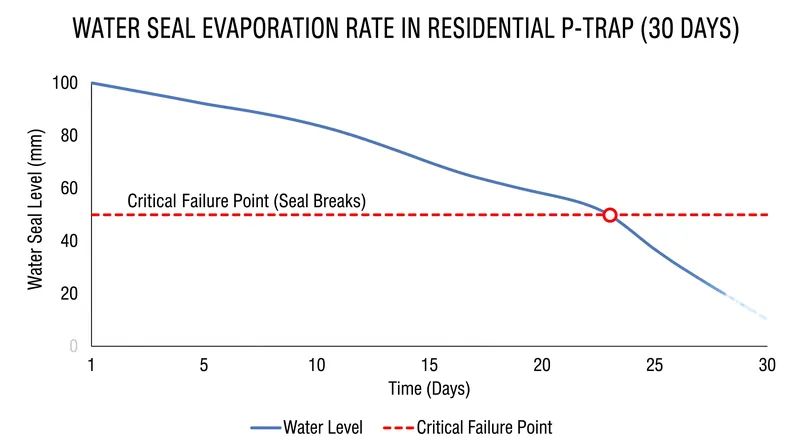

Despite these stringent regulations, P-traps fail regularly in residential settings. For the average homeowner, the most common cause of failure is simple evaporation. A guest bathroom sink, a basement floor drain, or a rarely used shower will slowly lose its water seal to the surrounding air. Once the water level drops below the upper curve of the pipe, the seal is broken.

A more complex, and often more frustrating, failure mode involves fluid dynamics and pressure transients. If a home's plumbing system lacks proper venting, a large volume of water rushing down a nearby pipe—such as a flushing toilet—can create negative pressure in the drainage lines.[3]

Computational fluid dynamics (CFD) modeling demonstrates that this negative pressure acts like a vacuum. It pulls the water out of the trap and down the drain, a process known as siphoning. Researchers have mapped how the seal water oscillates wildly during these pressure events, rocking back and forth until the friction and pressure differential break the seal entirely.[3][4]

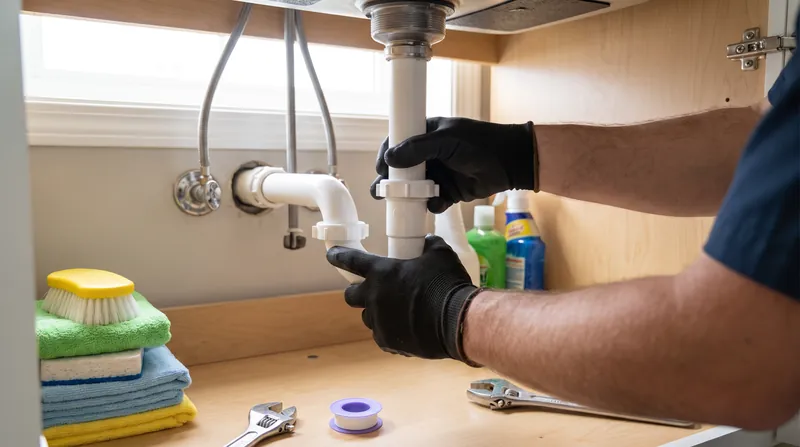

This siphoning vulnerability is precisely why Cummings's original S-trap design is now banned in modern building codes. The S-shape creates a long downward leg immediately after the trap, which amplifies the siphon effect. The modern P-trap solves this by exiting horizontally into a vented wall pipe, introducing air behind the draining water to break the vacuum.[2][5][6]

For high-rise buildings, the physics become even more extreme. CFD simulations of unsteady friction in vertical drainage stacks show that wind shear over roof vents and massive falling water columns can cause trap seals on lower floors to oscillate and deplete even without direct siphoning, requiring specialized venting solutions.[3][4]

Understanding these mechanics translates directly into practical home maintenance. The solution to a mysterious sewer smell in a guest bathroom is rarely a costly plumbing repair; it is usually as simple as running the tap for ten seconds to replenish the evaporated seal.

For fixtures that are chronically dry, such as utility room floor drains, building codes often require a trap primer. This small valve automatically injects a tiny spurt of water into the trap whenever a nearby fixture is used, ensuring the passive barrier remains intact without the homeowner ever having to think about it.[1]
