The Evidence Pack: Drone Imagery Reveals 97% Coral Mortality at Lizard Island

The Great Barrier Reef has experienced a severe mass bleaching event, and new high-resolution drone imagery has quantified the exact toll at Lizard Island with unprecedented precision. According to a quantitative assessment published by an international team of researchers, up to 97% of corals in the surveyed northern sections died over a three-month period. This evidence pack provides the first ecosystem-scale confirmation of mortality following the recent thermal anomalies. By utilizing advanced aerial mapping, scientists have bypassed the logistical bottlenecks of traditional scuba surveys, delivering a stark, undeniable record of the reef's condition. The data highlights both the severe impact of record sea temperatures and a major breakthrough in open-source ecological monitoring.[1][2]

The study represents a fundamental shift in how marine biologists gather and process evidence. Researchers from Macquarie University, Griffith University, James Cook University, and GeoNadir collaborated to map the reef using consumer-grade technology. To build this comprehensive dataset, the team deployed DJI Mini 3 Pro and Autel Evo II drones to capture high-resolution orthomosaics in March during the peak of the bleaching, and again in June to measure survival rates. These off-the-shelf drones, equipped with standard 4K cameras, proved highly capable of capturing the intricate spatial details of the shallow reef flats, proving that expensive, bespoke military-grade hardware is no longer required for top-tier ecological research.[3][4]

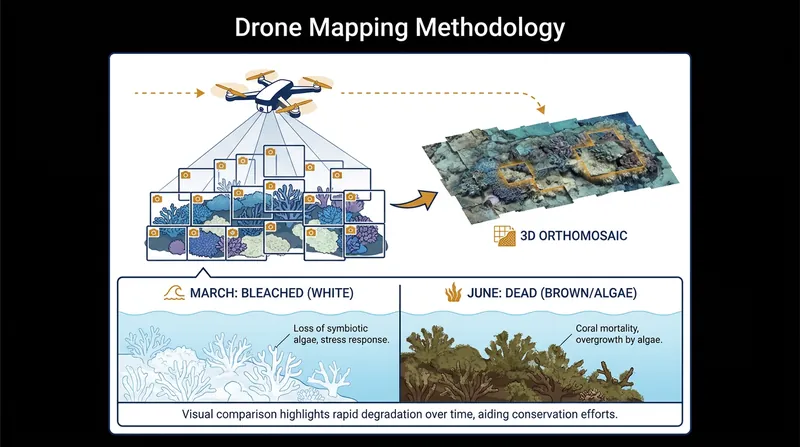

Traditionally, marine biologists relied heavily on in-water diver surveys to assess reef health. While scuba surveys are highly accurate for identifying specific coral species and diagnosing localized marine diseases, they are logistically constrained, expensive, and physically demanding. A team of divers might take weeks to survey a single reef system, struggling to capture ecosystem-scale changes rapidly. Drones, on the other hand, allow for rapid, ecosystem-level mapping without losing the precision required for rigorous scientific analysis. A single drone flight can capture thousands of overlapping images in minutes, which are then stitched together into a geometrically accurate 3D model of the seafloor.[3][4][6]

Using the GeoNadir cloud platform, scientists manually digitized areas of bleached coral and live coral across twenty standardized 10-by-10-meter quadrats. The researchers ran union operations on the geospatial data to prevent double-counting overlapping polygons, ensuring a highly rigorous statistical output. This interactive, collaborative approach allowed multiple scientists from different institutions to analyze the same dataset simultaneously, cross-referencing their findings to eliminate human error. The resulting data provided a highly accurate, pixel-by-pixel calculation of exactly how much coral had transitioned from a bleached state to full mortality.[4]

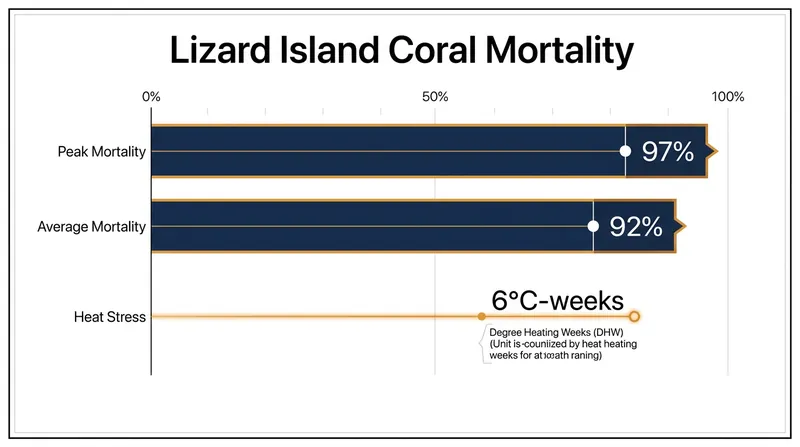

The findings on mortality were stark and undeniable. The average bleaching mortality rate across the 20 surveyed sections was 92%, peaking at an unprecedented 97% at North Point reef. The context of the heat stress makes the data particularly concerning for marine ecologists. The heat stress at Lizard Island was relatively moderate—around 6°C-weeks—compared to other parts of the Great Barrier Reef that experienced even higher thermal loads. This suggests that the thermal tolerance of these specific corals has been severely compromised by repeated historical bleaching events, leaving them highly vulnerable to even minor temperature spikes.[3][4]

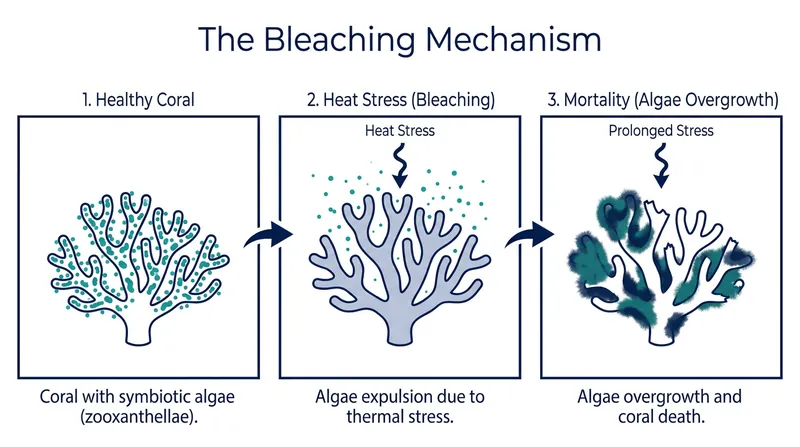

The biological mechanism behind this mass mortality event is well understood by marine scientists. Corals expel their symbiotic zooxanthellae algae when subjected to prolonged temperature spikes above the maximum monthly mean. This expulsion turns the corals completely white, a stress response known as bleaching. The zooxanthellae provide the coral with up to 90% of its energy through photosynthesis, meaning a bleached coral is actively starving. If the surrounding water remains too warm for the algae to return, the coral's energy reserves are eventually depleted, leading to tissue death and the collapse of the colony.[5]

Bleaching itself is not immediate death; corals can recover and regain their algae if water temperatures drop quickly enough. However, the sequential drone imagery confirmed that the bleached corals at Lizard Island did not recover. Instead, the bright white skeletons documented in March had turned dark brown by June, indicating that the corals had starved and were rapidly overgrown by turf algae. This transition from bleaching to mortality permanently alters the reef's complex three-dimensional structure, replacing a vibrant, growing ecosystem with a static, degrading graveyard that offers little value to the thousands of fish species that rely on it.[1][4][5]

To understand the broader context of this localized mortality, it is crucial to look at long-term, system-wide data. The Australian Institute of Marine Science (AIMS) noted that prior to this thermal stress event, hard coral cover on the northern reef had actually reached a historic 38-year high of 36%. This remarkable recovery followed several years of reduced Crown-of-Thorns starfish outbreaks and lower cyclone activity. However, AIMS surveys indicate that approximately 73% of surveyed reefs across the entire Great Barrier Reef showed some degree of bleaching during the latest summer, a significant increase from the 60% recorded in the previous event.[5]

While the drone data at Lizard Island is highly precise, researchers maintain transparent uncertainty regarding the rest of the reef. The 97% mortality figure represents a specific, shallow-water environment and cannot be uniformly extrapolated to the entire 2,300-kilometer system. Furthermore, the drone methodology has a strict depth limitation. Drones are incredibly effective for mapping shallow-water reef flats, but their optical penetration is limited by water turbidity and surface glare. This means that deeper mesophotic corals, which may have escaped the worst of the surface heat stress, still require traditional underwater assessment by scuba divers or autonomous underwater vehicles.[4][5][6]

Beyond the grim ecological findings, the study represents a major breakthrough in collaborative open science. The drone datasets were made publicly available on the GeoNadir platform immediately after collection, rather than being siloed on private university servers for years. This transparency allows independent researchers globally to verify the mortality calculations, track changes over time, and apply advanced machine learning algorithms to the raw imagery. By democratizing access to high-resolution ecological data, the scientific community can accelerate the development of automated reef health assessments, turning raw pixels into actionable conservation metrics in near real-time.[4][6]

The research team is now conducting follow-up surveys funded by the Australian Museum to track any potential long-term recovery or structural collapse of the reef framework into 2026. As the dead coral skeletons become brittle, they are highly susceptible to being smashed by wave action and winter storms, which would flatten the habitat that countless marine species rely on. Ultimately, the integration of consumer-grade drones and cloud-based geospatial analysis has fundamentally changed how marine mortality is measured. It provides policymakers, conservationists, and the public with an undeniable, quantifiable record of climate impacts, ensuring that the true cost of rising sea temperatures is documented with absolute clarity.[2][3][4]
