The Bayer Mosaic: Why Every Digital Camera is Fundamentally Colorblind

Every second, a modern smartphone camera captures 12 million distinct points of light, but not a single one of them contains a true color. Measured on the basis of raw photon capture, your digital camera is entirely colorblind.

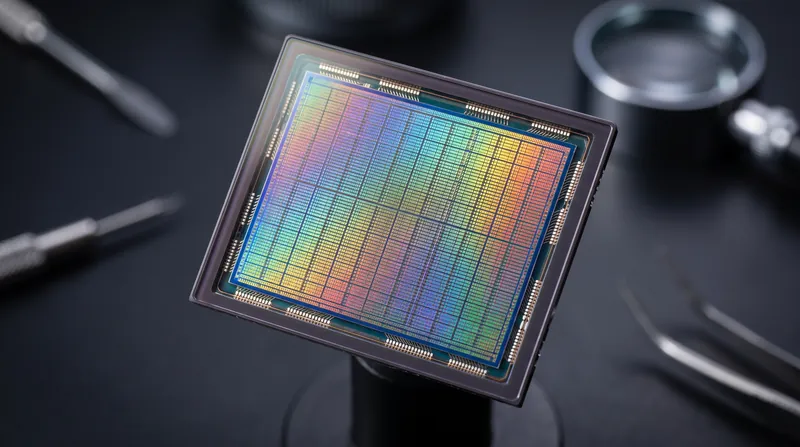

At the silicon level, the photodiodes that make up an image sensor are just microscopic buckets collecting rain; they can count how many photons hit them, but they have no idea what color those photons are. If you were to look at the raw data coming straight off the chip, the world's most vibrant sunset would render as a checkerboard of varying gray tones.[1][4]

The fact that we see digital photographs in color at all is due to a brilliant, decades-old optical trick and a massive amount of mathematical guesswork. In 1976, an Eastman Kodak scientist named Bryce Bayer patented a solution to the silicon's colorblindness. He proposed bonding a physical grid of microscopic color filters directly over the pixel array. This Color Filter Array (CFA) acts like a stained-glass window over the sensor, forcing each individual pixel to record only one specific wavelength of light.[1]

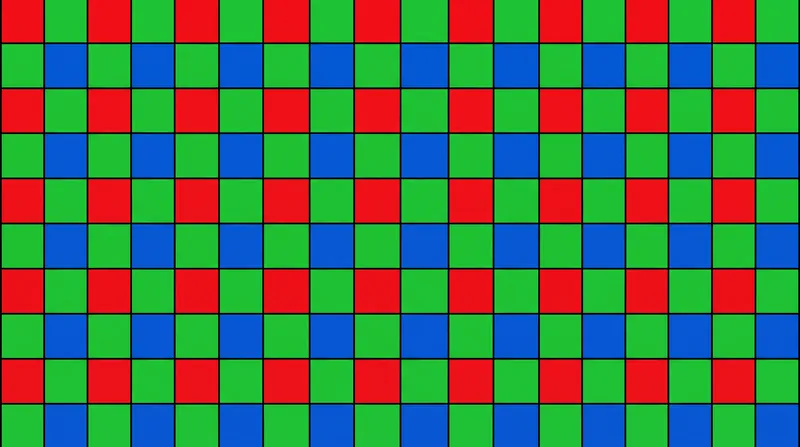

The Bayer pattern is not an even split. It divides the sensor into repeating 2x2 grids containing 1 red filter, 1 blue filter, and 2 green filters. Why the heavy bias toward green? It turns out Bayer was mimicking human biology. The human eye is naturally most sensitive to green wavelengths, which dominate our perception of luminance and detail. By doubling the green data, the sensor captures a much more accurate map of the image's overall brightness, producing a final image that feels natural to our visual system.[1]

But this physical filter creates a massive data deficit. Because each pixel is capped by a single color filter, it physically blocks the other two primary colors from registering a charge. A pixel under a red filter knows exactly how much red light hit it, but it is completely blind to green and blue.

Consequently, a 12-megapixel camera doesn't actually capture 12 million full-color pixels; it captures 6 million green pixels, 3 million red pixels, and 3 million blue pixels. Exactly 66% of the color data in the scene is simply thrown away before it ever hits the processor.[1][4]

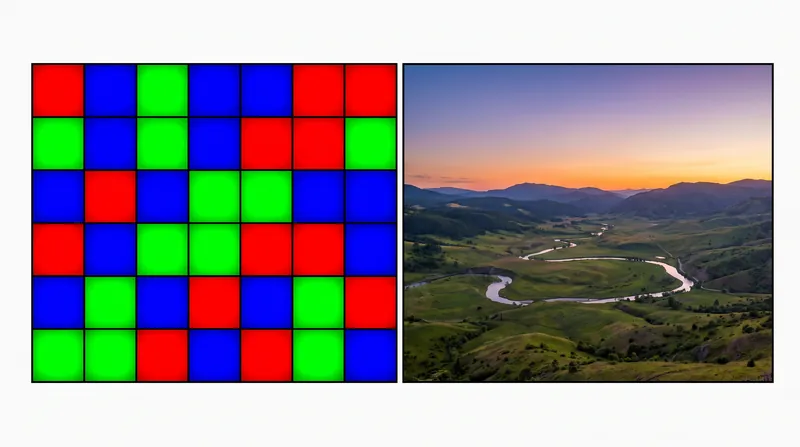

To turn this mosaic of single-color intensities into a viewable photograph, the camera's Image Signal Processor (ISP) must perform a computational magic trick known as demosaicing. Demosaicing is essentially an incredibly fast, highly educated guessing game. The algorithm looks at a red pixel, examines the green and blue pixels surrounding it, and mathematically interpolates what the missing green and blue values should have been. It does this for every single pixel, millions of times per second, stitching together a full-color image from incomplete fragments.[2]

The math behind demosaicing has evolved from simple bilinear interpolation to highly complex algorithms that detect high-contrast edges. If the software simply averaged the surrounding pixels indiscriminately, sharp lines in a photograph would turn into a blurry, color-fringed mess known as zippering. Modern ISPs are trained to identify boundaries and interpolate along those edges rather than across them, ensuring that the reconstructed color image remains sharp and free of false-color artifacts.[2]

While the Bayer filter is the undisputed industry standard, it is not the only way to solve the color problem. In 2002, Foveon introduced the X3 sensor, which discarded the mosaic approach entirely. Instead of placing color filters side-by-side, the Foveon sensor stacks three layers of photodiodes vertically within the silicon. This design relies on the physical property that different wavelengths of light penetrate silicon to different depths: blue light is absorbed near the surface, green in the middle, and red at the bottom.

The Foveon architecture allows every single spatial pixel to capture full red, green, and blue data simultaneously, eliminating the need for demosaicing and the artifacts that come with it. However, the design has a fatal flaw that kept it from overtaking Bayer. The individual silicon layers do not filter colors as cleanly as physical dyes, requiring aggressive mathematical matrices to separate the signals. In low-light conditions, this aggressive processing introduces catastrophic color noise, relegating stacked sensors to a niche market for studio photographers while the Bayer mosaic conquered the world.

Today, Sigma remains the sole torchbearer for Foveon technology, continuing to develop a 35mm full-frame stacked sensor with a 1:1:1 layered architecture that promises unmatched color fidelity. The development has been slow, plagued by heat dissipation and power consumption issues, but Sigma CEO Kazuto Yamaki remains committed, stating in late 2025 that "the Foveon chip will appear when the pixel is perfect."

But for the rest of the world—from Hollywood cinema cameras to the phone in your pocket—the Bayer filter reigns supreme. Every digital memory we capture is, at its core, a black-and-white grid brought to life by an algorithm guessing the colors it cannot see.[3][4]
